User Manual for Tote Vision Full-Service Video Wall Mount for 40 to 65" Displays Click to enlarge the picture
Contents of the user manual for the Tote Vision Full-Service Video Wall Mount
- Product category: Monitor Wall Mounts Tote Vision
- Brand: Tote Vision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Tote Vision Monitor Wall Mounts
 |
User manual for the Tote Vision Full-Service Video Wall Mount contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Tote Vision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Tote Vision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Tote Vision product will considerably shorten its lifespan!
|

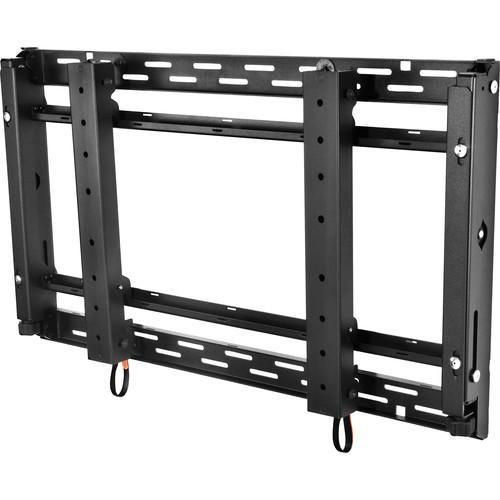

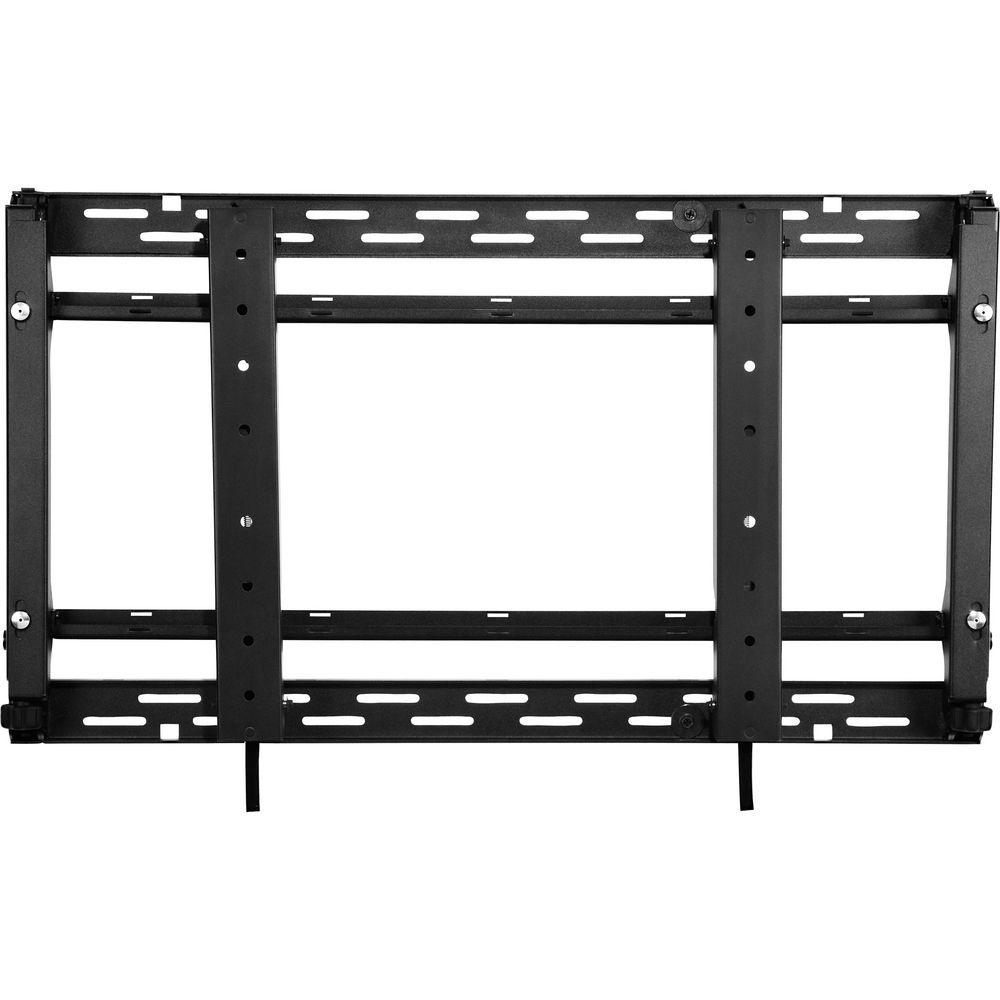

Product description The Full-Service Video Wall Mount for 40 to 65" Displays from Totevision is a full-service video wall mount. You can create many configurations, but leave the tedious calculations to the custom wall plate spacers. You can install the first mount, then use the custom wall plate spacers to correctly place each additional mount on the wall. The mount was designed to be ready-to-install out of the box, making it faster to install. It is 20% lighter than previous models and equipped with time saving features such as toolless micro-adjustments and easy-access to any display for quick serviceability. -
- Modular mount for unlimited video wall display configurations
- Custom wall plate spacers eliminate guesswork and on-site installation calculations

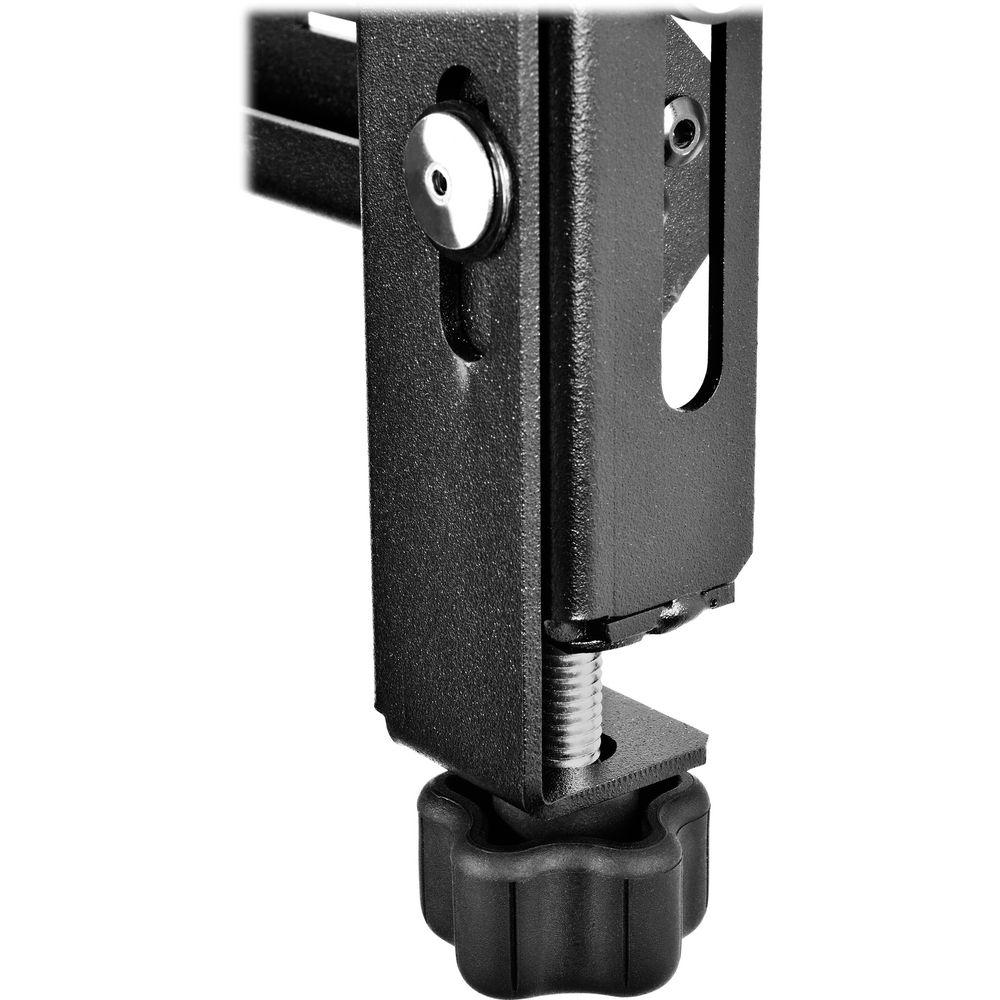

- Toolless micro-adjustments at 8 points seamlessly align the displays

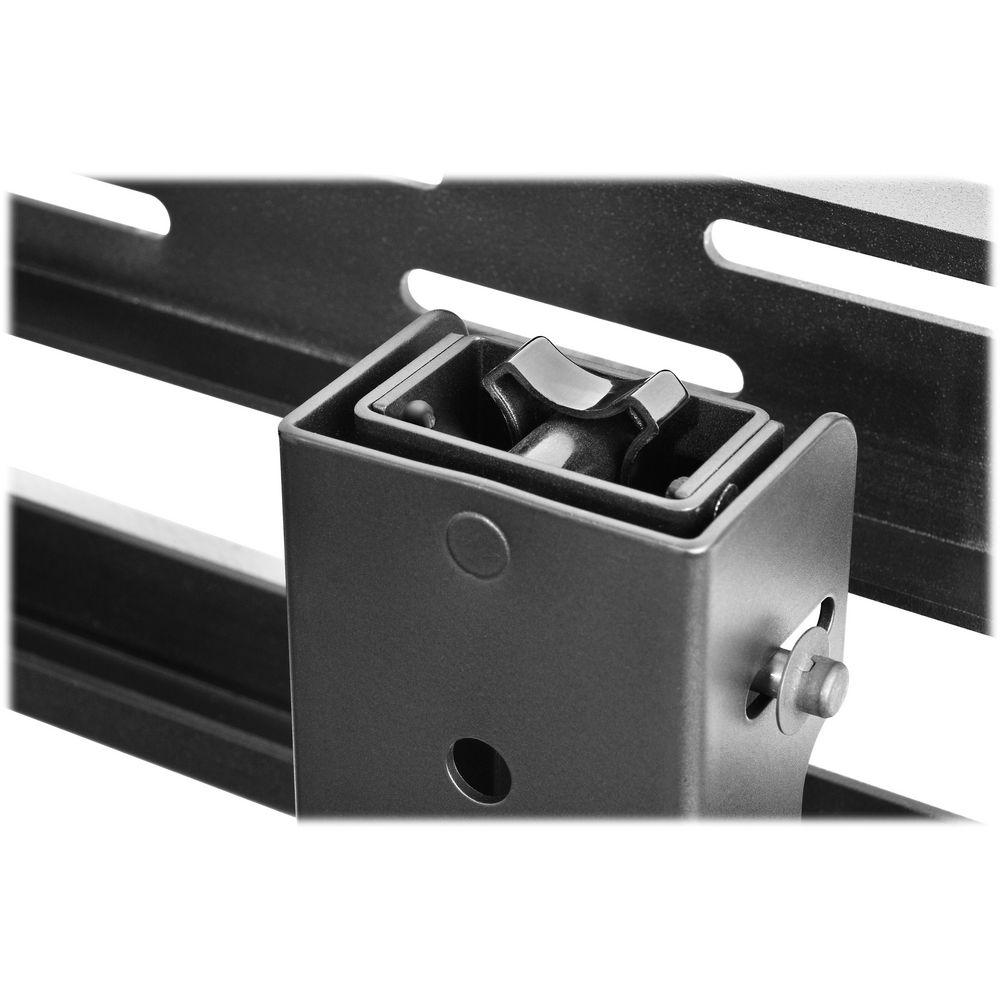

- Displays click securely into place against the wall with spring-loaded mechanism
- Displays and mounts sit flush against the wall for a clean side appearance

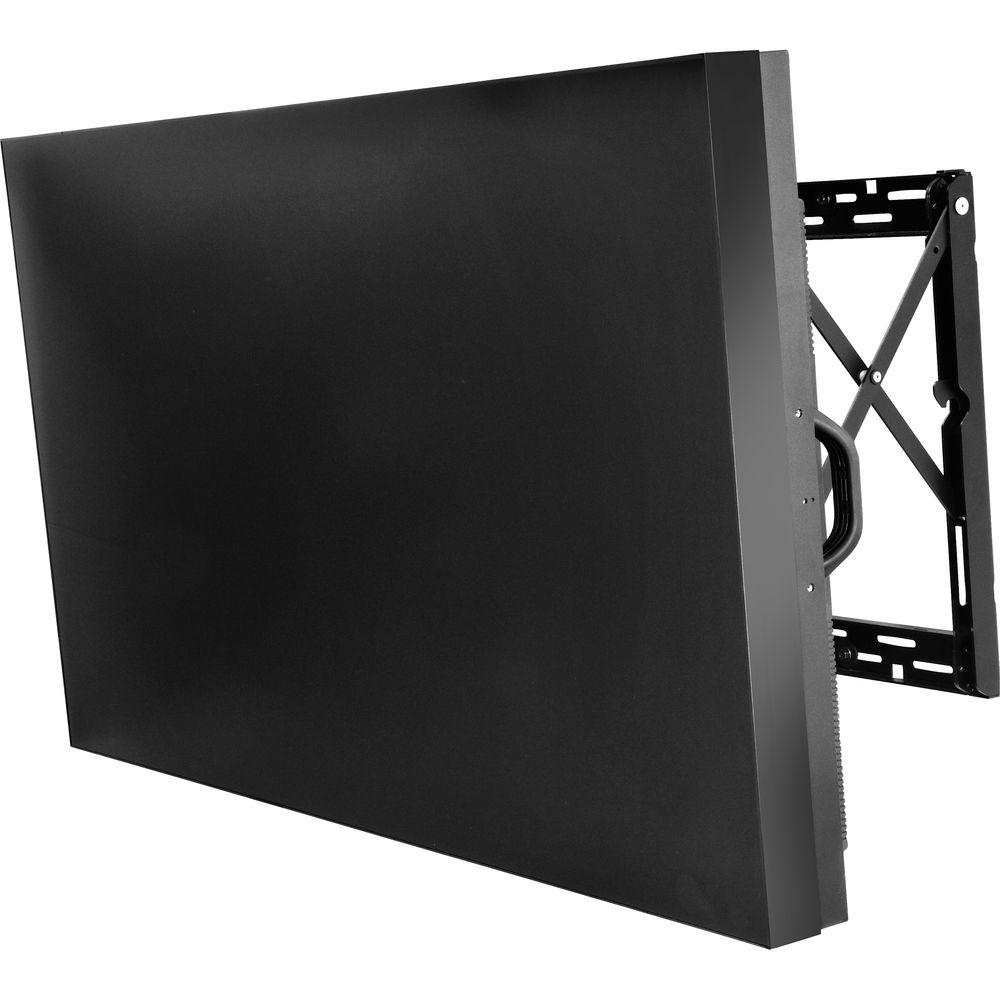

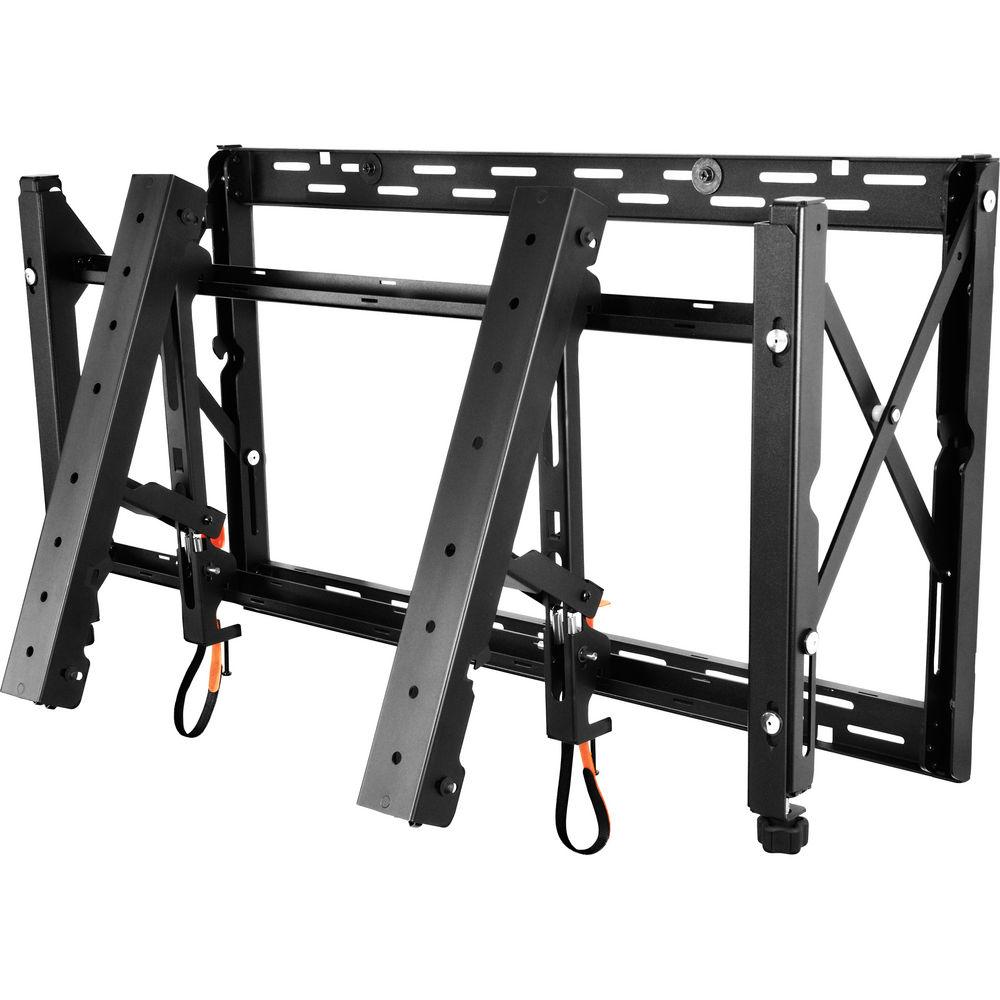

- Pull-out/prop-open mechanism provides quick service access
- Integrated cable management tie-backs make display-to-display cabling simple
- Included security hardware prevents the mount from extending out from the wall
- Adjustable VESA mounting hole patterns in 100mm increments, starting at 200 x 200mm up to 700 x 400mm, additional patterns supported with adapter plates
In the Box Tote Vision Full-Service Video Wall Mount for 40 to 65" Displays Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Tote Vision Full-Service Video Wall Mount for 40 to 65" Displays in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTote Vision TVDS-VW765-LAND Specs | | | Supported Screen Sizes | 40 to 65" / 102.0 to 165.0 cm | | Supported Weight Capacity | 125 lb / 56.7 kg | | Mounting-Hole Pattern | 200 x 200 to 700 x 400 mm | | Number of Displays Supported | 1 | | | | Distance from Mounting Surface | 3.1 to 3.8" / 7.8 to 9.7 cm | | Dimensions | 35 x 20 x 3.1" / 89 x 50.8 x 7.8 cm | | Weight | 38.0 lb / 17.2 kg | | | | Package Weight | 40.0 lb | | Box Dimensions (LxWxH) | 35.0 x 31.0 x 20.0" |
