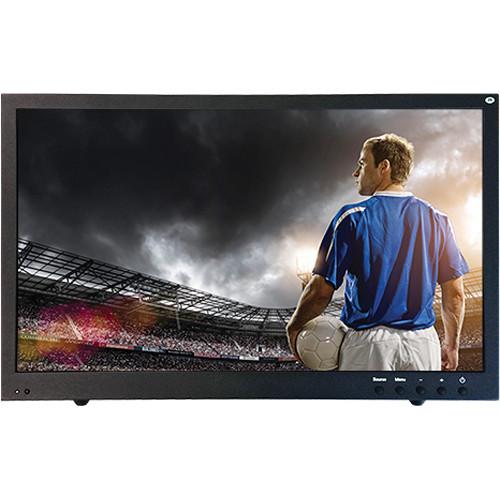

User Manual for Tote Vision LED-2153HDSDI 21.5" LED-Backlit 3G-SDI Monitor Click to enlarge the picture
Contents of the user manual for the Tote Vision LED-2153HDSDI 21.5" LED-Backlit 3G-SDI
- Product category: Production Monitors Tote Vision
- Brand: Tote Vision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Tote Vision Production Monitors
|
User manual for the Tote Vision LED-2153HDSDI 21.5" LED-Backlit 3G-SDI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Tote Vision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Tote Vision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Tote Vision product will considerably shorten its lifespan!
|
Product description Display every detail of Full HD video on the Tote Vision LED-2153HDSDI 21.5" LED-Backlit 3G-SDI Monitor without requiring scaling. The native 1920x1080 resolution is ideally suited to HD video production for this reason. The panel is backed by 3G-SDI, HDMI, component for HD content, plus composite and S-Video for SD. An integrated 3D motion-adaptive deinterlacer ensures optimal image quality from non-progressive sources. This monitor uses LED backlight, displaying bright and vivid images, while providing hardware longevity and power efficiency. - Displays Full HD (1080i/p) images with no downscaling
- LED backlight offers a power-efficient way to attain bright images
- Great picture quality with motion adaptive 3D deinterlacer, digital noise reduction, and 4H comb filter Y/C separation
- HD-SDI input and output (loop-through)
- Supports control via separately available IR remote control
UPC: 081651482278 In the Box Tote Vision LED-2153HDSDI 21.5" LED-Backlit 3G-SDI Monitor AC Adapter Desk Stand Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Tote Vision LED-2153HDSDI 21.5" LED-Backlit 3G-SDI Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTote Vision LED-2153HDSDI Specs | Screen Size | 21.5" / 54.6 cm | | Resolution | 1920 x 1080 | | Native Aspect Ratio | 16:9 | | Active Screen Area | 18.8 x 10.5" / 476.6 x 268.1 mm | | Brightness | 250 cd/m² | | Contrast Ratio | 1000:1 | | Back Light | LED (50K) | | Dot Pitch | H x V: 0.24825 x 0.24825 mm | | Color Depth | 16.7 M | | Number of Pixels | 2,073,600 | | Response Time | 3.8 ms/1.2 ms (Rising/Falling) | | Audio | 2 x 1.5 W Speakers | | Viewing angle (L/R/T/B) | 170/160° (Horizontal/Vertical) | | Input / Output | 1 x 3G/HD-SDI input/output (loop-through)
1 x HDMI input
2 x Composite BNC input/output
1 x S-Video input
Audio:
1 x RCA L/R input
1 x PC input
Power:
1 x 2.5 mm DC input | | Mount | VESA 100 x 100 mm; removable desk stand | | Infrared Remote Control Support | Yes; remote available separately | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Humidity | 10 to 90% | | Power Requirements | 100 to 240 VAC, 50/60 Hz; 12 VDC, 3.3 A | | Power Consumption | 30 W (Maximum)
< 3 W (Stand-by) | | Dimensions (WxHxD) | Without Stand: 20.1 x 12.2" x 2.4" / 51 x 31 x 6 cm
With Stand: 20.1 x 12.2 x 2.8" / 51 x 31 x 7 cm | | Weight | 12.9 lb / 5.9 kg | | | | Package Weight | 15.0 lb | | Box Dimensions (LxWxH) | 23.9 x 19.7 x 6.7" |
