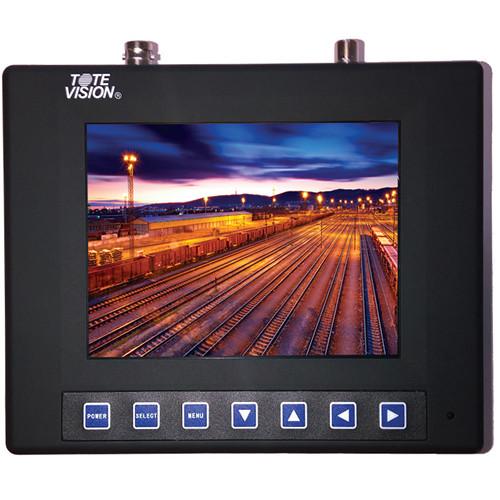

User Manual for Tote Vision LED-502V 5" Field Monitor Kit with Tote Bag & AC Adapter Click to enlarge the picture
Contents of the user manual for the Tote Vision LED-502V 5" Field Monitor
- Product category: On Camera Monitors Tote Vision
- Brand: Tote Vision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Tote Vision On Camera Monitors
|
User manual for the Tote Vision LED-502V 5" Field Monitor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Tote Vision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Tote Vision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Tote Vision product will considerably shorten its lifespan!
|
Product description The LED-502V 5” Field Monitor Kit from Tote Vision includes the LED-502V 5” Field Monitor, TB-565 Tote Bag, and AC-2000 AC Adapter.
The LED-backlit monitor is designed for displaying analog signals in the field and is used in a variety of applications like testing and troubleshooting videos. The included TB-565 Tote Bag with sun shield is designed to carry the 5" LED field monitor, and the AC-2000 is a 1A AC adapter that powers the field monitor. - LED-502V 5" LED-Backlit Field Monitor The LED-502V 5” LED-Backlit Field Monitor from Tote Vision is for displaying analog signals in the field. It is suitable for video testing and remote control monitoring wherever a small screen, ruggedized video monitor is required. This LED-backlit display’s durable ABS plastic housing with rubberized coating prevents fingerprints. It includes snap-on battery pack that holds 8 AA Akaline or 10 AA NiCd batteries which provide approximately 6 hours of operation (batteries not included).
- LED backlight: less power consumption and better color saturation
- Durable ABS plastic housing with rubberized coating prevents fingerprints
- Both composite video and PC (VGA) inputs
- Electromagnetic shielding
- On-board memory retains last input source when power is Off
- Auto On with power capability
- Snap-on battery back is included and provides 6 hours of operation (batteries not included)
- Audio input, output, and built-in speaker
UPC: 081651482001 - TB-565 Tote Bag The Tote Vision TB-565 Tote Bag with Sun Shield is designed to carry the Tote Vision LCD-565 Active Matrix 5.6" LCD color field monitor. The bag is carried by an included shoulder strap and has a pouch on the back for cables and cords. The monitor can be used while in the bag and it is supplied with a sun shield.
- Sun shield is included to block the sun when the monitor is used in the case.
- Pouch to hold cables and cords at the rear.
- Slot for cables enable you to use the while it is in the monitor in the case.
- Carried by the included shoulder strap
- Compatible with;
-
- Tote Vision LCD-565 Active Matrix 5.6" LCD color field monitor
UPC: 081651477847 - Tote Vision AC2000 1A 12 VDC/AC Adapter The Tote Vision AC-2000 is a 1A AC adapter for their line of 5-7" LCD displays.
In the Box Bundle Items LED-502V 5" LED-Backlit Field Monitor TB-565 Tote Bag Tote Vision AC2000 1A 12 VDC/AC Adapter Table of Contents
|
Upload User Manual
Have you got an user manual for the Tote Vision LED-502V 5" Field Monitor Kit with Tote Bag & AC Adapter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - LED-502V 5" LED-Backlit Field Monitor
| Mount | Free-standing, 1/4-20 pad top and bottom | | Display | 5" (13 cm) TFT LCD | | Resolution | 640 x 480 (displays up to 1080i/p) | | Native Aspect Ratio | 4:3 | | Visible Screen Size | 4.0 x 3.0" (101.6 x 76.2 mm) | | Back Light | LED (15K) | | Brightness | 250 cd/m2 (Nit) | | Contrast | 500:1 | | Dot Pitch | 0.053 x 0.159 mm | | Color Temperature | 6500K to 9300K (user adjustable) | | Number of Pixels | 307,200 | | Response Time | Rising: 10 ms
Falling: 15 ms | | Viewing Angle | 70°/70°/50°/70° (L/R/T/B) | | Input Signal Level | 1.0 Vpp (positive) 75 Ω | | Audio Power | 2 W | | Connectors | HDMI: 1 x input
Composite: 1 x BNC input, 1 x RCA input
VGA: 1 x 8-pin mini Din input
Audio: 1 x 3.5mm input with RCA to 3.5 mm cable, 1 x 3.5 mm output | | Power | 1 x 2.1 mm DC input (AC adapter is included) | | Operating Temperature | -4 to 140°F (-20 to 60°C) | | Humidity | 20 to 80% RH | | AC Adapter | 11 to 14 VDC, 500 mA, +pin, - ground | | Power Requirements | 6 to 24 V, < 10 mA | | Power Consumption | 1.2 W maximum | | Case | Rubberized durable ABS plastic | | Dimensions | 6.2 x 5.1 x 2.2" (157.4 x 129.5 x 55.8 mm) with battery pack and desk stand
6.2 x 5.1 x 1.7" (157.4 x 129.5 x 43.1 mm) without battery pack | | Weight | 14 oz (400 g) | | | | Box Dimensions (LxWxH) | 12.3 x 12.1 x 4.6" | - TB-565 Tote Bag
| Material | Canvas like nylon material | | Type of Closure | Touch Fastener | | Interior Dimensions | 6.2 x 5.1 x 2.2" (15.8 x 13 x 5.5 cm) (WxHxD) | | Accommodates | Tote Vision LCD-565 Active Matrix 5.6" LCD color field monitor with cables | | Carrying/Transport Options | Shoulder strap | | Weight | 1.5 lb (680.39 g) Approximately | | | | Box Dimensions (LxWxH) | 7.0 x 6.0 x 1.8" | - Tote Vision AC2000 1A 12 VDC/AC Adapter
| Compatible with these Models | LCD-501
LCD-561R
LCD-562
LCD-565
LCD-640
LCD-641V
LCD-641VL
LCD-642
LCD-642D
LCD-701D | | | | Box Dimensions (LxWxH) | 4.0 x 2.9 x 2.3" |
