User Manual for Tote Vision LED-502V 5" LED-Backlit Field Monitor Click to enlarge the picture
Contents of the user manual for the Tote Vision LED-502V 5" LED-Backlit Field
- Product category: On Camera Monitors Tote Vision
- Brand: Tote Vision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Tote Vision On Camera Monitors
|
User manual for the Tote Vision LED-502V 5" LED-Backlit Field contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Tote Vision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Tote Vision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Tote Vision product will considerably shorten its lifespan!
|

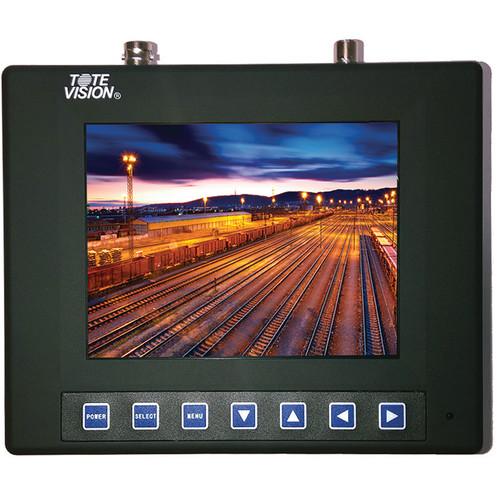

Product description The LED-502V 5” LED-Backlit Field Monitor from Tote Vision is for displaying analog signals in the field. It is suitable for video testing and remote control monitoring wherever a small screen, ruggedized video monitor is required. This LED-backlit display’s durable ABS plastic housing with rubberized coating prevents fingerprints. It includes snap-on battery pack that holds 8 AA Akaline or 10 AA NiCd batteries which provide approximately 6 hours of operation (batteries not included). - LED backlight: less power consumption and better color saturation
- Durable ABS plastic housing with rubberized coating prevents fingerprints
- Both composite video and PC (VGA) inputs
- Electromagnetic shielding
- On-board memory retains last input source when power is Off
- Auto On with power capability
- Snap-on battery back is included and provides 6 hours of operation (batteries not included)
- Audio input, output, and built-in speaker
UPC: 081651482001 In the Box Tote Vision LED-502V 5" LED-Backlit Field Monitor Snap-On Battery Pack Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Tote Vision LED-502V 5" LED-Backlit Field Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTote Vision LED-502V Specs | Mount | Free-standing, 1/4-20 pad top and bottom | | Display | 5" (13 cm) TFT LCD | | Resolution | 640 x 480 (displays up to 1080i/p) | | Native Aspect Ratio | 4:3 | | Visible Screen Size | 4.0 x 3.0" (101.6 x 76.2 mm) | | Back Light | LED (15K) | | Brightness | 250 cd/m2 (Nit) | | Contrast | 500:1 | | Dot Pitch | 0.053 x 0.159 mm | | Color Temperature | 6500K to 9300K (user adjustable) | | Number of Pixels | 307,200 | | Response Time | Rising: 10 ms
Falling: 15 ms | | Viewing Angle | 70°/70°/50°/70° (L/R/T/B) | | Input Signal Level | 1.0 Vpp (positive) 75 Ω | | Audio Power | 2 W | | Connectors | HDMI: 1 x input
Composite: 1 x BNC input, 1 x RCA input
VGA: 1 x 8-pin mini Din input
Audio: 1 x 3.5mm input with RCA to 3.5 mm cable, 1 x 3.5 mm output | | Power | 1 x 2.1 mm DC input (AC adapter is included) | | Operating Temperature | -4 to 140°F (-20 to 60°C) | | Humidity | 20 to 80% RH | | AC Adapter | 11 to 14 VDC, 500 mA, +pin, - ground | | Power Requirements | 6 to 24 V, < 10 mA | | Power Consumption | 1.2 W maximum | | Case | Rubberized durable ABS plastic | | Dimensions | 6.2 x 5.1 x 2.2" (157.4 x 129.5 x 55.8 mm) with battery pack and desk stand
6.2 x 5.1 x 1.7" (157.4 x 129.5 x 43.1 mm) without battery pack | | Weight | 14 oz (400 g) | | | | Package Weight | 2.75 lb | | Box Dimensions (LxWxH) | 12.3 x 12.1 x 4.6" |
