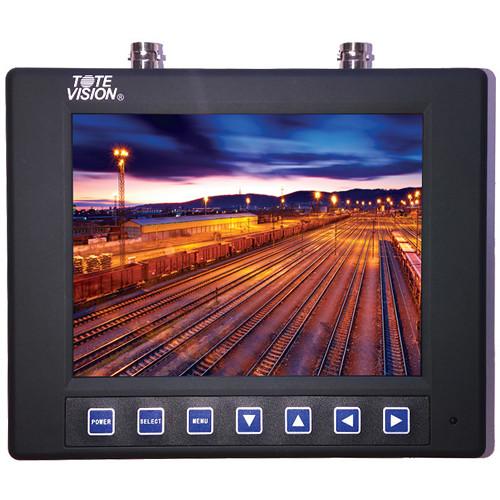

Product description The LED-566HD 5.6” LED-Backlit Field Monitor from Tote Vision supports analog and digital signals and can display high definition (1080i/p) images. It is used in a variety of applications like testing and troubleshooting videos in the field, robotic assemblies, POS applications, and amusement park rides. The monitor features monochrome and color peaking modes for fine control (optimizing focus) and DSLR scaling when connected to a still photography camera. It includes snap-on battery pack that holds 8 AA Akaline or 10 AA NiCd batteries which provide approximately 6 hours of operation (batteries not included). - LED backlight: less power consumption and better color saturation
- Switchable 4:3 and 16:9 aspect ratios
- Underscan, blue gun, and RGB adjustable
- Monochrome and color peaking modes for fine control (optimizing focus)
- DSLR scaling when connected to a still photography camera
- On-board memory retains last input source when power is Off
- Durable ABS plastic housing with rubberized coating prevents fingerprints
- Automatic scaling of signal resolution
- Electromagnetic shielding
- Snap-on battery back is included and provides 6 hours of operation (batteries not included)
UPC: 081651481998 In the Box Tote Vision LED-566HD 5.6" LED-Backlit Field Monitor Snap-On Battery Pack Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Tote Vision LED-566HD 5.6" LED-Backlit Field Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTote Vision LED-566HD Specs | Mount | Free-standing, 1/4-20 pad top and bottom | | Display | 5.6" (14.2 cm) TFT LCD | | Resolution | 640 x 480 (displays 480i/p to 1080i/p) | | Native Aspect Ratio | 4:3 | | Visible Screen Size | 4.4 x 3.3" (111.7 x 83.8 mm) | | Back Light | LED (20K) | | Brightness | 350 cd/m2 (Nit) | | Contrast | 500:1 | | Dot Pitch | 0.059 x 0.176 mm | | Color Temperature | 5600K to 6500K (user adjustable) | | Number of Pixels | 307,200 | | Response Time | Rising: 10 ms
Falling: 15 ms | | Viewing Angle | 70°/70°/50°/70° (L/R/T/B) | | Input Signal Level | 1.0 Vpp (positive) 75 Ω | | Audio Power | 2 W | | Connectors | HDMI: 1 x input
Composite: 1 x BNC input; 1 x BNC output
Audio:1 x 3.5 mm input; 1 x 3.5 mm output | | Power | 1 x 2.1 mm DC input (AC adapter not included) | | Operating Temperature | -4 to 140°F (-20 to 60°C) | | Humidity | 20 to 80% RH | | Power Requirements | 11 to 14 VDC, 630 mA, +pin, - ground | | Power Consumption | 5 W maximum | | Case | Rubberized durable ABS plastic | | Dimensions | 6.2 x 5.1 x 2.2" (157.4 x 129.5 x 55.8 mm) with battery pack and desk stand
6.2 x 5.1 x 1.7" (157.4 x 129.5 x 43.1 mm) without battery pack | | Weight | 14 oz (400 g) | | | | Package Weight | 2.3 lb | | Box Dimensions (LxWxH) | 12.3 x 12.3 x 4.7" |
