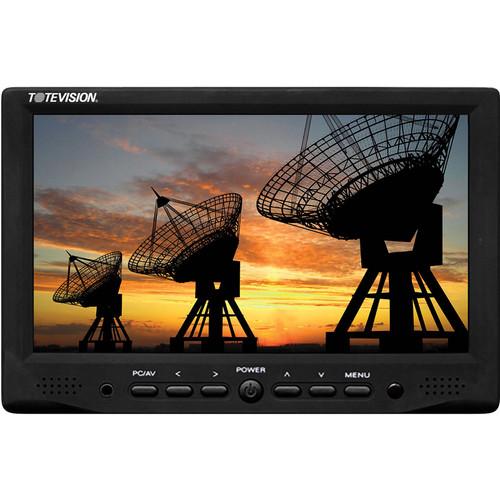

User Manual for Tote Vision LED-709HD LED-Backlit 7" LCD Monitor Click to enlarge the picture
Contents of the user manual for the Tote Vision LED-709HD LED-Backlit 7" LCD
- Product category: On Camera Monitors Tote Vision
- Brand: Tote Vision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Tote Vision On Camera Monitors
|
User manual for the Tote Vision LED-709HD LED-Backlit 7" LCD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Tote Vision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Tote Vision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Tote Vision product will considerably shorten its lifespan!
|
Product description The LED-709HD LED-Backlit 7" LCD Monitor from Tote Vision is designed primarily for field testing, video production, and remote surveillance applications. Multiple mounting and battery pack options are available. This versatile monitor provides HD picture quality (1080i/p and 720p) and features a built-in five-wire resistive touchscreen. - LED backlight provides brighter picture using less power
- Displays HD signals (1080i/p and 720p)
- Built-in five-wire resistive touchscreen
- Battery pack option available for mobility
UPC: 081651482414 In the Box Tote Vision LED-709HD LED-Backlit 7" LCD Monitor Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Tote Vision LED-709HD LED-Backlit 7" LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTote Vision LED-709HD Specs | Display | 7" (18 cm) TFT LCD active matrix | | Resolution | 800 x 480 | | Native Aspect Ratio | 16:9 | | Visible Screen Size | 6.0 x 3.4" (15.0 x 8.6 cm) | | Back Light | LED (20K) | | Brightness | 250 cd/m² (Nit) | | Contrast | 500:1 | | Dot Pitch | 0.0642 (H) x 0.1790 (V) mm | | Response Time | 25 ms (Rising/falling) | | Viewing Angle | 70/70/50/70° | | Audio Power | 2 x Speakers
1 x RCA input on cable | | Input | 1 x HDMI
1 x Composite RCA
1 x Composite BNC
1 x 15-Pin VGA | | Power | 1 x 2.1 mm DC input | | Remote Control | Infrared | | Operating Temperature | -4 to 158°F (-20 to 70°C) | | Humidity | 90% | | Power Requirements | 10 to 27 VDC input
2 A + Pin; negative ground | | Power Consumption | 24 W (Maximum) | | Case | ABS plastic | | Mount | VESA 75 x 75 mm; removable desk stand | | Dimensions | 6.9 x 5.3 x 1.4" (17.0 x 13.0 x 3.5 cm) | | Weight | 0.8 lb (0.3 kg) | | | | Package Weight | 3.25 lb | | Box Dimensions (LxWxH) | 11.9 x 8.5 x 3.3" |
