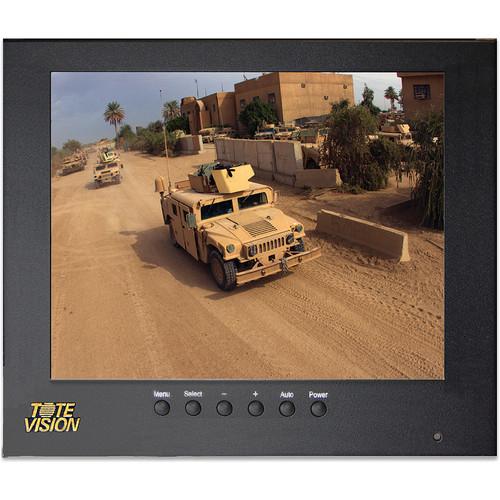

User Manual for Tote Vision LED-803HD 8" LCD Monitor Click to enlarge the picture
Contents of the user manual for the Tote Vision LED-803HD 8" LCD Monitor
- Product category: Production Monitors Tote Vision
- Brand: Tote Vision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Tote Vision Production Monitors
|
User manual for the Tote Vision LED-803HD 8" LCD Monitor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Tote Vision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Tote Vision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Tote Vision product will considerably shorten its lifespan!
|
Product description Utilizing an LED backlight the Tote Vision LED-803HD 8" LCD Monitor allows you to view SD, HD, and computer video on a bright screen while remaining power efficient. Since the power consumption is low, this monitor can operate in "always on" situations required by surveillance and other A/V integration applications. Video is displayed on the 800x600 resolution panel, though signals up to 1920x1080 resolution are supported as well. The rear panel contains all the video and audio connections. Composite and HDMI video sources are accepted, and analog audio can be input via RCA or 3.5mm jacks to complement the video inputs. Audio can be monitored using the integrated 1.5W speakers. For convenience, controlling the monitor can be done using the front-panel buttons or with the included remote control. - Anti-glare coating to provide enhanced display
- Always-on capability when power is applied
UPC: 081651482049 In the Box Tote Vision LED-803HD 8" LCD Monitor Power Supply Remote Control Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Tote Vision LED-803HD 8" LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTote Vision LED-803HD Specs | Resolution (H x V) | 800 x 600 | | Native Aspect Ratio | 4:3 | | Visible Screen Size | 6.4 x 4.8" (16.2 x 12.2 cm) | | Back Light | 20 K LED | | Brightness | 250 cd/m² (Nit) | | Contrast | 500:1 | | Dot Pitch | 0.0675 x 0.2025 mm | | Color Depth | 16.7 million | | Pixel Configuration | RGB vertical stripe | | Response Time | 25 ms (rising/falling) | | Viewing Angle | 140 / 120° (H / V) | | Audio Power | 1.5 W x 2 speakers | | VESA Mount | 75 x 75 mm | | Desktop Stand | 1/4"-20 pad top/bottom, removable | | Connectors | 1 x HDMI input
2 x BNC, Composite input/output
2 x RCA, L/R audio input
1 x 3.5 mm phone jack, PDC audio input
1 x 2.1 mm jack, DC input | | Remote Control | Infrared | | RS-232 | Yes | | Operating Temperature | 32 to 122°F (0 to 50°C) | | Humidity | 10-90% RH | | Power Requirements | 11.5 - 13 VDC, 1.2 A | | Power Consumption | 10 W | | Dimensions | 8.8 x 6.9 x 1.9" (223 x 176.2 x 47 mm) | | Weight | 2.9 lb (1.3 kg) | | | | Package Weight | 5.95 lb | | Box Dimensions (LxWxH) | 12.5 x 12.3 x 4.0" |
