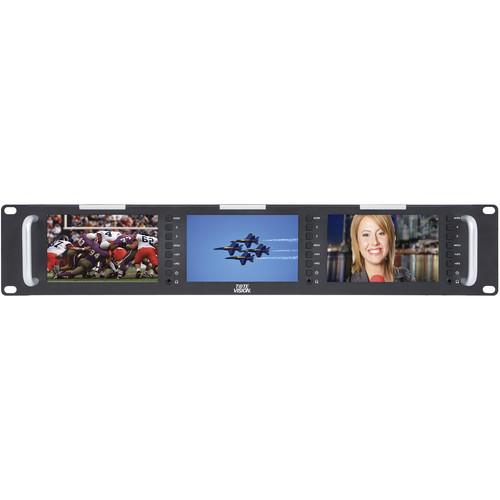

User Manual for Tote Vision Triple 5" LCD Monitor Rackmount Click to enlarge the picture
Contents of the user manual for the Tote Vision Triple 5" LCD Monitor
- Product category: Production Monitors Tote Vision
- Brand: Tote Vision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Tote Vision Production Monitors
|
User manual for the Tote Vision Triple 5" LCD Monitor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Tote Vision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Tote Vision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Tote Vision product will considerably shorten its lifespan!
|
Product description The Triple 5" LCD Monitor Rackmount from Tote Vision features three 5" LCD monitors mounted side by side in a 2 RU metal case. Each LCD screen offers a native resolution of 800 x 480, and a brightness rating of 500 cd/m2. Each LCD screen features loop-through HDMI and BNC composite (CVBS) connections. - Multiple features include pixel-to-pixel, center marker (80%, 85%, 90%, 93%, 96%, 2.35:1), image flip, check field, and image freeze
- Monochrome and color peaking modes for fine control and optimizing focus
- Built-in tally indicators (red, green, and yellow LED lights)
- Durable 2 RU metal housing with slim depth of less than 2"
UPC: 081651483121 In the Box Tote Vision Triple 5" LCD Monitor Rackmount (2 RU) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Tote Vision Triple 5" LCD Monitor Rackmount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTote Vision LED-504HDMX3 Specs | Size | Per Screen: 5" / 127 mm | | Case | Metal | | Resolution (H x V) | 800 x 480 | | Native Aspect Ratio | Native 16:9 with automatic signal resolution scaling
NTSC/PAL, auto-sensing
Image flip function (H-mirror, V, H/V) | | Visible Screen Size | Per Screen: 4.3 x 2.6" / 10.8 x 6.5 cm | | Back Light | LED (50K) | | HD | Yes, displays up to 1080p | | Brightness | 500 cd/m
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 08 owners. Add your rating and experience with the product.
