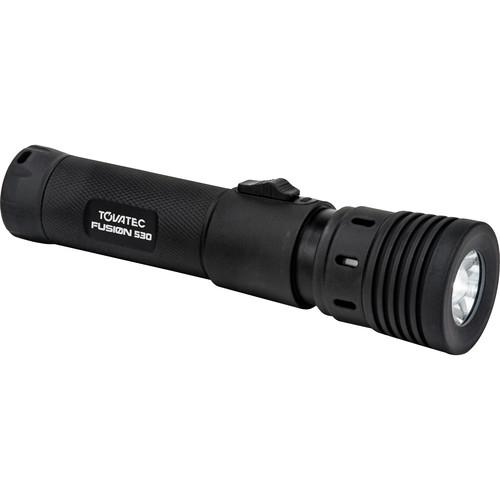

User Manual for Tovatec Fusion 530 Video LED Dive Light Click to enlarge the picture
Contents of the user manual for the Tovatec Fusion 530 Video LED Dive
- Product category: Dive Lights Tovatec
- Brand: Tovatec
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Tovatec Dive Lights
|
User manual for the Tovatec Fusion 530 Video LED Dive contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Tovatec product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Tovatec user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Tovatec product will considerably shorten its lifespan!
|
Product description The Fusion 530 Video LED Dive Light from Tovatec is an all-purpose dive light that can be used on any recreational dive or on an all day expedition. The light produces a maximum of a 530 lumens, and a runtime of 3 hours is possible on one 18650 Li-ion battery (included) or 2 hours and 30 minutes on three AAA alkaline batteries (availble separately). The magnetic slide switch on the body of the flashlight selects three power settings of 30%, 50%, and 100% and an emergency strobe mode.The Fusion 530 is made of an aircraft-grade aluminum alloy and has a rubberized grip. The Fusion 530 Light Adapter (available separately) allows the light to attach to any tray arm. When not in use, the midsized LED flashlight is small enough to fit in your pocket.The head slides to adjust beam angle from 12 to 100°, which gives a narrow beam for technical diving and a wide angle beam, good for photography or video. When the head is removed, it will expand to a 140° angle beam, which can also be used as an emergency candle strobe or deck light.The pressure safety valve located on the bottom, is there to protect the housing and the operator in case of a battery malfunction. - Modes
-
- Low: 30%
- Med: 50%
- High: 100%
- Emergency Mode: Strobe
- Switching
-
- Location: Body
- Magnetic slide switch
- Construction
-
- Aircraft-grade aluminum alloy
- Rubberized grip
UPC: 863178000186 In the Box Tovatec Fusion 530 Video LED Dive Light 1 x 18650 Li-Ion Battery Charger USB Cable Lanyard Limited 1- Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Tovatec Fusion 530 Video LED Dive Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTovatec Fusion 530 Specs | Illumination Source | One Cree XM-LT6 LED | | Maximum Output | 530 Lumens | | Modes | - Low: 30%
- Med: 50%
- High: 100%
- Strobe
| | Beam Angle | - 12-100°
- 140° with head removed
| | Color Temperature | 5600-6800K | | Battery / Runtime | - 1 x 18650 Li-Ion Battery at Max Output: 3 h
- 3 x AAA Batteries at Max Output: 2.5 h
| | Construction | Aircraft-grade aluminum alloyRubberized grip | | Depth Rating | 328' (100 m) | | Dimensions | 6.3 x 1.5" (16.0 x 3.5 cm) | | Weight | 9.4 oz (266 g) | | | | Package Weight | 1.15 lb | | Box Dimensions (LxWxH) | 7.7 x 5.6 x 2.0" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 04 owners. Add your rating and experience with the product.
