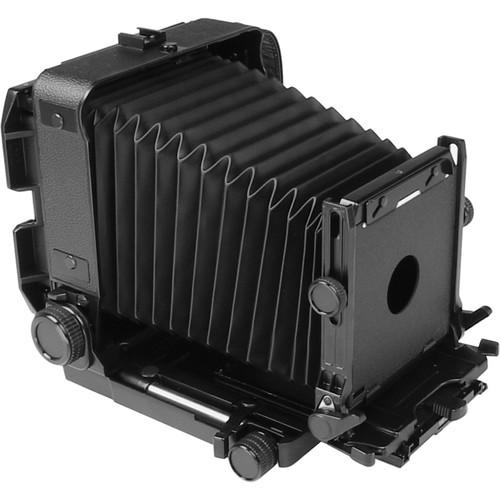

User Manual for Toyo-View 45AX 4 x 5" Field Camera Click to enlarge the picture
Contents of the user manual for the Toyo-View 45AX 4 x 5" Field
- Product category: Large Format Cameras Toyo-View
- Brand: Toyo-View
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Toyo-View Large Format Cameras
|
User manual for the Toyo-View 45AX 4 x 5" Field contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Toyo-View product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Toyo-View user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Toyo-View product will considerably shorten its lifespan!
|
Product description A compact 4 x 5" large format view camera for working in a variety of locations, the Toyo-View 45AX is a field camera offering a broad range of camera movements, support for working with a broad array of lens types, and compatibility with optional accessories to expand its basic functions. In its base configuration, it has a double-extension bed that affords a 12.6" / 321mm total extension to support working with long focal length lenses up to 360mm, and its drop-bed design also facilitates working with super-wide lenses down to 47mm. Full front movements are also available, as well as rear swing and rear base tilt, and both focusing and camera movements are performed on Teflon and polymer-coated rails for a smooth action during use. Additionally, the all-metal control knobs are rubber-coated for a firm grip in a variety of working conditions.
The camera back has a reversible design for quick switching between horizontal and vertical shooting orientations, and it is also Graflok style to support the use of a wide variety of film holders. The included groundglass is acid-etched with a centimeter-spaced grid, as well as 6 x 7 and 6 x 9 markings, and a Super-Brite Fresnel is also included for even brightness when viewing. - Camera Movements
-
- Front base tilt: +90°/-15°
- Rear base tilt: -90°/+15°
- Front/rear swing: +/- 8°
- Front rise: 0.8" / 20.5 mm
- Front fall: 0.9" / 23.5 mm
- Rise incline bed: 3.3" / 84 mm
- Fall drop bed: 2.6" / 65 mm
- Front shift: +/- 0.3" / 7 mm
- Bed shift: +/- 1.6" / 40 mm
- Focusing front bed travel: 3.6" / 91.5 mm
- Camera Features
-
- Reversible back allows you to quickly switch between horizontal and vertical orientations.
- Bright acid-etched groundglass is included, and features translucent centimeter-spaced grid lines and discreet reference markings for 6 x 9cm and 6 x 7cm formats. A Super-Brite Fresnel Lens is also included in front of the groundglass to promote bright, even illumination from edge to edge.
- Graflok back accepts all 4 x 5" sheet film holders as well as other Graflok-style holders.
- Shift, rise, tilt, and swing movements benefit from Teflon-coated parts for smooth operation in a variety of weather conditions.
- Included tapered bellows permits working with a variety of focal lengths, ranging from wide-angle to long lenses.
- Bellows is constructed from Toyo Flexilast material to resist cracking for a longer lifespan.
- Rack and pinion style micro fine geared focus control is aided by large rubber-covered knobs for added precision.
- Drop-bed design facilitates use of super-wide lenses of up to 47mm, and the dual-extension bed also offers a 321mm extension range to support the use of long lenses of up to approximately 360mm.
- Optional extension backs can also be added to further enable working with longer lenses or for macro applications.
- Focusing track is polymer-coated for smooth and precise focusing action and improved resistance to harsh conditions.
- All-metal control knobs have rubber coverings for improved grip.
- Built-in cold shoe for holding an external flash or other shoe-mounted accessory.
- One pair of adjustable infinity stops are included for fast, repeatable setting of infinity focus according to a specific set focal length.
- Interchangeable 1/4"-20 and 3/8"-16 tripod sockets are included.
In the Box Toyo-View 45AX 4 x 5" Field Camera 4x5 Vertical/Horizontal Camera Back 4x5 Groundglass Focusing Screen 4x5 Fresnel Lens 2 x Infinity Stops 1/4"-20 Mount 3/8"-16 Mount Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Toyo-View 45AX 4 x 5" Field Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersToyo-View 45AX Specs | Camera Type | 4 x 5" field view camera designed for film use | | Bellows Extension | Minimum: 2.8" / 70 mm with flat lensboard; 1.8" / 45 mm with optional recessed lensboard
Maximum: 12.6" / 321 mm with flat lensboard; 16.6" / 421 mm with optional 100 mm Extension Back | | Focus Type | Geared rack and pinion style | | Dimensions | 4.2 x 7.4 x 8.2" / 106.7 x 188.0 x 208.3 mm (folded) | | Weight | 5.8 lb / 2.6 kg | | | | Package Weight | 6.205 lb | | Box Dimensions (LxWxH) | 10.15 x 9.15 x 5.8" |
