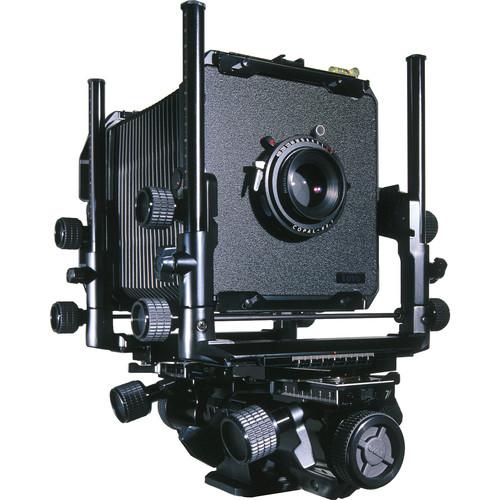

User Manual for Toyo-View 4x5 45GII View Camera Click to enlarge the picture
Contents of the user manual for the Toyo-View 4x5 45GII View Camera
- Product category: Large Format Cameras Toyo-View
- Brand: Toyo-View
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Toyo-View Large Format Cameras
|
User manual for the Toyo-View 4x5 45GII View Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Toyo-View product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Toyo-View user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Toyo-View product will considerably shorten its lifespan!
|
Product description The Toyo 45 GII is the centerpiece of the extensive Toyo G series. A heavy-duty, wide-framed, all-metal fully modular multiformat camera system, the 4x5 camera can be converted to 2-1/4 x 3-1/4", up to 8x10". Universal and format related components and accessories are interchangeable, creating a comprehensive system which grows with your professional needs. The Toyo 45 GII offers the photographer silky-smooth controls, generous movements, and a durable, practical design. First introduced as the 45G in 1978, this camera is still the workhorse for many professionals. The 45 GII Pro Camera consists of a non-vignetting 360 degree revolving back with Easyload Bail Arm, Toyo acid etched grid ground glass with 6x7cm and 6x9cm markings, fresnel, quick release mounting block with 1/4" and 3/8" tripod sockets, 250mm basic monorail, 250mm extension monorail, standard bellows, predrilled #0 lensboard. - Heavy duty modular system camera with precise geared control.
- Toyo non-vignetting 360° revolving back with Easyload Bail Arm.
- Independent locks on all movements.
- Geared side to side shift.
- Extreme 145mm geared rise.
- Rack and Pinion micro fine focusing on front and rear.
- A good choice for the beginning professional or advanced amateur.
- Dual axis spirit levels on front and rear standards.
In the Box Toyo-View 4x5 45GII View Camera 2-Way Spirit Level Revolving FIlm Back with Fresnel Focus Screen Extension Monorail Lensboard with Opening for #0 Shutter Table of Contents
|
Upload User Manual
Have you got an user manual for the Toyo-View 4x5 45GII View Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersToyo-View 45GII Specs | Tilts | Front and Rear Axis: 45° forward, 35° backward | | Swings | Front and Rear: 30° left and right | | Rise & Fall | Front and Rear: 5.7" (145mm) rise, geared | | Shifts | Front and Rear: 1.2" (35mm) left and right, geared | | Camera Back | 4x5" Revolving Graflok
Groundglass with 1 cm grid-lines, 6x7 and 6x9cm markings and Fresnel | | Interchangeable Bellows | Yes | | Minimum Extension | 4" (110mm) with standard bellows, flat lensboard
3.4" (85mm) with wide angle bellows, flat lensboard
2" (50mm) with wide-angle bellows, recessed lensboard | | Maximum Extension | 20" - 10" (250mm) basic rail + 10" (250mm) extension rail | | Lensboard | Toyo 158x158mm Flat or Recessed Board, or misc Lensboard Adapters | | Dimensions | 10.5 x 13 x 11" (26.6 x 34 x 29.1 cm) LWH | | Weight | 12.1 lbs (5.5 kg) | | | | Package Weight | 14.35 lb | | Box Dimensions (LxWxH) | 15.9 x 13.9 x 11.5" |
