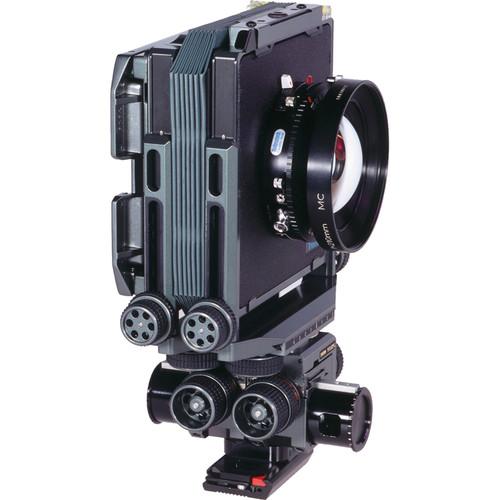

User Manual for Toyo-View 4x5 VX125 Camera Click to enlarge the picture
Contents of the user manual for the Toyo-View 4x5 VX125 Camera
- Product category: Large Format Cameras Toyo-View
- Brand: Toyo-View
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Toyo-View Large Format Cameras
|
User manual for the Toyo-View 4x5 VX125 Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Toyo-View product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Toyo-View user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Toyo-View product will considerably shorten its lifespan!
|
Product description Designed for the large format pro or enthusiast seeking the lightest possible 4x5 with full controls and movement to tackle any outdoor, location, industrial, or studio situation. Now available in three versions, the VX125 series are finely made, hybrid ultra-light field cameras, and modular studio cameras. They feature space-age Duralumin all-metal construction, geared focus and shift, Toyo's unique Ultra-flex polyurethane wide/normal bellows for lenses from 45mm to 300mm, and Toyo's 360 degree non-vignetting revolving 4x5 back. The deluxe VX125 in jade green metallic finish and the new VX125b in matte black finish, which are identical in every way, other than finish, also feature geared rise/fall movement, and include the telescoping VX 125-250mm monorail with two 30mm extension end caps, and built-in quick release. All Toyo VX models accept all Toyo G Modular System Accessories. - VX ultra light alloy all metal construction.
- Interchangeable VX Ultra-Flex normal/wide bellows allow use of lenses from 58mm-300mm on flat lens board.
Recessed lens board allows use of 45-55mm lenses. - VX yaw-free base tilt operation.
- Toyo 360° revolving back with acid-etched glass and fresnel.
- Fully geared rise, shift and microfine focus on front and rear.
- Bi-axial spirit levels, front and rear.
- Interchangeable 125-250mm telescoping VX monorail (VX125 & VX125b only).
- Compact ABS custom fitted case (optional for VX125R).
In the Box Toyo-View 4x5 VX125 Camera (Jade Green) 4x5 Standard Revolving Camera Back wwazxqcuvfrsuuzrba 4x5 Groundglass Focusing Screen 4x5 Fresnel Lens 2 x Dual-Axis Spirit Level for Monorail Cameras Extension Caps for VX125 Table of Contents
|
Upload User Manual
Have you got an user manual for the Toyo-View 4x5 VX125 Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersToyo-View VX125 Specs | Tilts | Front and Rear: 25° Forward and Backward | | Swings | Front and Rear: 25 ° Left and Right | | Rise & Fall | Front and Rear: 70mm, geared, rise only | | Shifts | Front and Rear: 30mm Left, 40mm Right, geared | | Camera Back | 360° rotating 4x5 International Graflok type
Groundglass with 1cm grid-lines, 6x7, 6x9cm markings, fresnel | | Interchangeable Bellows | Yes | | Minimum Extension | With flat lensboard: 2.7" (67mm)
With recessed lensboard: 1.1" (27mm) | | Maximum Extension | With 2 included 30mm VX extension caps and flat lens board: 324mm
With optional 250mm extension rail: 19" (485mm)
Telescopic VX 125-250mm Monorail | | Lensboard | Standard Toyo 158x158mm | | Dimensions | 12 x 9 x 5" (30.5 x 22.5 x 12.6 cm) | | Weight | 5.5 lbs (2.55 kg) |
