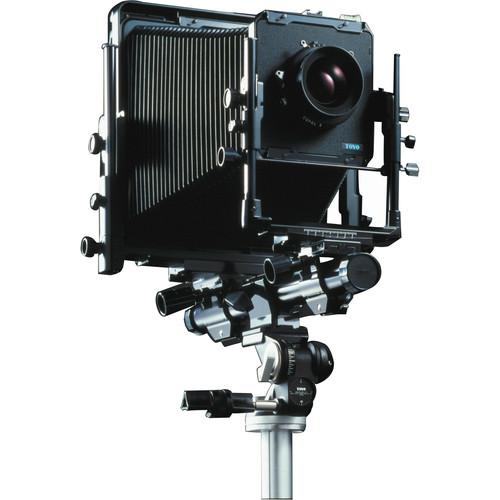

User Manual for Toyo-View 810GII 8x10 View Camera Click to enlarge the picture
Contents of the user manual for the Toyo-View 810GII 8x10 View Camera
- Product category: Large Format Cameras Toyo-View
- Brand: Toyo-View
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Toyo-View Large Format Cameras
|
User manual for the Toyo-View 810GII 8x10 View Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Toyo-View product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Toyo-View user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Toyo-View product will considerably shorten its lifespan!
|
Product description The big brother of the 45GII, the Toyo-View 810GII is known as one of the most functional and rigid 8x10's on the market. With a wide range of movements, the 810GII is an integral part of the Toyo G Series modular camera system. It's heavy-duty all-metal construction, easy to operate center tilt design, and precise all geared movements with dual locking system make it the industry standard for quality, function and value. The 810GII features Toyo's 8x10 reversible back with dual bail arm lifters, geared fine focus, geared rise, and geared shift in front and rear, and interchangeable bellows. The modular frame and rail design allows conversion to 5x7 or 4x5 with full compatibility of accessories. 4x5 and 5x7 reducing adapters are also available. A universal and comprehensive system which grows with your professional needs. - Heavy-duty modular system studio camera with precision geared focus, rise and shift
- Interchangeable G/GX 39mm monorails
- Uses all TOYO G system accessories
- Center tilt maintains focus as you tilt
- Micro-fine rack and pinion focusing
- Geared side to side shift
- Independent locks on all movements
In the Box Toyo-View 810GII 8x10 View Camera Heavy-Duty Back with Easyload Dual Dampened Bail Arms Toyo Acid Etched Grid Groundglass Quick Release Mounting Block with 3/8" Tripod Socket 250mm Basic Monorail 250mm Extension Monorail Standard Bellows Pre-drilled #0 Lensboard. Table of Contents
|
Upload User Manual
Have you got an user manual for the Toyo-View 810GII 8x10 View Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersToyo-View 810GII Specs | Tilts | Front Axis: 45° Forward, 35° Backward
Rear Axis: 50° Forward, 50° Backward | | Swings | Front and Rear: 30° Left and Right | | Rise & Fall | Front (geared): 3.2" (85mm) rise, 2.2" (60mm) fall,
Rear (geared): 6.7" (170mm) rise | | Shifts | Front: 1.4" (35mm), Left, 1.4" (35mm) Right, geared
Rear: 2.35" (60mm) Left, 2.35" (60mm) Right, geared | | Camera Back | 8x10" Vertical/Horizontal quick-change type International Standard Back
Groundglass with acid etched grid-lines | | Interchangeable Bellows | Yes | | Minimum Extension | With Standard Board: 3.3" (85mm)
With Recessed Board: 1.8" (45mm) | | Maximum Extension | 9.8" (250mm) basic monorail + 9.8" (250mm) extension rail - included | | Lensboard | Toyo 158 x 158mm | | Dimensions | 11.5 x 18.5 x 16.8" (29.1 x 47.1 x 42.7 cm) | | Weight | 19.6 lbs (8.9 kg) | | | | Package Weight | 26.27 lb | | Box Dimensions (LxWxH) | 20.5 x 19.5 x 13.5" |
