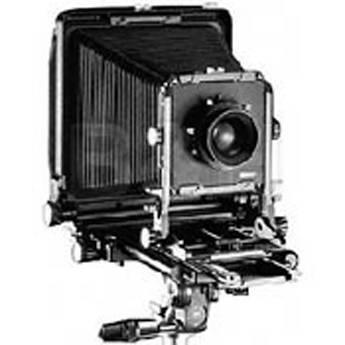

User Manual for Toyo-View 8x10 810MII Folding Metal Field Camera Click to enlarge the picture
Contents of the user manual for the Toyo-View 8x10 810MII Folding Metal Field
- Product category: Large Format Cameras Toyo-View
- Brand: Toyo-View
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Toyo-View Large Format Cameras
|
User manual for the Toyo-View 8x10 810MII Folding Metal Field contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Toyo-View product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Toyo-View user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Toyo-View product will considerably shorten its lifespan!
|
Product description Although the 4x5" format is by far the most common large-format film size, many situations demand the use of the superior 8x10" image. Only Toyo can combine the 8x10" large format film size with an all metal body and put it in a package suitable to be used in the field. The Toyo Field 810 MII is a light-weight folding 8x10" field camera with all metal alloy construction and format reducing capability to 5x7" and 4x5" formats. - Independent locks on all movements, reversible 8x10 back and a pro-black matte finish.
- Accepts many Toyo Modular system accessories, including interchangeable wide-angle bellows, backs and viewing accessories.
In the Box Toyo-View 8x10 810MII Folding Metal Field Camera Flat 158mm Lensboard for #0 Sized Shutters favyadferdcxtcdartcdfvrtbzwucvvzft Dual-Axis Spirit Level for Monorail Cameras 8x10 Groundglass Focusing Screen 8x10 Vertical/Horizontal Camera Back Protective Cover TOTMB70 8x10 Standard Bellows (700mm) Table of Contents
|
Upload User Manual
Have you got an user manual for the Toyo-View 8x10 810MII Folding Metal Field Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersToyo-View 810MII Specs | Tilts | Front: 90° forward, 15° backward
Rear: 90° forward, 15° backward | | Swings | Front: 360°, limited only by the bellows
Rear: 6° left and right | | Rise & Fall | Front only: 44mm rise, 46mm fall | | Shifts | Front only: 40mm left, 40mm right | | Camera Back | International Standard Vertical/Horizontal 8x10 Back
Acid-etched grid groundglass | | Interchangeable Bellows | Yes | | Minimum Extension | 3.5" (88mm) with Standard Board
1.9" (48mm) with Recessed Board | | Maximum Extension | 32" (822mm) | | Lensboard | Toyo 158 x 158mm Flat or Recessed Board, or misc. Lensboard Adapters | | Dimensions | 14.4 x 14.9 x 6.2" (36.6 x 37.9 x 15.8 cm) L.W.H. | | Weight | 15 lbs (6.8 kg) | | | | Package Weight | 17.15 lb | | Box Dimensions (LxWxH) | 16.5 x 16.5 x 8.0" |
