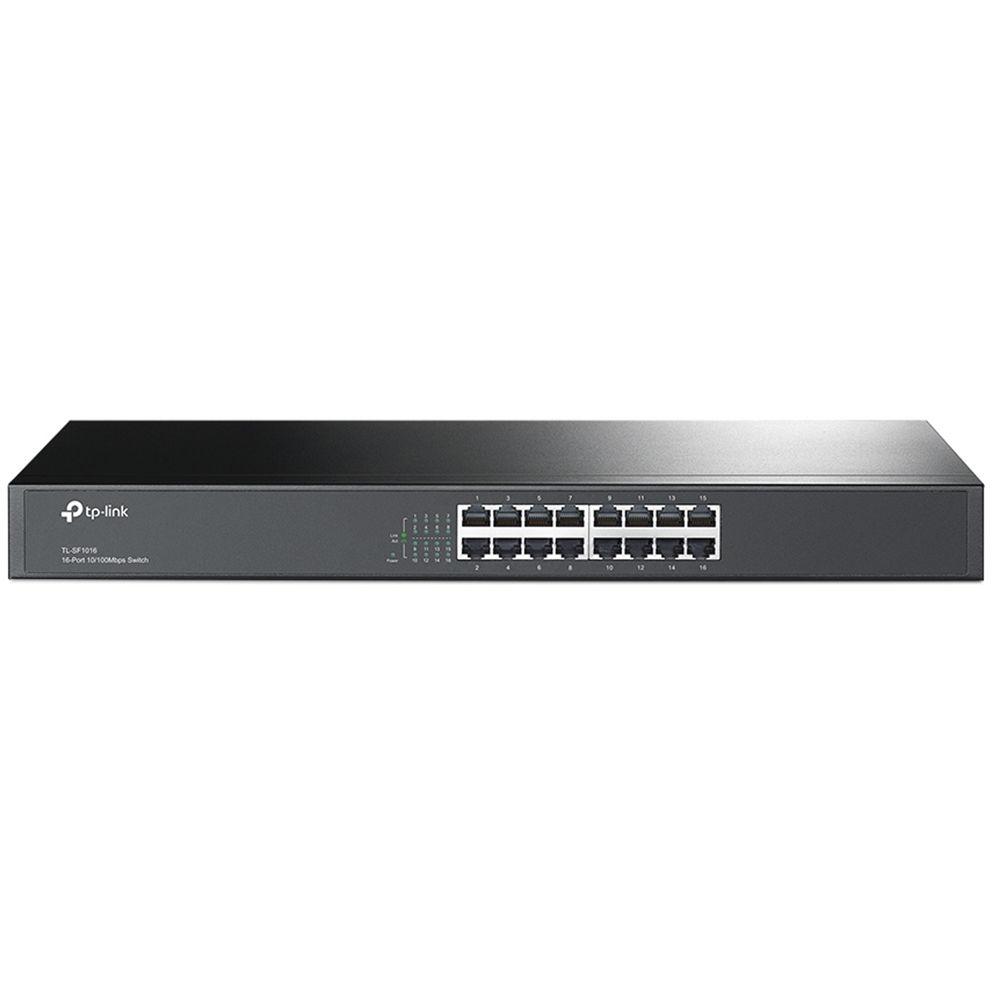

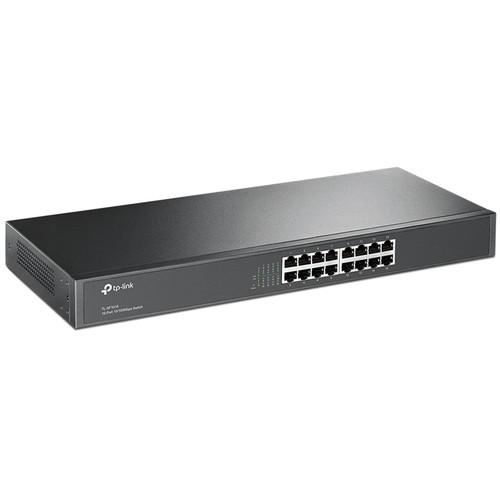

Product description Boost the switching capacity in your small business with the 16-Port 10/100 Mb/s Rackmount Switch from TP-Link. Capable of up to 3.2 Gb/s total switching capacity and boasting a forwarding rate up to 2.38 Mpps, this switch is equipped with 16 Fast Ethernet ports, and it comes housed in a 19" rack-mountable steel case. Energy-efficient technology helps the plug-and-play switch limit its power consumption by up to 75%. - TP-Link Green Technology
- This switch is designed to automatically adjust its power consumption according to link status and cable length, ideal for limiting the carbon footprint of your network. It also complies with the RoHS standards, which prohibit the use of certain hazardous materials. Up to 80% of the packaging material can be recycled.
- Performance
- The rackmount-size steel case design, combined with a safety-certified internal power supply, make the switch a robust, cost-effective product for an environment of 16 or fewer users. Featuring non-blocking switching architecture, the switch forwards and filters packets at full wire-speed for maximum throughput. IEEE 802.3x flow control for full-duplex mode and backpressure for half-duplex mode helps to alleviate traffic congestion.
- Ease of Use
- This plug-and-play switch features auto MDI/MDIX, which eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device and intelligently adjusts for compatibility and optimal performance.
UPC: 845973021511 In the Box TP-Link 16-Port 10/100 Mb/s Rackmount Switch Power Cord Rackmount Kit Rubber Feet Limited Lifetime Warranty More info from TP-Link wswdzbfxduavfqdwwesbfrrvcfwsv Table of Contents
|
Upload User Manual
Have you got an user manual for the TP-Link 16-Port 10 100 Mb s Rackmount Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTP-Link TL-SF1016 Specs | | | Ports | 16 x 10/100 Mb/s Ethernet (RJ45) | | | | Supported Protocols | Auto-MDIX/MDI | | Transmission Method | Store-and-Forward | | MAC Address Table Size | 8K | | | | Supported IEEE Standards | 802.3i, 802.3u, 802.3x | | | | Forwarding Rate | 2.38 Mpps | | Switching Bandwidth | 3.2 Gb/s (Non-Blocking) | | Packet Buffer | 2 Mb | | | | Power Draw | 2.1 W (Active) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 10 to 90% | | Storage Temperature | -40 to 158°F / -40 to 70°C | | Storage Humidity | 5 to 90% | | Certifications | FCC, RoHS, as per Manufacturer | | | | Cooling System | Passive | | Material of Construction | Steel | | Dimensions | 17.3 x 7.1 x 1.7" / 439.42 x 180.34 x 43.18 mm |
