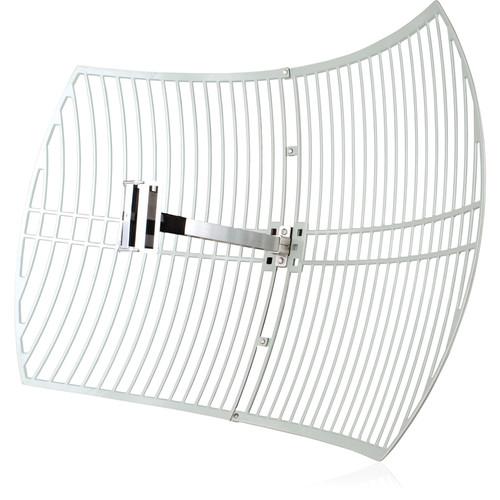

User Manual for TP-Link 2.4 GHz 24 dBi Grid Parabolic Antenna Click to enlarge the picture
Contents of the user manual for the TP-Link 2.4 GHz 24 dBi Grid
- Product category: Antennas & Accessories TP-Link
- Brand: TP-Link
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TP-Link Antennas & Accessories
|
User manual for the TP-Link 2.4 GHz 24 dBi Grid contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TP-Link product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TP-Link user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TP-Link product will considerably shorten its lifespan!
|
Product description The 2.4 GHz 24 dBi Grid Parabolic Antenna from TP-Link is suitable for a spread-spectrum system; it operates in the 2.4-2.5 GHz band and provides 24 dBi directional operation. The surface design with a welded-steel reflector brings out enhanced performance. This antenna features a high gain, long coverage, light weight, a compact structure, and enhanced wind-resistance. It is used outdoors with a range of up to 34.8 miles. The antenna is easy to install and is compatible with most wireless devices that include access points, routers, bridges, and network adapters with removable external antennas. UPC: 845973052171 In the Box TP-Link 2.4 GHz 24 dBi Grid Parabolic Antenna Installation Mounting Kit Limited 1-Year Warranty Brochure PDF 879.6kbyabqufbftzeytuxv More info from TP-Link Table of Contents
|
Upload User Manual
Have you got an user manual for the TP-Link 2.4 GHz 24 dBi Grid Parabolic Antenna in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTP-Link TL-ANT2424B Specs | Frequency Band | 2.4 GHz | | Antenna Gain | 24 dBi | | VSWR | 1.5:1 maximum | | Half Power Beamwidth (HPBW) | Horizontal: 10°
Vertical: 14° | | Polarization | Linear, vertical | | Type | Directional | | Connector Type | N female | | Extended Cable Length | 11.8" (30.0 cm) | | Mounting | Pole mount | | Application | Outdoor | | Range | 1 Mb/s: 34.80 miles (59.00 km)
11 Mb/s: 19.97 miles (31.5 km)
54 Mb/s: 2.76 miles (4.44 km) | | Operating Temperature | -40 to 140℉ (-40 to 60℃) | | Storage Temperature | -40 to 140℉ (-40 to 60℃) | | Dimensions | 39.4 x 23.6" (100.8 x 59.9 cm) | | Weight | 7.7 lb (3.5 kg) | | | | Package Weight | 10.75 lb | | Box Dimensions (LxWxH) | 24.0 x 22.5 x 6.5" |
