User Manual for TP-Link 5 GHz 300 Mb s 23 dBi Outdoor CPE Click to enlarge the picture
Contents of the user manual for the TP-Link 5 GHz 300 Mb s
- Product category: Wireless Bridges TP-Link
- Brand: TP-Link
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TP-Link Wireless Bridges
 |
User manual for the TP-Link 5 GHz 300 Mb s contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TP-Link product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TP-Link user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TP-Link product will considerably shorten its lifespan!
|

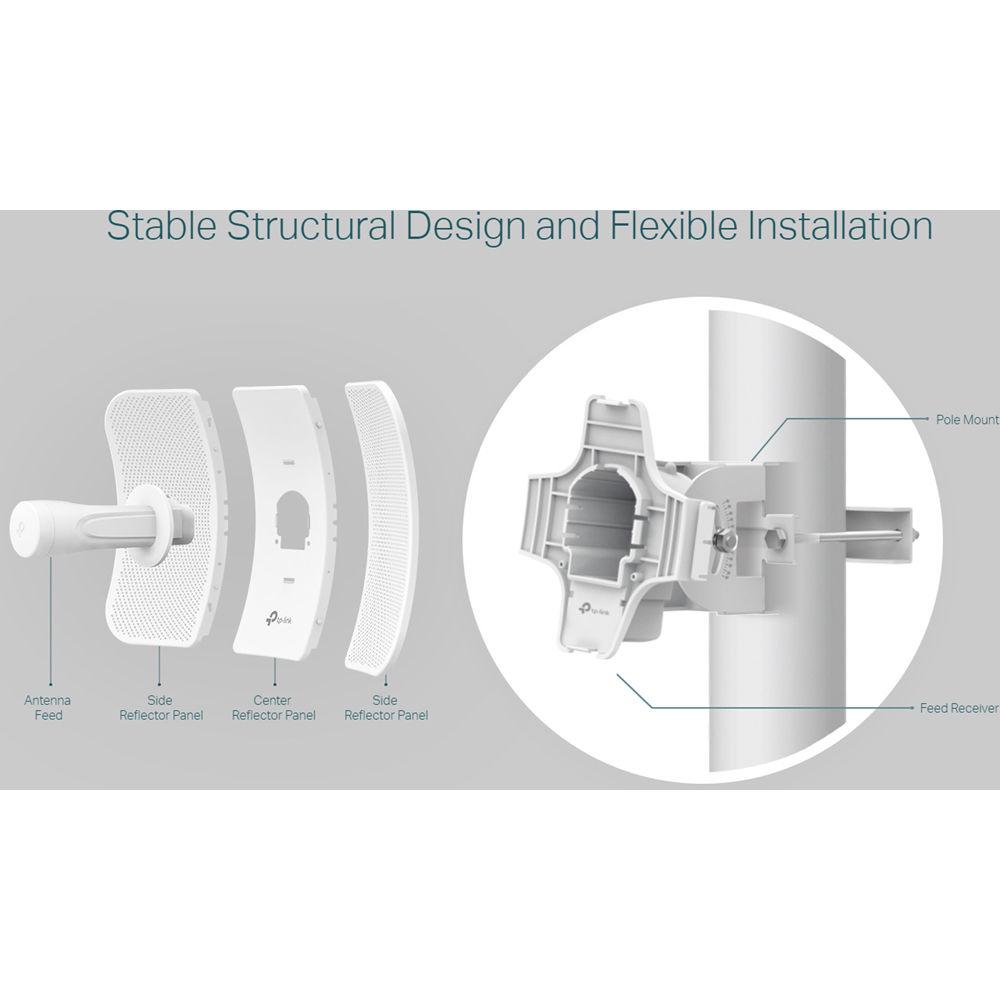

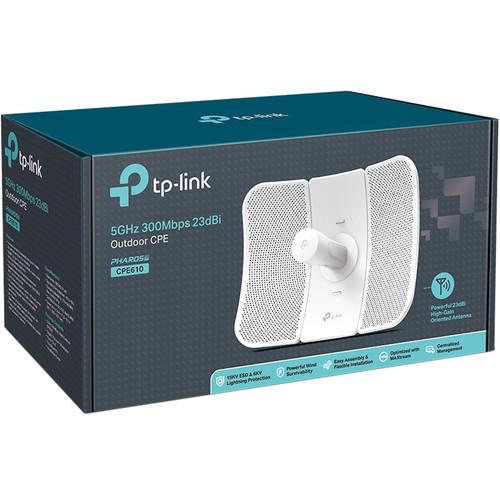

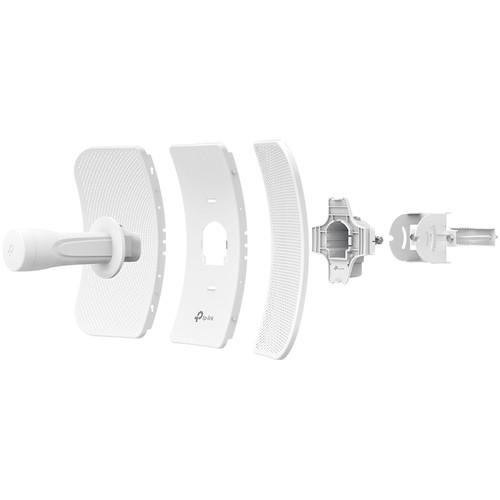

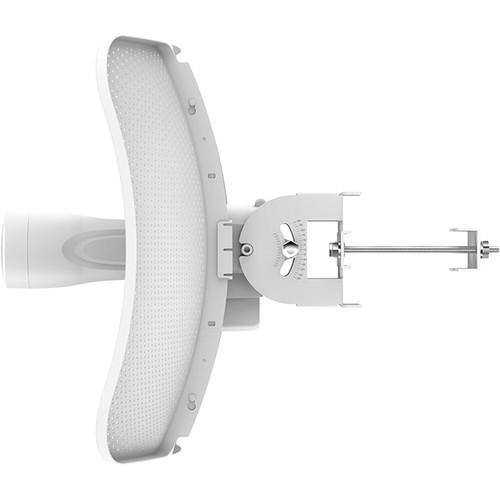

Product description With the 5 GHz 300 Mb/s 23 dBi Outdoor CPE from TP-Link, you can take advantage of wireless data transfer rates of up to 300 Mb/s on the 5 GHz frequency. This antenna is designed to provide long-distance connectivity as it supports an antenna gain of 23 dBi and supports 2x2 MIMO functionality. Setup is simple, as this weatherproof CPE comes IP65 rated and offers 15 kV ESD and 6 kV lightning protection. -
- Up to 300 Mb/s on 5 GHz wireless data rates
- 23 dBi high-gain directional 2
|
Upload User Manual
Have you got an user manual for the TP-Link 5 GHz 300 Mb s 23 dBi Outdoor CPE in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTP-Link CPE610 Specs | | | Processor | Qualcomm 560 MHz CPU, MIPS 74Kc | | Memory | 64 MB DDR2 RAM, 8 MB flash | | Interface | 1 x 10/100 Mb/s shielded Ethernet port (LAN/POE)
1 x Reset button | | Power Supply | Passive Power over Ethernet via LAN (+4,5 pins; -7,8 pins)
Voltage Range: 16-27 VDC | | Antenna | Antenna Gain: 23 dBi
Antenna Beamwidth: 9° (azimuth), 7° (elevation) | | Protection | 15 KV ESD protection
6 KV lightning protection | | Enclosure | Material: Outdoor PC stabilized plastic
Weatherproof: IP65 water- and dust-proof design | | | | Wireless Standards | IEEE 802.11a/n | | Proprietary Protocol | TDMA mode (with Pharos MAXtream enabled) | | Wireless Speeds | Up to 300 Mb/s (40 MHz, dynamic)
Up to 144.4 Mb/s (20 MHz, dynamic)
Up to 72.2 Mb/s (10 MHz, dynamic)
Up to 36.1 Mb/s (5 MHz, dynamic) | | Frequency | 5.15~5.85 GHz | | Transmit Power | Max. 27 dBm (adjustable power by 1 dBm) | | | | Configuration | Network Configuration
WAN: Static/Dynamic/PPPoE/L2TP/PPTP
LAN: Static/Dynamic/DHCP
Forwarding: ALG/UPnP/Virtual Server/Port Trigger
Security: SPI Firewall/ Ping Forbidden/DoS Protection
Access Control
Static Routing
Bandwidth Control
IP & MAC Binding
Wireless Configurations
Pharos MAXtream TDMA Technology
Selectable Channel Width: 5/10/20/40 MHz
Auto Channel Selection
Transmit Power Control
Dynamic Frequency Selection(DFS)
WDS Enable/Disable
Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption, 64/128/152-bit WEP Encryption
SSID Broadcast Enable/Disable
Multi-SSID with VLAN Tagging(AP Mode only)
Distance/ACK Timeout Setting
Wireless MAC Address Filter
Wireless Advanced: Beacon Interval/RTS Threshold/Fragmentation Threshold/DTIM Interval/AP Isolation/Short GI/Wi-Fi Multimedia | | Management | Discovery and Remote Management via Pharos Control application
HTTP/HTTPS Web-based management
System log
SNMP Agent(v2c)
Ping Watch Dog
Dynamic DDNS
SSH Server | | System | System Tools
Indicators: Signal Strength/Noise/Transmit CCQ/CPU/Memory
Monitors: Throughput/Stations/Interfaces/ARP/Routes/WAN/DHCP
Spectrum Analyzer
Speed Test
Ping
Traceroute
System-Level Optimizations
Optimized IGMP Snooping/Proxy for multicast applications
Hardware watch dog | | | | Certifications | CE, FCC, RoHS, IP65 | | System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 10, Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux.
Please note, it is recommended you use one of following Web browsers for an improved user experience: Google Chrome, Safari, and Firefox. IE browsers are not recommended | | Temperature & Humidity | Operating Temperature: -40 to 158°F / -40 to 70°C
Storage Temperature: -40 to 158°F / -40 to 70°C
Operating Humidity: 10 to 90% non-condensing
Storage Humidity: 5 to 95% non-condensing | | Dimensions | 14.4 x 11.0 x 8.1" / 360 x 280 x 207 mm (No mount) | | Weight | Not specified by manufacturer | | | | Package Weight | 4.565 lb | | Box Dimensions (LxWxH) | 9.55 x 6.95 x 6.15" |
