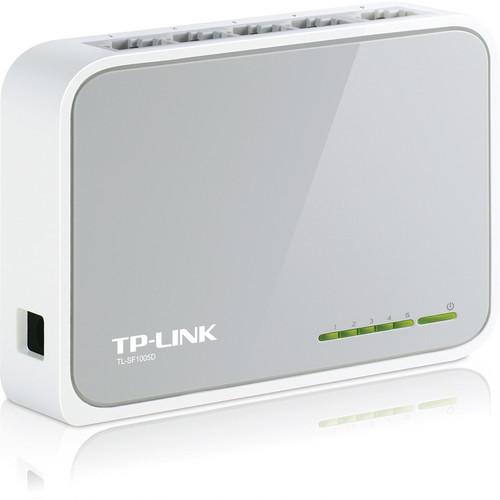

User Manual for TP-Link 5-Port Unmanaged 10 100Mbps Desktop Switch Click to enlarge the picture
Contents of the user manual for the TP-Link 5-Port Unmanaged 10 100Mbps Desktop
- Product category: Network Switches, Bridges & Hubs TP-Link
- Brand: TP-Link
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TP-Link Network Switches, Bridges & Hubs
|
User manual for the TP-Link 5-Port Unmanaged 10 100Mbps Desktop contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TP-Link product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TP-Link user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TP-Link product will considerably shorten its lifespan!
|
Product description The 5-Port Unmanaged 10/100Mbps Desktop Switch from TP-Link is a networking tool that's affordable and easy to use. This switch features five Fast Ethernet ports for connecting computers or other Ethernet-enabled devices on your LAN network. In addition, this switch supports flow control, 10K jumbo frames, MAC address auto-learning and auto-aging, as well as Auto MDI/MDIX on all ports. It is packaged with material that is 80% recyclable and also features built-in energy-efficient technology so as to reduce power consumption when possible. - Innovative energy-efficient technology saves power up to 70%
- Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode
- Non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput
- Auto-MDI/MDIX eliminates the need for crossover cables
- Supports MAC address auto-learning and auto-aging
- Auto-negotiation ports provide smart integration between 10Mbps, 100Mbps, and 1000Mbps hardware
- Fan-less design ensures quiet operation
- Desktop or wall-mounting design
- Plug and Play design simplifies installation
UPC: 845973020064 In the Box TP-Link 5-Port Unmanaged 10/100Mbps Desktop Switch User Guide Power Adapter Limited 1-Year Warranty Brochure PDF 1.1mb More info from TP-Link Table of Contents
|
Upload User Manual
Have you got an user manual for the TP-Link 5-Port Unmanaged 10 100Mbps Desktop Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTP-Link TL-SF1005D Specs | | | Ports | 5 x 10/100 Mb/s Ethernet (RJ45) | | | | Supported Protocols | Auto-MDIX/MDI | | Transmission Method | Store-and-Forward | | MAC Address Table Size | 1K | | | | Supported IEEE Standards | 802.3, 802.3u, 802.3x | | | | Switching Bandwidth | 1 Gb/s | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 10 to 90% | | Storage Temperature | -40 to 158°F / -40 to 70°C | | Storage Humidity | 5 to 95% | | Certifications | RoHS, as per Manufacturer | | | | Indicator Lights | Link/Activity | | Dimensions | 5.5 x 3.4 x 1.1" / 14 x 8.7 x 2.8 cm | | | | Package Weight | 0.55 lb | | Box Dimensions (LxWxH) | 7.0 x 5.1 x 2.4" |
Rating96% users recommend this product to others. And what about you?
This product has already been rated by 93 owners. Add your rating and experience with the product.
