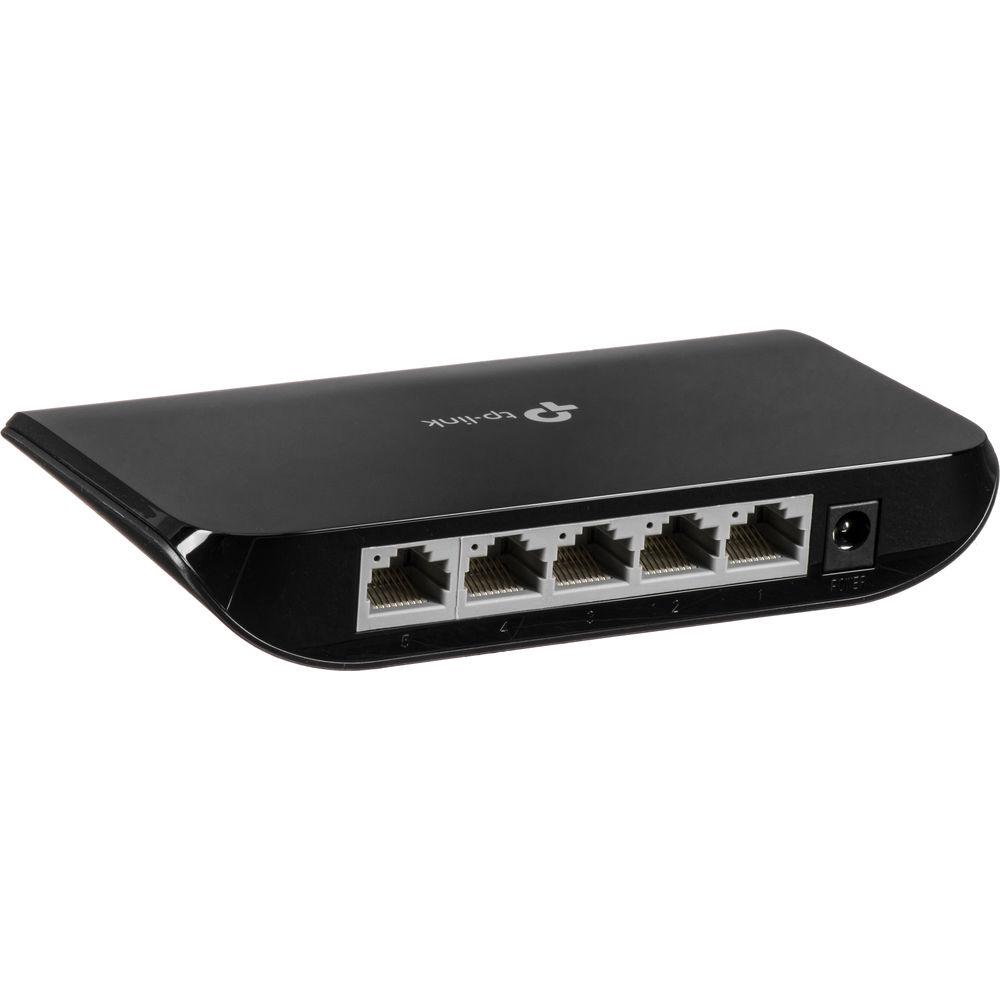

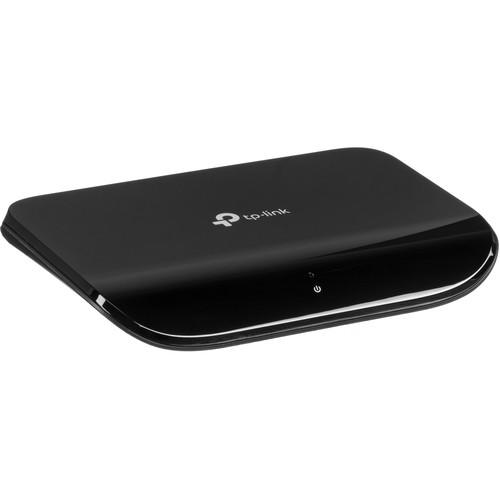

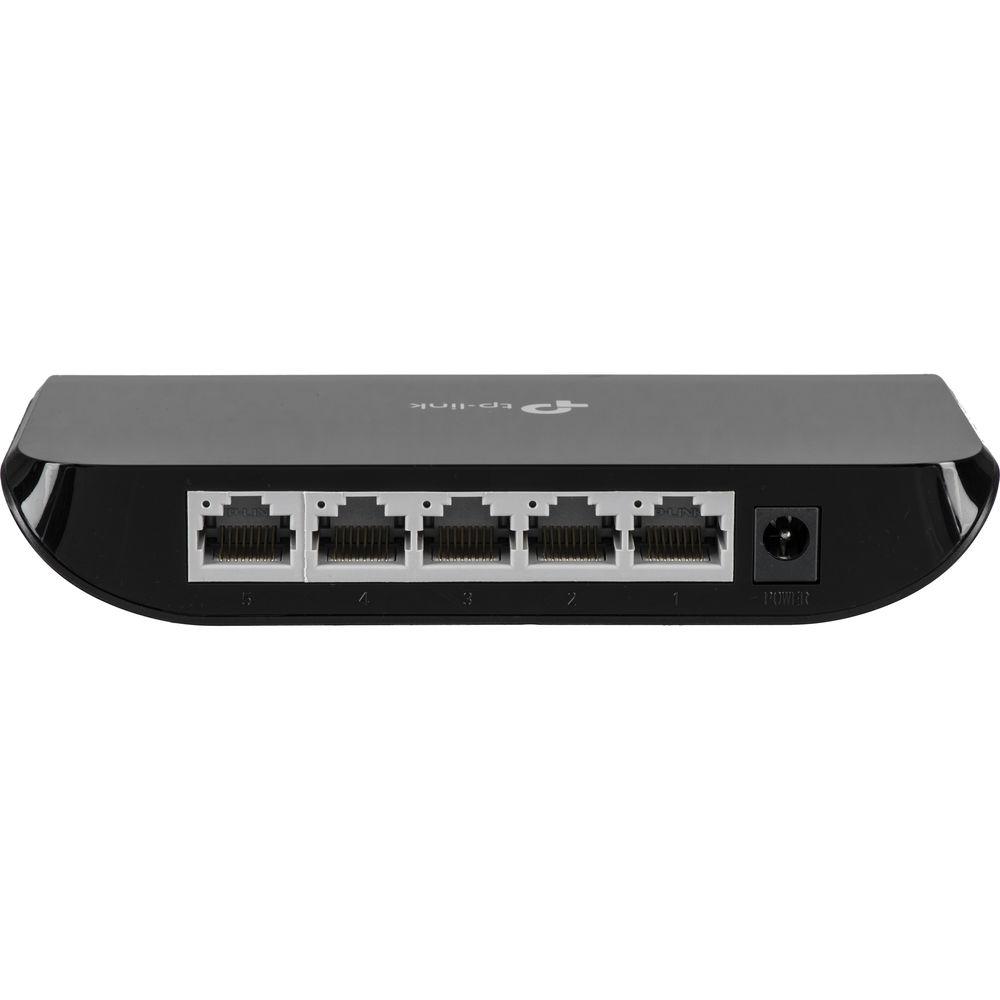

User Manual for TP-Link 5-Port Unmanaged Gigabit Desktop Switch Click to enlarge the picture
Contents of the user manual for the TP-Link 5-Port Unmanaged Gigabit Desktop Switch
- Product category: Network Switches, Bridges & Hubs TP-Link
- Brand: TP-Link
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TP-Link Network Switches, Bridges & Hubs
 |
User manual for the TP-Link 5-Port Unmanaged Gigabit Desktop Switch contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TP-Link product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TP-Link user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TP-Link product will considerably shorten its lifespan!
|
Product description The 5-Port Unmanaged Gigabit Desktop Switch from TP-Link is a networking tool that's affordable and easy to use. This switch features five speedy Gigabit Ethernet ports for connecting computers or other Ethernet-enabled devices on your LAN network. In addition, this switch supports flow control, 15K jumbo frames, MAC address auto-learning and auto-aging, as well as Auto MDI/MDIX on all ports. It is packaged with material that is 80% recyclable and also features built-in energy-efficient technology so as to reduce power consumption when possible. - The built-in energy-efficient technology saves power of up to Up to 75% when compared to conventional TP-Link switches
- Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode
- Non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput
- Switching capacity of 10Gbps
- 15k Jumbo frame improves performance of large data transfers
- Store and forward switching scheme
- Auto-MDI/MDIX eliminates the need for crossover cables
- Supports MAC address auto-learning and auto-aging
- Auto-negotiation ports provide smart integration between 10Mbps, 100Mbps, and 1000Mbps hardware
- Plug and Play design simplifies installation
- The switch features a quiet, fan-less design so that it doesn't disturb anyone working nearby
UPC: 845973020255 In the Box TP-Link 5-Port Unmanaged Gigabit Desktop Switch Power Adapter User Guide Limited 1-Year Warranty More info from TP-Link Table of Contents
|
Upload User Manual
Have you got an user manual for the TP-Link 5-Port Unmanaged Gigabit Desktop Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTP-Link TL-SG1005D Specs | | | Ports | 5 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) | | | | Supported Protocols | Auto-MDIX/MDI | | Transmission Method | Store-and-Forward | | Jumbo Frames Support | 15,000 Bytes | | MAC Address Table Size | 8K | | | | Supported IEEE Standards | 802.3, 802.3ab, 802.3u, 802.3x | | | | Switching Bandwidth | 10 Gb/s | | | | OS Compatibility | Windows XP or Later
macOS
Linux | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 0 to 90% | | Storage Temperature | -40 to 158°F / -40 to 70°C | | Storage Humidity | 5 to 90% | | Certifications | RoHS, as per Manufacturer | | | | Indicator Lights | Link/Activity, Power | | Dimensions | 6.5 x 4.3 x 1.1" / 16.5 x 10.8 x 2.8 cm | | | | Package Weight | 0.75 lb | | Box Dimensions (LxWxH) | 10.2 x 7.2 x 2.7" |
