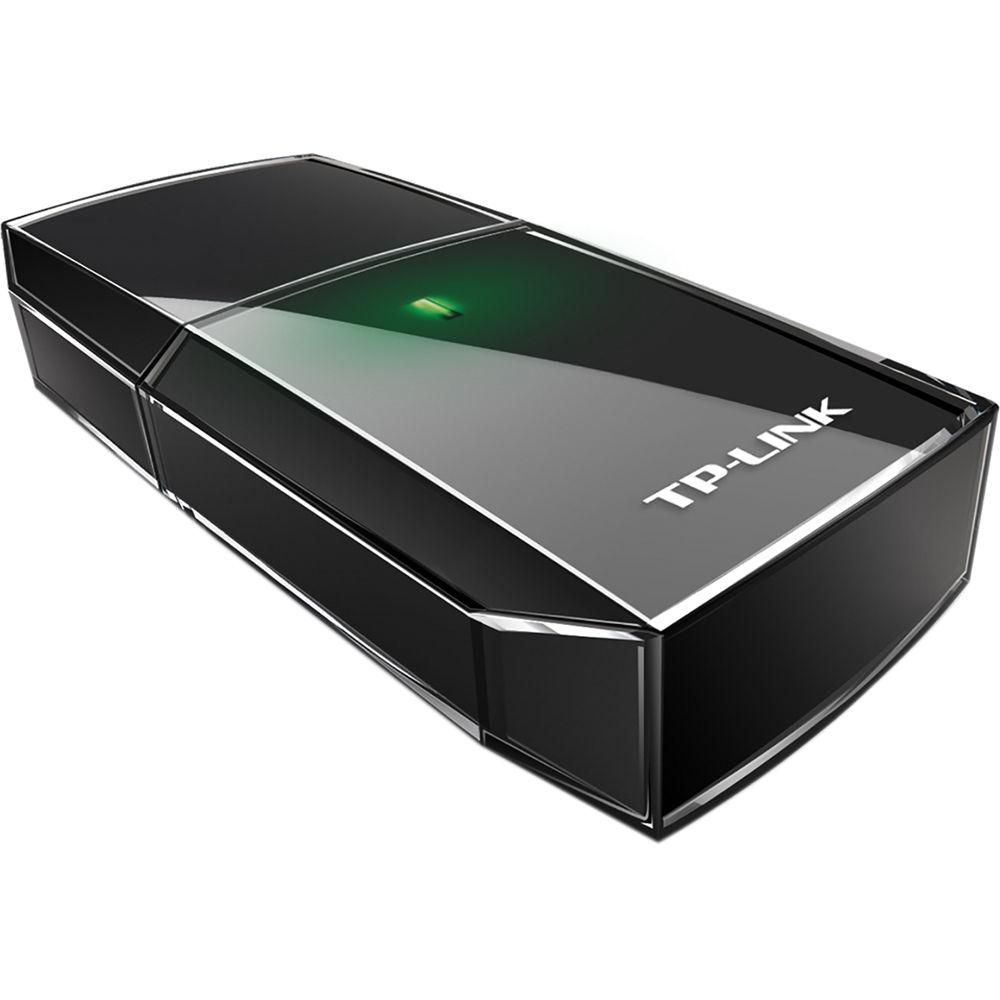

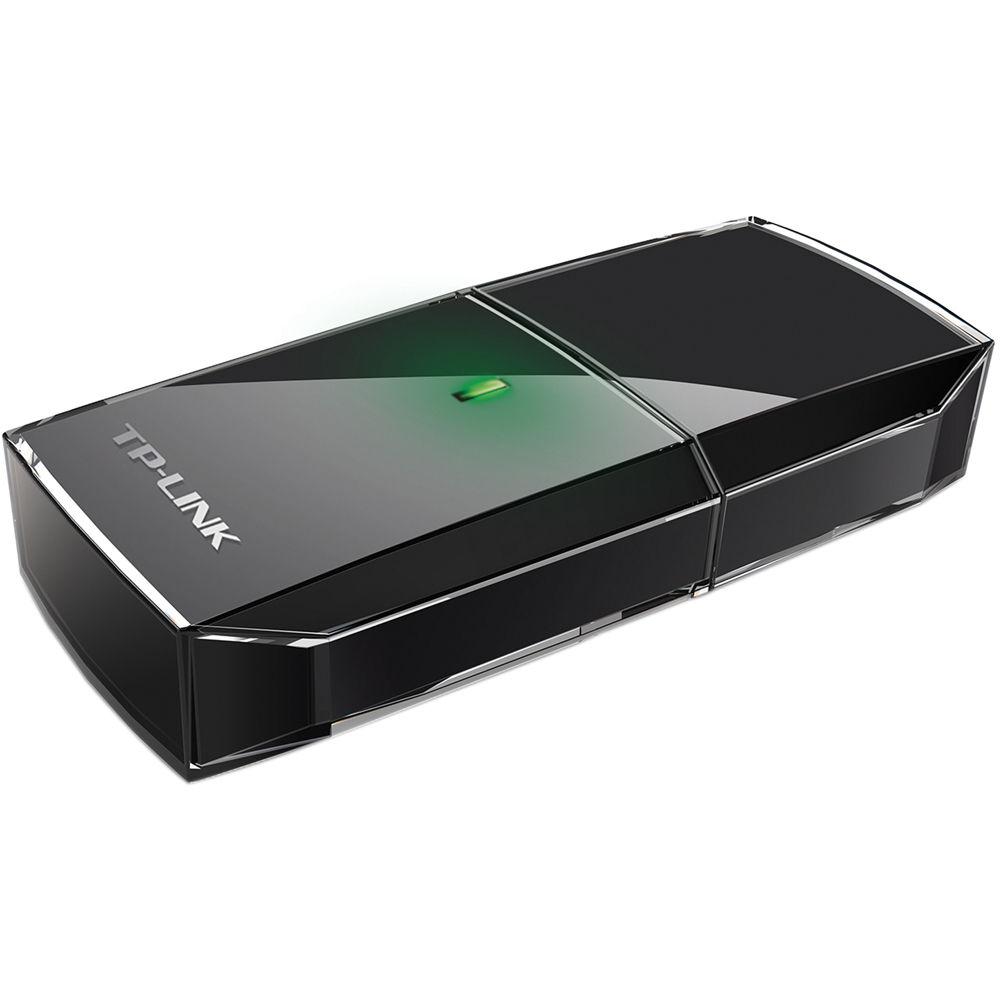

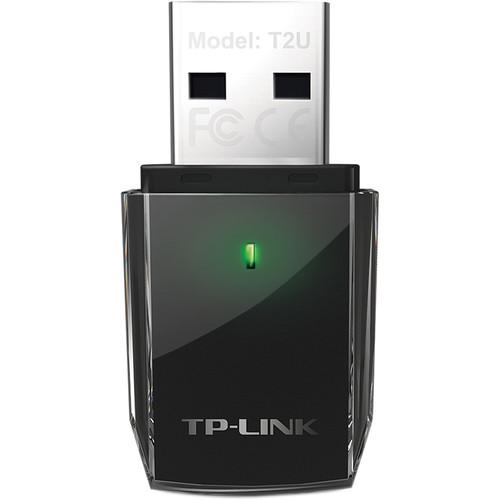

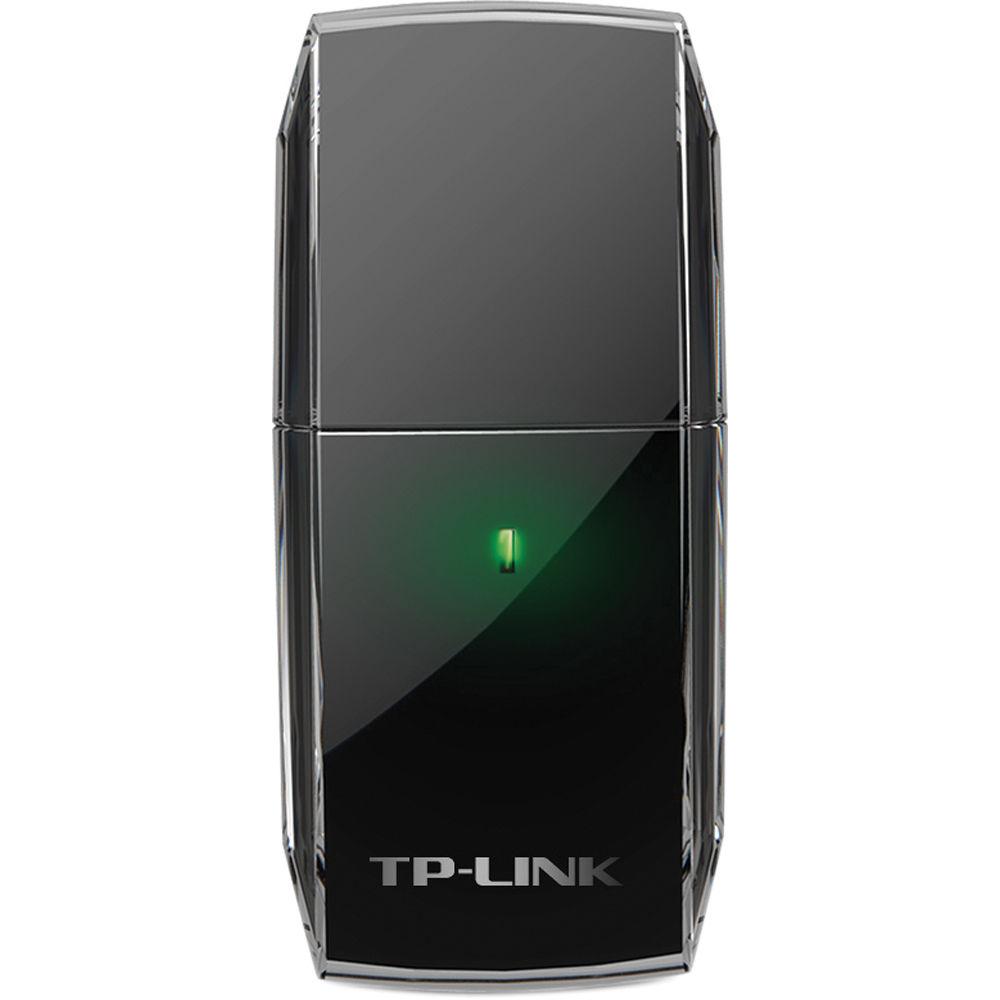

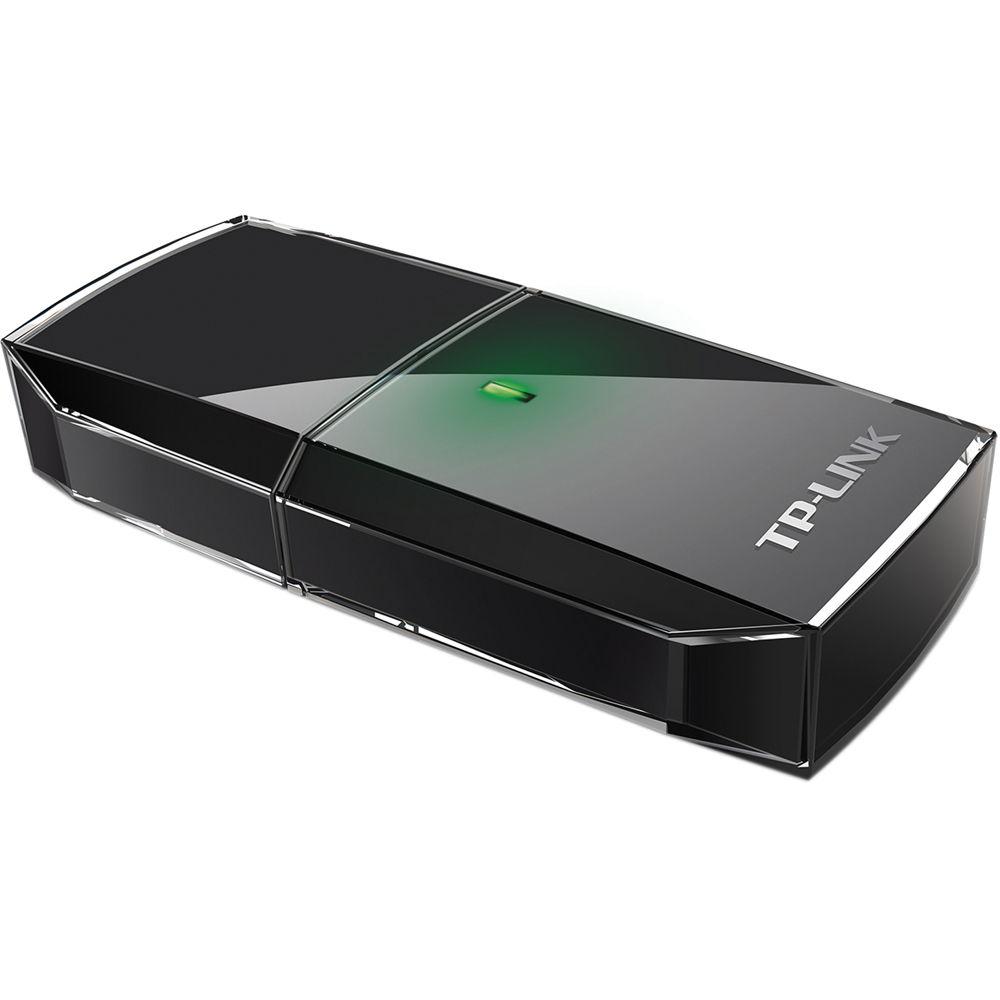

User Manual for TP-Link AC600 Wireless Dual Band USB 2.0 Adapter Click to enlarge the picture
Contents of the user manual for the TP-Link AC600 Wireless Dual Band USB
- Product category: Wireless Adapters & Cards TP-Link
- Brand: TP-Link
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TP-Link Wireless Adapters & Cards
 |
User manual for the TP-Link AC600 Wireless Dual Band USB contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TP-Link product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TP-Link user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TP-Link product will considerably shorten its lifespan!
|
Product description Using its USB 2.0 port, connect your Windows-compatible desktop or notebook computer to dual band 802.11ac wireless networks, as well as 802.11a/b/g/n networks with the AC600 Wireless Dual Band USB 2.0 Adapter from TP-LINK. Dual band support allows you to connect to networks supporting 5 GHz and 2.4 GHz frequencies. 5 GHz frequencies allow compatible devices to take advantage of data transfer speeds of up to 433 Mbps for HD video streaming and online gaming. The 2.4 GHz frequency provides data transfer speeds of up to 150 Mbps and allows users to engage in less-intensive web tasks, such as web browsing.
For those who are concerned about a USB Wi-Fi adapter not having a strong range, the AC600's omni directional antenna will help to increase the strength and range of your wireless signal. Additionally, the integrated wireless security supports 64- and 128-bit WEP, WPA, and PA2/WPA-PSK/WPA2-PSK (TKIP/AES) encryption standards, as well as ad-hoc and infrastructure modes. For simpler network encryption setup, the router includes a WPS button and a wireless setup utility helps to simplify initial network setup. The AC600 includes a resource disc and a quick installation guide. - 802.11ac Wi-Fi
- TP-LINK's Archer T2U comes with the Wi-Fi standard 802.11ac, which is up to three times faster than wireless N speeds. With wireless speeds up to 433 Mbps over the 5 GHz band or 150 Mbps over the 2.4 GHz band, the Archer T2U is designed for HD streaming, online gaming, and tasks that require high bandwidth
- AC600 Wireless Speed
- The 5 GHz 433 Mbps band is designed for HD video streaming and online gaming, while the 2.4 GHz 150 Mbps band is designed for less intensive tasks such as web surfing
- The Best of Both Bands
- TP-LINK's Archer T2U is a dual band USB Adapter that provides selectable 5 GHz and 2.4 GHz bands for standard and backward compatibility to existing Wi-Fi networks. It gives users the ability to access 5 GHz connections to upgrade their computer's wireless capabilities, while helping to ensure that they can still access legacy 2.4 GHz band wireless networks
- WPA / WPA2 Encryptions - Advanced Security
- The T2U provides WPA/WPA2 encryptions, including WEP (64 and 128-bit), WPA, and PA2/WPA-PSK/WPA2-PSK (TKIP/AES). All of these help promote interoperability and security for WLAN, which helps to protect wireless networks

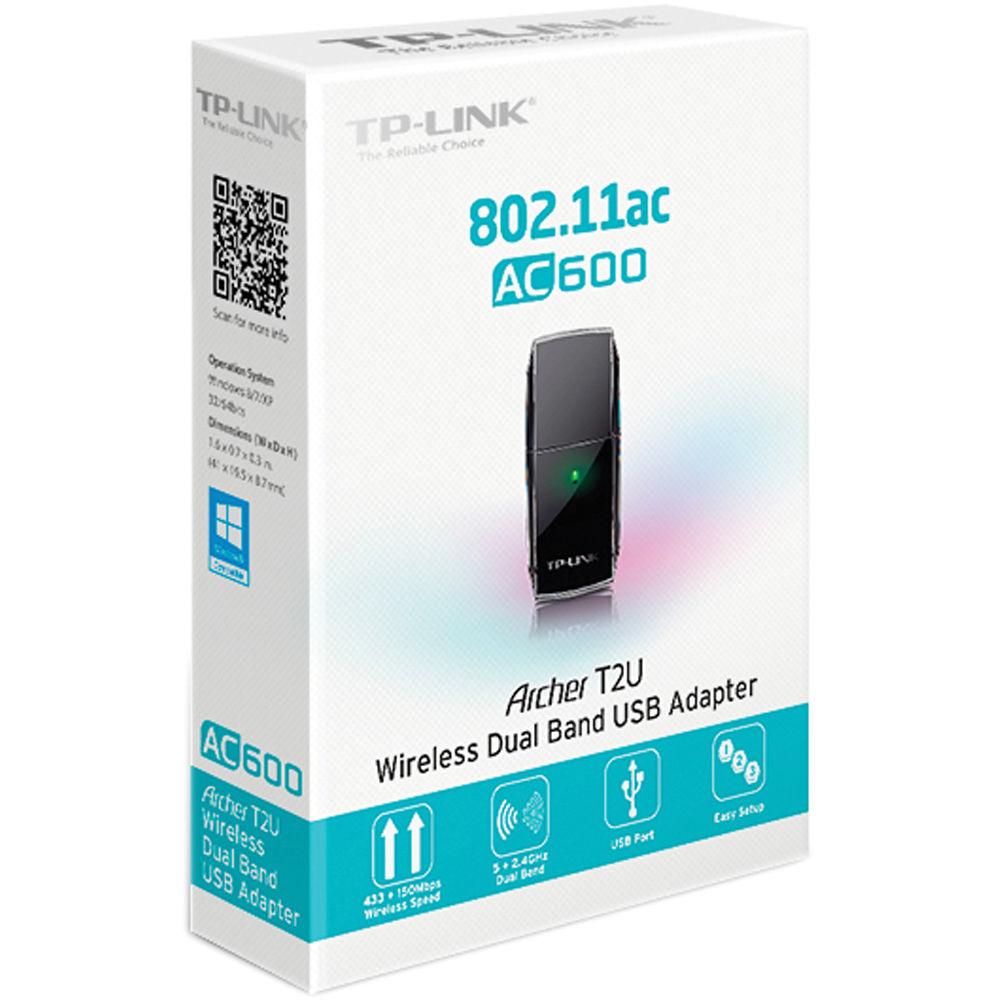

UPC: 845973050856 In the Box TP-Link AC600 Wireless Dual Band USB 2.0 Adapter Resource CD Quick Installation Guide Limited 2-Year Warranty Guides & Manuals More info from TP-Link Table of Contents
|
Upload User Manual
Have you got an user manual for the TP-Link AC600 Wireless Dual Band USB 2.0 Adapter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the TP-Link AC600 Wireless Dual Band USB 2.0 Adapter can be downloaded in PDF format at the link stated below.
Technical parametersTP-Link ARCHER T2U Specs | | | Interfaces | USB 2.0 | | Antenna Type | Omni Directional | | | | Wireless Standards | IEEE 802.11ac, IEEE 802.11a, IEEE 802.11n, IEEE 802.11g, IEEE 802.11b | | Frequency | 5 GHz, 2.4 GHz | | Signal Rate | 5 GHz
11ac - up to 433 Mbps (dynamic)
11a: up to 54 Mbps (dynamic)
2.4 GHz
11n: up to 150 Mbps (dynamic)
11g: up to 54 Mbps (dynamic)
11b: up to 11 Mbps (dynamic) | | EIRP | < 20 dBm (EIRP) | | Reception Sensitivity | 5 GHz
11a 6 Mbps: -94 dBm
11a 54 Mbps: -78 dBm
11n HT20 MCS0: -94 dBm
11n HT20 MCS7: -77 dBm
11n HT40 MCS0: -92 dBm
11n HT40 MCS7: -74 dBm
11ac VHT80 MCS0: -89 dBm
11ac VHT80 MCS9: -64 dBm
2.4 GHz
11b 1 Mbps: -99 dBm
11b 11 Mbps: -91 dBm
11g 6 Mbps: -94 dBm
11g 54 Mbps: -77 dBm
11n HT20 MCS0: -95 dBm
11n HT20 MCS7: -76 dBm
11n HT40 MCS0: -92 dBm
11n HT40 MCS7: -73 dBm | | Wireless Modes | Ad-Hoc / Infrastructure mode | | Wireless Security | Supports 64/128-bit WEP, WPA-PSK/WPA2-PSK, 802.1x | | Modulation Technology | DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM | | | | Certification | CE, FCC, RoHS | | System Requirements | Supports 32/64-bit Windows 8, 7, and XP | | Environment | Operating Temperature: 32 to 104°F / 0 to 40°C
Storage Temperature: -40 to 158°F / -40 to 70°C
Operating Humidity: 10 to 90% (non-condensing)
Storage Humidity: 5 to 90% (non-condensing) | | Dimensions | 1.6 x 0.7 x 0.3" / 40.6 x 17.8 x 7.6 mm | | Weight | Not specified by manufacturer | | | | Package Weight | 0.25 lb | | Box Dimensions (LxWxH) | 5.4 x 3.9 x 1.2" |
