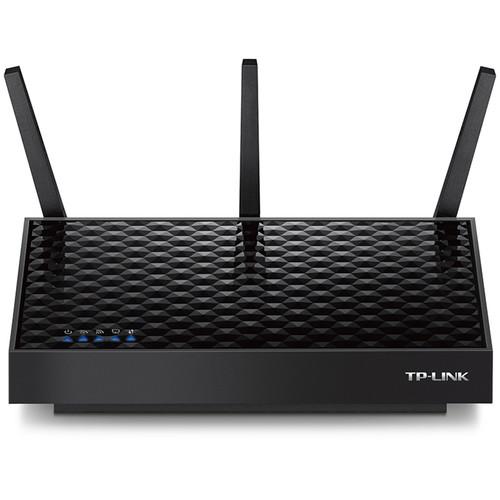

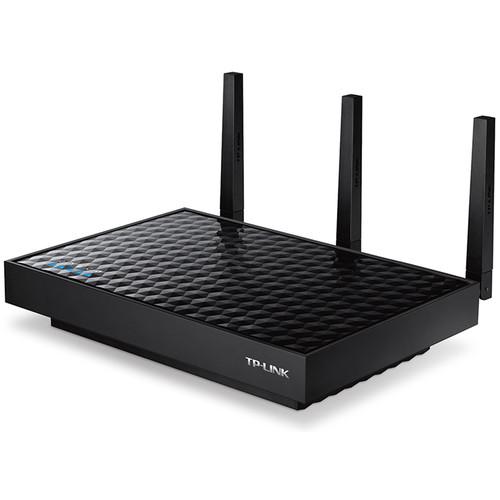

User Manual for TP-Link AP500 AC1900 Dual Band Wireless Gigabit Access Point Click to enlarge the picture
Contents of the user manual for the TP-Link AP500 AC1900 Dual Band Wireless
- Product category: Wireless Access Points TP-Link
- Brand: TP-Link
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TP-Link Wireless Access Points
 |
User manual for the TP-Link AP500 AC1900 Dual Band Wireless contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TP-Link product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TP-Link user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TP-Link product will considerably shorten its lifespan!
|
Product description With concurrent wireless data transfer rates of up to 1.9 Gbps, the AP500 AC1900 Dual Band Wireless Gigabit Access Point from TP-Link makes it easy to stream multimedia content, transfer large files, and more with ease. The enhanced wireless data transfer rates are made possible thanks to dual-band support as the AP500 operates on both the 2.4 GHz and 5 GHz frequencies. In addition to dual-band support, this access point also supports the 802.11a/b/g/n/ac Wi-Fi network standards. Once installed users benefit from beamforming technology which provides a more concentrated wireless signal for improved signal strength and reliability. The AP500 can also be configured to suit a variety of networking needs as it supports AP, repeater/bridge, client, and multi-SSID operating modes. - Speed
- • Combined wireless speeds of up to 1.9 Gbps at 2.4 GHz & 5 GHz bands concurrently

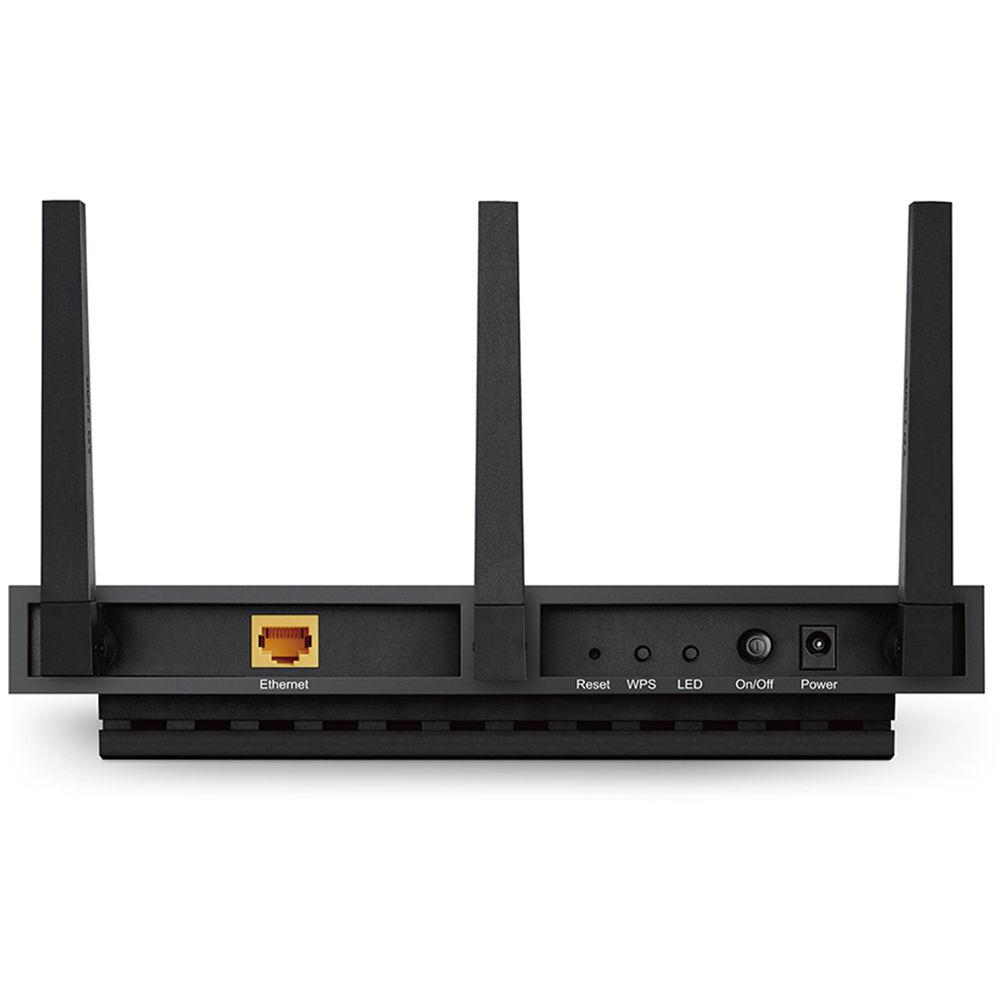

• Built-in Gigabit Ethernet port for ultra fast wired connectivity
• 1 GHz dual-core processor for enhanced performance - Wi-Fi Range
- • Beamforming technology for highly targeted, efficient wireless connections
• 3 dual-band detachable antennas provide enhanced Wi-Fi coverage
• 700 mW high power amplifier provides ultimate range for connected devices - Ease of Use
- • Intuitive GUI makes installation faster and easier than ever
• Easily establish an encrypted wireless network with the push of a button

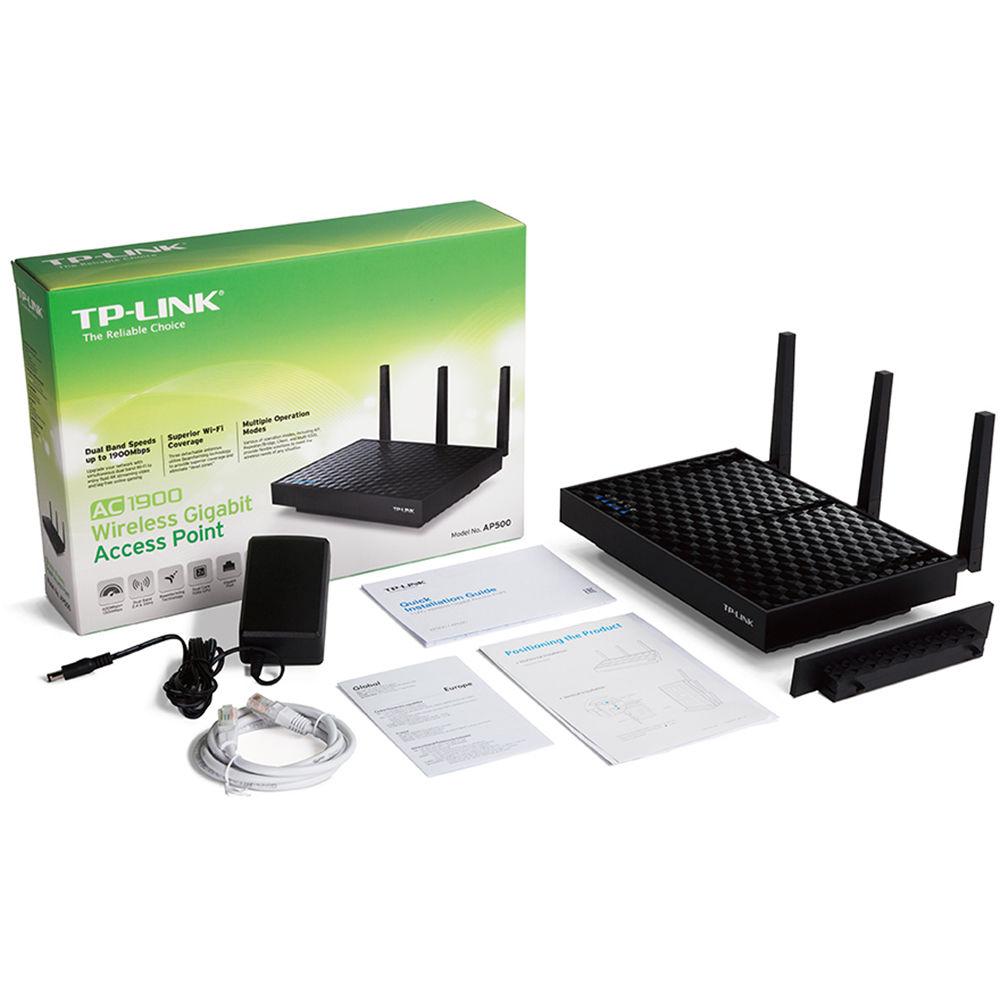

• Built-in power on/off button for increased energy savings UPC: 845973092979 In the Box TP-Link AP500 AC1900 Dual Band Wireless Gigabit Access Point 3 x Detachable Antennas Power Adapter RJ-45 Ethernet Cable Desktop Mounting Stand Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the TP-Link AP500 AC1900 Dual Band Wireless Gigabit Access Point in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTP-Link AC1900 Specs | | | Wireless Frequency Bands | 2.4 GHz, 5 GHz | | Number of Antennas | 3 | | WLAN Mode | 802.11ac | | Sensitivity | -59 to -94 dBm | | Transmit Power | 20 to 30 dBm | | | | Ports | 1 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) | | | | Wireless Security | WEP, WPA | | | | Operation Modes | Access Point, Bridge, Client, Repeater | | Throughput | 2.4 GHz: 600 Mb/s
5 GHz: 1300 Mb/s | | | | Supported IEEE Standards | 802.11i | | | | DC Input Power | 12 VDC at 2.5 A | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | -40 to 158°F / -40 to 70°C | | Operating Humidity | 10 to 90% | | Storage Humidity | 5 to 90% | | | | Certifications | RoHS, as per Manufacturer | | Dimensions | 9.5 x 6.4 x 1.7" / 24.2 x 16.2 x 4.4 cm | | | | Package Weight | 3.25 lb | | Box Dimensions (LxWxH) | 13.3 x 9.4 x 2.9" |
