User Manual for TP-Link Archer AX6000 Wi-Fi Router Click to enlarge the picture
Contents of the user manual for the TP-Link Archer AX6000 Wi-Fi Router
- Product category: Wireless Routers TP-Link
- Brand: TP-Link
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TP-Link Wireless Routers
 |
User manual for the TP-Link Archer AX6000 Wi-Fi Router contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TP-Link product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TP-Link user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TP-Link product will considerably shorten its lifespan!
|

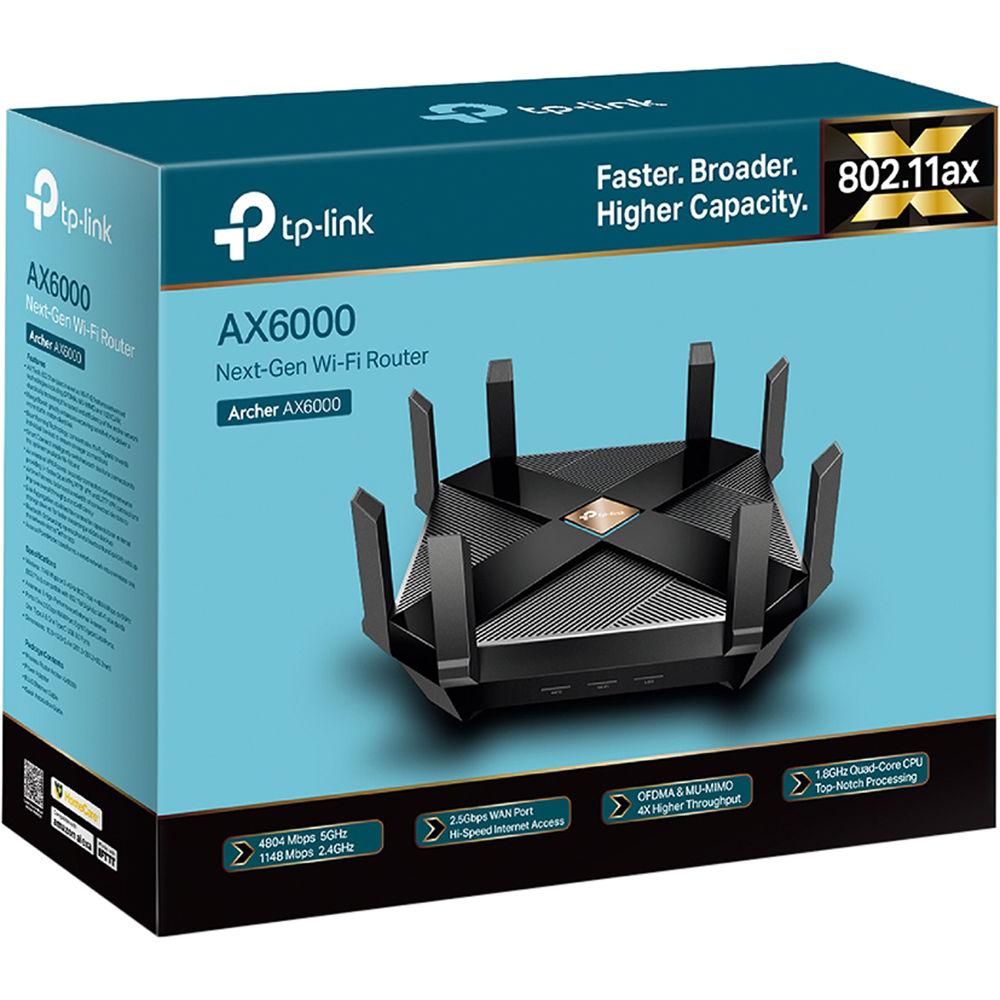

Product description - AX6000 unboxing video
- AX6000 AX11000 AX WiFi6 Introduction

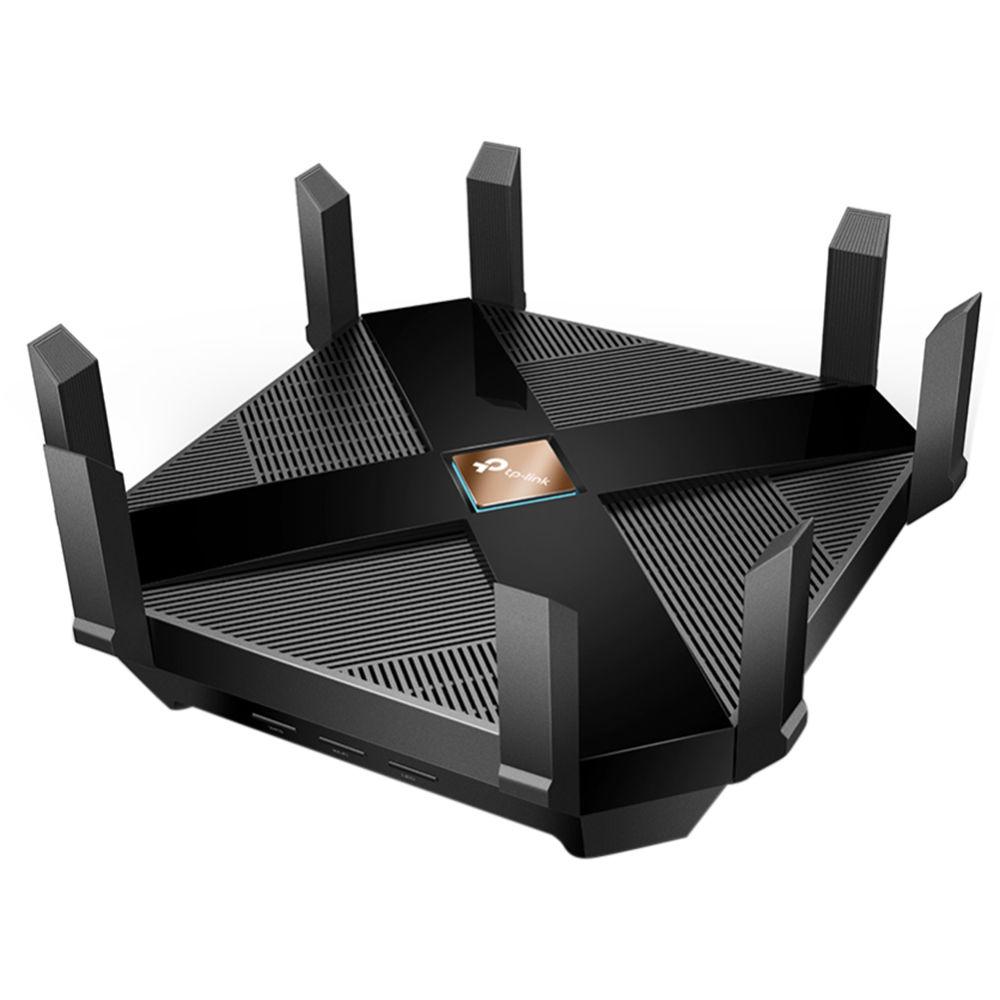

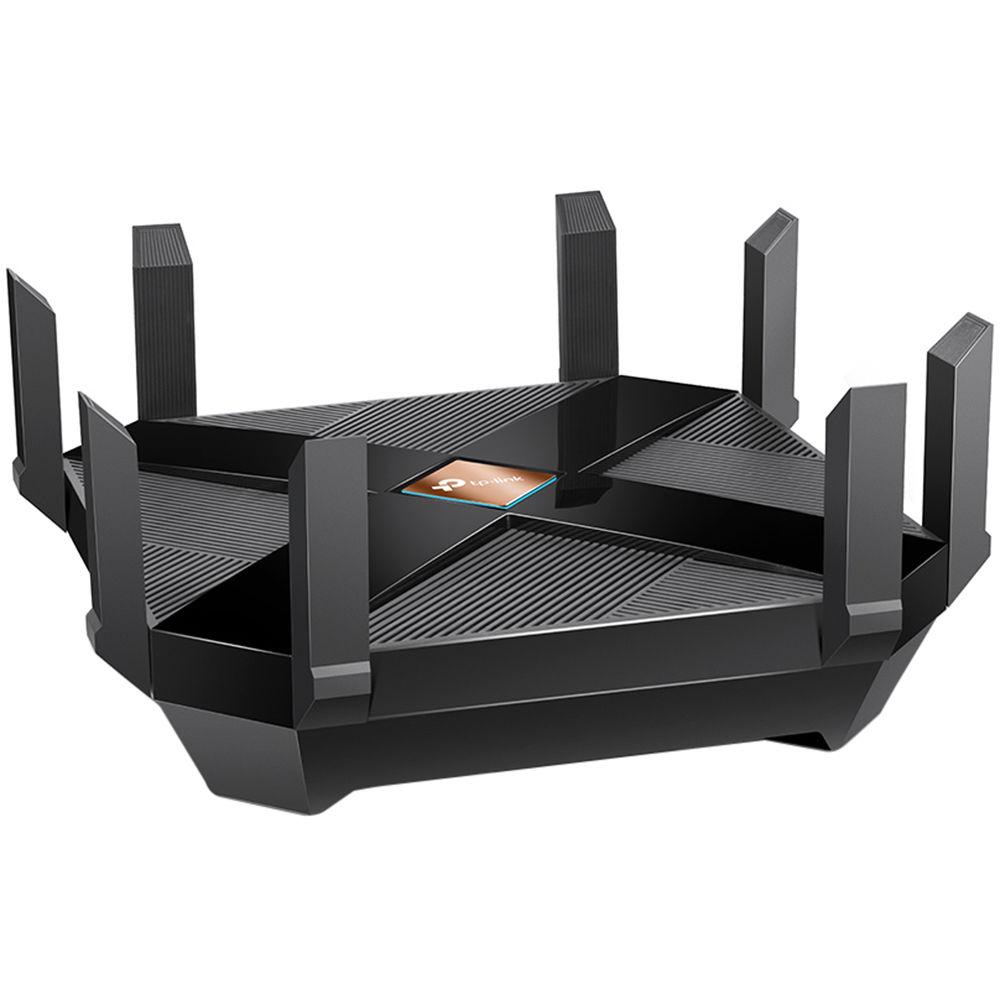

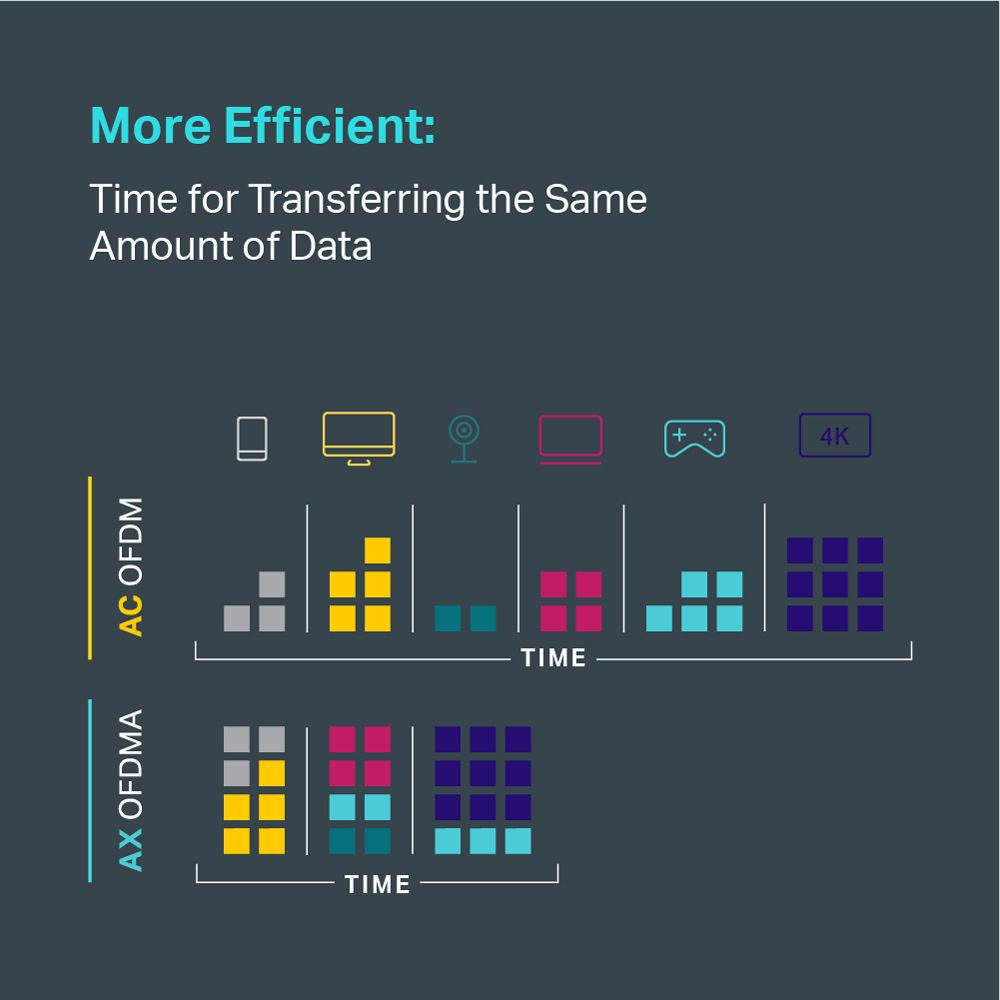

Boasting throughput speeds up to 6,000 Mb/s, the Archer AX6000 Wi-Fi Router from TP-Link features support for Wi-Fi 6 (802.11ax), a Wi-Fi standard that employs wireless technologies such as OFDMA (Orthogonal Frequency-Division Multiple Access) and multi-user MIMO (Multiple Input and Multiple Output) to deliver faster and more reliable Wi-Fi connections compared to Wi-Fi 5 (802.11ac). The dual-band Archer AX6000 boasts eight external antennas, a 2.5 Gb/s WAN Ethernet port, and eight 10/100/1000 Mb/s LAN Ethernet ports. USB 3.0/3.1 Gen 1 Type-A and Type-C ports allow for sharing hard drives, printers, and other devices across the network. The router also comes with a Smart Connect feature that automatically determines the best Wi-Fi band for your devices, Alexa and IFTTT applet integration, and easy setup and configuration via integrated Bluetooth and the TP-Link Tether app for Android and iOS. - Wi-Fi 6 (802.11ax) Technology

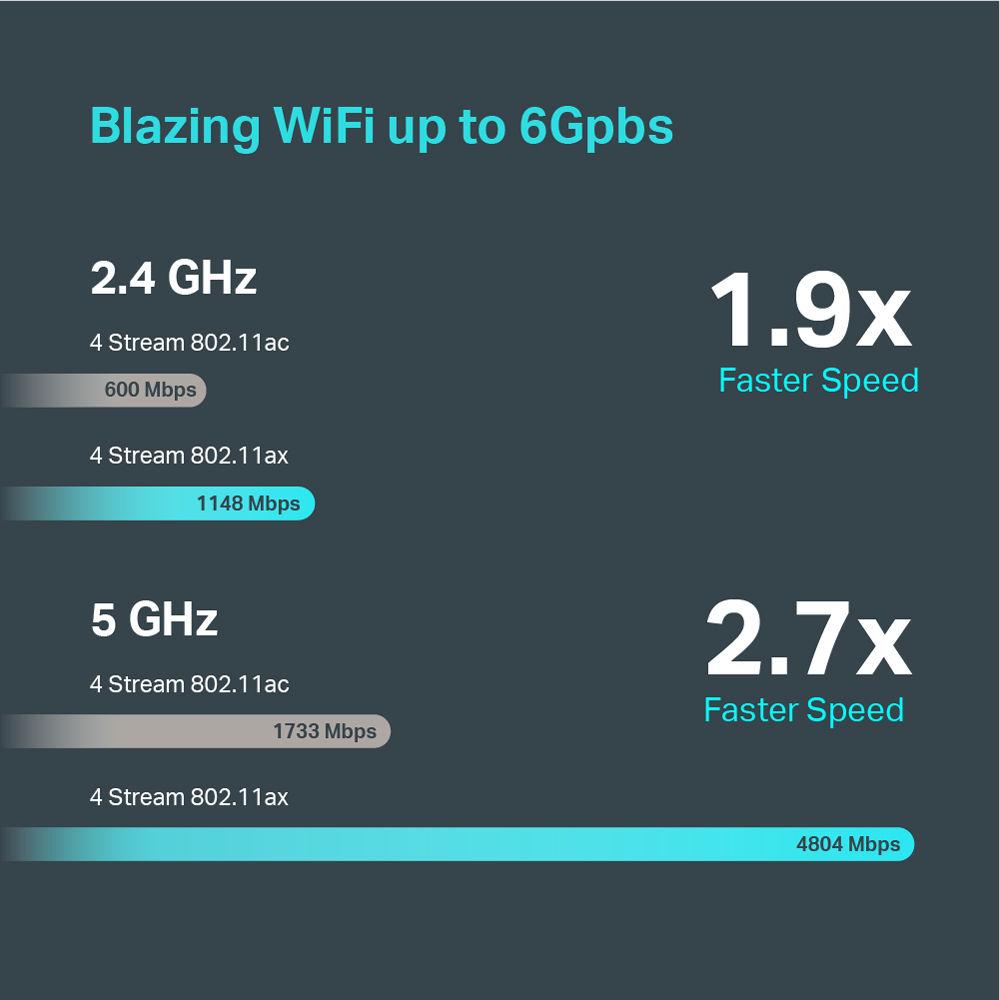

- In addition to faster Wi-Fi speeds compared to the Wi-Fi 5 (802.11ac) standard, Wi-Fi 6 offers technological improvements that allow more users to simultaneously communicate with the router, plus greater energy efficiency for battery-powered network devices. The Wi-Fi 6-enabled Archer AX6000 offers 2.4 GHz data rates up to 1,147 Mb/s and 5 GHz data rates up to 4,800 Mb/s, along with 8 x 8 multi-user MIMO that allows for multiple users to stream 4K video or transfer large data files at the same time.
- 1.8 GHz 64-bit Quad-Core CPU
- Helps to ensure fast transmission speed, support for more devices, and simultaneous high-speed applications.
- USB 3.0/3.1 Gen 1 Ports
- Includes one USB Type-A 3.0/3.1 Gen 1 and one USB Type-C USB 3.0/3.1 Gen 1 port for connecting external storage devices to quickly share files, photos, and videos. USB 3.0 and USB 3.1 Gen 1 are synonymous.
- Smart Connect Support
- Uses a single network name for both 2.4 GHz and 5 GHz Wi-Fi bands, then determines appropriate transmission band for your devices based on the wireless signal quality and the bandwidth needed.
- Beamforming Support
- Helps to boost Wi-Fi reliability and performance by focusing signals in the direction of wireless clients.
- Router and Access Point Modes
- Create a new wireless network with the Archer AX6000 in Router mode, or connect the Archer to an existing network to give it wireless capabilities in Access Point mode.
- RangeBoost Support
- Designed to improve the router's ability to detect and receive signals from wireless clients that are a long distance away.
- TP-Link HomeCare
- Powered by TrendMicro, this suite of security tools includes built-in antivirus utilities, intruder-prevention features, and an automatically updated security database.
- Airtime Fairness Support
- Assigns each device the same amount of time to exchange data, allowing for faster data transfer rates from your high-speed devices while preventing slower devices from clogging the network.
- VPN Connections
- Supports OpenVPN, PPTP (Point-to-Point Tunneling Protocol), and L2TP (Layer 2 Tunneling Protocol), technologies designed to ensure the security and reliability of VPN connections. Meanwhile, VPN acceleration helps to boost VPN speeds.
- Alexa and IFTTT Integration
- Take charge of your smart home devices with the Archer AX6000's support for Alexa and IFTTT home automation applets.
- Bluetooth Setup and TP-Link Tether App
- The Archer AX6000's integrated Bluetooth allows for easy router setup and configuration, while the TP-Link Tether app provides simplified router control and management from an iOS or Android device.
- Additional Features
-
- Link aggregation
- Band steering
- Support for 160 MHz channel bandwidth
UPC: 845973099763 In the Box TP-Link Archer AX6000 Wi-Fi Router Power Adapter Network Cable Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the TP-Link Archer AX6000 Wi-Fi Router in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTP-Link Archer AX6000 Specs | | | Wireless Frequency Bands | 2.4 GHz, 5 GHz | | Number of Antennas | 8 | | MU-MIMO Support | 8 x 8 | | WLAN Mode | Wi-Fi 6 (802.11ax) | | Antenna Placement | External | | | | Ports | 8 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45)
1 x 2.5 Gb/s Ethernet (RJ45) (Uplink)
1 x 5 Gb/s USB Type-A
1 x 5 Gb/s USB Type-C | | USB Sharing Support | Yes | | | | Throughput | 2.4 GHz: 287 Mb/s
2.4 GHz: 287 Mb/s
2.4 GHz: 287 Mb/s
2.4 GHz: 287 Mb/s
5 GHz: 1200 Mb/s
5 GHz: 1200 Mb/s
5 GHz: 1200 Mb/s
5 GHz: 1200 Mb/s | | | | RAM | 1 GB | | Storage Capacity | 128 MB | | Processor | 1.8 GHz BCM4908 Quad-Core | | | | Dimensions | 12 x 10 x 4" / 30.48 x 25.4 x 10.16 cm | | Weight | 3.5 lb / 1588 g | | | | Package Weight | 4.4 lb | | Box Dimensions (LxWxH) | 14.5 x 12.0 x 5.0" |
