User Manual for TP-Link Archer C20 AC750 Wireless Dual-Band Gigabit Router Click to enlarge the picture
Contents of the user manual for the TP-Link Archer C20 AC750 Wireless Dual-Band
- Product category: Wireless Routers TP-Link
- Brand: TP-Link
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TP-Link Wireless Routers
 |
User manual for the TP-Link Archer C20 AC750 Wireless Dual-Band contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TP-Link product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TP-Link user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TP-Link product will considerably shorten its lifespan!
|

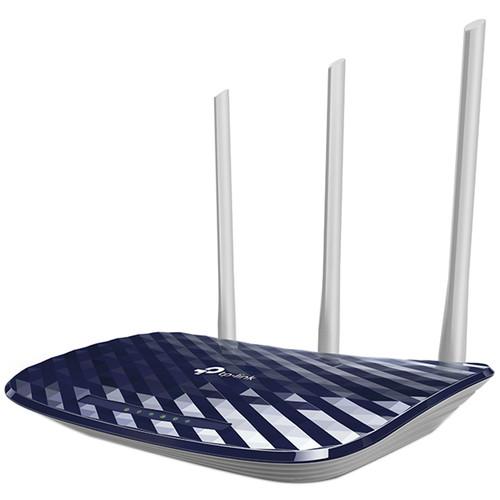

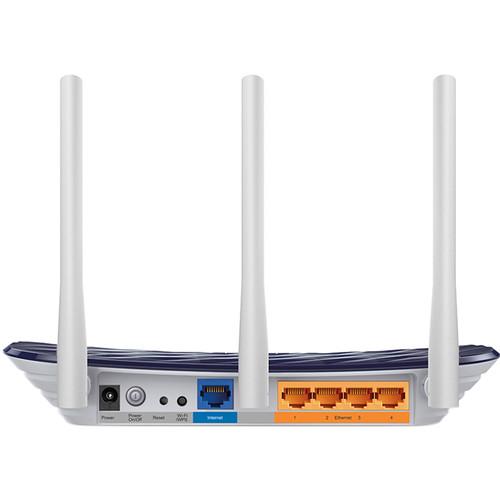

Product description With the Archer C20 AC750 Wireless Dual-Band Gigabit Router from TP-Link, you can get online in no time. This simple-to-use router comes compatible with the 802.11ac Wi-Fi network standard and operates on both the 2.4 GHz and 5 GHz frequencies supporting data transfer rates of up to 750 Mb/s. In addition to enhanced Wi-Fi support, the Archer C20 also comes equipped with four Gigabit Ethernet ports for a reliable wired connection to the network. Setup is simple, thanks to the TP-Link Tether app which is available for download on both iOS- and Android-based mobile devices. From this app, you can manage nearly all aspects of your network including settings, parental controls, access controls, and more. - 802.11ac Wi-Fi
- TP-Link's Archer C20 802.11ac router is backward compatible with 802.11n, but 3 times faster. With higher power efficiency and robust security, 802.11ac is the perfect way to accelerate a home multimedia network and solve congestion that multiple devices may cause.
- 733 Mb/s Dual-Band Connections
- With 433 Mb/s wireless speeds over the clear 5 GHz band and 300 Mb/s over the 2.4 GHz band, the Archer C20 offers you the flexibility of two dedicated networks and ensures enhanced wireless performance. Simple tasks, such as sending e-mails or web browsing, can be handled by the 2.4 GHz band, while bandwidth-intensive tasks, such as online gaming or HD video streaming, can be processed by the 5 GHz band, all at the same time.
- Stable Omni-Directional Signal
- With 3 fixed external antennas combined with higher quality antenna technology, you can experience excellent wireless performance with a stable signal in every direction and high speed across greater distances. This provides you with incredible wireless coverage and reliability from anywhere in your large home or office.
- Easy Setup and Use
- Set up the Archer C20 in minutes, thanks to its intuitive web interface and the powerful Tether app. Tether also lets you manage its network settings from any Android or iOS device, including parental controls and access control.
UPC: 845973080730 In the Box TP-Link Archer C20 AC750 Wireless Dual-Band Gigabit Router Power Adapter RJ45 Ethernet Cable Limited 2-Year Warranty More info from TP-Link Table of Contents
|
Upload User Manual
Have you got an user manual for the TP-Link Archer C20 AC750 Wireless Dual-Band Gigabit Router in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTP-Link Archer C20 Specs | | | Wireless Frequency Bands | 2.4 GHz, 5 GHz | | Number of Antennas | 3 | | WLAN Mode | 802.11ac | | Sensitivity | -76 to -71 dBm | | Transmit Power | 23 dBm | | Supported Protocols | IPv4
IPv6
MAC Filtering
WMM | | | | Ports | 5 x 10/100 Mb/s Ethernet (RJ45) | | | | Throughput | 5 GHz: 433 Mb/s
2.4 GHz: 300 Mb/s | | | | Guest Network Support | Yes | | Wireless Security | WEP, WEP 64, WEP 128, WPA, WPA-PSK, WPA2, WPA2-PSK | | | | Supported IEEE Standards | 802.11a/b/g/n | | | | DC Input Power | 12 VDC at 1 A | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | -10 to 158°F / -23 to 70°C | | Operating Humidity | 10 to 90% | | Storage Humidity | 5 to 90% | | | | Certifications | CE, RoHS, as per Manufacturer | | Dimensions | 9.1 x 5.7 x 1.4" / 23.11 x 14.48 x 3.56 cm | | | | Package Weight | 1.55 lb | | Box Dimensions (LxWxH) | 14.2 x 8.8 x 2.7" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 35 owners. Add your rating and experience with the product.
