User Manual for TP-Link Archer C3150 V2 Wireless AC-3150 Dual-Band Gigabit Router Click to enlarge the picture
Contents of the user manual for the TP-Link Archer C3150 V2 Wireless AC-3150
- Product category: Wireless Routers TP-Link
- Brand: TP-Link
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TP-Link Wireless Routers
 |
User manual for the TP-Link Archer C3150 V2 Wireless AC-3150 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TP-Link product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TP-Link user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TP-Link product will considerably shorten its lifespan!
|
Product description - Why HomeCare animation 56sec Channel

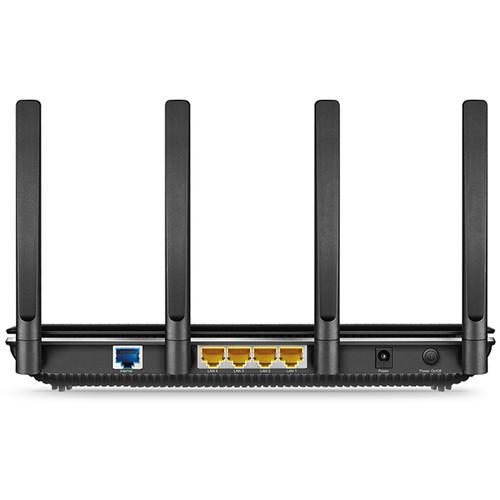

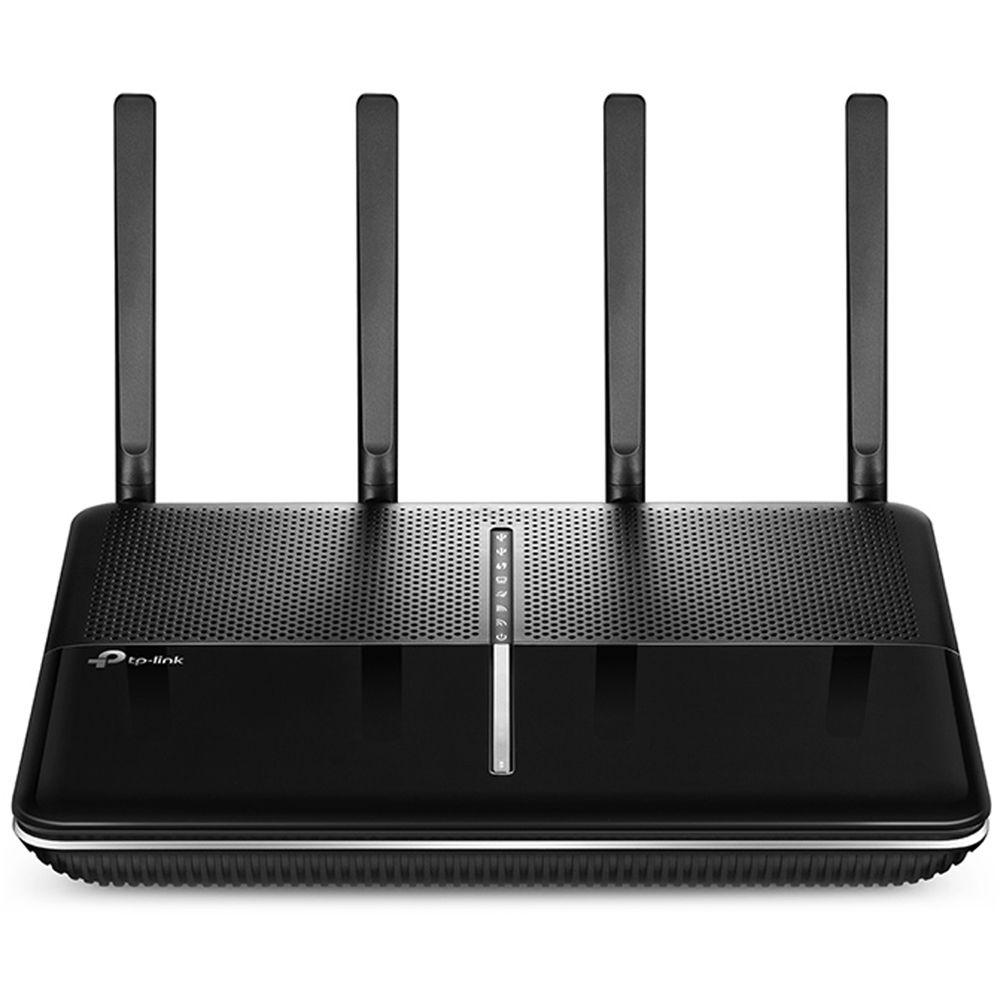

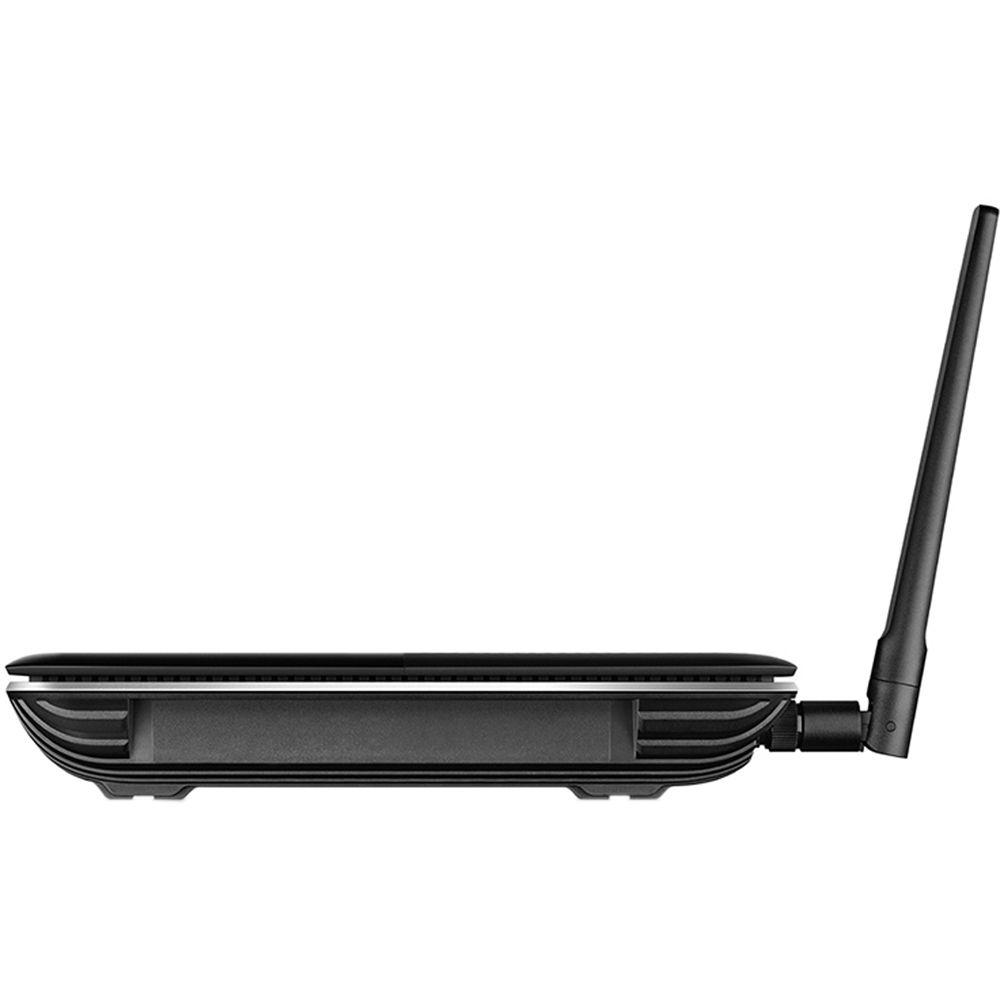

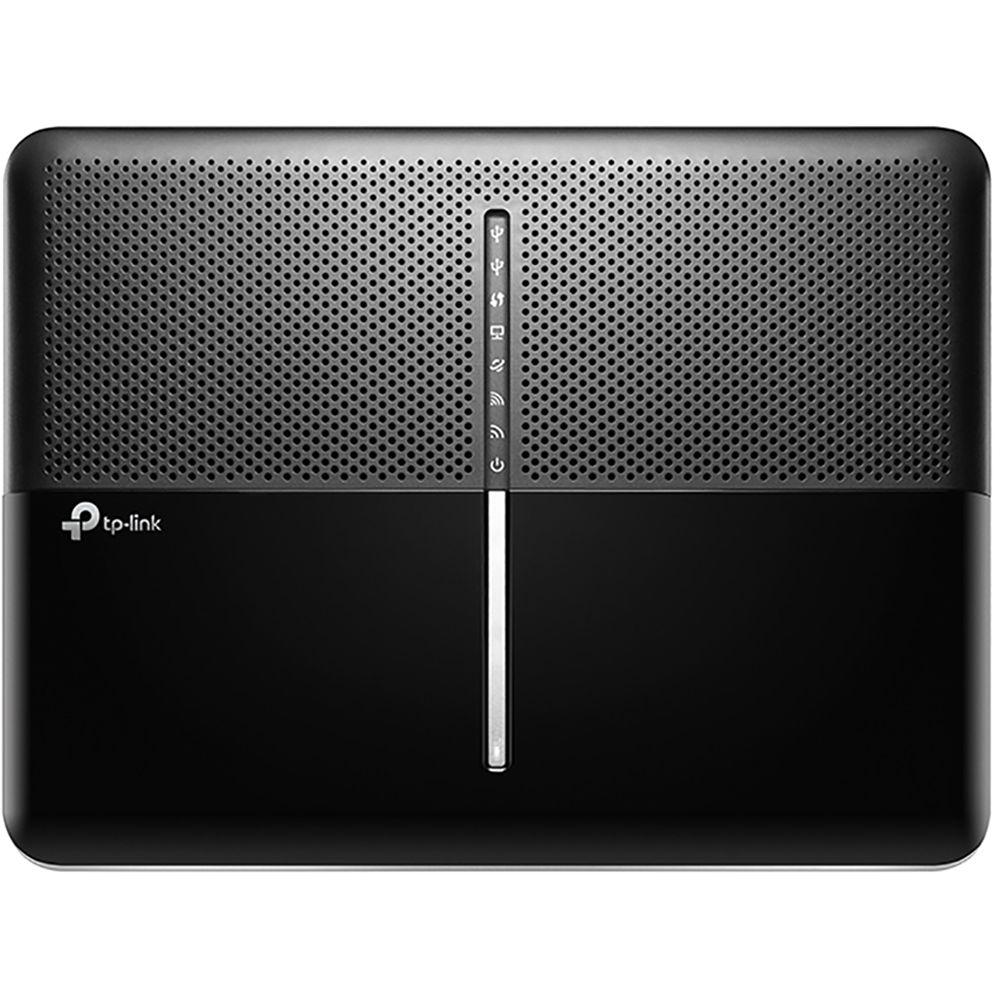

With NitroQAM and 4-stream technology built right in to the Archer C3150 V2 Wireless AC-3150 Dual-Band Gigabit Router from TP-Link, users benefit from enhanced wireless data transfer rates of up to 3150 Mbps. The ARCHER C3150 operates on both the 2.4 GHz and 5 GHz frequencies and, with built-in Smart Connect functionality, devices are assigned to the frequency best suited for its needs. In addition to dual-band frequencies, this TP-Link router supports 802.11a/b/g/n/ac Wi-Fi network standards allowing nearly any Wi-Fi enabled device to connect to the network. If a wired connection is needed, users can take advantage of four Gigabit Ethernet LAN ports, each offering a reliable wired network connection, as well as two USB ports designed for connecting USB-enabled peripherals directly to the network.
The ARCHER C3150 wireless router comes with a variety of features designed to simplify the process of managing the network, as well as enhance security. An intuitive Web UI eliminates the hassle of accessing special configuration pages to manage network settings while a one-touch WPS button offers a quick way to securely add new devices to the network. You can even tether Android or iOS devices to the TP-Link router to easily manage various aspects of the network without using the Web UI. Once configured, security features including guest network access, access controls, parental controls, and WPA/WPA2 encryption ensure the network remains secure and safe from intruders. - NitroQAM and 4-Stream for Maximum Wi-Fi Speed
- With NitroQAM and 4-stream technology powered by Broadcom, it is possible to achieve speeds of 1000 Mbps on the 2.4 GHz band and 2167 Mbps on the 5 GHz band
- Firmware Version 2
- • Upgrade router firmware over the cloud
• Link aggregation functionality
• Improved MU-MIMO performance - MU-MIMO for 4x Faster Connections
- MU-MIMO technology serves up to four devices at once, reducing wait time, increasing Wi-Fi throughput for every device, and making each stream more efficient
- Smart Connect for Better Connections
- Smart Connect technology surveys the Wi-Fi environment to intelligently assign devices to the best available band, balancing the network load to give each device optimized connection and throughput
- 1.4 GHz Dual-Core CPU + 2 Co-Processors
- The Archer C3150 adds a dedicated processor for each band to manage Wi-Fi traffic, freeing up the router's 1.4 GHz dual-core CPU to tackle more demanding tasks
- Wi-Fi Range
- Ultimate Range Wi-Fi
Four dual-band detachable high-performance antennas with a high-powered amplifier ensure widespread Wi-Fi coverage and a stable connection
Wi-Fi with Beamforming
Beamforming technology locates the connected devices and further improves the Archer C3150's range and the signal strength to each mobile device, delivering a more reliable and efficient wireless connection - Reliability
- Simultaneous Dual Band
Separate Wi-Fi bands enable more devices to connect to your network without a drop in performance
Easy Bandwidth Management
IP-based Bandwidth Control makes it easier for you to manage the bandwidth of connected devices
Smart Connect Technology
Dynamic Smart Connect technology automatically selects the optimum band for each device
Airtime Fairness
Balances bandwidth to improve throughput for all connected devices
Link Aggregation
Combines two ports together to make a single high-bandwidth data path for a faster and more stable wired network - Ease of Use
- Intuitive Web UI
Ensures quick and simple installation without hassle
Fast Encryption
One-touch WPA wireless security encryption with the WPS button
Easy On/Off
Turn On/Off wireless radio and LEDs separately using the Wi-Fi On/Off and LED On/Off buttons
Power On/Off
Conveniently power on or off your router as required
Hassle-Free Management with Tether App
Network management is made easy with the TP-Link Tether App, available for any Android or iOS device
Online Upgrade
Keeps you informed of the latest firmware and allows online updating on the web UI - Security
- Guest Network
Keep your main network secure by creating a separate network for friends and visitors
Access Control
Establish a whitelist or blacklist to allow or block certain devices from accessing the internet
Parental Controls
Manage when and how connected devices can access the internet
VPN Server
PPTP VPN and OpenVPN are supported, making it easy to set up a secure connection between your private network and the internet
Encryptions for Secure Network
WPA-PSK/WPA2- PSK encryptions provide active protection against security threats - Easy Sharing
- Dual USB Ports for Fast Sharing

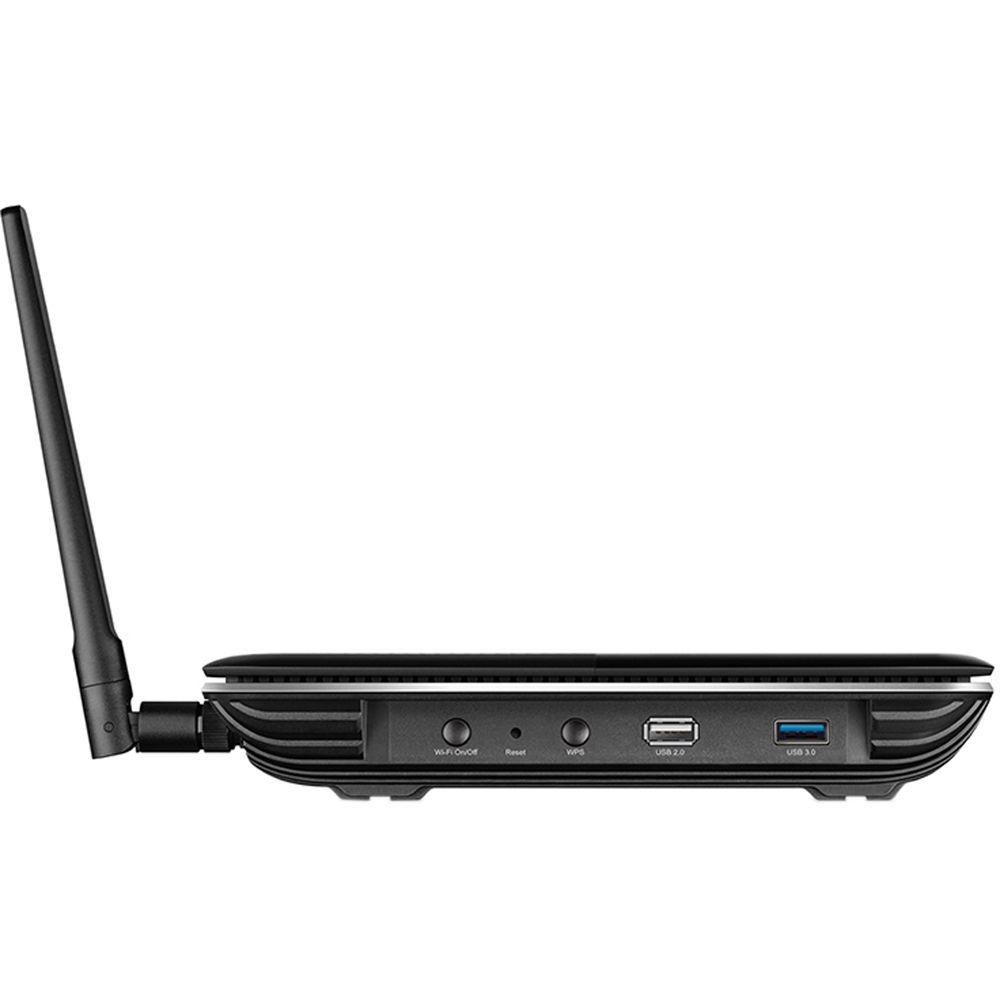

With one ultra-fast USB 3.0 port and one USB 2.0 port, you can access and share a printer as well as your files and media locally. Through the router's FTP server, you can also access your files and media from network devices remotely
10x Faster Transfer Speed
The USB 3.0 port provides up to 10x faster USB hard drive access than previous generation USB 2.0 connections
Built-In Print Server
Allows wireless printing from multiple computers (works in conjunction with a USB printer)
Built-In Media Server
Allows you to play music, watch videos and view photos from any device on your network UPC: 845973080907 In the Box TP-Link Archer C3150 V2 Wireless AC-3150 Dual-Band Gigabit Router 4 x Detachable Antennas Power Supply Unit Ethernet Cable Limited 2-Year Warranty More info from TP-Link Table of Contents
|
Upload User Manual
Have you got an user manual for the TP-Link Archer C3150 V2 Wireless AC-3150 Dual-Band Gigabit Router in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTP-Link C3150 V2 Specs | | | Wireless Frequency Bands | 2.4 GHz, 5 GHz | | Number of Antennas | 4 | | WLAN Mode | 802.11ac | | Sensitivity | -56 to -91 dBm | | Transmit Power | 20 to 30 dBm | | Supported Protocols | IPv4
IPv6 | | | | Ports | 1 x 5 Gb/s USB Type-A
1 x 480 Mb/s USB Type-A
1 x Ethernet (RJ45) (Uplink)
4 x Ethernet (RJ45) | | USB Sharing Support | Yes | | | | Throughput | 2.4 GHz: 1000 Mb/s
5 GHz: 2167 Mb/s | | | | Guest Network Support | Yes | | Wireless Security | WEP, WPA, WPA2 | | | | DC Input Power | 12 VDC at 5 A | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | -40 to 158°F / -40 to 70°C | | Operating Humidity | 10 to 90% | | Storage Humidity | 5 to 90% | | | | Certifications | RoHS, as per Manufacturer | | Dimensions | 10.4 x 7.8 x 1.5" / 263.8 x 197.8 x 37.3 mm | | | | Package Weight | 4.8 lb | | Box Dimensions (LxWxH) | 14.3 x 10.4 x 3.6" |
