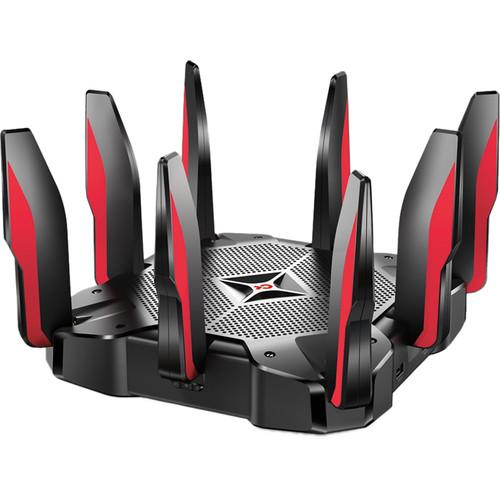

User Manual for TP-Link Archer C5400X AC5400 Wireless Tri-Band Gigabit Router Click to enlarge the picture
Contents of the user manual for the TP-Link Archer C5400X AC5400 Wireless Tri-Band
- Product category: Wireless Routers TP-Link
- Brand: TP-Link
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TP-Link Wireless Routers
 |
User manual for the TP-Link Archer C5400X AC5400 Wireless Tri-Band contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TP-Link product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TP-Link user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TP-Link product will considerably shorten its lifespan!
|
Product description Game without the annoying lag by adding the Archer C5400X AC5400 Wireless Tri-Band Gigabit Router from TP-Link to your gaming arsenal.
This high-performance gaming router features a 1.8 GHz quad-core processor, three co-processors, and 1GB of RAM memory for up to 66% faster throughput over comparable routers. In addition to enhanced processing power, this router also features link aggregation, allowing you to combine two of the eight Gigabit LAN ports, effectively doubling your connection speed from 1 Gb/s to 2 Gb/s. For wirelessly connected devices, the Archer C5400X supports RangeBoost technology designed to expand coverage for a stronger, more reliable wireless connection.
The Archer C5400X router supports the 802.11ac Wi-Fi network standard and operates on a single 2.4 GHz frequency and dual 5 GHz frequencies for a total wireless bandwidth of 5400 Mb/s. The single 2.4 GHz frequency supports wireless data transfer rates of up to 1000 Mb/s while the dual 5 GHz frequencies support wireless data transfer rates of up to 2167 Mb/s. This allows you to allocate more bandwidth-intensive tasks such as streaming multimedia content and online gaming to the faster more efficient 5 GHz bands.

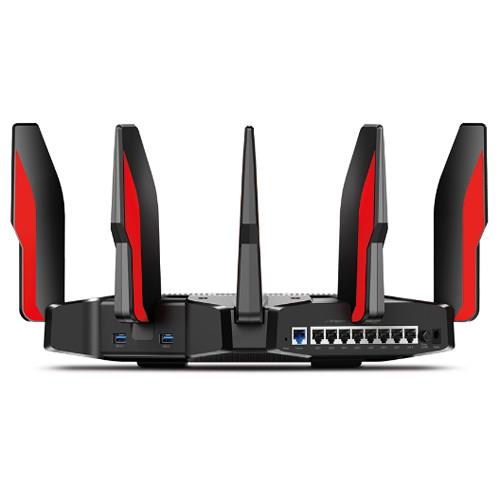

If a wired connection is what you desire, the Archer C5400X has you covered as it comes equipped with eight Gigabit Ethernet ports as well as link aggregation to supercharge your connection. In addition to Ethernet connectivity, this router also features dual USB 3.0 ports so you can share files throughout the network from USB compatible hard drives and access both the built-in print and media servers. - Dynamic Optimization Engine & Comprehensive Security
- TP-Link HomeCare, powered by Trend Micro, updates automatically and always keeps your home protected.
- Link Aggregation
- Team two of the eight Gigabit LAN ports or one LAN with the WAN port to double connection speeds from 1 Gb/s to 2 Gb/s.
- RangeBoost
- Devices located farther away from the Archer C5400X benefit from greatly improved connection quality so you can game anywhere, from the basement to the garage and even the backyard.
- Speed
- Ultimate Wireless Speed
Combined wireless speeds up to 1000 Mb/s over 2.4 GHz, 2167 Mb/s over 5 GHz-1 and 2167 Mb/s over 5 GHz-2
802.11ac Support
Provides data transfer rate 3 times faster than 802.11n for each stream
1.8 GHz 64-bit Quad-Core CPU
A 1.8 GHz 64-bit quad-core CPU balances the demands of your devices and improves NAT throughput to keep connections fast and continuous - Wi-Fi Range
- Ultimate Range Wi-Fi
Eight high-performance antennas with a high-powered amplifier ensure the widespread Wi-Fi coverage and a stable connection
Wi-Fi with Beamforming
Beamforming technology locates the connected devices and further improves the router's range and the signal strength to each mobile device, delivering a more reliable and efficient wireless connection - Reliability
- Simultaneous Tri Band
Separate Wi-Fi bands enable more devices to connect to your network without a drop in performance
Easy Bandwidth Management
Advanced QoS makes it easier for you to manage the bandwidth of connected devices or applications - Ease of Use
- Intuitive Web UI
Ensures quick and simple installation without hassle
Fast Encryption
One-touch WPA wireless security encryption with the WPS button
Easy On/Off
Turn on/off wireless radio using the Wi-Fi button; turn on/off LEDs using the LED button
Power On/Off
Conveniently power on or off your router as required
Hassle-free Management with Tether App
Network management is made easy with the TP-Link Tether App, available on any Android and iOS device
Online Upgrade
Keeps you informed of the latest firmware and allows online upgrade on the web UI - Security
- Antivirus
Protect all connected devices in your home from viruses and malware
Guest Network
Keep your main network secure by creating a separate network for friends and visitors
Access Control
Establish a whitelist or blacklist to allow or restrict certain devices to access the internet
Parental Controls
Restrict internet access time and contents for children devices
Encryptions for Secure Network
WPA-PSK and WPA2-PSK encryptions provide active protection against security threats - Easy Sharing
- Dual USB 3.0 Ports for Fast Sharing
Dual USB 3.0 ports make it easy to share photos, videos, and music across your home network. Through the router's FTP server, you can also access your files and media from network devices remotely
10x Faster Transfer Speed
The USB 3.0 port provides up to 10x faster USB hard drive access than previous generation USB 2.0 connections
Built-in Print Server
Allows wireless printing from multiple computers (works in conjunction with a USB printer)
Built-in Media Server
Allows you to play music, watch videos and view photos from any device on your network UPC: 845973081454 In the Box TP-Link Archer C5400X AC5400 Wireless Tri-Band Gigabit Router Power Adapter Ethernet Cable Limited 3-Year Warranty More info from TP-Link uefxwutqtywqwswvacedcyzdabsxu Table of Contents
|
Upload User Manual
Have you got an user manual for the TP-Link Archer C5400X AC5400 Wireless Tri-Band Gigabit Router in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTP-Link Archer C5400X Specs | | | Ethernet Ports | 8 x Gigabit LAN ports
1 x Gigabit WAN port | | USB Ports | 2 x USB 3.0 ports | | Buttons | Wi-Fi on/off button
LED on/off button
Power on/off button
Reset button
WPS button | | Antennas | 8 x External antennas | | External Power Supply | 12 V / 5 A | | | | Wireless Standards | IEEE 802.11ac/n/a 5 GHz
IEEE 802.11ac/n/g/b 2.4 GHz | | Frequency | 1 x 2.4 GHz
1 x 5 GHz
1 x 5 GHz | | Signal Rate | 1000 Mb/s on 2.4 GHz
2167 Mb/s on 5 GHz-1
2167 Mb/s on 5 GHz-2 | | Transmit Power | CE
<20 dbm (2.4 ghz)
<23 dbm (5.15 ghz~5.35 ghz)
<30 dbm (5.47 ghz~5.725 ghz)
FCC
<30 dBm (2.4 GHz & 5.15 GHz~5.25 GHz & 5.725 GHz~5.825 GHz) | | Reception Sensitivity | 5 GHz
11a 6 Mb/s: -94 dBm, 11a 54 Mb/s: -76 dBm
11ac VHT20_MCS0: -96 dBm, 11ac VHT20_MCS11: -64 dBm
11ac VHT40_MCS0: -93 dBm, 11ac VHT40_MCS11: -61 dBm
11ac VHT80_MCS0: -89 dBm, 11ac VHT80_MCS11: -58 dBm
2.4 GHz
11g 6 Mb/s: -97 dBm, 11g 54 Mb/s: -79 dBm
11n HT20_MCS0: -98 dBm, 11n HT20_MCS7: -77 dBm
11ac VHT20_MCS11: -66 dBm, 11n HT40_MCS0: -95 dBm
11n HT40_MCS7: -75 dBm, 11ac VHT40_MCS11: -64 dBm | | Wireless Functions | Enable/disable wireless radio
WDS bridge
WMM
Wireless statistics | | Wireless Security | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryption | | | | Software Specifications | Quality of Service
Device and application prioritization
WAN Type
Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access)/BigPond
Management
Access control, local management, remote management
DHCPM
Server, DHCP client list, address reservation
Port Forwarding
Virtual server, port triggering, UPnP, DMZ
Dynamic DNS
DynDns, NO-IP, TP-Link
Access Control
Parental controls, local management control, host list, white list, black list
Firewall Security
DoS, SPI Firewall, IP and MAC address binding
Protocols
IPv4, IPv6
USB Sharing
Supports Samba(storage)/FTP server/media server/printer server
Guest Network
1 x 2.4 GHz guest network
2 x 5 GHz guest networks | | Certifications | CE, FCC, RoHS | | System Requirements | Microsoft Windows 98SE/NT/2000/XP/Vista/7/8/8.1/10, MAC OS, NetWare, UNIX or Linux
Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser
Cable or DSL Modem
Subscription with an internet service provider (for internet access) | | Temperature & Humidity | Operating Temperature
32 to 104°F / 0 to 40°C
Storage Temperature
-40 to 158°F / -40 to 70°C
Operating Humidity
10 to 90% non-condensing
Storage Humidity
5 to 90% non-condensing | | Dimensions | 9.47 x 9.47 x 2.18" / 240.5 x 240.5 x 55.3 mm | | Weight | Not specified by manufacturer | | | | Package Weight | 6.0 lb | | Box Dimensions (LxWxH) | 14.7 x 11.5 x 4.8" |
