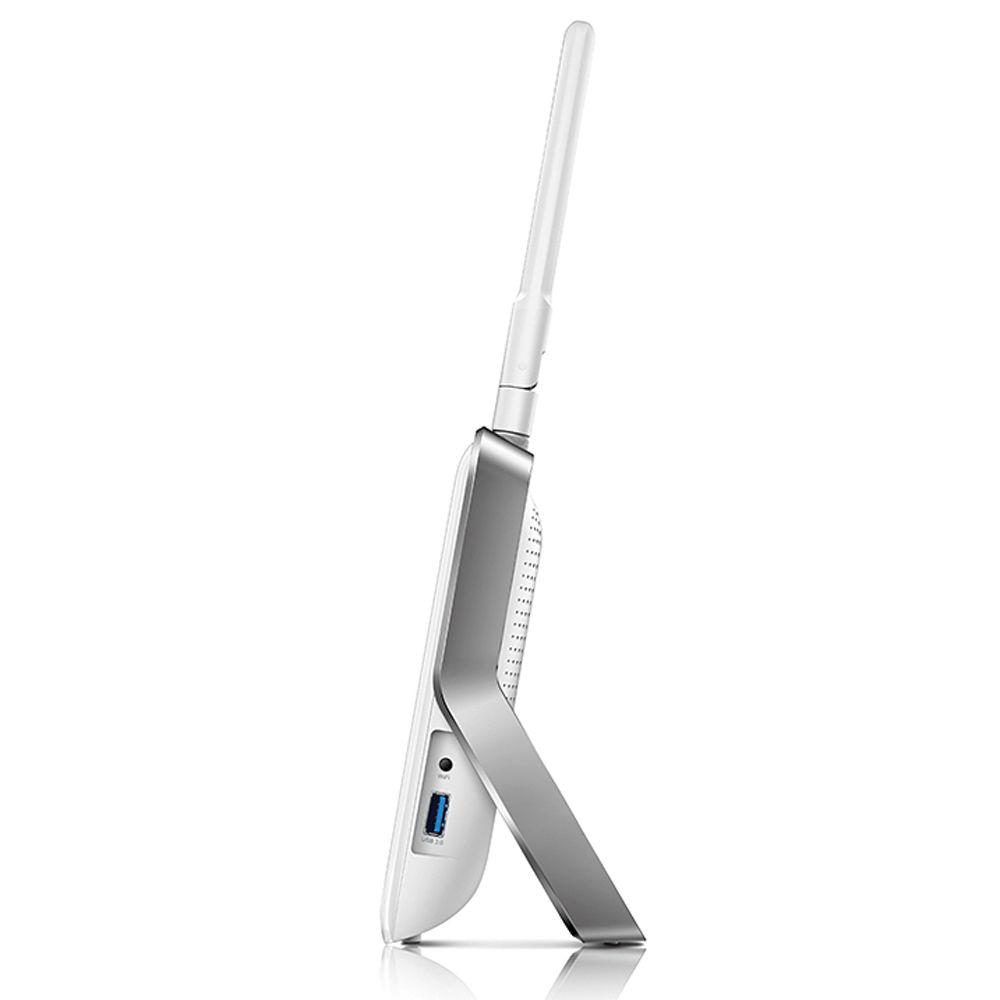

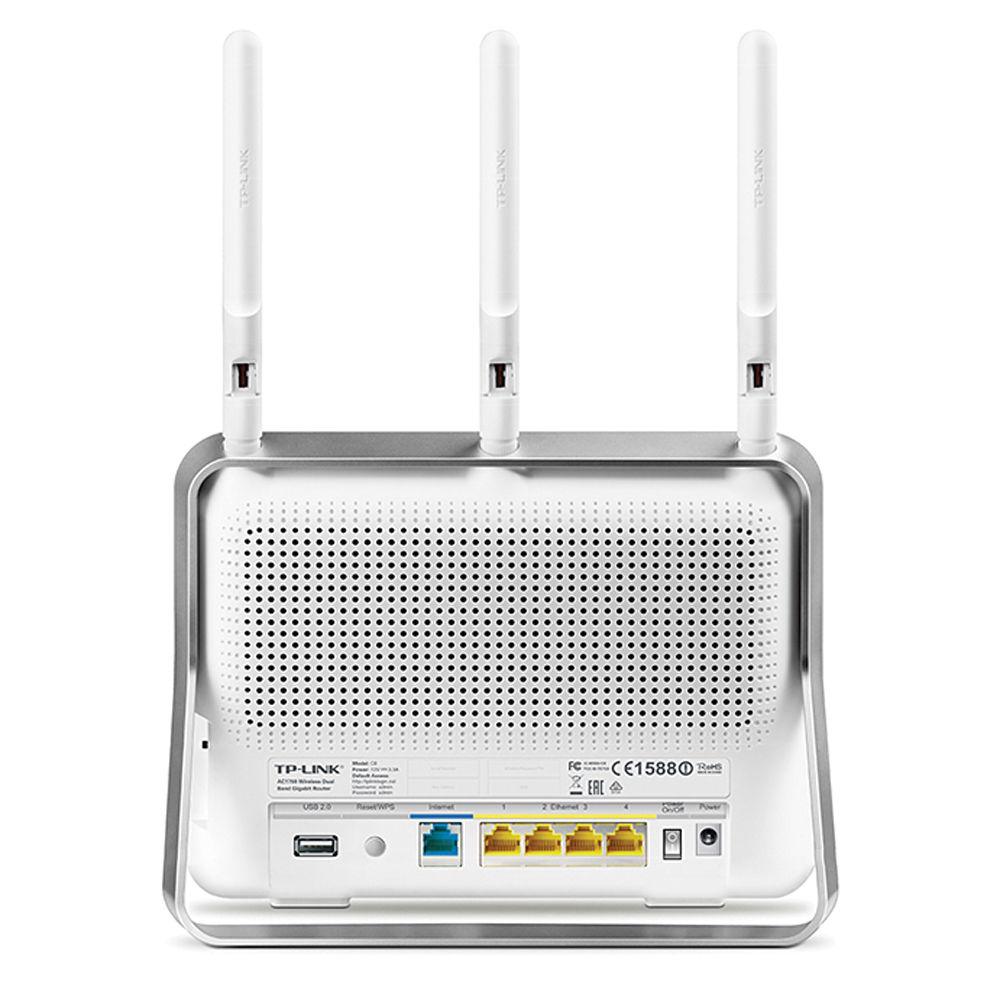

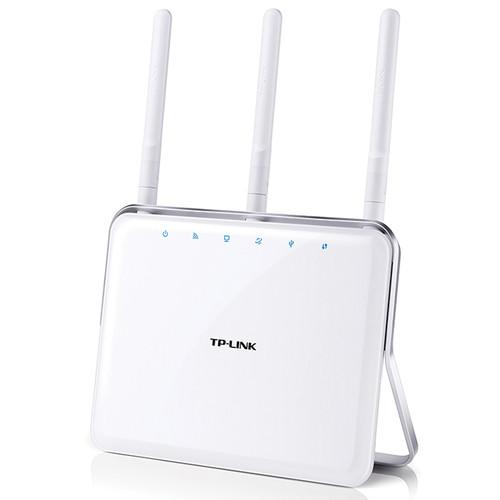

User Manual for TP-Link ARCHER C8 Dual Band WirelessAC1750 Gigabit Router Click to enlarge the picture
Contents of the user manual for the TP-Link ARCHER C8 Dual Band WirelessAC1750
- Product category: Wireless Routers TP-Link
- Brand: TP-Link
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TP-Link Wireless Routers
 |
User manual for the TP-Link ARCHER C8 Dual Band WirelessAC1750 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TP-Link product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TP-Link user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TP-Link product will considerably shorten its lifespan!
|
Product description Connect your Wi-Fi enabled devices to the Internet at speeds of up to 1750 Mbps with the ARCHER C8 Dual Band Wireless AC1750 Gigabit Router from TP-Link. This dual band Wi-Fi router operates on both the 2.4 GHz and 5 GHz frequencies allowing you to allocate more data intensive tasks to the less congested 5 GHz frequency. Along with enhanced wireless connectivity, this router also supports four Gigabit Ethernet ports providing a fast, hardwired connection to the router. You can also utilize the two USB ports to attach devices such as USB printers and hard drives making them accessible throughout the network or remotely via an FTP server.
This TP-Link router also supports guest network access making it possible to restrict Internet access to specific users. You can utilize parental controls to enact restricted access policies while IP-based bandwidth control allows you to allocate bandwidth throughout the network. - Take advantage of dual band functionality for combined wireless speeds of up to 1.75 Gbps using the 2.4 GHz and 5 GHz bands concurrently
- Three dual band, detachable antennas provide maximum Omni-directional wireless coverage and reliability
- Full gigabit ports ensure ultra fast data transfer speeds
- Compatible with 802.11 a/b/g/n/ac products
- With USB 3.0 and USB 2.0 ports you can easily share a printer locally along with files and media with networked devices or remotely via an FTP server
- Guest network access provides secure Wi-Fi access for guests sharing your home or office network
- IP-based bandwidth control makes it easier for you to manage the bandwidth of devices connected to the router
- The Wi-Fi On/Off button allows users to turn their wireless radio on or off
- Easy one-touch WPA wireless security encryption with the WPS button
- WPA-PSK/WPA2-PSK encryptions provide user networks with active defense against security threats
- Easy setup assistant with multi-language support provides a quick and hassle free installation process

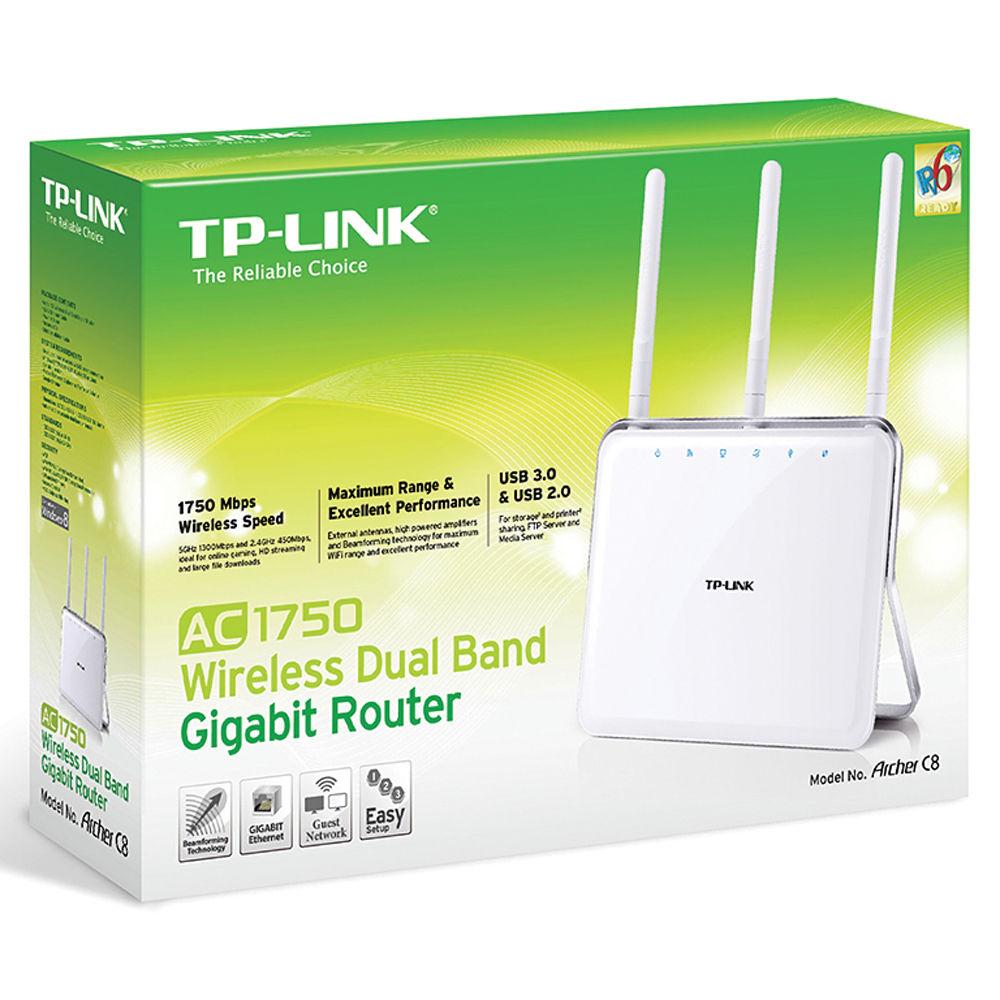

UPC: 845973080013 In the Box TP-Link ARCHER C8 Dual Band WirelessAC1750 Gigabit Router 3 x Detachable Antennas Power Supply Unit Resource CD Ethernet Cable Limited 2-Year Warranty User Manual PDF 3mbraquubtffyaazv More info from TP-Link Table of Contents
|
Upload User Manual
Have you got an user manual for the TP-Link ARCHER C8 Dual Band WirelessAC1750 Gigabit Router in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTP-Link C8 Specs | | | Wireless Frequency Bands | 2.4 GHz, 5 GHz | | Number of Antennas | 3 | | WLAN Mode | 802.11ac | | Sensitivity | -63 to -96 dBm | | Transmit Power | 20 to 30 dBm | | Supported Protocols | IPv4
IPv6 | | Antenna Placement | External | | | | Ports | 1 x Ethernet (RJ45) (Uplink)
4 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45)
1 x 5 Gb/s USB Type-A
1 x 480 Mb/s USB Type-A | | USB Sharing Support | Yes | | | | Throughput | 2.4 GHz: 450 Mb/s
5 GHz: 1300 Mb/s | | | | Guest Network Support | Yes | | Wireless Security | WEP, WPA, WPA2 | | | | DC Input Power | 12 VDC at 3.3 A | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | -40 to 158°F / -40 to 70°C | | Operating Humidity | 10 to 90% | | Storage Humidity | 5 to 90% | | | | Certifications | RoHS, as per Manufacturer | | Dimensions | 8.7 x 3.4 x 6.6" / 221 x 86 x 168.5 mm | | | | Package Weight | 3.0 lb | | Box Dimensions (LxWxH) | 13.2 x 9.5 x 3.9" |
