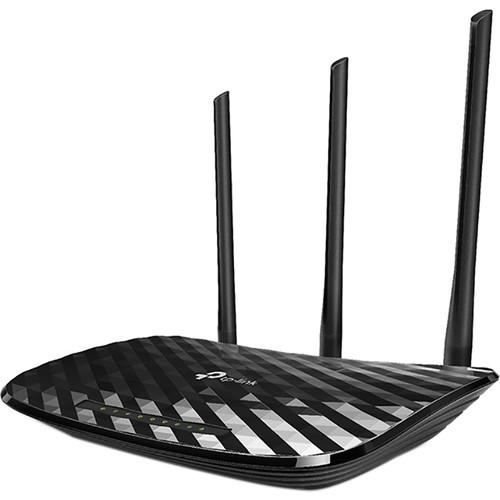

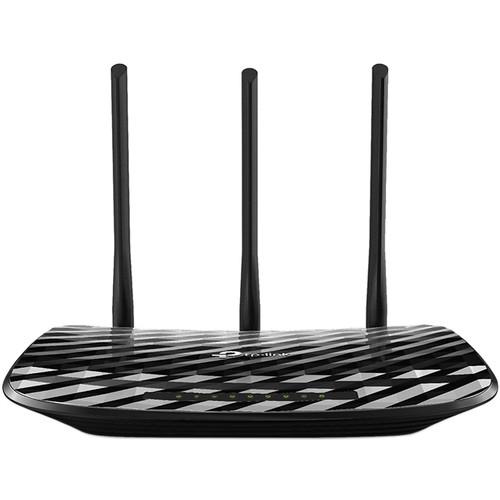

User Manual for TP-Link Archer C900 AC900 Wireless Dual-Band Gigabit Router Click to enlarge the picture
Contents of the user manual for the TP-Link Archer C900 AC900 Wireless Dual-Band
- Product category: Wireless Routers TP-Link
- Brand: TP-Link
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TP-Link Wireless Routers
 |
User manual for the TP-Link Archer C900 AC900 Wireless Dual-Band contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TP-Link product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TP-Link user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TP-Link product will considerably shorten its lifespan!
|
Product description With 802.11ac Wi-Fi, the Archer C900 AC900 Wireless Dual-Band Gigabit Router from TP-Link offers enhanced wireless data transfer rates of up to 900 Mb/s.
In addition to enhanced wireless transfer rates, the Archer C900 operates on both the 2.4 GHz and 5 GHz frequencies so you can allocate more bandwidth-intensive tasks to the more efficient 5 GHz band. Don't want to connect to the network wirelessly? Don't worry, as the Archer C900 comes equipped with four Gigabit Ethernet ports that provide a reliable, wired network connection. Regardless of how you connect, your connection will be secure thanks to 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryption standards; and with the TP-Link Tether app, you can manage nearly all aspects of your network right from your iOS or Android-based mobile device. - AC Wi-Fi for Smooth Streaming and Fast Downloads
- Upgrade to AC Wi-Fi for smooth streaming and fast downloads
- More Bands for More Devices
- Dual 2.4 GHz and 5 GHz bands deliver up to 900 Mb/s of Wi-Fi, allowing all your devices to connect to your home network at once
- Wi-Fi that Covers Your Home
- Three external antennas can be adjusted to focus Wi-Fi towards rooms that need it most. Easily stream videos and share files in anywhere in your home.
- Parental Controls and Guest Wi-Fi for Customized Access
- Set limits on when and how devices can access the internet to keep children safe with parental controls and use the Guest Wi-Fi Network to provide visitors with Wi-Fi access separate from your main network for more security.
- Intuitive Tether App
- Set up and manage your Wi-Fi through the TP-Link Tether app, available for both Android and iOS. Tether's simple layout lets you quickly access Wi-Fi settings such as guest privileges, scheduling, and device management from your smartphone. Sign up for a TP-Link cloud account to check on your network and change settings even while away from home.
UPC: 845973081218 In the Box TP-Link Archer C900 AC900 Wireless Dual-Band Gigabit Router Power Adapter RJ45 Ethernet Cable Limited 2-Year Warranty More info from TP-Link Table of Contents
|
Upload User Manual
Have you got an user manual for the TP-Link Archer C900 AC900 Wireless Dual-Band Gigabit Router in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTP-Link Archer C900 Specs | | | Interface | 4 x 10/100/1000 Mb/s LAN ports
1 x 10/100/1000 Mb/s WAN port | | Button | Wi-Fi/WPS button
Reset button
Power on/off button | | Antenna | 2 x 2.4 GHz antennas
1 x 5 GHz/2.4 GHz dual-band antenna | | External Power Supply | 12 V / 1 A | | | | Wireless Standards | IEEE 802.11ac/n/a 5 GHz
IEEE 802.11b/g/n 2.4 GHz | | Frequency | 2.4 GHz and 5 GHz | | Signal Rate | 5 GHz: Up to 433 Mb/ s
(only with 11ac Wireless Adapter)
Up to 150 Mb/s with 11n wireless adapter
2.4 GHz: Up to 300 Mb/s | | Reception Sensitivity | 5 GHz
11a 54M: -76 dBm
11ac VHT20 MCS8: -70 dBm
11ac VHT40 MCS9: -65.5 dBm
11ac VHT80 MCS9: -61.5 dBm
2.4 GHz
11g 54M: -76 dBm
11n HT20 MCS7: -74 dBm
11n HT40 MCS7: -71 dBm | | Transmit Power | CE
<20 dbm (2.4 ghz)
<23 dBm (5 GHz) | | Wireless Functions | Enable/disable wireless radio
WDS bridge
WMM
Wireless statistics | | Wireless Security | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryption | | | | Quality of Service (QoS) | WMM
Bandwidth control | | WAN Type | Dynamic IP/Static IP/PPPoE/PPTP (Dual Access)/L2TP (Dual Access)/BigPond | | Management | Access control
Local management
Remote management | | DHCP | Server
Client
DHCP client list
Address reservation | | Port Forwarding | Virtual server
Port triggering
UPnP
DMZ | | Dynamic DNS | DynDns
Comexe
NO-IP | | VPN Pass-Through | PPTP
L2TP
IPSec | | Access Control | Parental control
Local management control
Host list
Access schedule
Rule management | | Firewall Security | DoS
SPI firewall
IP address filter/domain filter
IP and MAC address binding | | Protocols | Supports IPv4 and IPv6 | | Guest Network | 1 x 2.4 GHz guest network
1 x 5 GHz guest network | | | | Certifications | CE, FCC, RoHS | | System Requirements | Windows 10/8.1/8/7/Vista/XP
Mac OS
Linux-based operating system | | Temperature & Humidity | Operating Temperature
32 to 104°F / 0 to 40°C
Storage Temperature
-40 to 158°F / -40 to 70°C
Operating Humidity
10 to 90% non-condensing
Storage Humidity
5 to 90% non-condensing | | Dimensions | 9.1 x 5.7 x 1.4" / 23.0 x 14.4 x 3.5 cm | | Weight | Not specified by manufacturer | | | | Package Weight | 1.8 lb | | Box Dimensions (LxWxH) | 13.0 x 11.0 x 3.0" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 22 owners. Add your rating and experience with the product.
