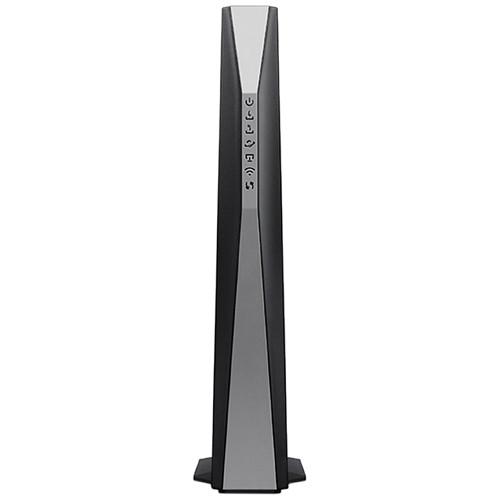

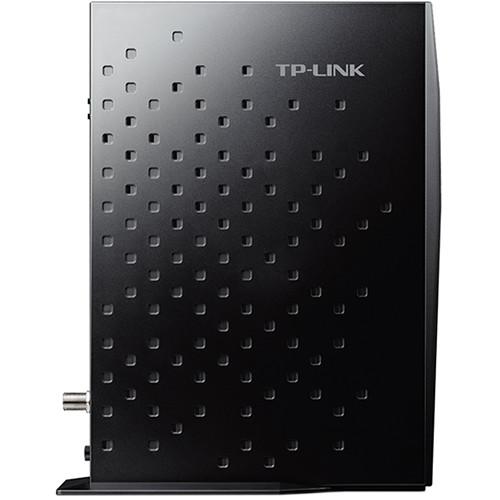

User Manual for TP-Link Archer CR700 AC1750 Wireless Dual Band DOCSIS 3.0 Cable Modem & Router Click to enlarge the picture
Contents of the user manual for the TP-Link Archer CR700 AC1750 Wireless Dual
- Product category: Modems TP-Link
- Brand: TP-Link
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TP-Link Modems
 |
User manual for the TP-Link Archer CR700 AC1750 Wireless Dual contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TP-Link product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TP-Link user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TP-Link product will considerably shorten its lifespan!
|
Product description Eliminate the need to purchase a cable modem and router separately with the Archer CR700 AC1750 Wireless Dual Band DOCSIS 3.0 Cable Modem & Router from TP-Link. This DOCSIS 3.0 compatible modem features a single coax input allowing you to connect the Archer CR700 directly to your incoming cable line. Once connected the modem/router does the rest and you can begin routing your connection via four Gigabit Ethernet ports or wirelessly over both the 2.4 GHz and 5 GHz frequencies.

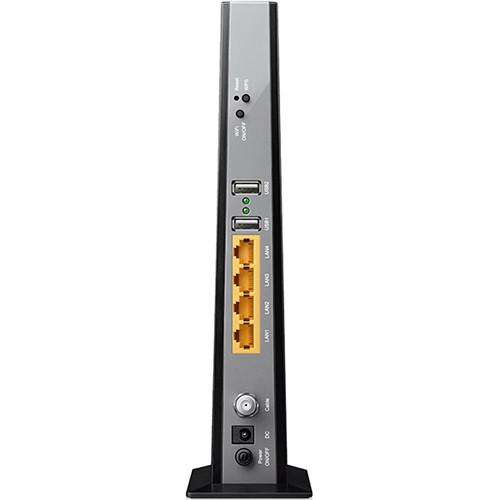

In addition to the four Gigabit Ethernet ports on the back of the device, you will also find dual USB ports allowing you to plug in devices such as thumb drives and external hard drives making it easy to share your files with users throughout the network. You can even share files remotely over an FTP connection.
Along with support for dual-band networking, the Archer CR700 supports the 802.11ac Wi-Fi networking standard for an ultra fast wireless network connection. With a maximum data throughput of up to 1750 Mbps you can stream HD content, game online, transfer large files, and more. Additionally, TP-Link has incorporated beamforming technology into this modem/router which provides a more focused and concentrated connection directly to your wireless devices. As a result you benefit from a more reliable, stable connection. - ISP Compatibility
- The ARCHER CR700 comes compatible with the following cable providers including XFINITY from Comcast, Sepctrum, and more.
Please see manufacturer website for list of additional ISP compatibility information - Enhanced Networking Functionality
- Your smart devices can perform to their full potential by taking advantage of enhanced networking standards. Utilizing the DOCSIS 3.0 modem protocol and 802.11ac wireless technology you benefit from both enhanced cable download speeds and gigabit Wi-Fi speeds.
- Combine Your Cable Modem and Wi-Fi Router
- Free up space by combining your cable modem and Wi-Fi router into a single compact, elegantly designed device.
- Web Management Features
- Parental and Access Control features from the web management page grant you the ability to safeguard your network, restricting who can join and what content users may access while on it.
- USB Ports
- Two USB ports make storing, accessing, and sharing data simple by allowing multiple USB devices to connect to the modem router at the same time without the need for a separate USB hub. You can access USB devices connected to the modem router through your network or remotely using FTP technology. This allows you to download or stream media from flash and hard drives, including music, photos, and movies, as well as share printers across your network.
- Enhanced Wi-Fi Functionality
- The CR700 creates a strong Wi-Fi network throughout the home-upstairs, downstairs, and even outside. High powered amplifiers boost its wireless signal, a speedy processor handles bandwidth-intensive tasks, and its large amount of memory helps minimize lag and data buffering losses. The modem router is also equipped with beamforming technology, which increases its range by allowing it to focus independent signals towards devices rather than simply broadcasting in all directions.
UPC: 845973071462 In the Box TP-Link Archer CR700 AC1750 Wireless Dual Band DOCSIS 3.0 Cable Modem & Router RJ-45 Ethernet Cable Power Adapter Limited 1-Year Manufacturer Warranty User Manual PDF 2.3mb More info from TP-Link Table of Contents
|
Upload User Manual
Have you got an user manual for the TP-Link Archer CR700 AC1750 Wireless Dual Band DOCSIS 3.0 Cable Modem & Router in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTP-Link CR700 Specs | | | Memory | 16 MB flash and 256 MB RAM | | Interface | 4 x 10/100/1000 Mbps RJ45 LAN ports
1 x Coax port
2 x USB 2.0 ports | | Button | 1 x Power on/off button
1 x WPS button
1 x Wi-Fi on/off button
1 x Reset button | | External Power Supply | 12 VDC / 3.5 A | | IEEE Standards | IEEE 802.3, 802.3u, 802.3ab | | DOCSIS 3.0 | DOCSIS 1.0, 1.1, 2.0, & 3.0 | | Antenna Type | 6 x Internal antennas | | Amplifiers | High-powered radio amplifiers | | | | Wireless Standards | 5 GHz: IEEE 802.11ac/n/a
2.4 GHz: IEEE 802.11n/g/b | | Wireless Speeds | 5 GHz: Up to 1300 Mbps
2.4 GHz: Up to 450 Mbps | | Frequency | 2.4 GHz and 5 GHz | | Transmit Power | <20 dBm (EIRP) | | Wireless Functions | Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics | | Wireless Security | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryption, Wireless MAC Filtering | | | | Security | NAT firewall, access control | | IPv6 | IPv6 and IPv4 dual stack | | Management | Web Based Configuration(HTTP), Remote management, SSL for TR-069, SNMP v1/2c, Diagnostic Tools | | DHCP | Server, Client, DHCP Client List | | Port Forwarding | Virtual server, Port Triggering, DMZ, ALG, UPnP | | Dynamic DNS | DynDns, NO-IP | | VPN Pass-through | PPTP, L2TP, IPSec Passthrough | | USB Sharing | Support Samba(Storage)/FTP Server/Media Server/Printer Server | | Guest Network | 1 x 2.4 GHz guest network
1 x 5 GHz guest network | | | | Certifications | FCC, RoHS, UL, CableLabs | | System Requirements | Windows 10/8.1/8/7/Vista/XP or Mac OS or Linux-based operating system | | Temperature & Humidity | Operating Temperature: 32 to 104°F / 0 to 40°C
Storage Temperature: -40 to 158°F / -40 to 70°C
Operating Humidity: 10 to 90% non-condensing
Storage Humidity: 5 to 90% non-condensing | | | | Dimensions | 9.0 x 6.3 x 1.5" / 229 x 160 x 37 mm | | Weight | Not specified by manufacturer | | | | Package Weight | 2.55 lb | | Box Dimensions (LxWxH) | 12.362 x 9.449 x 2.756" |
