TP-Link ARCHER T4U V2 AC1300 Wireless

Search your instruction manual in PDF to download

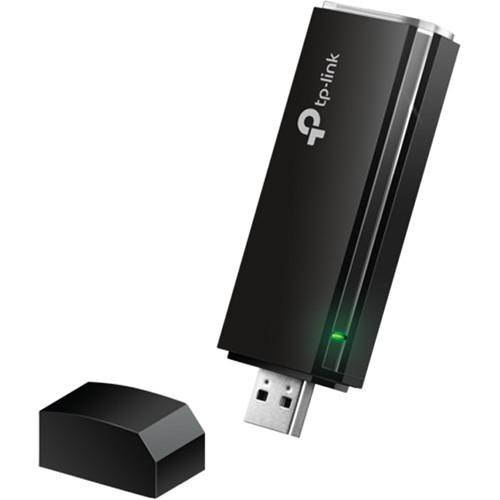

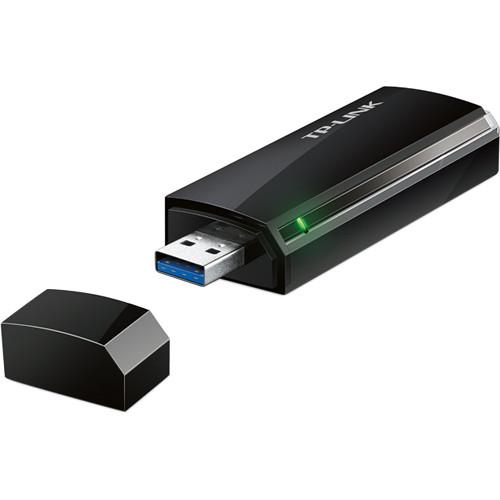

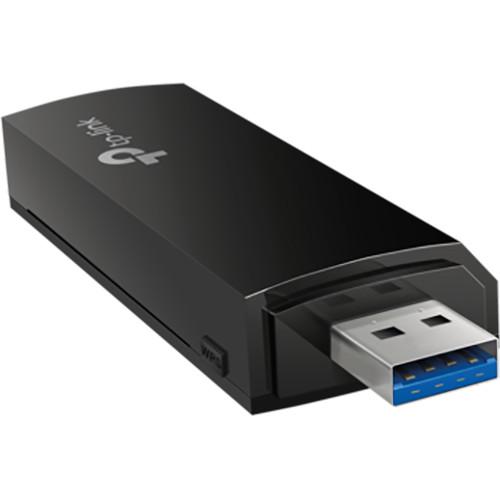

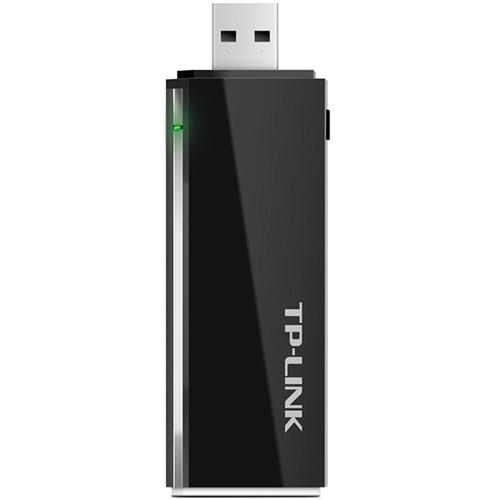

User Manual for TP-Link ARCHER T4U V2 AC1300 Wireless Dual-Band USB 3.0 Adapter

Click to enlarge the picture
TP-Link ARCHER T4U V2 AC1300 Wireless Dual-Band USB 3.0 Adapter Contents of the user manual for the TP-Link ARCHER T4U V2 AC1300 Wireless
  • Product category: Wireless Adapters & Cards TP-Link
  • Brand: TP-Link
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for TP-Link Wireless Adapters & Cards

TP-Link ARCHER T4U V2 AC1300 Wireless Dual-Band USB 3.0 Adapter TP-Link ARCHER T4U V2 AC1300 Wireless Dual-Band USB 3.0 Adapter TP-Link ARCHER T4U V2 AC1300 Wireless Dual-Band USB 3.0 Adapter TP-Link ARCHER T4U V2 AC1300 Wireless Dual-Band USB 3.0 Adapter TP-Link ARCHER T4U V2 AC1300 Wireless Dual-Band USB 3.0 Adapter TP-Link ARCHER T4U V2 AC1300 Wireless Dual-Band USB 3.0 Adapter TP-Link ARCHER T4U V2 AC1300 Wireless Dual-Band USB 3.0 Adapter TP-Link ARCHER T4U V2 AC1300 Wireless Dual-Band USB 3.0 Adapter
User manual for the TP-Link ARCHER T4U V2 AC1300 Wireless contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any TP-Link product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official TP-Link user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a TP-Link product will considerably shorten its lifespan!



Product description

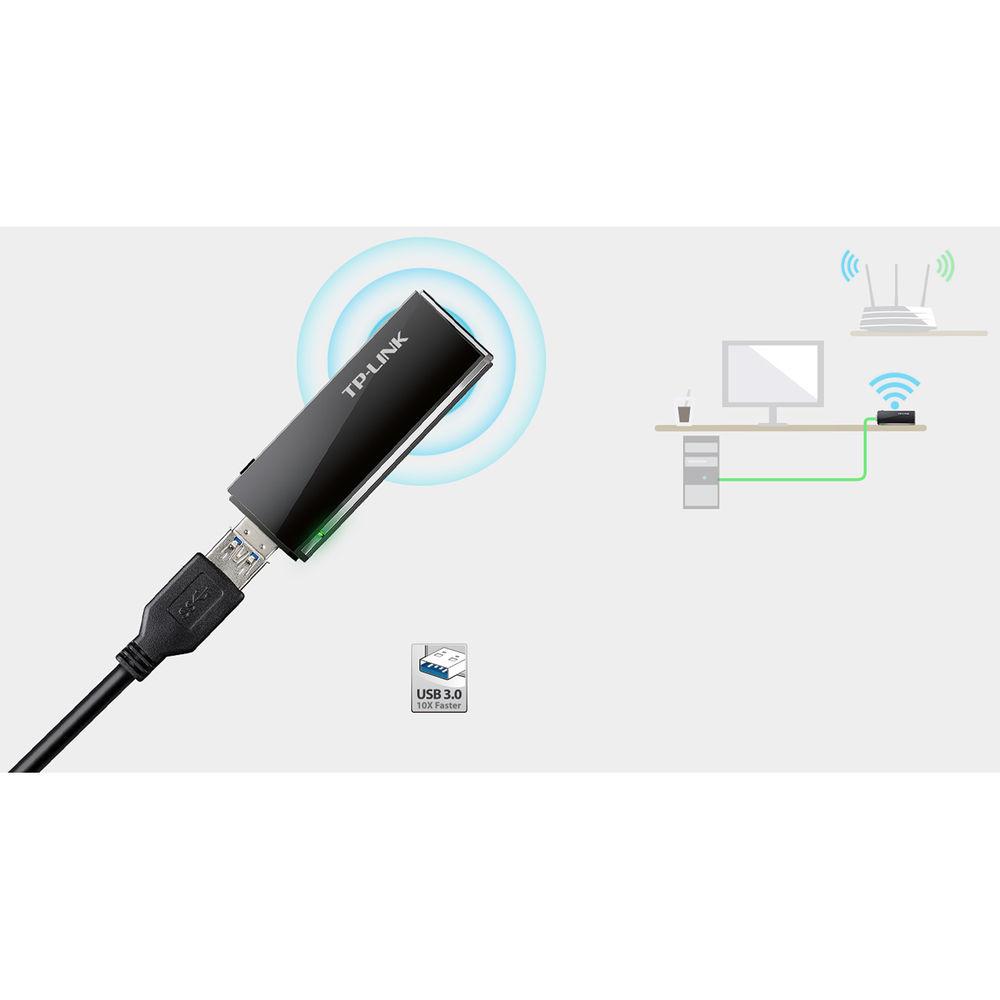

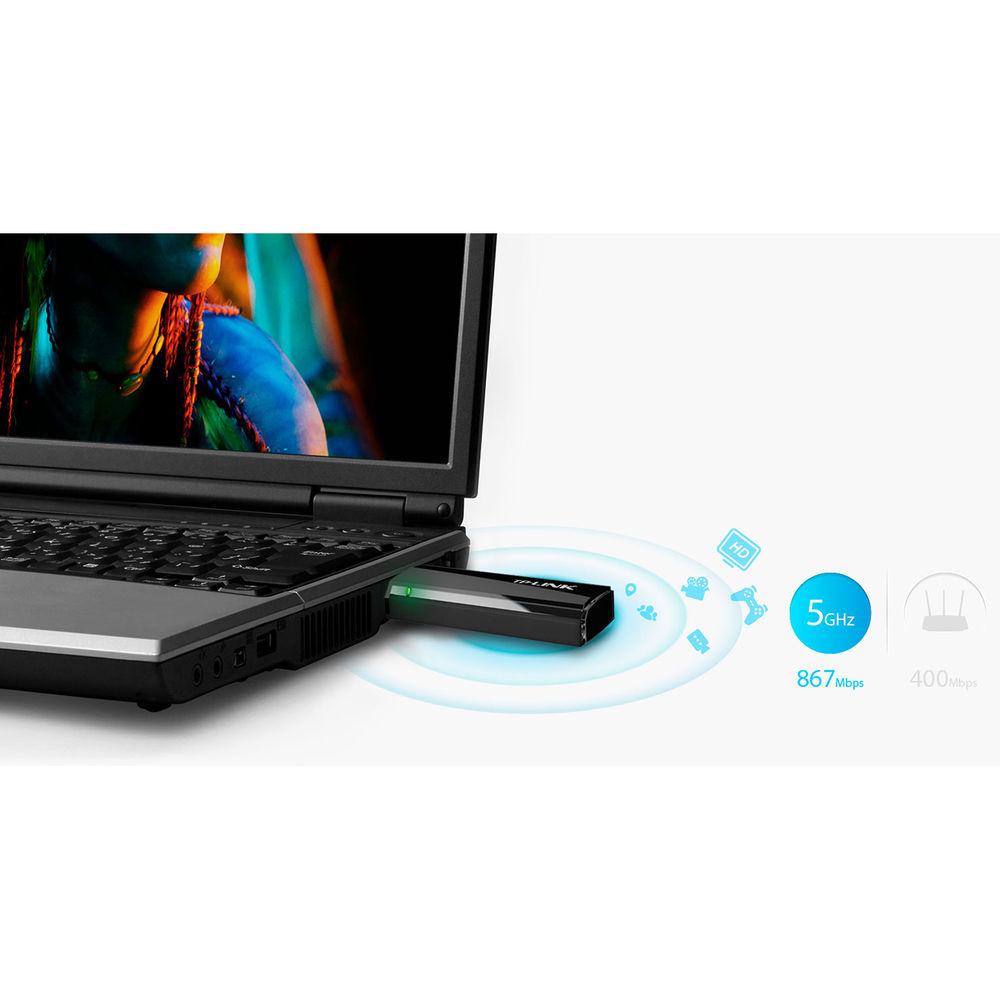

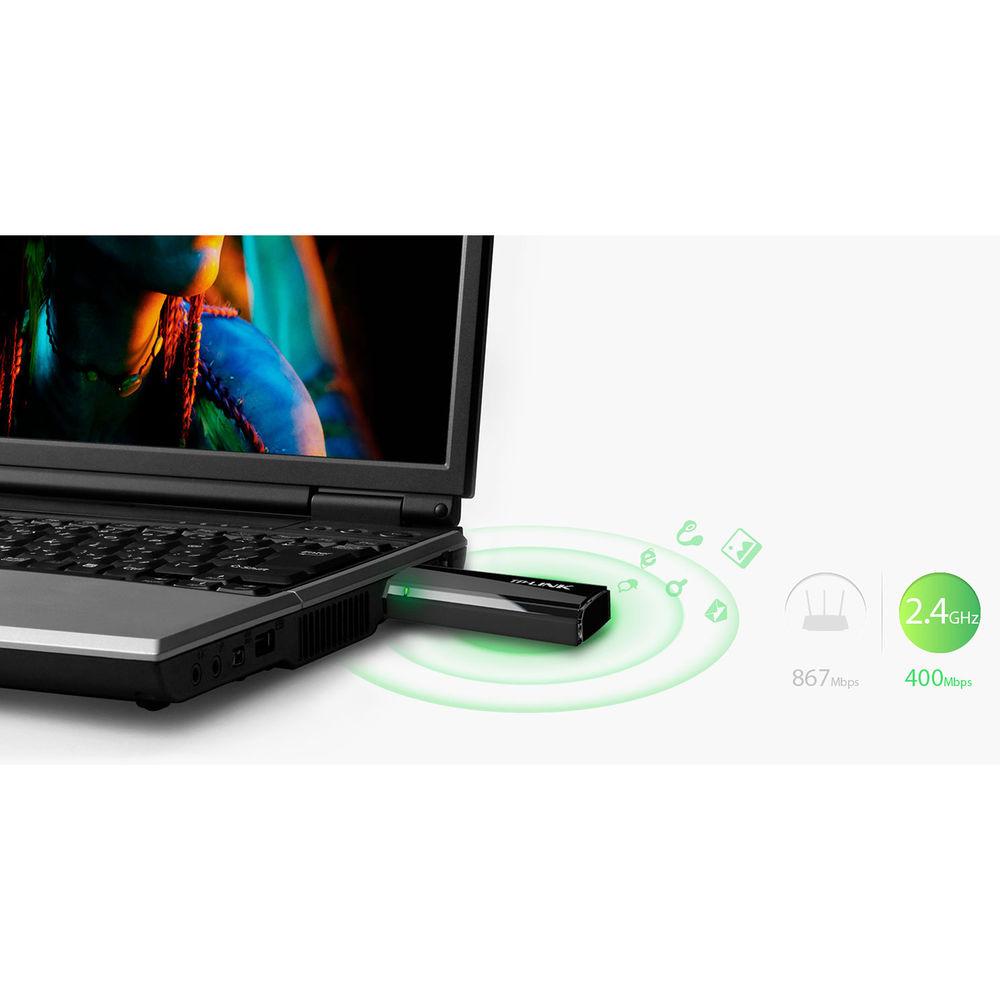

Using its USB 3.0 port, connect your Windows-compatible desktop or notebook computer to dual band 802.11ac wireless networks, as well as 802.11a/b/g/n networks with the ARCHER T4U AC1300 Wireless Dual Band USB 3.0 Adapter from TP-LINK. Dual band support allows you to connect to networks supporting 5 GHz and 2.4 GHz frequencies. 5 GHz frequencies allow compatible devices to take advantage of data transfer speeds of up to 867 Mbps for HD video streaming and online gaming. The 2.4 GHz frequency provides data transfer speeds of up to 400 Mbps and allows users to engage in less-intensive web tasks, such as web browsing.

For those who are concerned about a USB Wi-Fi adapter not having a strong range, the AC1300's omni directional antenna will help to increase the strength and range of your wireless signal. Additionally, the integrated wireless security supports 64- and 128-bit WEP, WPA-PSK/WPA2-PSK, and 802.1x encryption standards, as well as ad-hoc and infrastructure modes. For simpler network encryption setup, the router includes a WPS button and a wireless setup utility helps to simplify initial network setup. The AC1300 is also backwards compatible with USB 2.0 and includes a resource disc, a quick installation guide, and a USB extension cable.
  • Dual-band (IEEE 802.11b/g/n 2.4GHz, IEEE 802.11a/n/ac 5 GHz)
  • Ultra-fast 1300 (867+400) Mbps wireless speed with 802.11ac

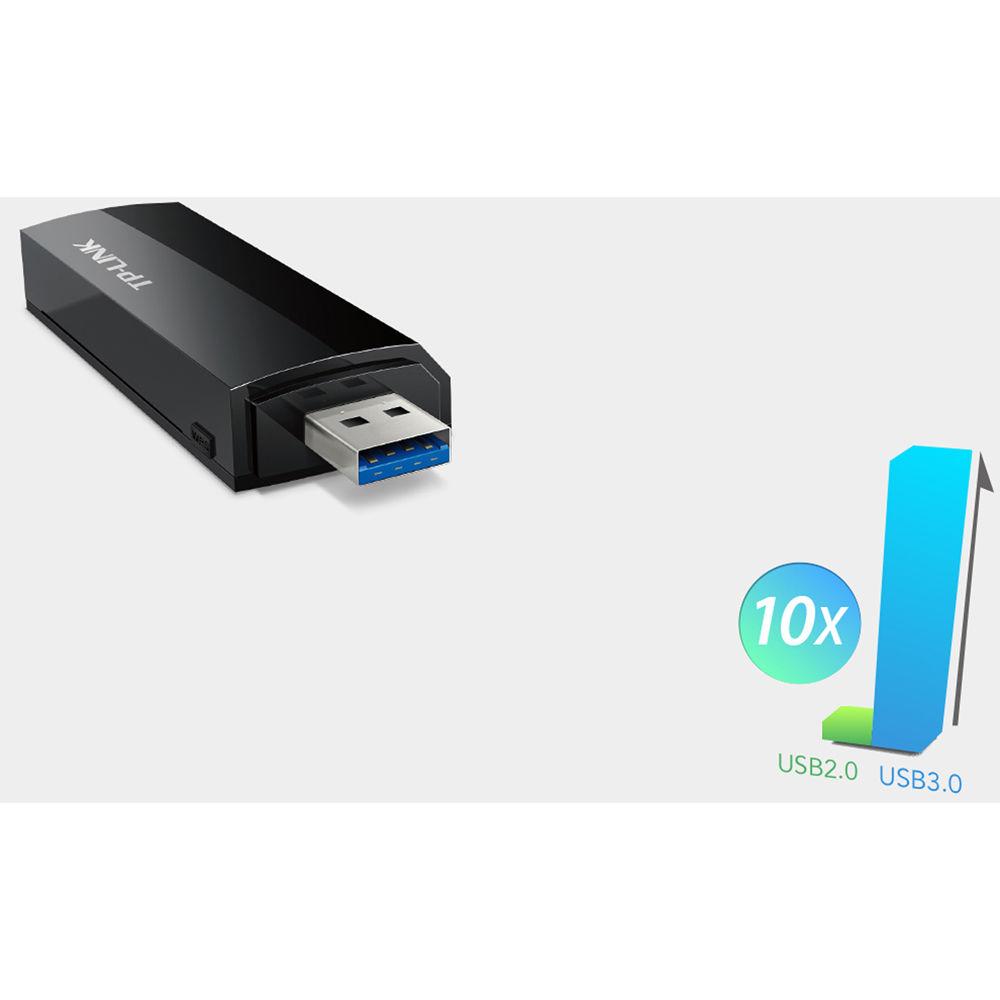

  • Super Speed USB 3.0 port - up to 10x faster than USB 2.0
  • Easy wireless security encryption at a push of the WPS button
  • WPA/WPA2 encryptions provide your network with active defense against security threats
  • Bundled utility enables easy management
  • Equipped with an USB Extension Cable for flexible deployment
UPC: 845973097318 In the Box TP-Link ARCHER T4U V2 AC1300 Wireless Dual-Band USB 3.0 Adapter
  • USB 3.0 Extension Cable
  • Resource CD
  • Limited 2-Year Warranty
  • More info from TP-Link Table of Contents




    Upload User Manual

    Have you got an user manual for the TP-Link ARCHER T4U V2 AC1300 Wireless Dual-Band USB 3.0 Adapter in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    TP-Link T4U V2 Specs

    Interface USB 3.0
    Button WPS Button
    Antenna Type Omni Directional
    Wireless Standards IEEE 802.11ac, IEEE 802.11a, IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
    Frequency 5 GHz, 2.4 GHz
    Signal Rate 5 GHz
    11ac: Up to 867 Mbps (dynamic)
    11n: Up to 300 Mbps (dynamic)
    11a: Up to 54 Mbps (dynamic)
    2.4 GHz
    11n: Up to 400 Mbps (dynamic)
    11g: Up to 54 Mbps (dynamic)
    11b: Up to 11 Mbps (dynamic)
    EIRP <20 dBm (EIRP)
    Reception Sensitivity Not specified by manufacturer
    Wireless Modes Ad-Hoc / Infrastructure mode
    Wireless Security Supports 64/128 bit WEP, WPA-PSK/WPA2-PSK, 802.1x
    Modulation Technology DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM
    Certification CE, FCC, RoHS
    System Requirements Windows 10/8.1/8/7/XP 32/64-bits
    Mac OS X 10.7/10.8/10.9/10.10, Linux
    Environment Operating Temperature: 32 to 104°F / 0 to 40°C
    Storage Temperature: -40 to 158°F / -40 to 70°C
    Operating Humidity: 10 to 90% (non-condensing)
    Storage Humidity: 5 to 90% (non-condensing)
    Dimensions 3.6 x 1.2 x 0.6" / 91.4 x 30.5 x 15.2 mm
    Weight Not specified by manufacturer
    Package Weight 0.52 lb
    Box Dimensions (LxWxH) 8.2 x 5.9 x 1.7"
