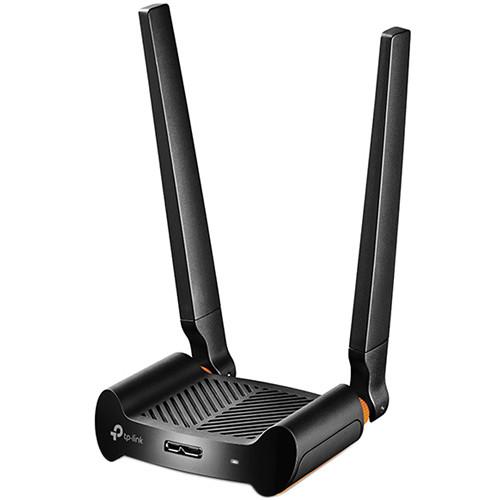

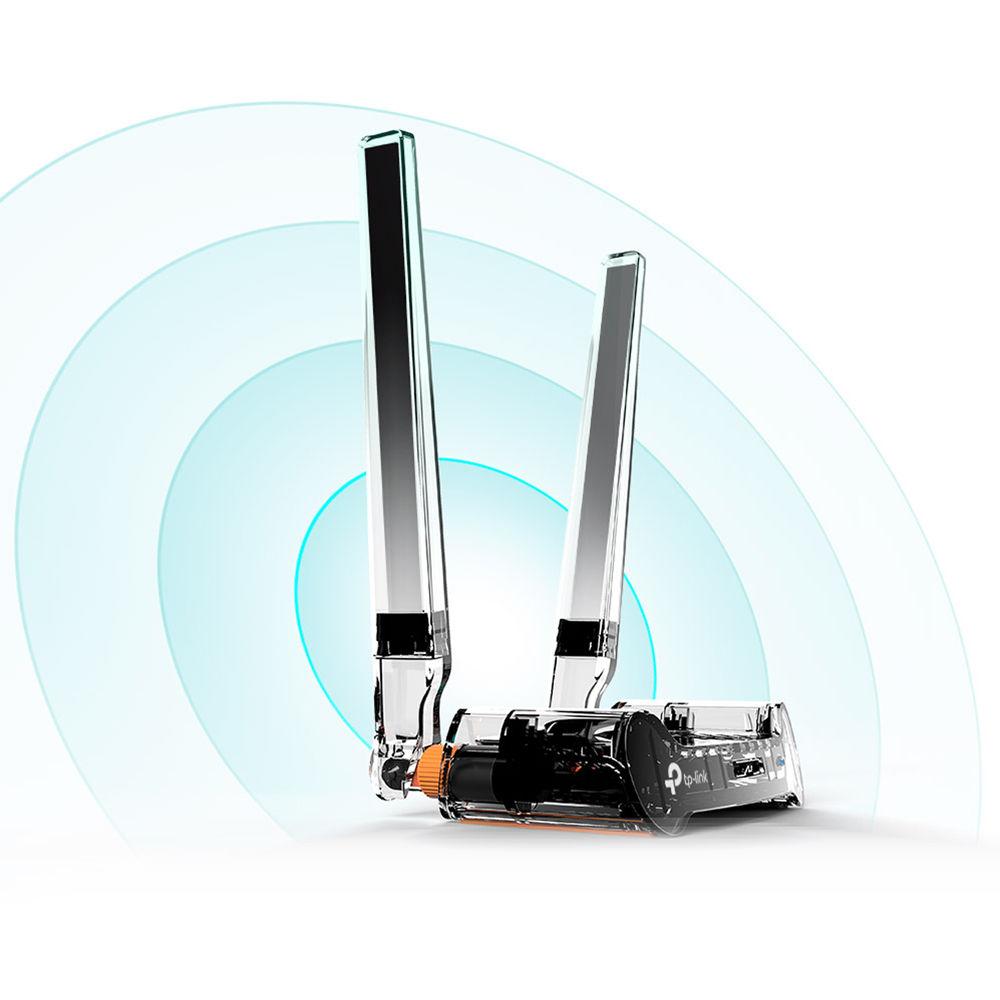

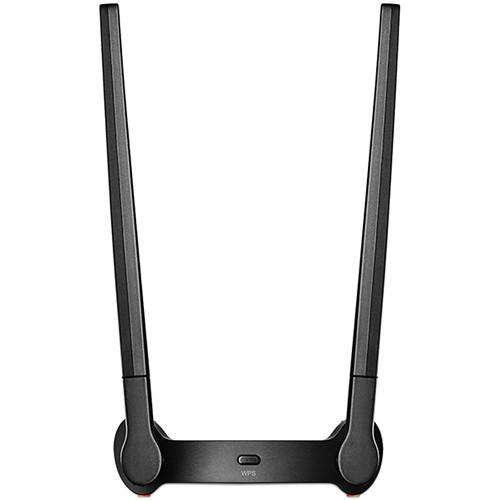

Product description With the Archer T4UHP Wireless AC1300 High-Power Dual-Band USB Adapter from TP-Link you can receive Wi-Fi signals at greater distances than a stock wireless antenna or adapter. The Archer T4UHP supports the 802.11ac Wi-Fi standard and operates on both the 2.4 GHz and 5 GHz bands supporting data transfer rates of up to 1300 Mbps. The dual high-gain detachable antennas found on this wireless adapter greatly expand coverage capabilities while the included USB 3.0 cable makes for easy installation and placement of the adapter. The Archer T4UHP even comes equipped with a WPS button for easy pairing to local routers or access points. - High-Gain Detachable Antennas for Maximized Range
- The Archer T4UHP has two high-gain external antennas offering a stronger signal transmission and reception to create a stable Wi-Fi connection across your home. Moreover, the two detachable antennas can be rotated and adjusted as needed to fit various operation environments.
- Dual-Band AC1300 Speed
- The Archer T4UHP provides two bands of Wi-Fi for all your network needs. Take advantage of 400 Mbps on the 2.4 GHz Wi-Fi band for everyday uses such as web surfing with legacy devices, while the 5 GHz band offers speeds up to 867 Mbps which is idea for HD streaming and lag-free gaming.

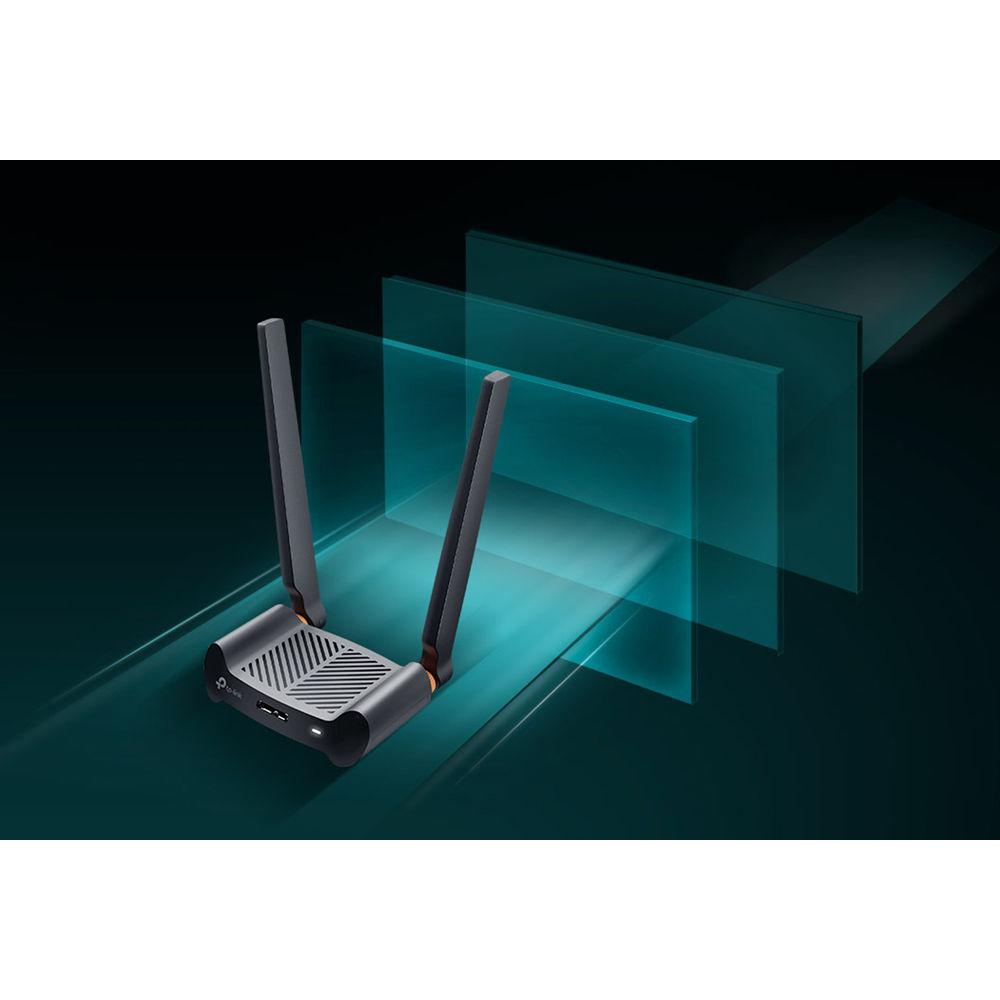

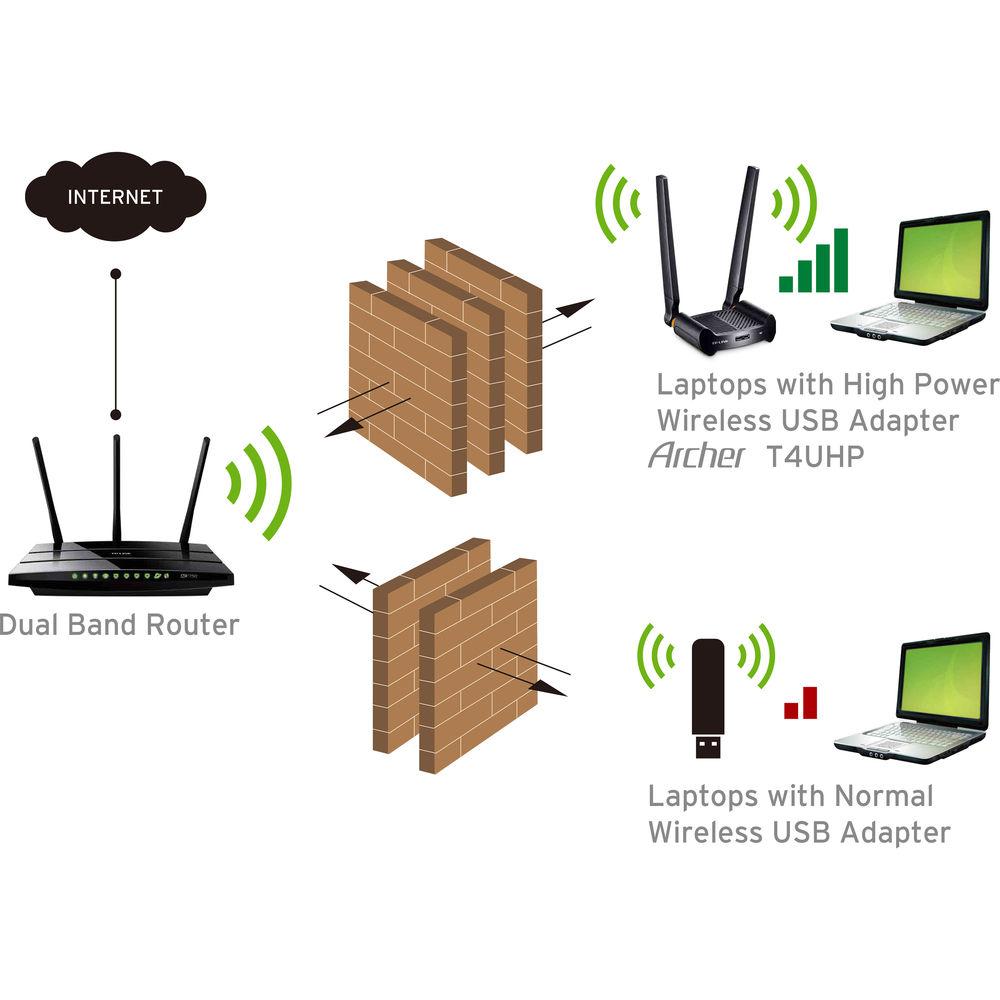

- High Power for Strong Penetrability
- With its high transmission power, the Archer T4UHP connects with the network past walls, floors and other physical obstacles to effectively sustain reliable wireless connection.

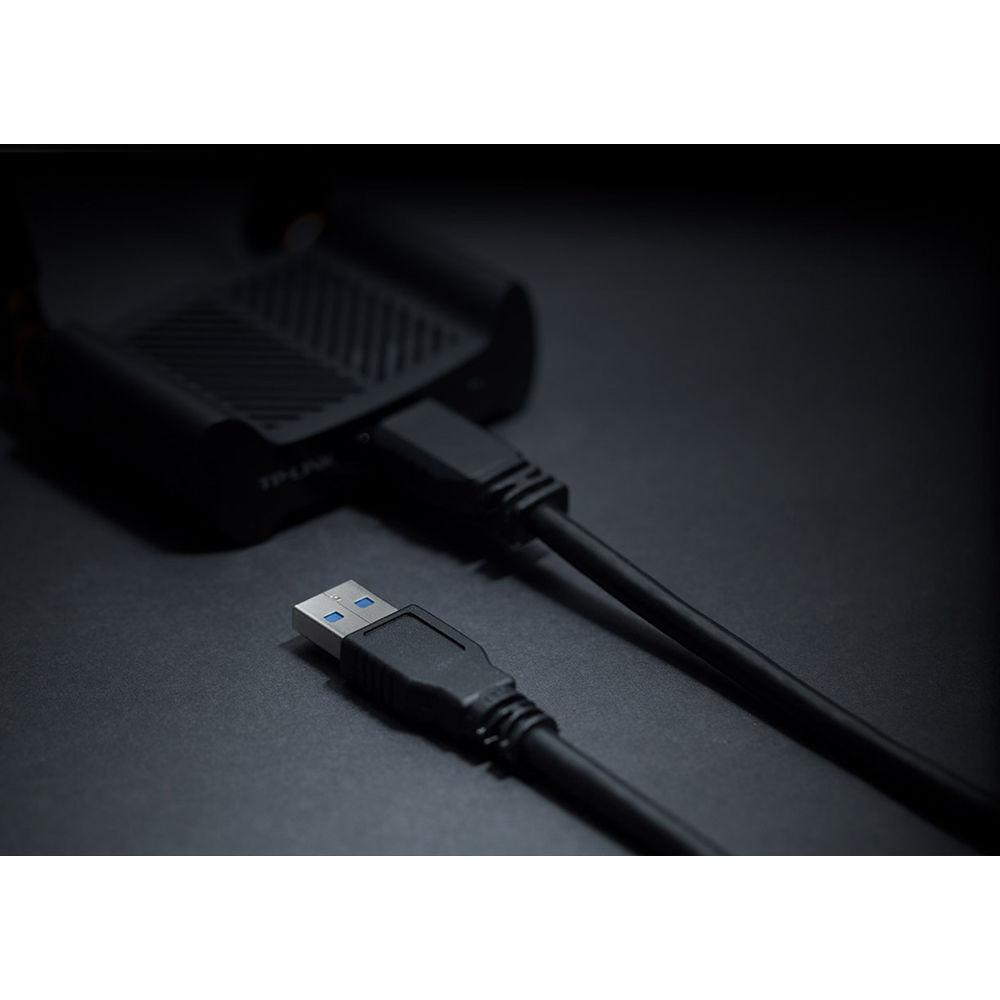

- Connect Faster with USB 3.0
- The Archer T4UHP's USB 3.0 port runs 10x faster than USB 2.0 for fast data transfers, giving more than enough bandwidth to fully support 802.11ac Wi-Fi speeds.

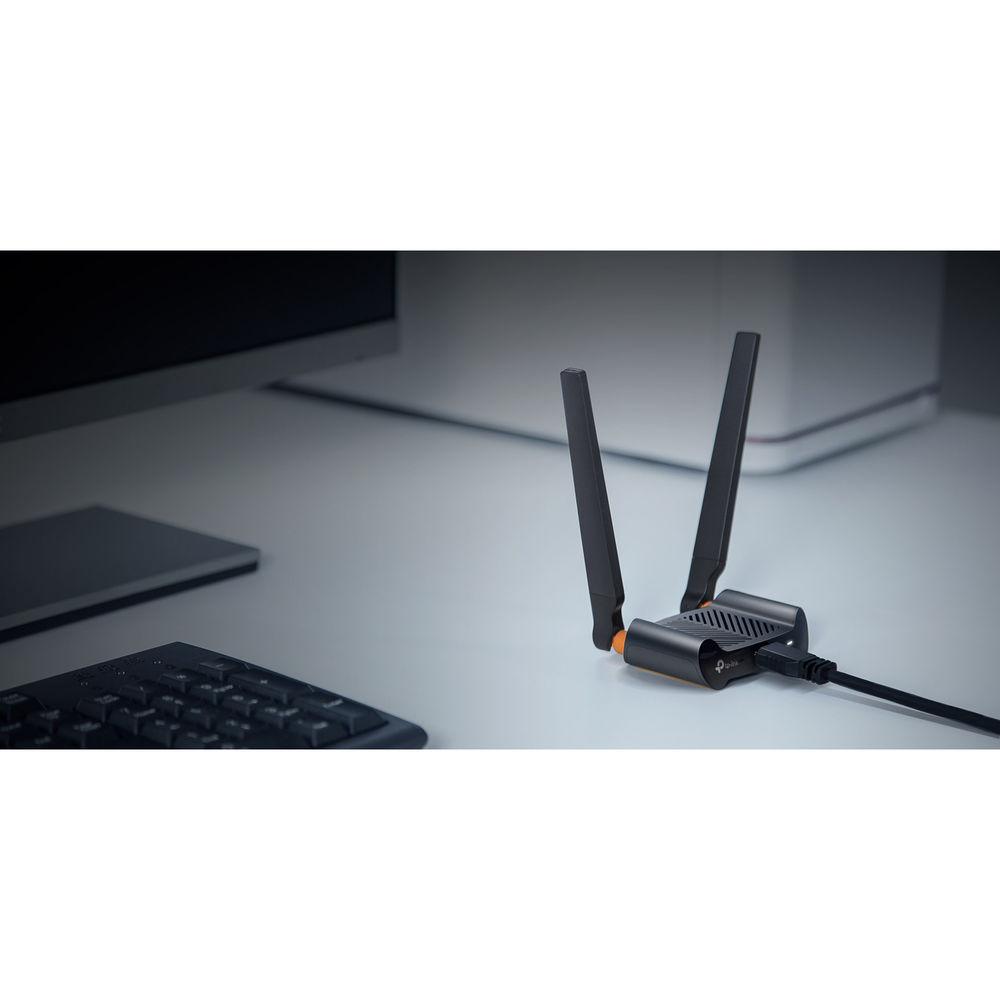

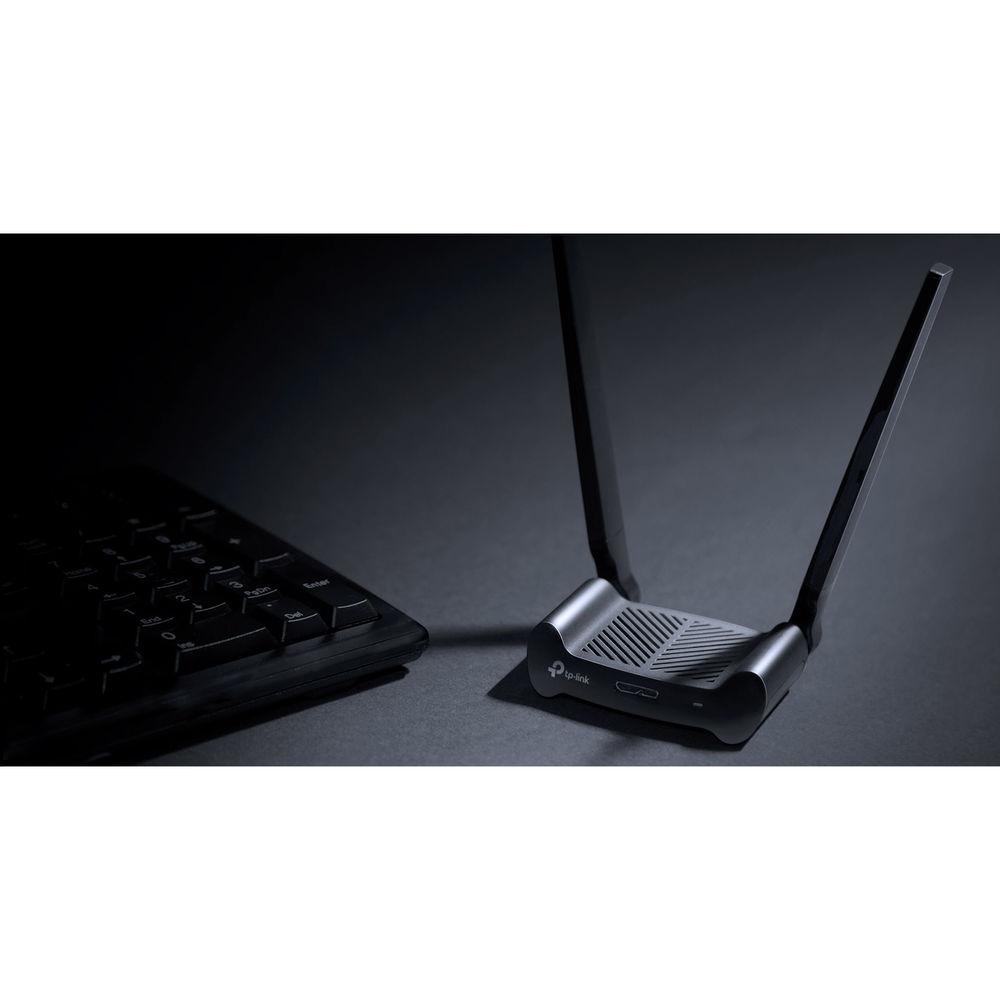

- Easy Setup with Desktop-Friendly Design
- A desktop-style design and a 3.3' USB cable helps to place the Archer T4UHP in the best position to receive the network signal in troublesome Wi-Fi areas, creating for flexible deployment in various rooms and computer setups.
- Universal Fit with Cross-Platform Compatibility
- The Archer T4UHP works with a number of operating systems, including Windows 10/8.1/8/7/XP 32/64-bits, Mac OS X 10.6-10.11, and Linux, making it the perfect choice for nearly all laptop and desktop computers.
UPC: 845973094850 In the Box TP-Link Archer T4UHP Wireless AC1300 High-Power Dual-Band USB Adapter 2 x 3 dBi & 6 dBi Detachable Omni Directional Antennas USB Extension Cable Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the TP-Link Archer T4UHP Wireless AC1300 High-Power Dual-Band USB Adapter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTP-Link T4UHP Specs | | | Interface | Micro USB 3.0 | | Button | WPS | | Wireless Standards | 802.11a/b/g/n/ac | | Antenna Type | 2 x Detachable omni directional (RP-SMA) | | Antenna Gain | 2.4 - 2.5 GHz & 5.15 - 5.85 GHz: 3.0 & 6.0 dBi | | | | Frequency | 2.4 - 2.4835 GHz
5.150 - 5.850 GHz | | Signal Rate | 5 G Tx up to 867 Mbps
2.4 G Tx up to 400 Mbps | | Transmit Power | 2.4 - 2.5 GHz: <20 dbm
5.15 - 5.85 GHz: <23 dBm (EIRP, for countries using CE standards) | | Wireless Modes | Ad-Hoc / infrastructure mode | | Wireless Security | Support 64/128 bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, 802.1x | | | | System Requirements | Windows 10 (32/64 bits)
Windows 8.1 (32/64 bits)
Windows 8 (32/64 bits)
Windows 7(32/64 bits)
Windows XP (32/64 bits)
Mac OS X10.7-10.11
Linux | | Temperature & Humidity | Operating Temperature: 32 to 104°F / 0 to 40°C
Storage Temperature: -40 to 158°F / -40 to 70°C
Operating Humidity: 10 to 90% non-condensing
Storage Humidity: 5 to 90% non-condensing | | | | Dimensions | 2.9 x 2.2 x 0.9" / 74.0 x 55.0 x 23.0 mm | | Weight | Not specified by manufacturer | | | | Package Weight | 0.6 lb | | Box Dimensions (LxWxH) | 8.1 x 5.9 x 1.6" |
