User Manual for TP-Link Archer T9UH AC1900 High Wireless Dual-Band USB Adapter Click to enlarge the picture
Contents of the user manual for the TP-Link Archer T9UH AC1900 High Wireless
- Product category: Wireless Adapters & Cards TP-Link
- Brand: TP-Link
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TP-Link Wireless Adapters & Cards
 |
User manual for the TP-Link Archer T9UH AC1900 High Wireless contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TP-Link product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TP-Link user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TP-Link product will considerably shorten its lifespan!
|

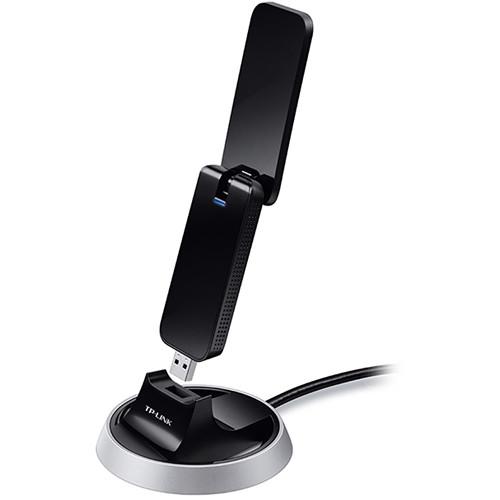

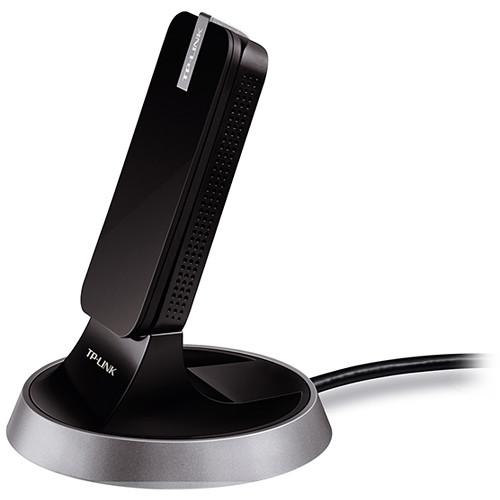

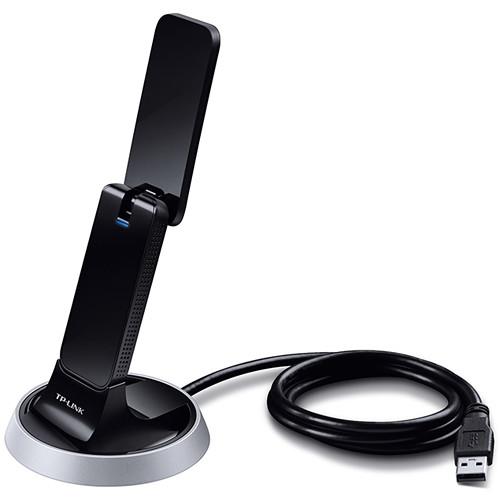

Product description Add fast, wireless connectivity to your computer with the Archer T9UH AC1900 High Wireless Dual-Band USB Adapter from TP-Link. This adapter connects to your system via a USB 3.0 Type-A port and comes with a USB cradle so you can place it wherever it receives a stronger signal. With Dual-Band connectivity, you'll be able to connect to the 2.4 GHz band for speeds of up to 600 Mbps, as well as the 5 GHz band, which provides you with much faster speeds of up to 1300 Mbps. Furthermore, with beamforming technology, the signals are targeted toward the device for a more stable and efficient connection. A WPS button provides you with a simple, one-click solution for connecting to your router while multiple encryption options keep you safe and secure. -
- Fast Wi-Fi Connectivity - Up to 1900 Mbps: 600 Mbps via the 2.4 GHz band and 1300 Mbps via the 5 GHz band
- Dual-Band Wireless - 2.4 GHz and 5 GHz band provide you with flexible connectivity options
- Extra Range - High gain antennas ensure longer range and stability
- Beamforming Technology - Transmits Wi-Fi signals towards your device for more efficient connectivity
- USB 3.0 - Provides faster data transfer rates than USB 2.0
- USB Cradle - Offers flexible deployment for a better connection
- WPS Button - Simple and easy wireless connection setup
- Backward Compatible - Supports 802.11a/b/g/n standards

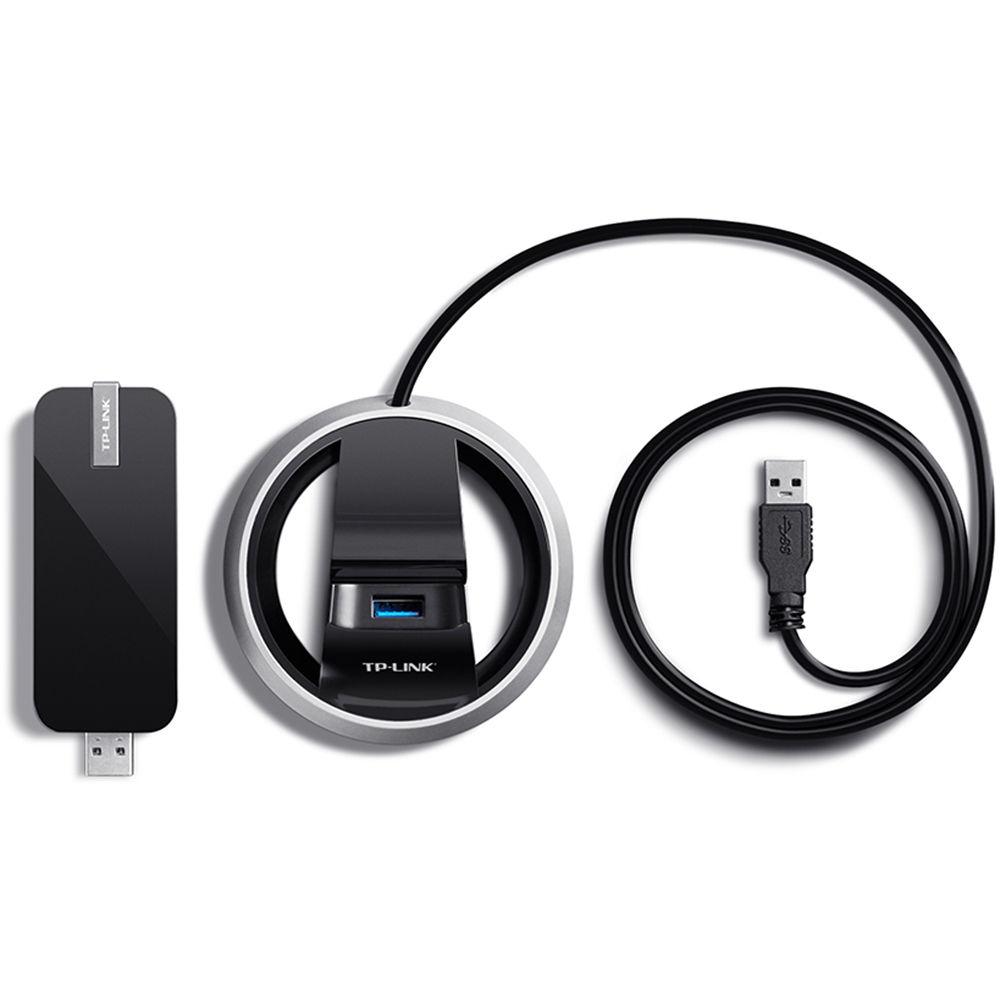

UPC: 845973096137 In the Box TP-Link Archer T9UH AC1900 High Wireless Dual-Band USB Adapter USB Cradle Limited 2-Year Warranty Manual PDF 1.5mbczdfesqrecax More info from TP-Link Table of Contents
|
Upload User Manual
Have you got an user manual for the TP-Link Archer T9UH AC1900 High Wireless Dual-Band USB Adapter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTP-Link T9UH Specs | | | Interface | USB 3.0 Type-A | | Button | WPS | | Antenna Type | Omnidirectional | | | | Wireless Standards | IEEE 802.11b/g/n/a/ac | | Frequency | 5 GHz, 2.4 GHz | | Signal Rate | 5GHz:
11ac: Up to 1300 Mbps (dynamic)
11n: Up to 450 Mbps (dynamic)
11a: Up to 54 Mbps (dynamic)
2.4GHz：
11n: Up to 600 Mbps (dynamic)
11g: Up to 54 Mbps (dynamic)
11b: Up to 11 Mbps (dynamic) | | Transmit Power | < 20 dBm (EIRP) | | Wireless Modes | Ad-Hoc / Infrastructure mode | | Wireless Security | Support 64/128 bit WEP, WPA-PSK/WPA2-PSK, 802.1x | | Modulation Technology | DBPSK, DQPSK, CCK, BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM | | | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | -40 to 158°F (-40 to 70°C) | | Operating Humidity | 10% - 90% non-condensing | | Storage Humidity | 5% - 90% non-condensing | | | | Certifications | CE, FCC, RoHS | | System Requirements | Windows 10 / 8.1 / 8 / 7 / XP (32- and 64-bits)
Mac OS X 10.7~10.10
Linux | | Dimensions (W x D x H) | 3.96 x 1.44 x 0.56" (100.53 x 36.6 x 14.3 mm) | | | | Package Weight | 1.0 lb | | Box Dimensions (LxWxH) | 8.2 x 5.9 x 2.4" |
