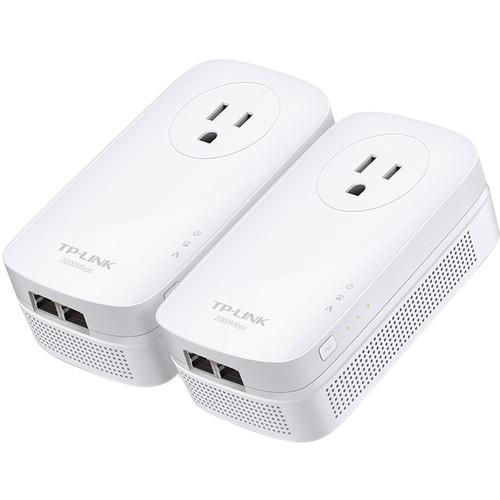

Product description With support for the HomePlug AV2 standard, the adapters found in the AV2000 2-Port Gigabit Passthrough Powerline Starter Kit from TP-Link are capable of supporting data transfer rates of up to 2000 Mbps. In addition to enhanced data transfer rates, these TP-Link powerline adapters support 2x2 MIMO technology which supports multiple data pathways giving multiple devices each their own direct connection to the network. On each of these HomePlug AV2 compliant adapters you will find two Gigabit Ethernet ports and a single power socket. With an integrated power socket built right in to the adapter you no longer have to worry about losing an outlet to the network adapter. Setup and configuration is simple as these plug-and-play adapters each feature a dedicated pairing button allowing you to get your network up and running in no time. - Advanced HomePlug Technology
- With advanced HomePlug AV2 MIMO, the TL-PA9020P delivers high speeds of up to 2000 Mbps over Powerline to provide enhanced network performance that supports a variety of online needs. With lag-free connectivity, devices will remain connected streaming multimedia content, downloading files, and more.
- A Fast Lane for Your Devices
- The TL-PA9020P creates fast, high performance wired connection that support multiple devices, like 4K HDTVs, computers, game consoles, and more.
- More Stable Connections
- Built-in 2x2 MIMO technology is like adding extra lanes to a highway. It establishes multiple simultaneous connections for you to enjoy higher speeds and greater stability.
- Enhanced Long Distance Performance
- Combine 2x2 MIMO and Beamforming technologies and you get the benefit of improved coverage throughout your home or office, particularly for those previously hard to reach outlets.
- Wiring Up with Gigabit Speeds
- Connect to Gigabit speeds for your smart TVs, game consoles, computers and network attached devices. Just use an Ethernet cable to attach your devices to the Powerline adapter to get started.
- Plug, Pair, and Play
- 1. First, connect your TL-PA9020P to the router
2. Then, plug in another one wherever you need extra coverage
3. Finally, press the "Pair" button on each adapter - No Power Outlet is Going Waste
- The integrated power socket means that you can still get power from the outlet for your other devices. Simply plug your device into the integrated socket the same way you would with a normal outlet. The built-in noise filter also helps to eliminate electrical signal noise that might otherwise affect powerline transmission performance.
UPC: 845973094805 In the Box TP-Link AV2000 2-Port Gigabit Passthrough Powerline Starter Kit 2 x 6.6' / 2 m RJ-45 Ethernet Cables Limited 1-Year Warranty More info from TP-Link Table of Contents
|
Upload User Manual
Have you got an user manual for the TP-Link AV2000 2-Port Gigabit Passthrough Powerline Starter Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTP-Link AV2000 Specs | Maximum Data Rate | 2000 Mb/s | | Number of Ethernet Ports | 2 | | Ethernet Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 1901 | | Ethernet Speed | 10/100/1000 Mb/s | | Powerline Technology | HomePlug AV | | Modulation Technology | OFDM | | Maximum Networking Distance | 984' / 300 m | | Plug Type | EU, UK, FR, US (3-Pin) | | AC Pass-Through | Yes | | Encryption | 128-Bit AES | | Active Power Consumption | 5.8 W | | Standby Power Consumption | 0.5 W | | Operating System Support | macOS/OS X, Linux, Windows | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 10 to 90% | | Storage Temperature | -40 to 158°F / -40 to 70°C | | Storage Humidity | 5 to 90% | | Dimensions (W x H x D) | 5.2 x 2.8 x 1.7" / 132.1 x 71.0 x 43.2 mm | | | | Package Weight | 2.05 lb | | Box Dimensions (LxWxH) | 9.055 x 7.559 x 3.937" |
Rating92% users recommend this product to others. And what about you?
This product has already been rated by 78 owners. Add your rating and experience with the product.
