User Manual for TP-Link C2700 Wireless Dual-Band Wi-Fi Router Click to enlarge the picture
Contents of the user manual for the TP-Link C2700 Wireless Dual-Band Wi-Fi Router
- Product category: Wireless Routers TP-Link
- Brand: TP-Link
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TP-Link Wireless Routers
 |
User manual for the TP-Link C2700 Wireless Dual-Band Wi-Fi Router contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TP-Link product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TP-Link user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TP-Link product will considerably shorten its lifespan!
|

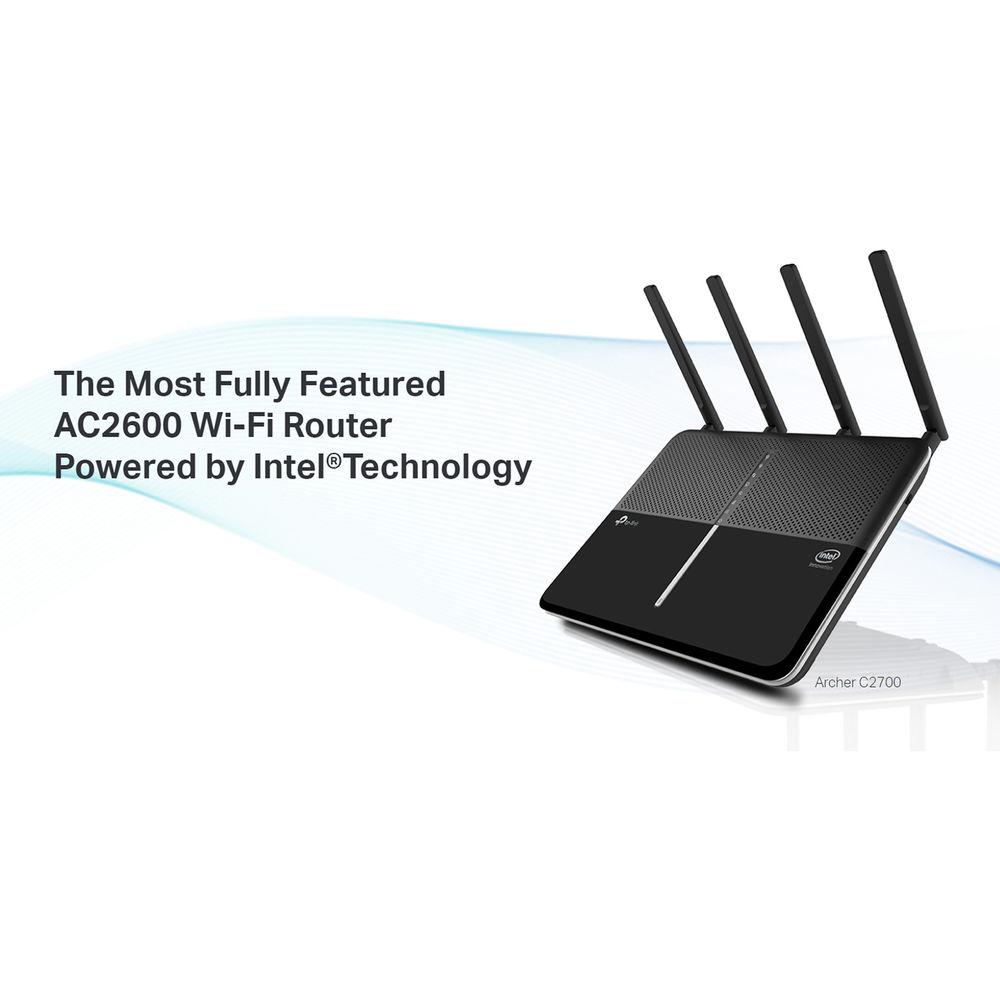

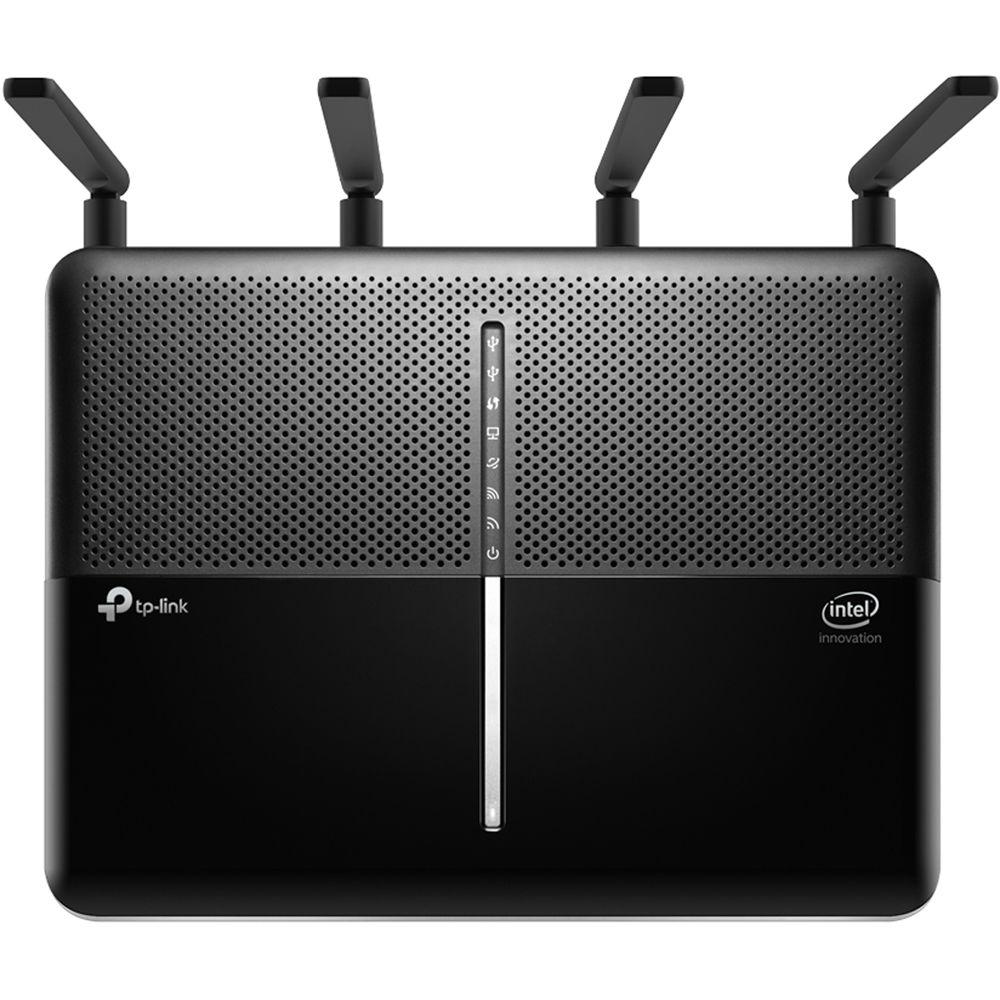

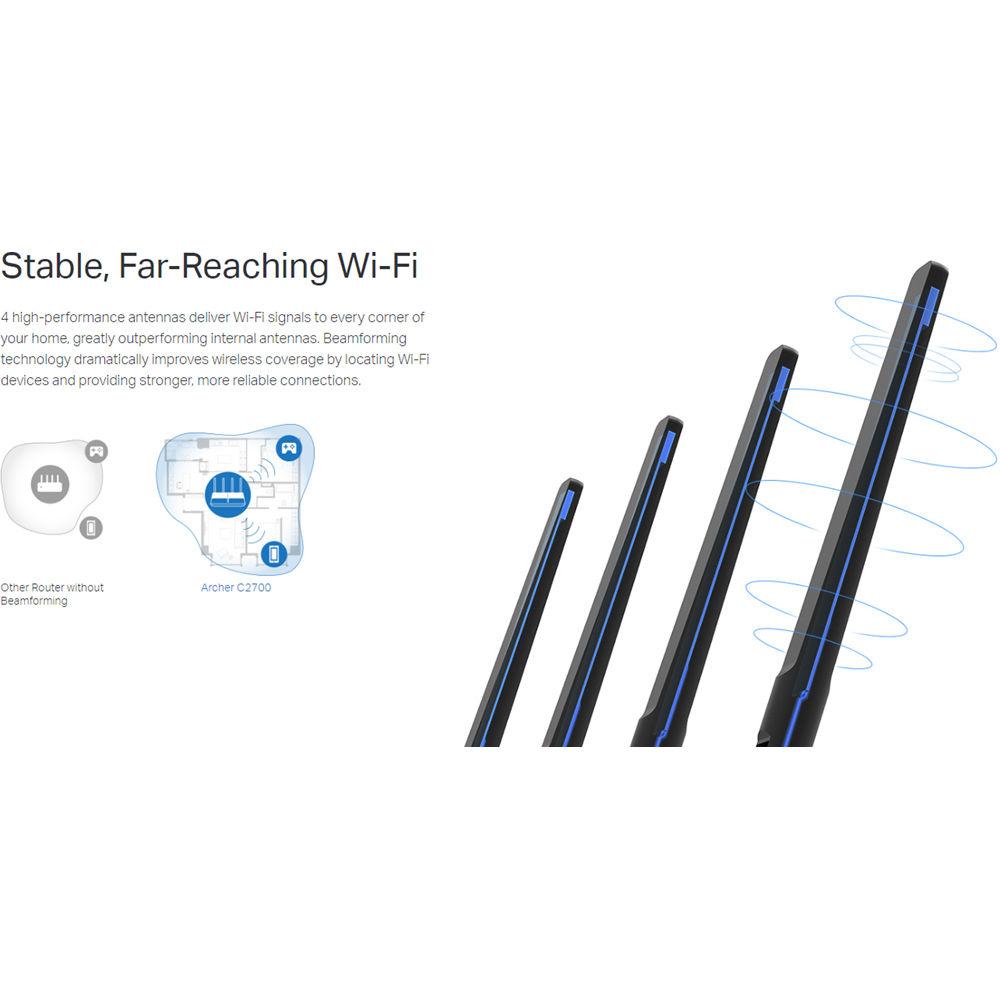

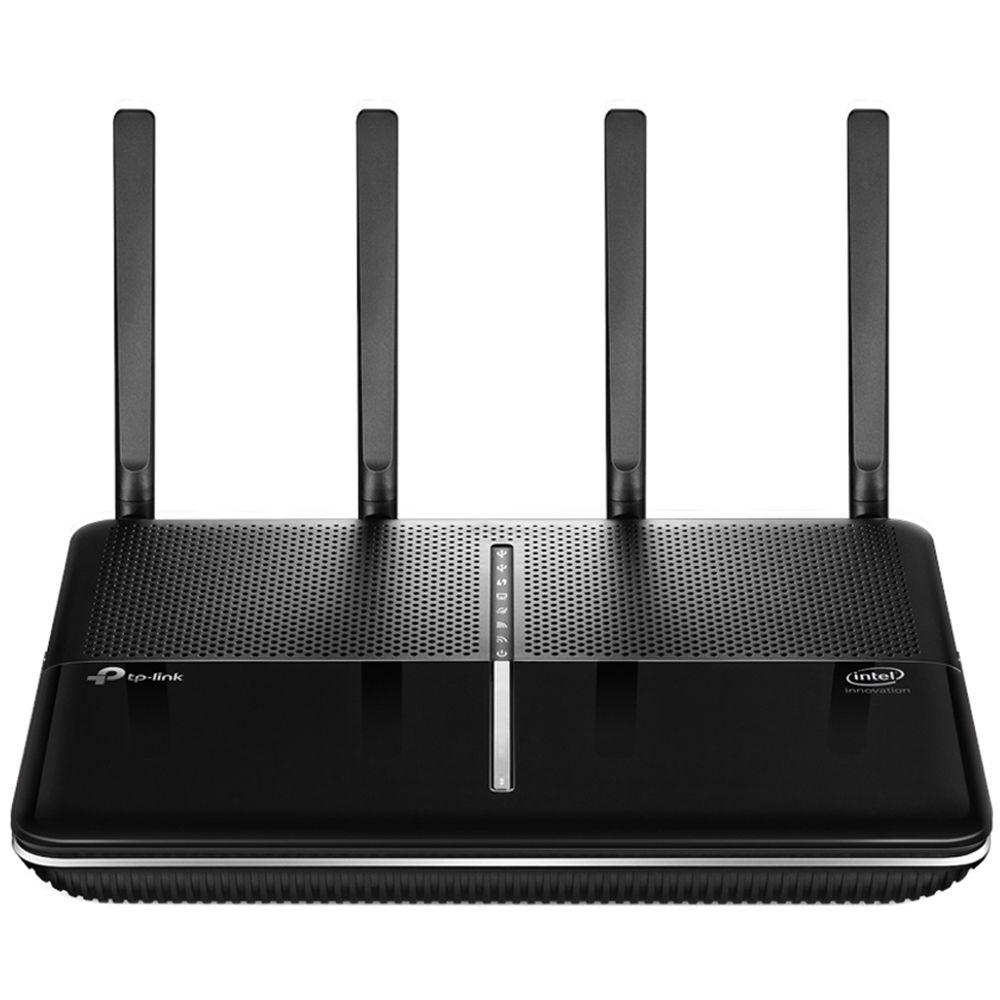

Product description Upgrade your home wireless network with the C2700 Wireless Dual-Band Wi-Fi Router from TP-Link. Equipped with four detachable antennas and boasting a total data transfer rate up to 2,533 Mb/s, the dual-band C2700 Wi-Fi Router supports the Wi-Fi 5 (802.11ac) standard. The router is powered by Intel's Home Wi-Fi chipset, which is designed to minimize wireless interference while accelerating both wired and wireless transmissions. The Archer C2700 comes with four Gigabit Ethernet LAN ports and a Gigabit Ethernet WAN port, as well as a USB 3.0/3.1 Gen 1 port and a USB 2.0 port for media and device sharing. The C2700 also features multi-user MIMO support, which allows for multiple simultaneous device connections; band steering, which is designed to direct devices to the most optimal wireless band; and airtime fairness, which helps to boost network efficiency by giving each connected device the same amount of time to transfer data. - Intel Home Wi-Fi Chipset

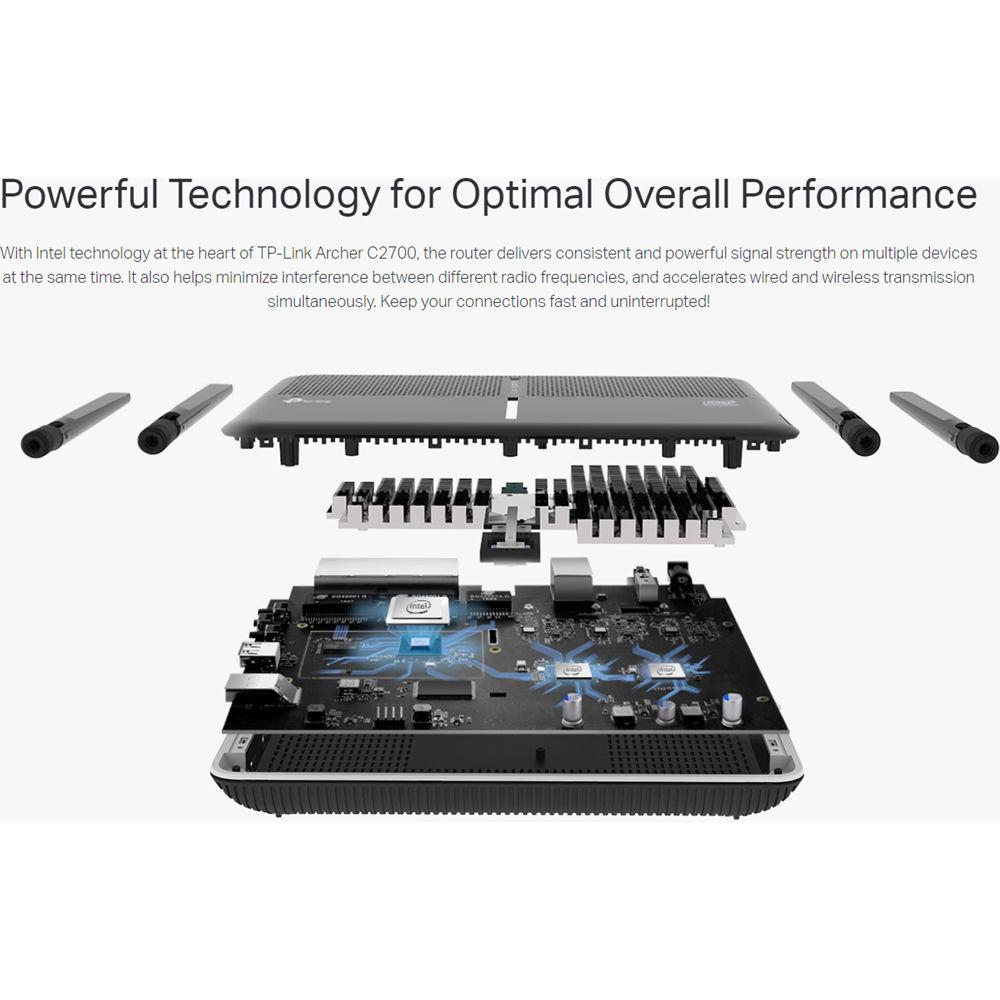

- Intel's router technology is designed to deliver consistent and powerful signal strength to multiple devices at the same time, while also helping to minimize interference between different radio frequencies.
- Media Sharing
- USB 3.0/3.1 Gen 1 and 2.0 ports with Samba, FTP server, and media server support let you connect external drives to the Archer C2700 for media and device sharing. Link aggregation combines Ethernet speeds up to 2 Gb/s on NAS devices by combining two of the four 10/100/1000 Mb/s LAN ports, which doubles the connection speeds to an external storage device for faster streaming and data backups. USB 3.0 and 3.1 Gen 1 are synonymous.
- TP-Link HomeCare
- TrendMicro-powered security helps to defend your sensitive data and IoT devices against cyber threats. TP-Link HomeCare features built-in antivirus and intruder prevention tools, an automatically updating security database, parental controls, and QoS features.
- VPN Connections
- The Archer C2700 supports OpenVPN, PPTP VPN, and L2TP VPN, while VPN acceleration helps speeds up VPN connections.
- Simple Setup

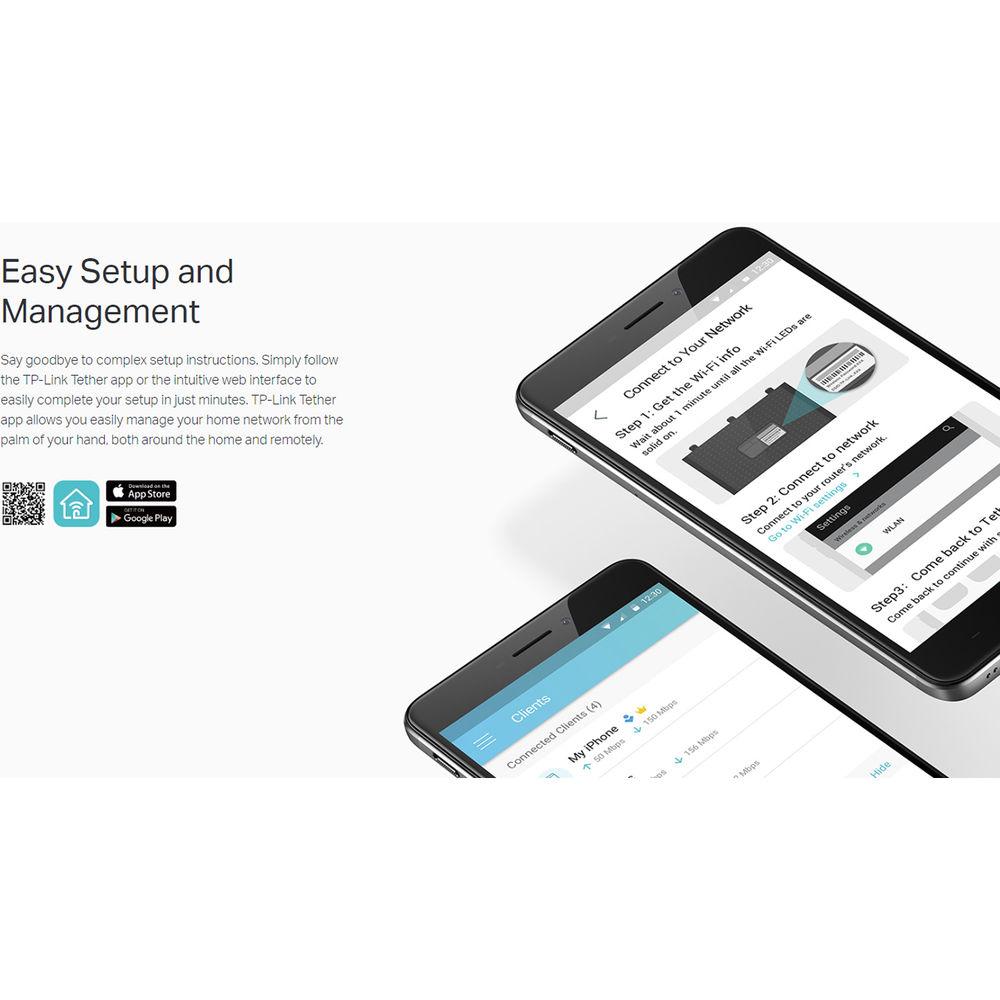

- Use the TP-Link Tether app for iOS and Android or the C2700's web interface to complete your setup in minutes. The TP-Link Tether app allows you manage your home network either at home or remotely.
- Alexa and IFTTT Support
- You can control your network via Amazon Alexa voice commands, while support for IFTTT lets you configure automated actions that are triggered by various network events.
- Additional Features
- The Archer C2700 offers such quality-of-service features as WMM (Wi-Fi Multimedia) and bandwidth control. Supported WAN modes include dynamic IP, static IP, PPPoE, PPTP, and L2TP. Software management features include access control, local management, and remote management. DHCP server, client, client list, and address reservation are supported, along with port forwarding features such as virtual server, port triggering, UPnP, and DMZ. Supported dynamic DNS services include DynDNS and No-IP, while firewall features include SPI mode and IP and MAC address binding. Guest networks are available for both the 2.4 GHz and 5 GHz networks.
- System Requirements
- Windows 10, 8.1, 8, 7, Vista, 2000, NT, or 98SE
Mac OS
NetWare
UNIX
Linux
Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser
Cable or DSL Modem
Subscription with an internet service provider UPC: 845973099640 In the Box TP-Link C2700 Wireless Dual-Band Wi-Fi Router 4 x Detachable Antennas Power Supply Ethernet Cable Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the TP-Link C2700 Wireless Dual-Band Wi-Fi Router in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTP-Link Archer C2700 Specs | | | Wireless Frequency Bands | 2.4 GHz, 5 GHz | | Number of Antennas | 4 | | WLAN Mode | Wi-Fi 5 (802.11ac) | | Sensitivity | -87 to -95 dBm | | Transmit Power | 20 to 30 dBm | | Supported Protocols | IPv4
IPv6
Link Aggregation
WMM | | Antenna Placement | External | | | | Ports | 4 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45)
1 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) (Uplink)
1 x 5 Gb/s USB Type-A

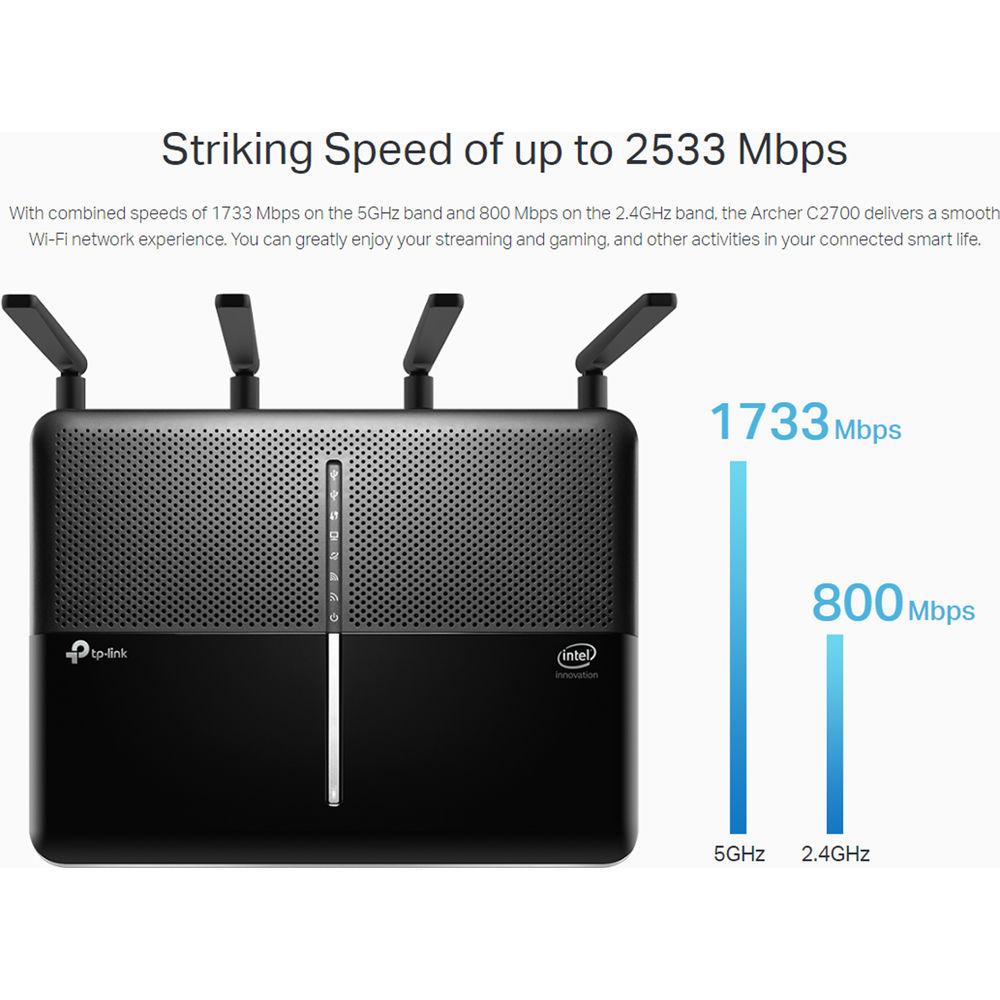

1 x 480 Mb/s USB Type-A | | USB Sharing Support | Yes | | | | Throughput | 2.4 GHz: 800 Mb/s
5 GHz: 1733 Mb/s | | | | Guest Network Support | Yes | | Wireless Security | WPA, WPA-PSK, WPA2, WPA2-PSK | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | -40 to 158°F / -40 to 70°C | | Operating Humidity | 10 to 90% | | Storage Humidity | 5 to 90% | | | | Certifications | CE, FCC, RoHS, as per Manufacturer | | Dimensions | 10.4 x 7.8 x 1.5" / 26.42 x 19.81 x 3.81 cm | | Weight | 1.9 lb / 862 g |
