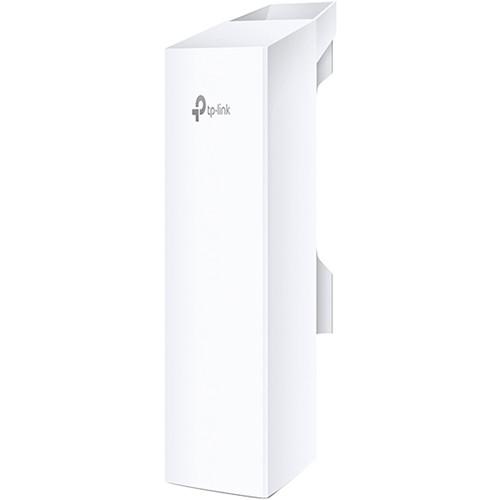

User Manual for TP-Link CPE210 2.4 GHz N-300 9 dBi Outdoor Customer-Premises Equipment Click to enlarge the picture
Contents of the user manual for the TP-Link CPE210 2.4 GHz N-300 9
- Product category: Wireless Routers TP-Link
- Brand: TP-Link
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TP-Link Wireless Routers
 |
User manual for the TP-Link CPE210 2.4 GHz N-300 9 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TP-Link product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TP-Link user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TP-Link product will considerably shorten its lifespan!
|

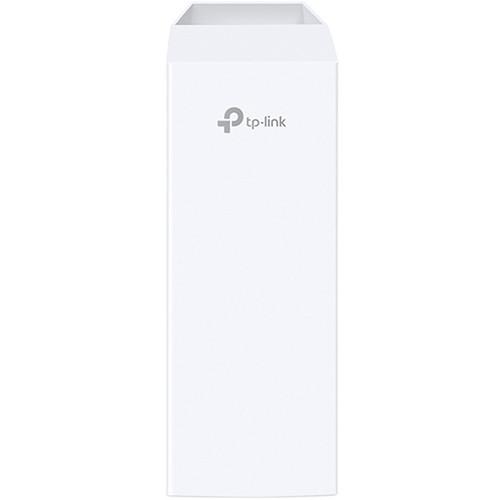

Product description Whether using this device as a point to multi-point link or as an access point, the CPE210 2.4 GHz N-300 9 dBi Outdoor Customer-Premises Equipment from TP-Link is capable of enhancing network performance and coverage. This CPE features a weatherproof enclosure complete with 15 KV ESD protection and 6,000 V lightning protection allowing it to withstand some of the harshest weather conditions.

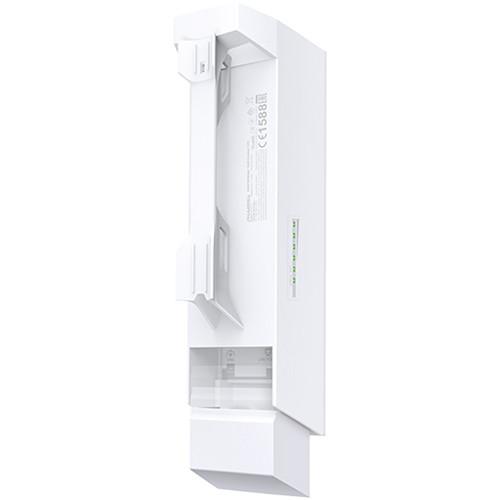

The enclosure is composed of outdoor ASA stabilized plastic and carries the IPX5 waterproof certification. Underneath the sturdy shell you will find one Fast Ethernet Passive PoE input eliminating the need for an additional PoE adapter. You will also find one grounding terminal for added protection against lightning strikes.
Once installed, you can take advantage of IEEE 802.11b/g/n networking standards to connect nearly any Wi-Fi enabled device to the Internet. The CPE operates on the 2.4 GHz routing frequency supporting a maximum data transfer rate of up to 300 Mbps with a transmit power of up to 27 dBm. Configure the CPE to suit nearly any networking need with support for AP, client, bridge, repeater, AP router mode, and AP client (WISP client) operation modes. - Built-in 9 dBi 2x2 dual-polarized directional MIMO antenna
- Adjustable transmission power from 0 to 27 dBm / 500 mw
- System-level optimizations for more than 9 mi+ (15 km+) long range wireless transmission
- TP-LINK Pharos MAXtream (Time-Division-Multiple-Access) technology improves product throughput, capacity and latency performance, ideal for PTMP applications
- Centralized Management System - Pharos Control
- AP / Client / Repeater / Bridge / AP Router / AP Client Router (WISP) operation modes
- Passive PoE Adapter supports up to 200 feet (60 meter) Power over Ethernet deployment and allows the device to be reset remotely
UPC: 845973071677 In the Box TP-Link CPE210 2.4 GHz N-300 9 dBi Outdoor Customer-Premises Equipment Passive PoE Adapter Power Cord Pole Mounting Straps Limited 1-Year Warranty Pharos Control User Guide PDF 1.4mbfbazessurbyyrws More info from TP-Link Table of Contents
|
Upload User Manual
Have you got an user manual for the TP-Link CPE210 2.4 GHz N-300 9 dBi Outdoor Customer-Premises Equipment in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTP-Link CPE210 Specs | | | Wireless Frequency Bands | 2.4 GHz | | WLAN Mode | 802.11n | | Sensitivity | -76 to -96 dBm | | Antenna Gain | 9 dBi | | Transmit Power | 26 to 27 dBm | | | | Ports | 1 x 10/100 Mb/s Ethernet (RJ45) PoE (Type 1) | | | | Wireless Security | WEP, WPA, WPA2 | | | | RAM | 64 MB | | Storage Capacity | 8 MB | | Processor | 560 MHz | | | | DC Input Power | 16 to 27 VDC | | Power Consumption | 10.5 W | | | | Operating Temperature | -22 to 158°F / -30 to 70°C | | Storage Temperature | -40 to 158°F / -40 to 70°C | | Operating Humidity | 10 to 90% | | Storage Humidity | 5 to 95% | | | | IP Rating | IPX5 | | Dimensions | 8.8 x 3.1 x 2.4" / 224 x 79 x 60 mm | | | | Package Weight | 1.655 lb | | Box Dimensions (LxWxH) | 10.5 x 5.3 x 4.3" |
