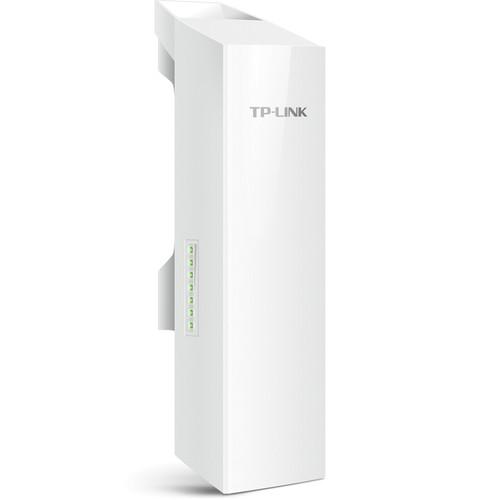

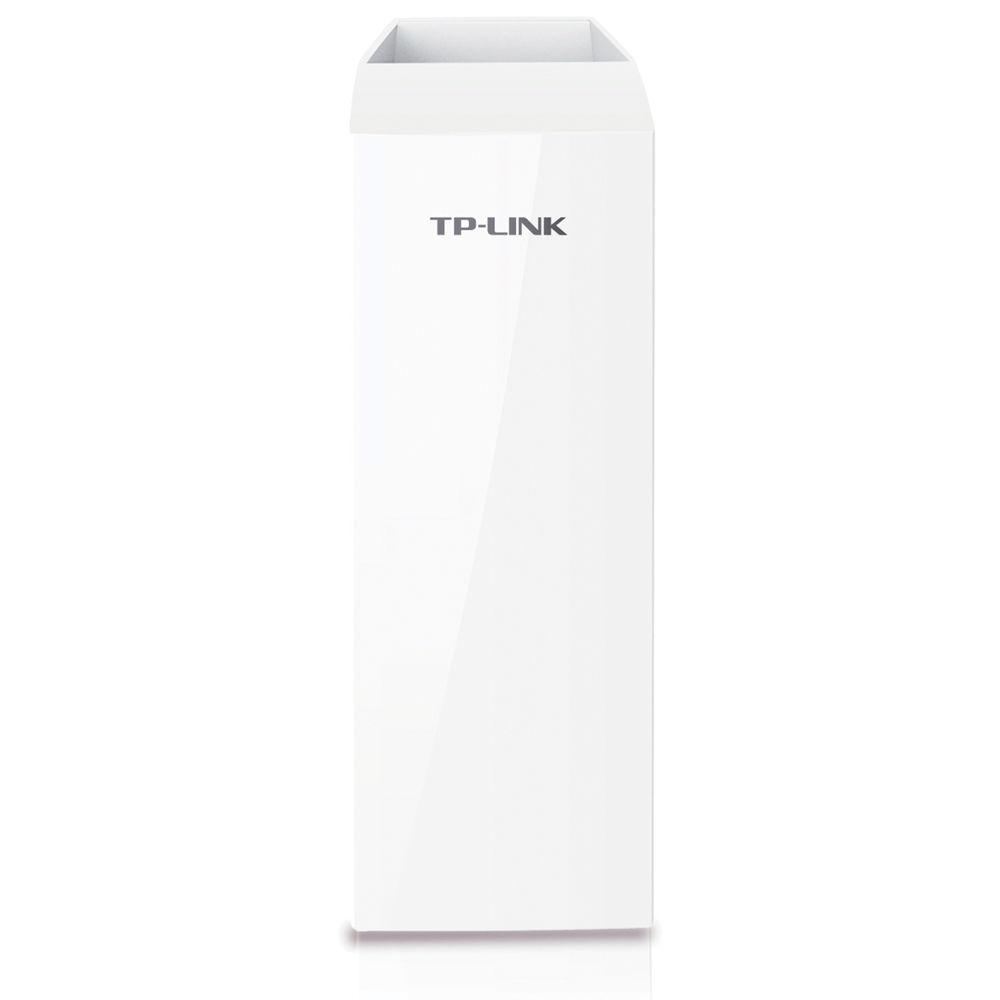

Product description The CPE510 5 GHz Wireless-N300 Outdoor Access Point from TP-Link is dedicated to cost-effective solutions for outdoor wireless networking applications. With its centralized management application it is suitable for point-to-point, point-to-multipoint, and outdoor Wi-Fi coverage applications. Professional performance coupled with user-friendly design makes this wireless access point a suitable choice for both business and home users. Applications - Long-distance Wireless Connection
- Using two CPE510 to establish a long distance wireless connection, suitable for wireless supervision and wireless internet sharing applications.
- WISP CPE
- CPE510 as powerful clients in point to multi-point links.
- Outdoor Access Point
- CPE510 has a powerful 5 GHz access points.
Software - TP-LINK MAXtream TDMA Technology
- As network scale increases, wireless competition and collisions among CPE's and base stations will be so enormous that the real throughput of the network will drop resulting in an impact on end-users experience to mitigate these effects. TP-LINK's Pharos series uses MAXtream TDMA technology.
- Pharos Control - Centralized Management System
- Pharos series also comes equipped with centralized management software that helps users easily manage all the devices in their network from a single PC Pharos Control. Functions like device discovery, status monitoring, firmware upgrading, and network maintenance can be managed using Pharos Control.
- PharOS
- User-friendly Web-based management system allows professionals to do more specific configurations
Hardware - Professional Outdoor Design

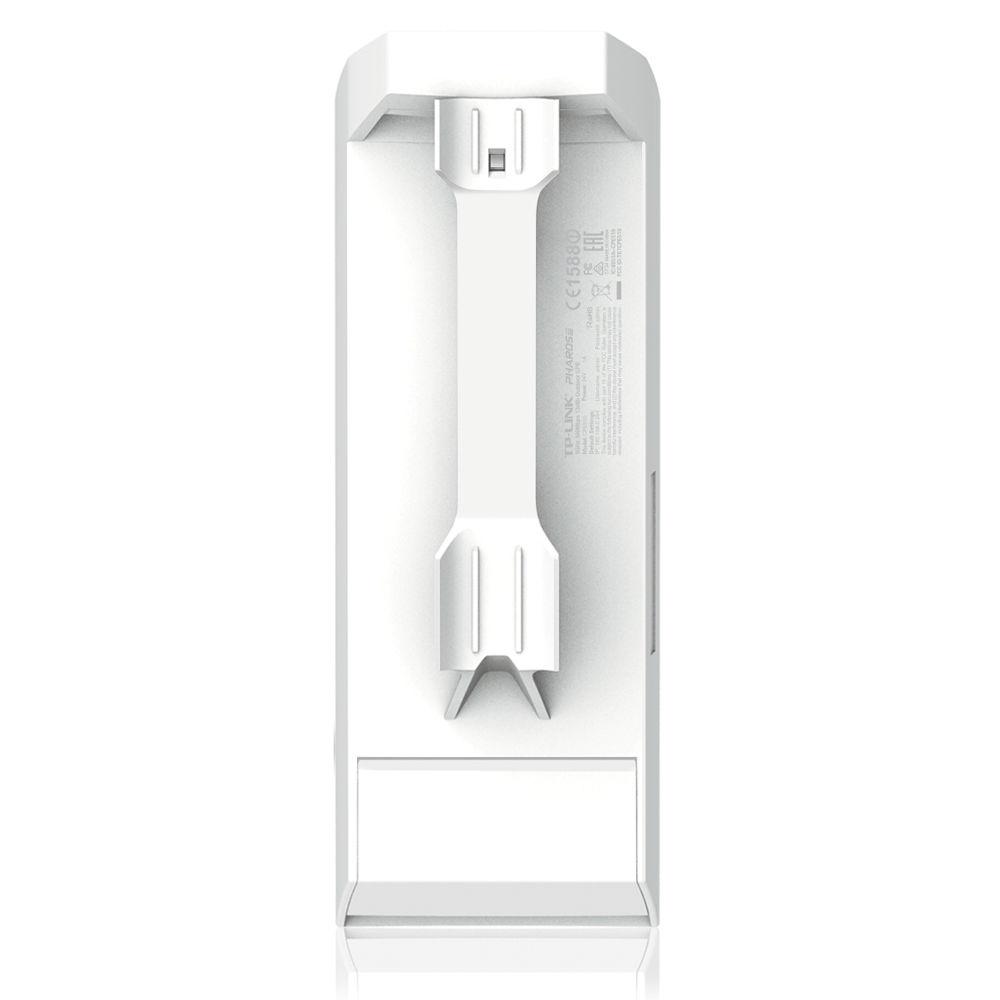

- Weather-proof enclosure with pole mounting design
Secondary Ethernet port with software enabled PoE output allows for seamless IP camera connectivity
Shielded Ethernet ports and grounding terminal provide double protections against ESD attacks - Easy Deployment and Maintenance
- Passive PoE adapter makes installation easier and its Remote Reset button allows for the device to be reset remotely from the power supply location.
UPC: 845973070922 In the Box TP-Link CPE510 5 GHz Wireless-N300 Outdoor Access Point Power Cord 24V 1A Passive PoE Adapter Pole Mounting Straps Limited 2-Year Warranty Brochure PDF 7mbuwdfqutwddtrffttyratybzdetrey More info from TP-Link Table of Contents
|
Upload User Manual
Have you got an user manual for the TP-Link CPE510 5 GHz Wireless-N300 Outdoor Access Point in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTP-Link CPE510 Specs | | | Processor | Qualcomm Atheros Enterprise 560 MHz CPU, MIPS 74Kc | | Memory | 64 MB DDR2 RAM, 8 MB flash | | Interface | 1 x 10/100 Mbps shielded Ethernet port (LAN0, passive PoE in)
1x 10/100 Mbps shielded Ethernet port (LAN1, passive PoE pass-through)
1 x Grounding terminal
1 x Reset button | | Antenna Type | Built-in 13 dBi 2 x 2 Dual-polarized directional antenna
Beam width: 45° (H-plane) / 30° (E-plane) | | Protection | 15 KV ESD protection
6000 V Lightning protection | | Power | Consumption: maximum 13 W*
Passive Power over Ethernet via LAN0 (+4/5-pins, -7/8-pins)
Voltage range: 16 to 27 VDC *When deployed using Passive PoE, the power drawn from the power source will be higher by some amount, depending on the length of the connecting cable | | Enclosure | Outdoor ASA stabilized plastic material
IPX5 waterproof certification | | | | Wireless Standard | IEEE 802.11a/n (with Pharos MAXtream disabled) | | Proprietary Protocol | TDMA mode (with Pharos MAXtream enabled) | | Wireless Speed | Up to 300 Mb/s (40 MHz, dynamic)
Up to 144.4 Mb/s (20 MHz, dynamic)
Up to 72.2 Mb/s (10 MHz, dynamic)
Up to 36.1 Mb/s (5 MHz, dynamic) | | Wireless Speeds | Up to 300 Mb/s (40 MHz, dynamic)
Up to 144.4 Mb/s (20 MHz, dynamic)
Up to 72.2 Mb/s (10 MHz, dynamic)
Up to 36.1 Mb/s (5 MHz, dynamic) | | Frequency | 5.15 to 5.85 GHz* *Available operating frequency may vary depending on the limitations of the countries or regions in which the device is used | | Reception Sensitivity | 802.11a:
54M: -75 dBm
48M: -76 dBm
36M: -83 dBm
6-24M: -95 dBm
802.11n:
MCS15: -73 dBm
MCS14: -74 dBm
MCS13: -76 dBm
MCS12: -80 dBm
MCS11: -83 dBm
MCS10: -88 dBm
MCS9: -90 dBm
MCS8: -93 dBm
MCS7: -73 dBm
MCS6: -74 dBm
MCS5: -76 dBm
MCS4: -80 dBm
MCS3: -83 dBm
MCS2: -88 dBm
MCS1: -90 dBm
MCS0: -93 dBm | | Transmission Power | 27 dBm/500 mw* (Adjustable power by 1 dBm) *Maximum transmission power may vary across different channels depending on the limitations of the countries or regions in which the device is used | | | | Wireless Configurations | Pharos MAXtream TDMA technology
802.11 b/g/n modes
Selectable channel width: 5/10/20/40 MHz
Automatic channel selection
Transmission power control
Dynamic Frequency Selection (DFS)
WDS Enable/Disable | | Security | WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption, 64/128/152-bit WEP Encryption
SSID broadcast enable/disable
Multi-SSID with VLAN tagging (AP mode only)
Distance/ACK timeout setting
Wireless MAC address filter | | Wireless Advanced | Beacon interval/RTS threshold/fragmentation
Threshold/DTIM interval/AP isolation/Short GI/Wi-Fi multimedia | | Management | Discovery and remote management via Pharos control application
HTTP/HTTPS Web-based management
System log
SNMP agent (v2c)
Ping watch dog
Dynamic DDNS
SSH server | | System Tools | Wireless signal quality indicators:
Signal strength/noise/transmit CCQ/CPU/memory
Monitors: Throughput/Stations/Interfaces/ARP/Routes/WAN/DHCP
Spectrum analyzer
Speed test
Ping
Traceroute | | System-Level Optimizations | Optimized IGMP Snooping/Proxy for multicast applications
Hardware watch dog | | | | Button | Reset button | | Certifications | CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark | | Power | Efficiency: >80%
Input: 100-240 VAC, 50/60 Hz
Input Current: 0.8 A maximum at 100 VAC
Input Voltage: 100 to 240 VAC at 50 Hz to 60 Hz
Output: 24 VDC, 1.0 A maximum
+4/5-pins, -7/8-pins (Support up to 60 m Power over Ethernet)
Output Voltage: 24 VDC (+4/5-pins, -7/8-pins) | | Interfaces | 1 x AC Jack with Earth Ground
1 x 10/100 Mb/s Shielded Ethernet Port (Power + Data)
1 x 10/100 Mb/s Shielded Ethernet Port (Data) | | Power Status LEDs | 0 to 0.8 A: Green
0.8 A to 1.0 A: Red | | | | System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux* *We recommend you to use one of following Web browsers for an improved user experience: Google Chrome, Safari, and Firefox. IE browsers are not recommended | | Temperature | Operating: -22 to 158°F (-30 to 70°C)
Storage: -40 to 158°F (-40 to 70°C) | | Humidity | Operating: 10 to 90% (non-condensing)
Storage: 5 to 95% (non-condensing) | | Certification | CE, FCC, RoHS, IPX5 | | Dimensions (W x H x D) | 8.8 x 2.4 x 3.1" (224.0 x 60.0 x 79.0 mm) | | Weight | 11.2 oz (317.5 g) | | | | Package Weight | 1.95 lb | | Box Dimensions (LxWxH) | 10.5 x 5.3 x 4.2" |
