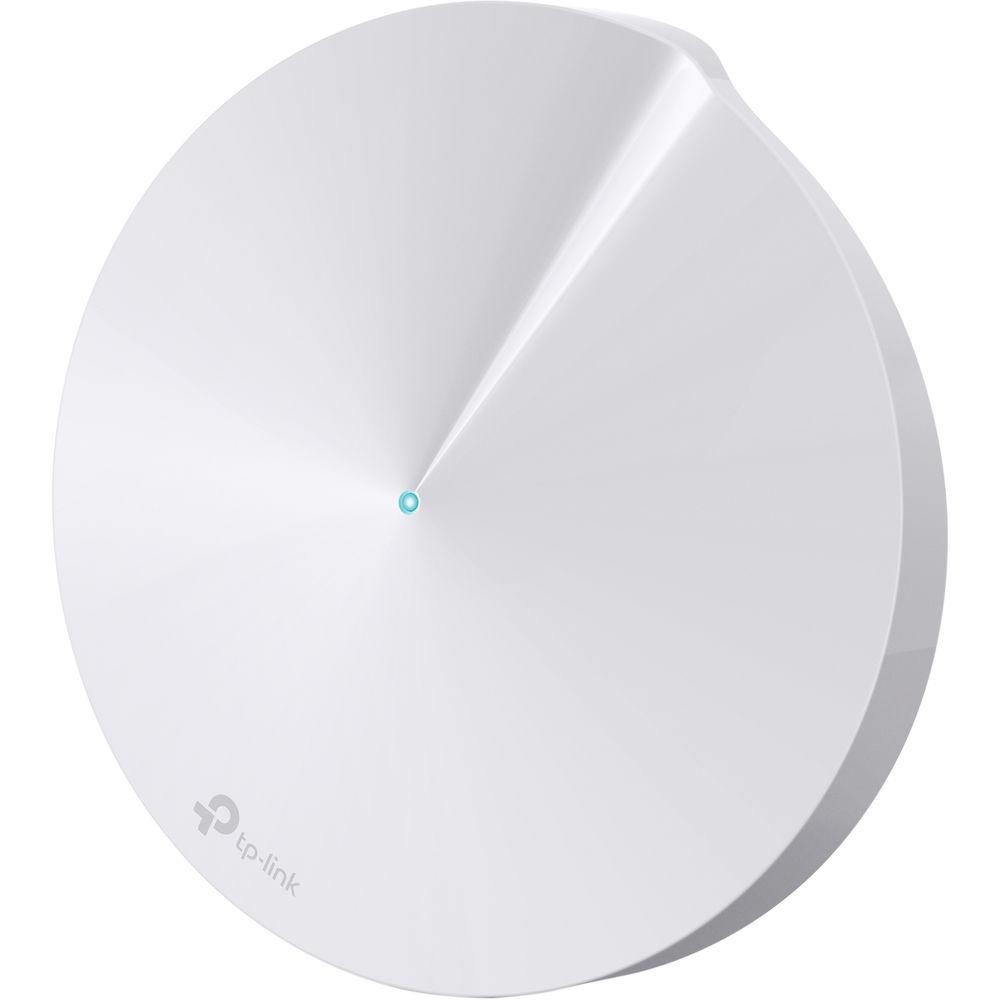

User Manual for TP-Link Deco M5 AC1300 MU-MIMO Dual-Band Whole Home Wi-Fi System Click to enlarge the picture
Contents of the user manual for the TP-Link Deco M5 AC1300 MU-MIMO Dual-Band
- Product category: Whole Home Smart Wi-Fi TP-Link
- Brand: TP-Link
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TP-Link Whole Home Smart Wi-Fi
 |
User manual for the TP-Link Deco M5 AC1300 MU-MIMO Dual-Band contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TP-Link product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TP-Link user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TP-Link product will considerably shorten its lifespan!
|
Product description What is Mesh? Read More - Deco M5 Whole-Home Wi-Fi: Setup

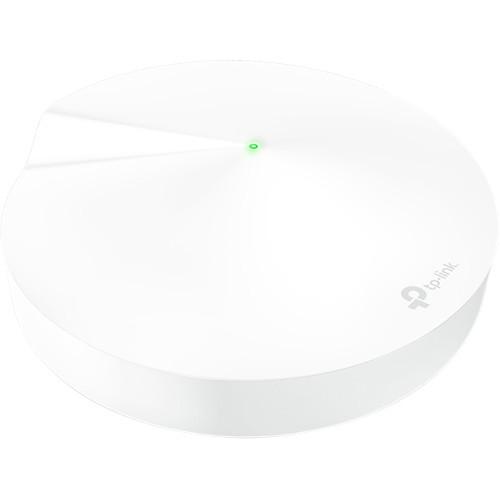

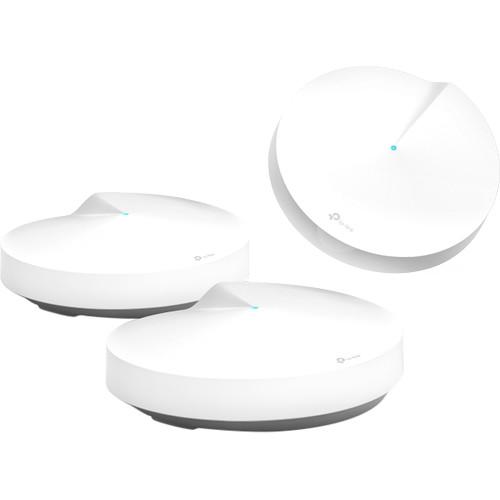

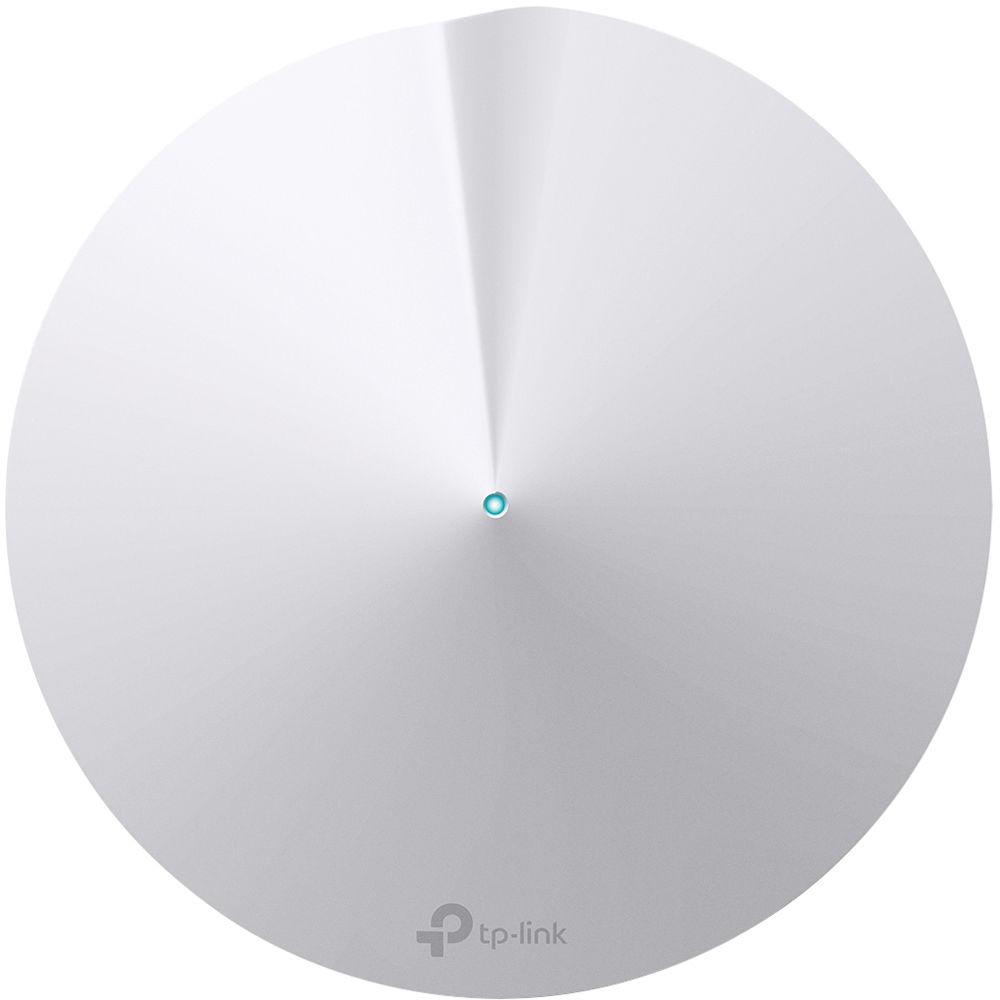

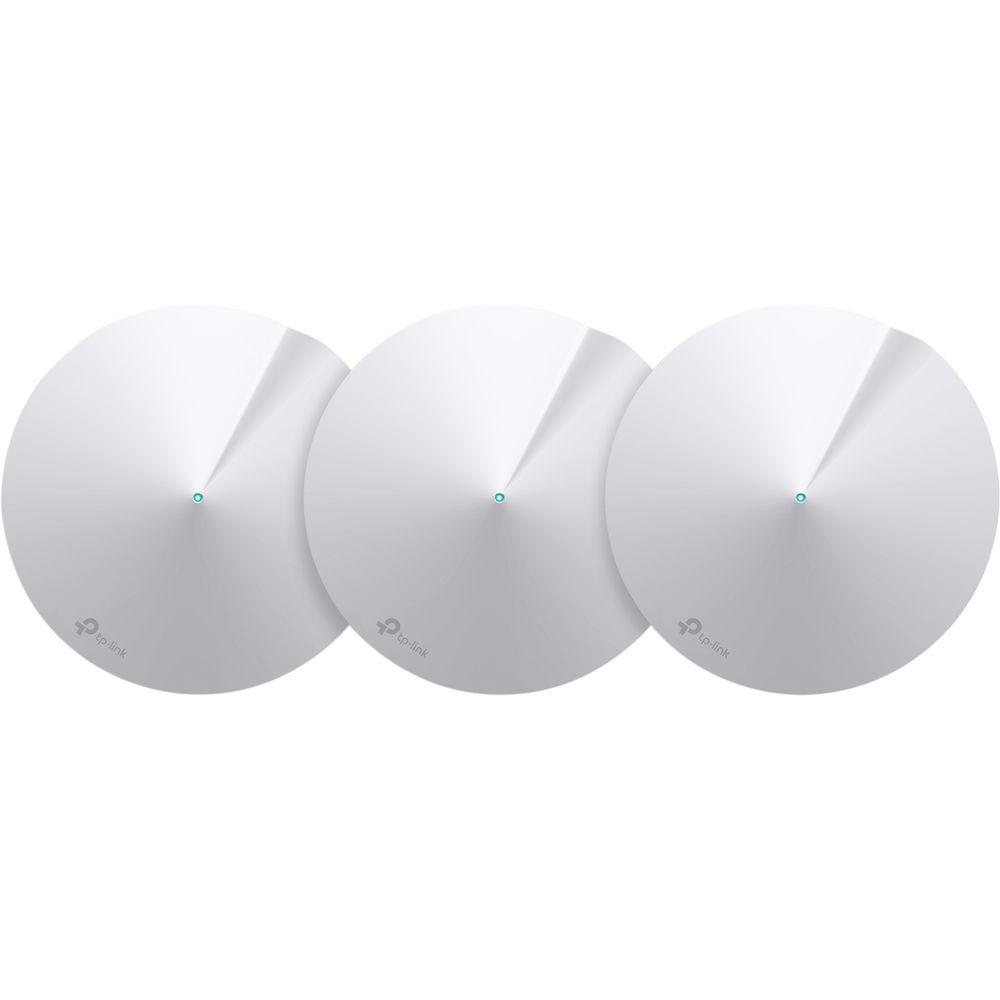

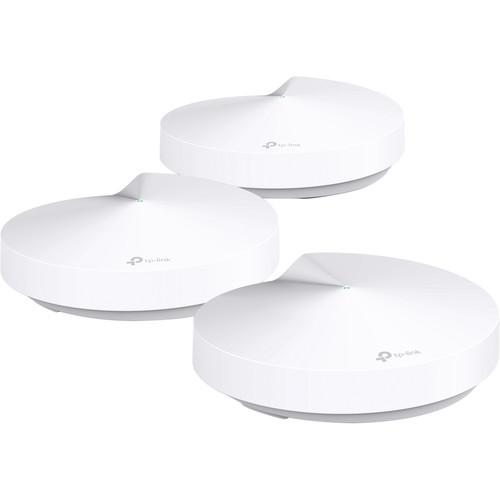

Immerse your entire home in seamless Wi-Fi with the Deco M5 AC1300 MU-MIMO Dual-Band Whole Home Wi-Fi System from TP-Link. This mesh networking Wi-Fi system is designed to provide enhanced Wi-Fi coverage of up to 5500 square feet. The Deco M5 Wi-Fi system can support a total of 9 units, making it possible to cover large areas while providing Wi-Fi to multiple users simultaneously. Setup, configuration, and management of the Deco M5 is simple and can be accomplished using the Deco app, available for iOS and Android based mobile devices.

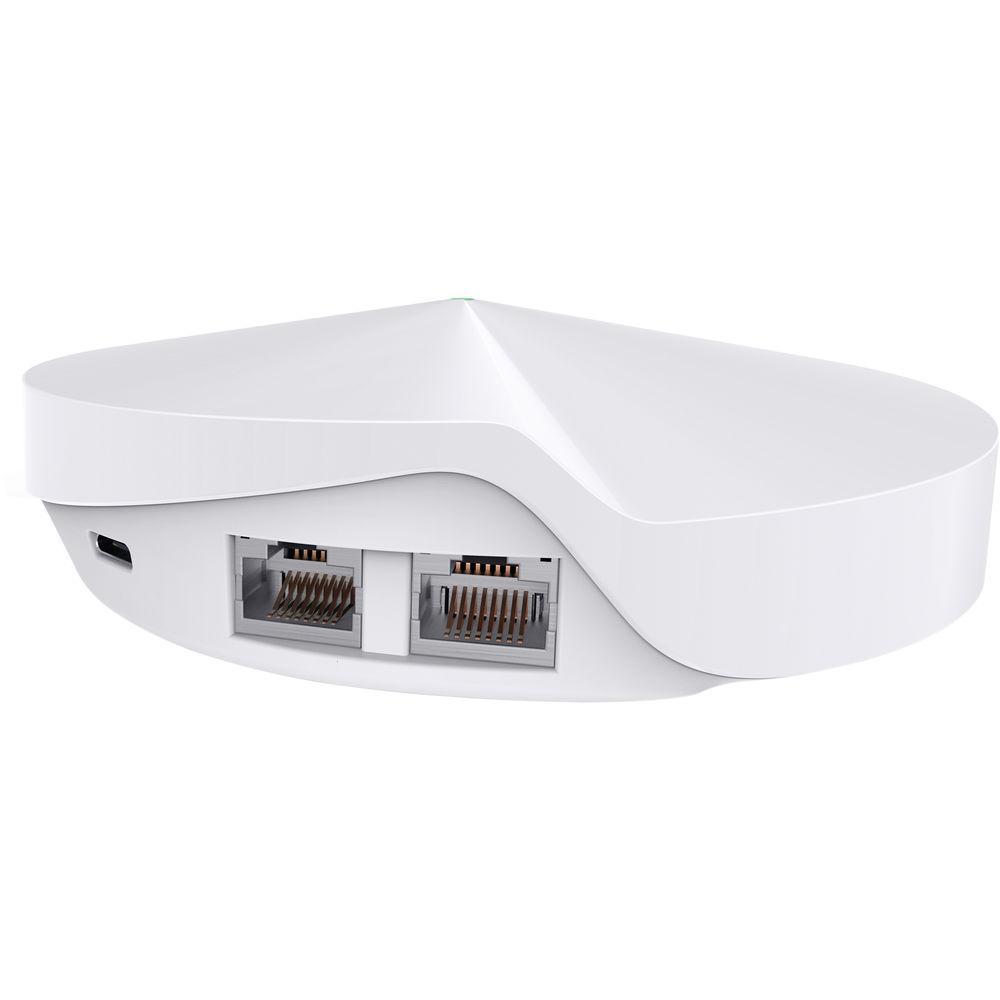

This refurbished Deco M5 Wi-Fi System supports the 802.11ac Wi-Fi network standard and operates on both the 2.4 and 5 GHz frequencies, supporting wireless data transfer rates of up to 1300 Mbps. In addition to enhanced Wi-Fi speeds, this system also supports multi-user MIMO technology, giving users dedicated pathways to access the network, which helps eliminate bottlenecks within the router. Along with enhanced Wi-Fi connectivity, each unit within the Deco M5 system comes equipped with dual Gigabit Ethernet ports, offering a wired alternative when connecting to the network. - Seamless Wi-Fi

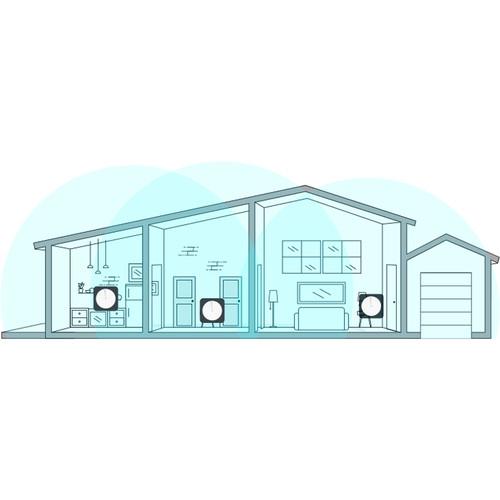

- Immerse multiple rooms in seamless Wi-Fi connectivity with the Deco M5 Whole-Home Wi-Fi System. Two or more Deco units work together to allow you to enjoy seamless Wi-Fi, so you can walk from room to room and always stay connected.
- TP-Link HomeCare
- TP-Link HomeCare provides antivirus protection, parental controls, an SPI firewall, device access control, and secure remote control, all to keep your home network safe and secure.
- Parental Controls
- Parental controls allow you to manage, limit, and monitor connected users' internet access. Restrict access by time of day, content or device, or even just pause internet connectivity for the entire home. Monthly usage reports let you know what was blocked and where the most time was spent online.
- Expansive Coverage

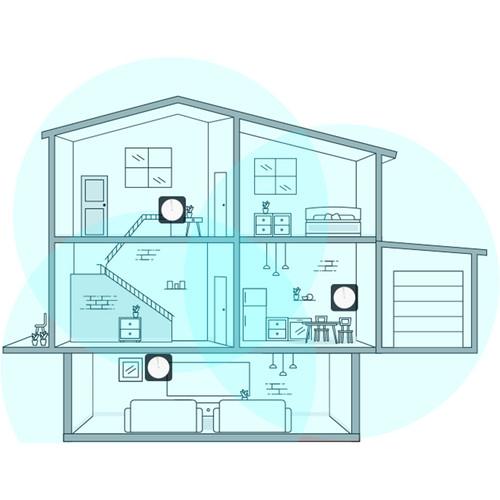

- A single Deco unit will cover up to 2000 square feet. Two Deco units can cover up to 3800 square feet. Three Deco units can cover up to 5500 square feet. For maximum coverage, up to nine units can be added to a single Deco network. Enjoy the latest features and functionality with automatic updates.
- Dedicated Deco App
- The Deco app makes setup fast and easy. Download the app to your Android or iOS mobile device and it will guide you through setup and configuration with simple visuals.
- Intelligent Networking
- TP-Link ART (Advanced Routing Technology) keeps your network running as fast as possible by choosing the best path for each connection to follow. With its intelligent selection, ART takes the guesswork out of connecting by automatically assigning your devices to the best Deco unit and Wi-Fi band.
- Optimized Connections
- Deco optimizes the connections between each of its units to deliver enhanced Wi-Fi coverage, performance, and experience. Plus, with the Deco app, you can control how your bandwidth is used and prioritize devices for streaming, gaming, and video chat.
- Remote Management
- Remotely manage your network from anywhere with the Deco app. Get help from friends or family by adding them as network managers.
UPC: 845973095697 In the Box TP-Link Deco M5 AC1300 MU-MIMO Dual-Band Whole Home Wi-Fi System (3-Pack, Refurbished) Power Supply Ethernet Cable Limited 90-Day Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the TP-Link Deco M5 AC1300 MU-MIMO Dual-Band Whole Home Wi-Fi System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTP-Link Deco M5 Specs | Standards | Wi-Fi 5 (802.11ac) | | Frequencies | Dual-band 2.4 & 5 GHz | | Processor | Quad-core 684 MHz | | Memory | 32 MB flash
256 MB RAM | | Data Transfer Rates | 400 Mbps on 2.4 GHz
867 Mbps on 5 GHz | | Antennas | 4 x Internal antennas
1 x Bluetooth 4.0 LE antenna | | Ports | 2 x Gigabit Ethernet ports
1 x USB Type-C (for power) | | Buttons | Reset button (under side) | | LED Indicators | Single LED | | Software Specifications | Supported Operating Systems
Android 4.3 or later
iOS 8.0 or later | | Security | Wi-Fi Security
WPA2-Personal
Firewall
SPI | | AC Adapter Input | 100-240 VAC, 50 / 60 Hz @ 0.4 A | | AC Adapter Output | 12 V @ 1.2 A | | Regulatory Certifications | CE, FCC, Bluetooth, RoHS, EAC | | Dimensions | 4.72 x 1.34" / 120 x 34 mm | | Weight | 0.47 lb / 214 g | | | | Package Weight | 4.25 lb | | Box Dimensions (LxWxH) | 12.4 x 9.4 x 4.1" |
