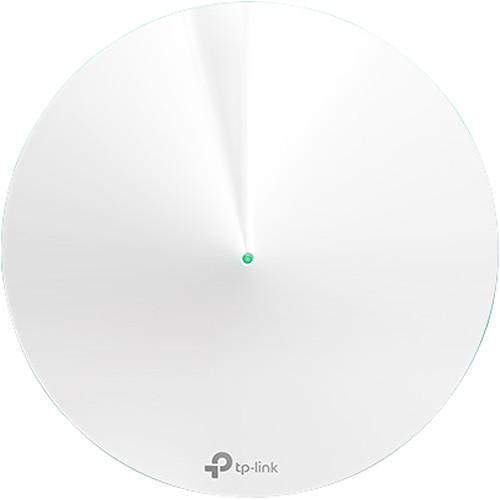

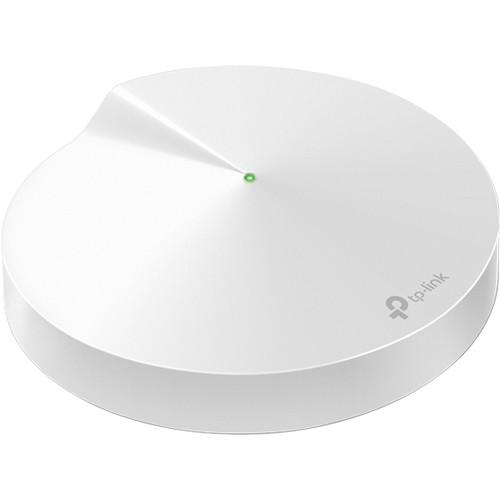

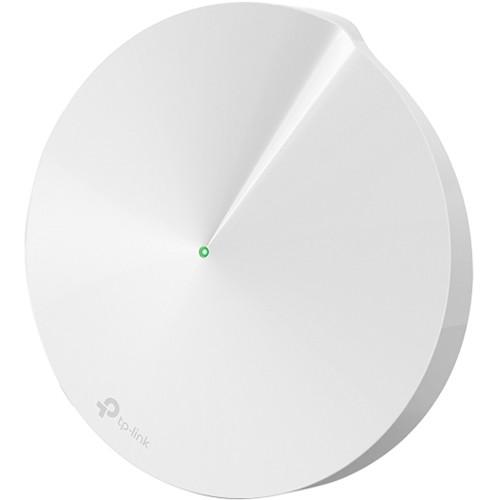

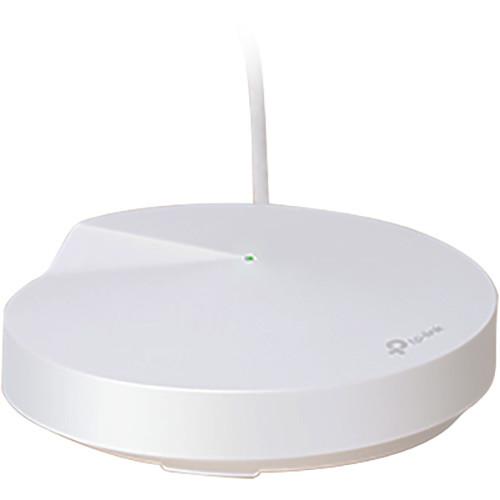

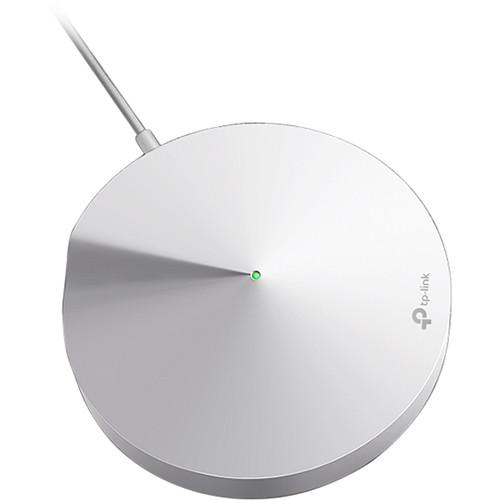

User Manual for TP-Link Deco M9 Plus AC2200 Smart Home Mesh Wi-Fi System Click to enlarge the picture
Contents of the user manual for the TP-Link Deco M9 Plus AC2200 Smart
- Product category: Whole Home Smart Wi-Fi TP-Link
- Brand: TP-Link
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TP-Link Whole Home Smart Wi-Fi
 |
User manual for the TP-Link Deco M9 Plus AC2200 Smart contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TP-Link product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TP-Link user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TP-Link product will considerably shorten its lifespan!
|

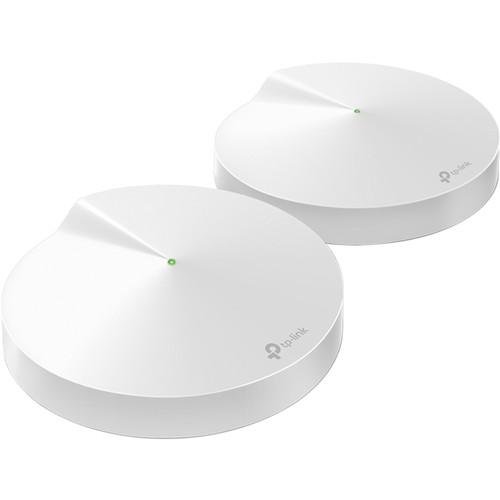

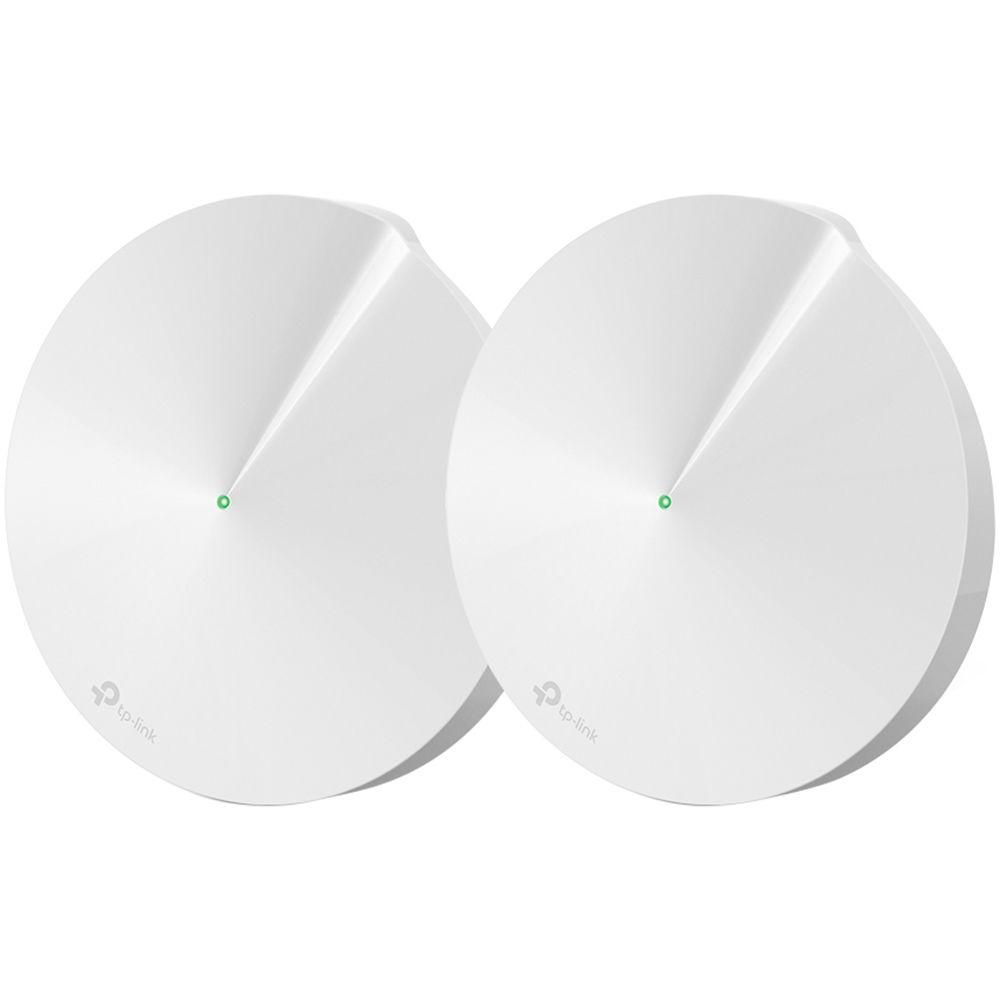

Product description What is Mesh? Read More Get whole-home mesh coverage with the TP-Link Deco M9 Plus AC2200 Smart Home Mesh Wi-Fi System. With advanced Deco mesh technology, the two Deco units work together to form one unified whole-home network with the same network name. Deco automatically chooses the best connection for your device as you move throughout your home. With support for Wi-Fi 5 (802.11ac) and three separate bands (5 GHz, 5 GHz, 2.4 GHz), the Deco mesh network can provide up to 1.5 Gb/s. A Deco 2-pack can cover up to 4,500 square feet, while a 3-pack or more boosts the range even farther. Deco M9 Plus acts as a hub for your wireless and smart-home devices. You can adjust settings and create interactions from one app. The Deco can also handle traffic for up to 100 devices. You can also use TP-Link HomeCare, which provides personalized security features, including parental controls, built-in antivirus, and Quality of Service (QoS). Setup is easy via the Deco app. - Two 5 GHz Bands and One 2.4 GHz Band

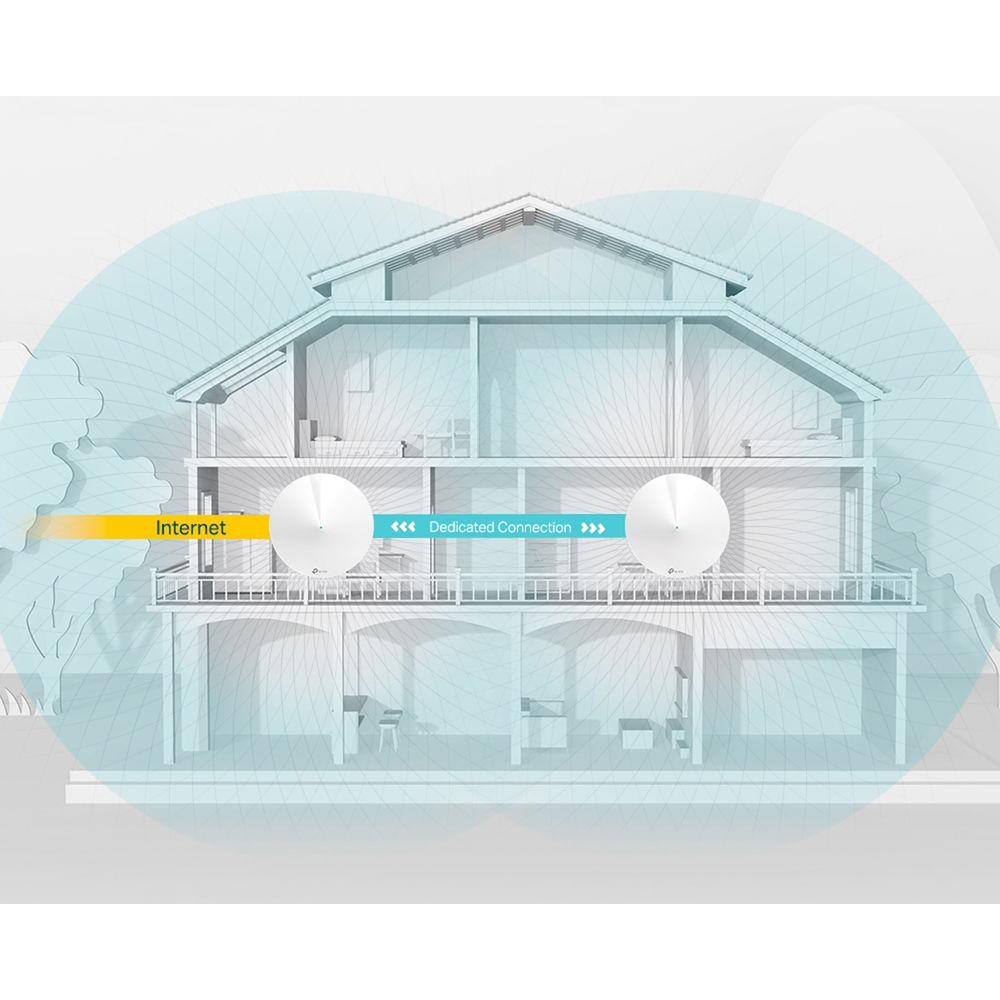

- Three separate Wi-Fi bands deliver stable connections to devices in every room of your home. More bandwidth is freed up with dedicated wireless links between Deco units. Deco M9 Plus uses not only 5 GHz (867 Mb/s), as wireless backhaul, but also a second 5 GHz (867 Mb/s), and 2.4 GHz (400 Mb/s) as backhaul while traffic gets heavy, delivering speeds over 1000 Mb/s which is optimal for your gigabit fiber.
- Dead-Zone Killer
- Eliminate weak signal areas with whole-home Wi-Fi. No more searching around for a stable connection. Want more coverage? Simply add another Deco. Deco units work together to form one unified network.
- No More Buffering
- With network speeds three times faster than the previous generation routers, thanks to Wi-Fi 5 (802.11ac) wireless technology, Deco can provide lag-free connections for over 100 devices.
- Whole Home Seamless Roaming
- Deco units work together to form one unified network. Enjoy your smart life without interruption not just in your living room, but all around your entire house with Deco M9 Plus's smart mesh.
- The Smart Hub of Your Home
- Deco M9 Plus acts as a smart home hub, bringing all your products together in one easy-to-use app. Set interactions between Zigbee, Bluetooth, and Wi-Fi devices. With Deco M9 Plus, enjoy the features of the smart home in every room.
- Easy Setup
- 1) Connect Deco to your cable modem and power on additional Deco devices
2) Download and launch the Deco app
3) Follow in-app instructions to configure your Deco system - TP-Link HomeCare
- TP-Link HomeCare ensures every device on your network remains protected, with a threat database updated live by Trend Micro. Powerful parental controls can limit online time and block inappropriate content, according to unique profiles created for each family member. Built-in antivirus helps you defend against malicious website and guard your online payment.
UPC: 845973086862 In the Box TP-Link Deco M9 Plus AC2200 Smart Home Mesh Wi-Fi System (2-Pack, Refurbished) 2 x Deco Units RJ45 Ethernet Cable Power Adapter Limited 90-Day Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the TP-Link Deco M9 Plus AC2200 Smart Home Mesh Wi-Fi System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

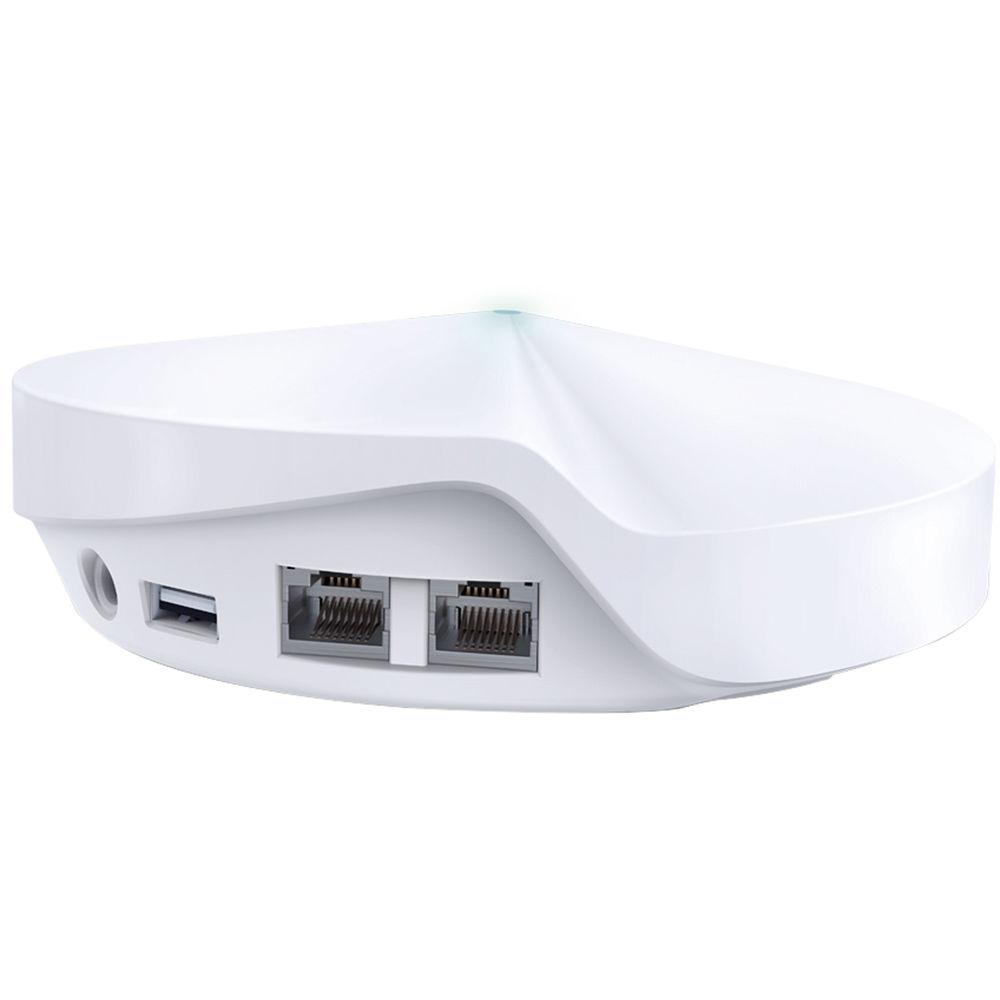

Technical parametersTP-Link DECO M9 PLUS(2-PACK)_RFB Specs | | | Ports | Per Unit
2 x LAN/WAN Gigabit Ethernet ports
1 x USB 2.0 port (reserved)
1 x Power port | | Button | 1 x Reset button (located on the underside) | | External Power Supply | 12 V, 2 A | | Antenna Type | 6 x Wi-Fi
1 x ZigBee
1 x Bluetooth | | Dimensions | 5.7 x 2.5" / 144 x 64 mm | | | | Wi-Fi | 5 GHz
Wi-Fi 5 (802.11ac)
2.4 GHz
Wi-Fi 4 (802.11n) | | Bluetooth | 4.2 | | Zigbee | HA1.2 | | Signal Rate | 867 Mb/s at 5 GHz (1)
867 Mb/s at 5 GHz (2)
400 Mb/s at 2.4 GHz | | Transmit Power | FCC: <30 dBm | | Security | WPA-PSK/WPA2-PSK | | | | QoS (Quality of Service) | WMM | | WAN | Dynamic IP/Static IP/PPPoE | | Management | Local Management
Remote Management | | DHCP | Server
Client | | Firewall | SPI Firewall | | Protocols | IPv4
IPv6 | | Advanced Features | Parental Controls
3-Year Free Built-In Antivirus
QoS (Quality of Service)
Reporting
Assisted Setup
Works with Alexa & IFTTT
Automation (for smart home devices) | | Guest Network | 2.4 GHz guest network
5.0 GHz guest network | | | | System Requirements | iOS 8.0 or later Android 4.3 or later Bluetooth 4.2 or later | | Environment | Operating Temperature
32 - 104°F / 0 - 40°C
Storage Temperature
-40 - 158°F / -40 - 70°C
Operating Humidity
10 - 90% non-condensing
Storage Humidity
5 - 90% non-condensing | | Dimensions | Not specified by manufacturer | | Weight | Not specified by manufacturer | | | | Package Weight | 4.655 lb | | Box Dimensions (LxWxH) | 19.4 x 12.4 x 9.4" |
