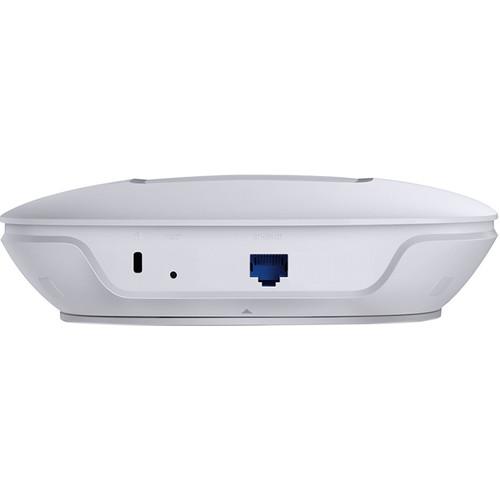

User Manual for TP-Link EAP110 Wireless-N300 Ceiling Mount Access Point Click to enlarge the picture
Contents of the user manual for the TP-Link EAP110 Wireless-N300 Ceiling Mount Access
- Product category: Wireless Access Points TP-Link
- Brand: TP-Link
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TP-Link Wireless Access Points
 |
User manual for the TP-Link EAP110 Wireless-N300 Ceiling Mount Access contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TP-Link product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TP-Link user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TP-Link product will considerably shorten its lifespan!
|
Product description Extend the reach of your network without placing unsightly access points all over the office with the EAP110 Wireless-N300 Ceiling Mount Access Point from TP-Link. This access point features a ceiling mount design making it aesthetically pleasing whether mounted to the wall or the ceiling. Installation has also been simplified as the EAP series are PoE compatible eliminating the need to run additional power to this device. Once installed you can take advantage of features like EAP controller software to manage hundreds of EAP's and the Captive portal to implement an authentication method for Wi-Fi guests. - Flexible Placement
- The EAP's "ceiling lamp" appearance and easy mounting design with chassis make it easy to be integrated seamlessly into any wall or ceiling surface to blend in with most interior decorations. The EAP110 supports Passive PoE to make deployment effortless and flexible.
- Powerful Hardware
- • The EAP110 features 802.11n Wi-Fi and 2 x 2 MIMO technology supporting wireless speeds of up to 300 Mbps
• With Qualcomm Atheros 560 MHz chipsets, EAP ensures incredible wireless coverage and reliability - Free Centralized Management Platform
- EAP Controller Software enables users to manage hundreds of TP-LINK's EAPs simultaneously and easily from PCs in the network, making centralized business Wi-Fi management efficient, visible and more cost-effective like never before.
- Guest Authentication Portal
- Captive portal provides one convenient method of authentication for Wi-Fi guests. A captive portal requires users to perform certain actions before network access is allowed. The required action must be verified by an external portal server or customized database by the administrator, which can be simply viewing and agreeing to an acceptable use policy, or entering a user ID and password.
- Designed for Business Performance
- With easy mounting design, PoE power supply, Cluster feature, Centralized management software, Captive portal, Auto RF management, and business hardware, EAP series are specially designed for the high-density, most demanding business environments, including schools, hotels, and enterprises.
- Compatibility
- The EAP110 supports 802.11 b/g/n devices.
- Load Balance
- Load balance ensures large numbers of users have a smooth network experience in large business networks.
- Multiple Operating Modes
- Multiple operating modes satisfy different application conditions including managed AP and standalone modes.
- LSOH Material
- The EAP110 adopts Low Smoke Zero Halogen (LSOH) materials for UL2043 compliance.
- Dustproof Design
- Prevents dust from dropping onto the PCB through bypass louver, which ensures long-term, unhindered operation.
- Quality of Service
- Prioritize data, voice, and video applications to ensure time-sensitive traffic takes priority over all other traffic.
UPC: 845973091620 In the Box TP-Link EAP110 Wireless-N300 Ceiling Mount Access Point Passive PoE Adapter Power Cord Mounting Kits Resource CD Limited 1-Year Warranty Brochure PDF 1mb More info from TP-Link Table of Contents
|
Upload User Manual
Have you got an user manual for the TP-Link EAP110 Wireless-N300 Ceiling Mount Access Point in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTP-Link EAP110 Specs | | | Wireless Frequency Bands | 2.4 GHz | | Number of Antennas | 2 | | WLAN Mode | 802.11n | | Sensitivity | -71 to -96 dBm | | Transmit Power | 20 to 26 dBm | | Supported Protocols | SNMPv1
SNMPv2c | | Antenna Placement | Internal | | | | Ports | 1 x 10/100 Mb/s Ethernet (RJ45) | | | | Wireless Security | WEP, WPA | | Lock Slot | Yes | | | | Max SSIDs Supported | 8 | | Throughput | 2.4 GHz: 300 Mb/s | | | | Supported IEEE Standards | 802.11i, 802.1x | | | | DC Input Power | 24 VDC at 1 A | | Power Consumption | 7.7 W | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | -40 to 158°F / -40 to 70°C | | Operating Humidity | 10 to 90% | | Storage Humidity | 5 to 90% | | | | Certifications | RoHS, as per Manufacturer | | Dimensions | 7.1 x 7.1 x 1.9" / 18 x 18 x 4.8 cm | | | | Package Weight | 2.0 lb | | Box Dimensions (LxWxH) | 12.047 x 9.213 x 2.835" |
