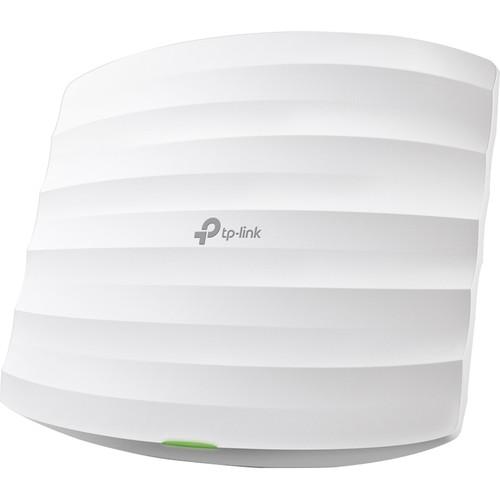

Product description The EAP225 AC1350 Wireless Dual-Band Gigabit Ceiling Mount Access Point from TP-Link lets you extend your wireless network's coverage throughout the office. It has a low profile, easy mount design, which lets you install it on the ceiling or onto a wall. Featuring dual-band 802.11ac connectivity, you'll be able to transfer data at speeds of up to 867 Mb/s on the 5 GHz band and 450 Mb/s on the 2.4 GHz band. This device is PoE-compatible and can be used together with the EAP Controller Software to manage connected devices and guest access. -
- 1317 Mb/s wireless data rate for an uninterrupted wireless connection
- Free controller software for easy centralized management of hundreds of EAPs
- Supports Power over Ethernet (802.3af) and passive PoE (adapter included) for convenient and affordable installation
- The captive portal provides one convenient method of authentication for Wi-Fi guests
- The simple mounting design makes easy to install on any wall or ceiling surface
- Rate limit on per SSID to restrict the bandwidth of each client
- Load balance ensures large numbers of users have smooth network experiences in high-density business networks
- Band Steering Automatically moves dual-band devices onto the wider 5 GHz band for faster connections
- MU-MIMO means access points simultaneously transfer data with multiple devices, speeding up connections
- Beamforming concentrates signal towards where you need it most, providing a fast and stable Wi-Fi experience
- Access Control restricts or only allows the client to access the specified network segment
- Schedules can be set so access points automatically reboot and Wi-Fi turns on/off at the times you choose
- Multi-SSID divides multiple wireless networks for different users
- Compatible with 802.11a/b/g/n/ac products
- Multiple operating modes including managed AP and standalone AP satisfy different application conditions
- QoS function gives video and voice streams higher priority to promote smoother performance for video and voice services
UPC: 845973093006 In the Box TP-Link EAP225 AC1350 Wireless Dual-Band Gigabit Ceiling Mount Access Point Passive PoE Adapter Power Cord Mounting Kits Limited 5-Year Warranty More info from TP-Link Table of Contents
|
Upload User Manual
Have you got an user manual for the TP-Link EAP225 AC1350 Wireless Dual-Band Gigabit Ceiling Mount Access Point in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTP-Link EAP225_V3 Specs | | | Interface | 1 x Gigabit Ethernet (RJ-45) port
(Supports 802.3af PoE and Passive PoE) | | Button | Reset | | Power Supply | 802.3af PoE and passive PoE | | Power Consumption | 12.6 W | | Antenna Type | 3 x Internal omni
2.4 GHz: 4 dBi
5 GHz: 5 dBi | | Mounting | Ceiling/wall mounting (kits included) | | Security Lock Slot | Yes | | Watch Dog Timer | Yes | | | | Wireless Standards | IEEE 802.11a/b/g/n/ac | | Frequency | 2.4 GHz, 5 GHz | | Signal Rate | 5 GHz: Up to 867 Mb/s
2.4 GHz: Up to 450 Mb/s | | Wireless Functions | Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
Enable/disable wireless radio
Automatic channel assignment
Transmit power control (Adjust transmit power on dBm)
QoS (WMM)
MU-MIMO
Airtime fairness
Beamforming
Band steering
Load balance
Rate limit
Reboot schedule
Wireless schedule
Wireless statistics based on SSID/AP/client | | Wireless Security | Captive portal authentication
Access control
Wireless Mac address filtering
Wireless isolation between clients
SSID to VLAN mapping
Rogue AP detection
802.1X support | | Transmit Power | CE
≤20 dBm (2.4 GHz, EIRP)
≤23 dBm (5 GHz, EIRP)
FCC
≤24 dBm (2.4 GHz)
≤22 dBm (5 GHz) | | | | Access Point Management | EAP controller software
Email alerts
LED on/off control
Management MAC access control
SNMP
System logging, local/remote syslog
Telnet
Web-based management
L3 management
Multi-site management
Management VLAN | | | | Certifications | CE, FCC, RoHS | | System Requirements | Microsoft Windows XP, Vista, 7, 8, and 10
Linux | | Temperature & Humidity | Operating Temperature
32 to 144°F / 0 to 60°C
Storage Temperature
-40 to 158°F / -40 to 70°C
Operating Humidity
10 to 90% non-condensing
Storage Humidity
5 to 90% non-condensing | | Dimensions | 8.1 x 7.1 x 1.5" / 205.5 x 181.5 x 37.1 mm | | Weight | Not specified by manufacturer | | | | Package Weight | 1.99 lb | | Box Dimensions (LxWxH) | 16.3 x 13.45 x 2.65" |
