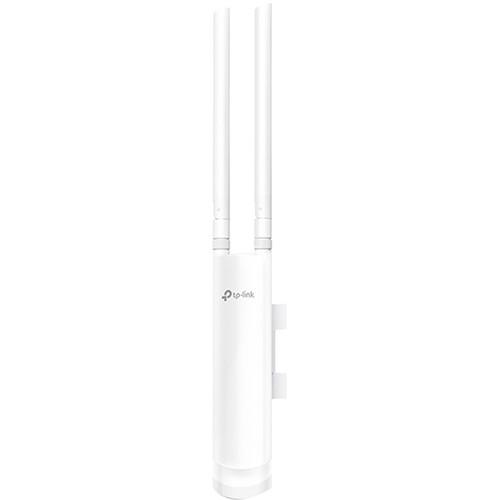

User Manual for TP-Link EAP225-Outdoor Wireless AC1200 Gigabit Indoor Outdoor Access Point Click to enlarge the picture
Contents of the user manual for the TP-Link EAP225-Outdoor Wireless AC1200 Gigabit Indoor
- Product category: Wireless Access Points TP-Link
- Brand: TP-Link

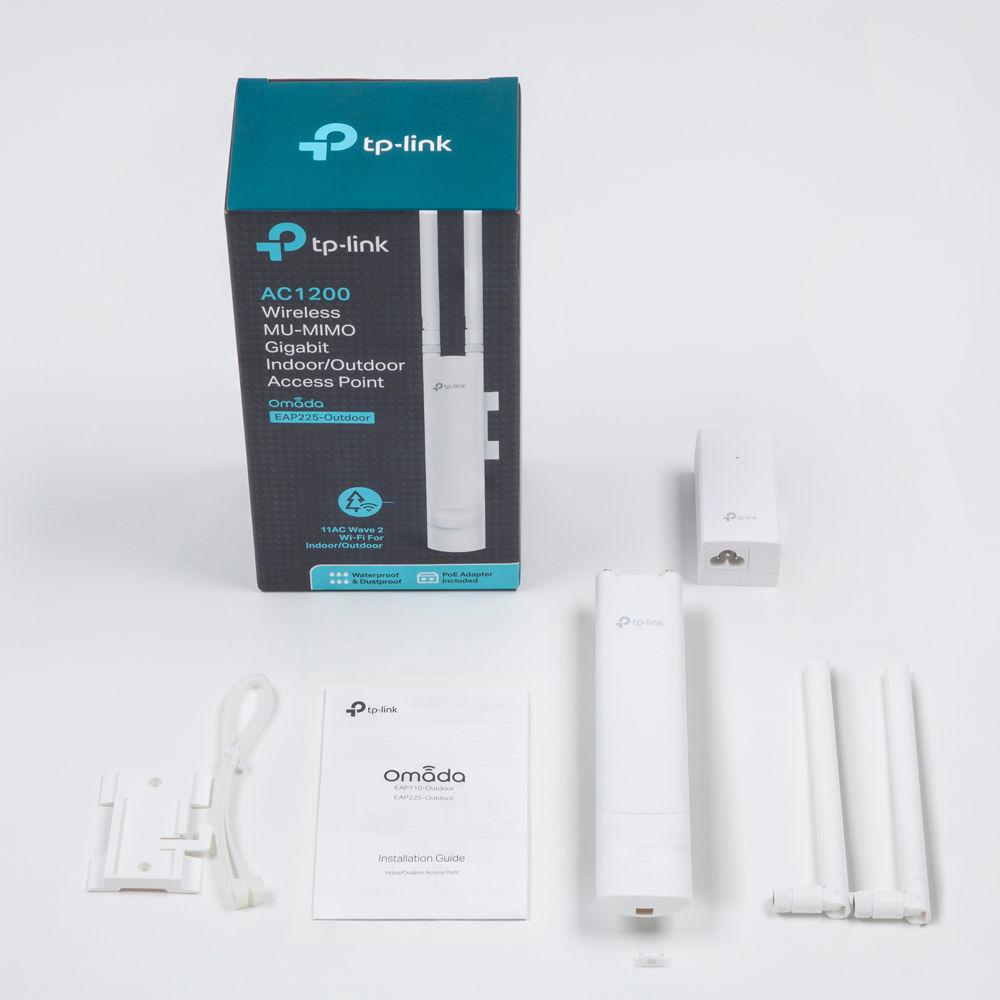

- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TP-Link Wireless Access Points
 |
User manual for the TP-Link EAP225-Outdoor Wireless AC1200 Gigabit Indoor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TP-Link product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TP-Link user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TP-Link product will considerably shorten its lifespan!
|
Product description Extend the reach of your Wi-Fi network outdoors with the EAP225-Outdoor Wireless AC1200 Gigabit Indoor/Outdoor Access Point from TP-Link. This wireless-AC access point operates on the 802.11a/b/g/n/ac Wi-Fi network standards and operates on both the 2.4 GHz and 5 GHz frequencies supporting data transfer rates of up to 1200 Mb/s. In addition to enhanced wireless coverage and network speeds, this access point is designed to stand up against the elements, thanks to the durable weatherproof housing. Installation is simple, as the EAP225-Outdoor access point comes with both pole- and wall-mounting kits and supports PoE connectivity to eliminate the need to run a standalone power supply to the AP. Once installed, free Omada Controller Software makes it easy to manage this AP as well as hundreds of other APs while the captive portal simplifies the process of authenticating guests. -
- Durable, weatherproof enclosure for outdoor Wi-Fi applications
- Up to 1200 Mb/s with 2
|
Upload User Manual
Have you got an user manual for the TP-Link EAP225-Outdoor Wireless AC1200 Gigabit Indoor Outdoor Access Point in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTP-Link EAP225-OUTDOOR Specs | | | Interface | 1 x Gigabit Ethernet (RJ-45) port
(Support 802.3af PoE and Passive PoE) | | Button | Reset | | Power Supply | 802.3af PoE and 24 V passive PoE (PoE adapter included) | | Power Consumption | 10.5 W | | Antenna Type | 2 x 3 dBi (2.4 GHz) antennas
2 x 4 dBi (5 GHz) antennas | | Mounting | Pole / wall mounting (kits included) | | Watch Dog Timer | Yes | | | | Wireless Standards | IEEE 802.11a/b/g/n/ac | | Frequency | 2.4 GHz, 5 GHz | | Signal Rate | 802.11ac: 5G: 6.5 Mb/s to 867 Mb/s (MCS0-MCS9,NSS = 1 to 2 VHT20/40/80) 2.4G: 78Mb/s to 300 Mb/s (MCS8-MCS9 VHT20/40, NSS=1 to 3)
802.11n: 6.5 Mb/s to 300 Mb/s (MCS0-MCS15, VHT 20/40)
802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mb/s
802.11b: 1, 5.5, 11 Mb/s
802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mb/s | | Wireless Functions | Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
Enable/disable wireless radio
Automatic channel assignment
Transmit power control (Adjust transmit power on dBm)
QoS (WMM)
MU-MIMO
Airtime fairness
Beamforming
Band steering
Load balance
Rate limit
Reboot schedule
Wireless schedule
Wireless statistics based on SSID/AP/client | | Wireless Security | Captive portal authentication
Access control
Wireless Mac address filtering
Wireless isolation between clients
SSID to VLAN mapping
Rogue AP detection
802.1X support | | Transmit Power | CE: <20 dbm (2.4 ghz, eirp), <23 (5 eirp)
FCC: <30 dBm (2.4 GHz, EIRP), <30 dBm (5 GHz, EIRP) | | | | Access Point Management | Omada controller software
Email alerts
Management MAC access control
System logging, local/remote syslog
Web-based management
L3 management
Multi-site management
Management VLAN | | | | Certifications | CE, FCC, RoHS | | Temperature & Humidity | Operating Temperature
-22 to 158°F / -30 to 70°C
Storage Temperature
-40 to 158°F / -40 to 70°C
Operating Humidity
10 to 90% non-condensing
Storage Humidity
5 to 90% non-condensing | | Dimensions | 8.5 x 1.8 x 1.1" / 215 x 46 x 27 mm | | Weight | Not specified by manufacturer | | | | Package Weight | 1.4 lb | | Box Dimensions (LxWxH) | 10.6 x 5.6 x 4.0" |
