User Manual for TP-Link HS220 Smart Wi-Fi Light Switch with Dimmer Click to enlarge the picture
Contents of the user manual for the TP-Link HS220 Smart Wi-Fi Light Switch
- Product category: Dimmers & Switches TP-Link
- Brand: TP-Link
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TP-Link Dimmers & Switches
 |
User manual for the TP-Link HS220 Smart Wi-Fi Light Switch contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TP-Link product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TP-Link user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TP-Link product will considerably shorten its lifespan!
|

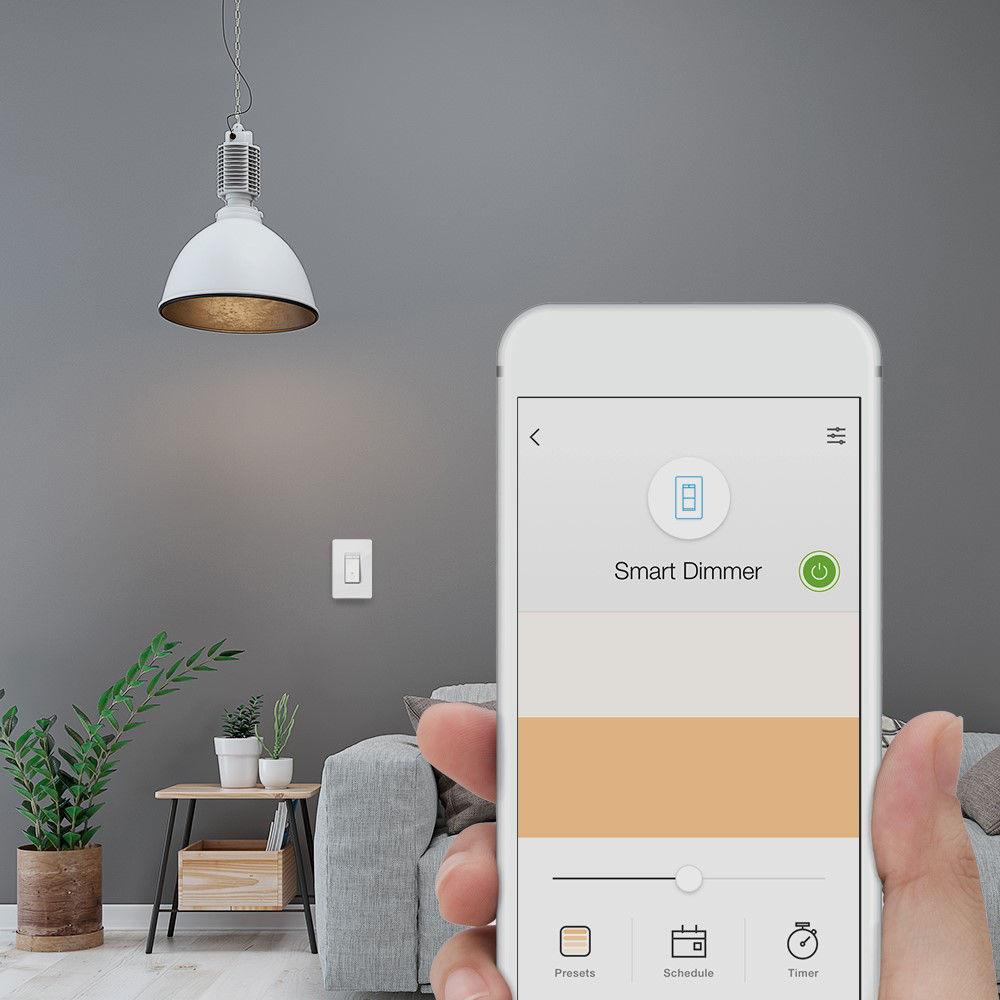

Product description Remotely dim and control your home's lights from your iOS or Android mobile device using the HS220 Smart Wi-Fi Light Switch with Dimmer from TP-Link. The HS220 features built-in 2.4 GHz Wi-Fi connectivity, allowing you to use TP-Link's Kasa mobile app to access your lights from anywhere there is an internet connection. You'll be able to control the brightness of your lights in any room, as well as set the ambiance for any activity. The app also allows you to schedule your lights to go on or off at certain times and set countdowns. It has an away mode that will randomly turn your lights on and off while you are away to make it look like your home is occupied. For convenience, this device is compatible with Alexa and Google Assistant, enabling you to control your lights with voice commands for hands-free use. Additionally, it works with IFTTT to offer even more control. A neutral wire is required for operation. - Installs in standard electrical wall box
- Conforms to standard decorator button size for easy use with common wall plates
- Works with dimmable LED or incandescent bulbs
- No hub required thanks to Wi-Fi connectivity
- Detects sunrise and sunset
- Remotely create schedules, set timers, and countdowns
- Gentle Off feature fades your lights, allowing adequate time to exit a room
- Kasa app provides step-by-step wiring instructions for a straightforward installation
- Works with Alexa, Google Assistant, and IFTTT

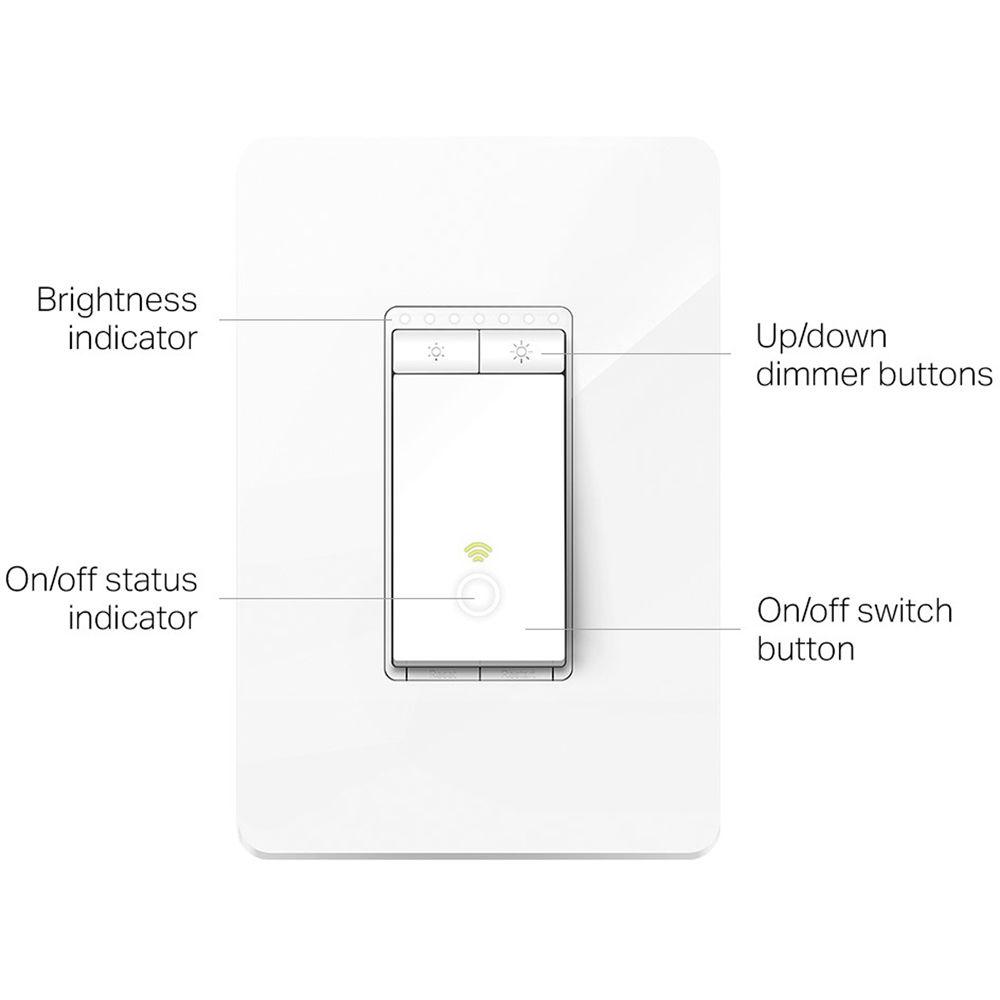

- Buttons include power, brightness increase, brightness decrease, restart, and reset

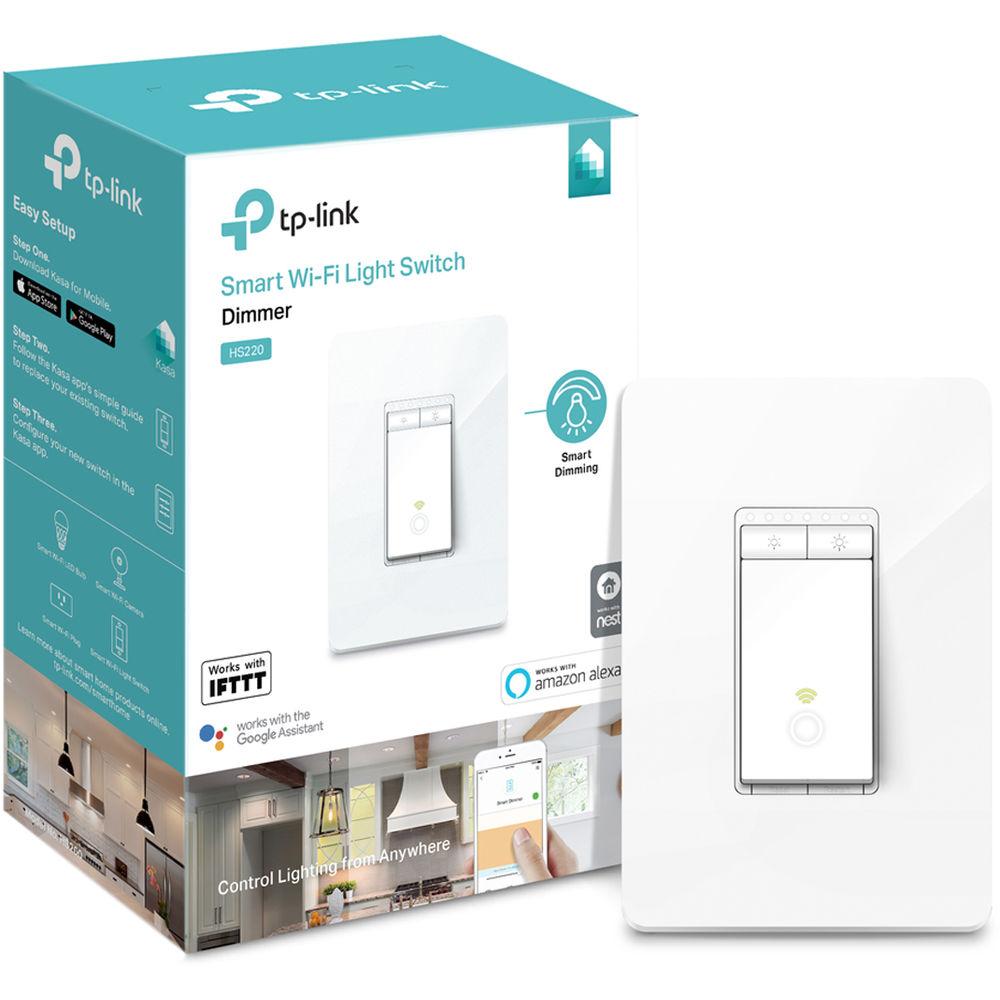

UPC: 845973083724 In the Box TP-Link HS220 Smart Wi-Fi Light Switch with Dimmer Wall Plate 2 x Wire Nuts Wire Label Sheet Limited 2-Year Warranty Wi-Fi Light Switch Comparison Chart PDF 207.9kb More info from TP-Link Table of Contents
|
Upload User Manual
Have you got an user manual for the TP-Link HS220 Smart Wi-Fi Light Switch with Dimmer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTP-Link HS220 Specs | Standards and Protocols | Secured Wi-Fi network | | Wi-Fi Connectivity | 2.4 GHz | | Supported Mobile Devices | Android 4.1 or higher
iOS 9.0 or higher (iPhone only version of Kasa app required for iOS tablets) | | Ports and Connectors | Line (power in) screw terminal
Load (dimmer output) terminal
Neutral wire lead
Ground wire lead | | Buttons | On/Off switch button
Brightness increase button
Brightness decrease button
Restart button
Reset button | | LED Indicators | Wi-Fi LED (red, amber, green)
Switch button LED (white) | | Power Input Requirement | 100-120 VAC, 60 Hz
Neutral wire required | | Maximum Switch Ratings | 150 W LED
300 W incandescent | | Operating Environment | Indoor use only | | Certifications | UL, FCC/IC | | Dimensions (W x D x H) | 3.35 x 1.77 x 5.04" / 85.1 x 44.96 x 128 mm | | Weight | 0.24 lb / 0.109 kg | | | | Package Weight | 0.62 lb | | Box Dimensions (LxWxH) | 6.8 x 4.8 x 2.55" |
