User Manual for TP-Link KC120 Kasa Cam 1080p Network Camera Click to enlarge the picture
Contents of the user manual for the TP-Link KC120 Kasa Cam 1080p Network
- Product category: Wireless Cameras TP-Link
- Brand: TP-Link
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TP-Link Wireless Cameras
 |
User manual for the TP-Link KC120 Kasa Cam 1080p Network contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TP-Link product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TP-Link user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TP-Link product will considerably shorten its lifespan!
|

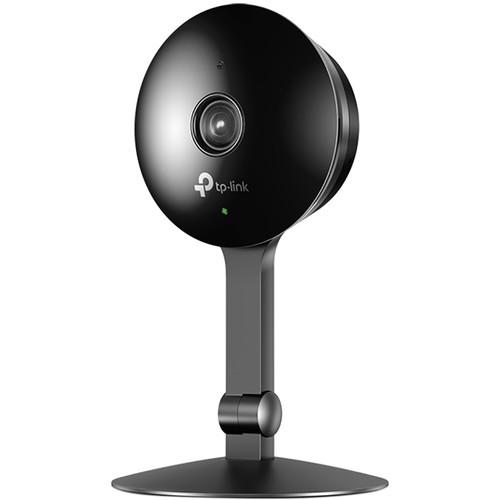

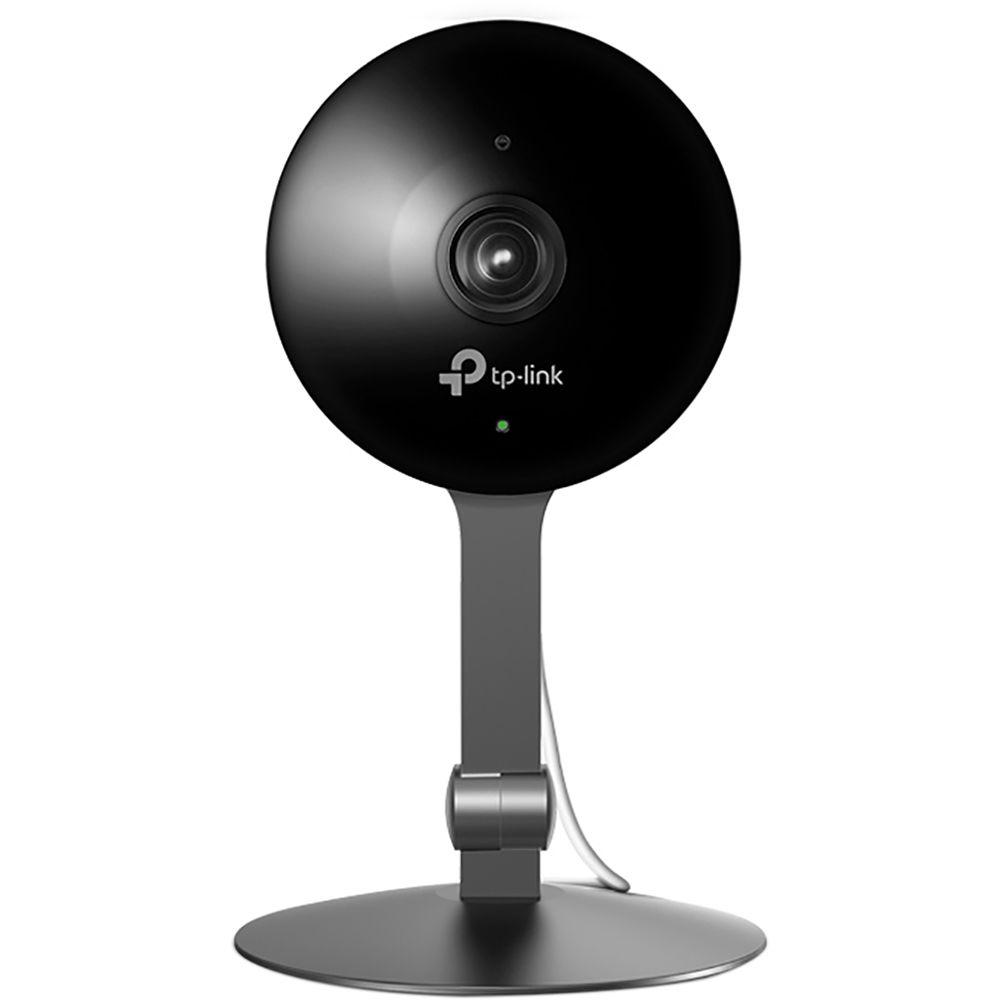

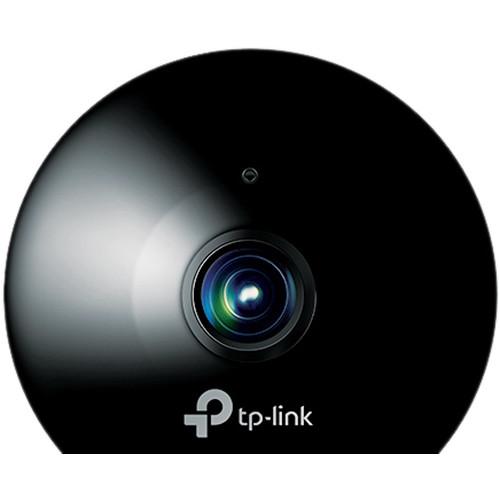

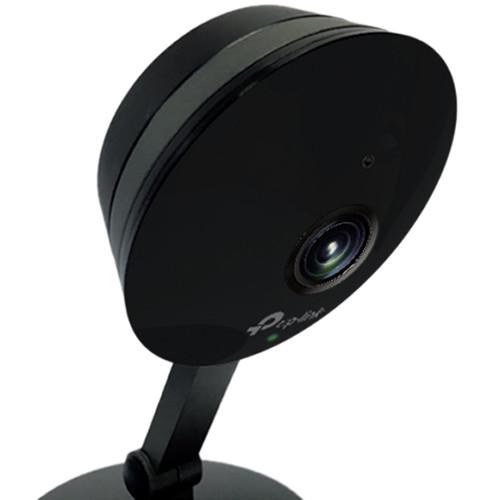

Product description Monitor your home with the KC120 Kasa Cam 1080p Network Camera from TP-Link. The Kasa Cam has a 1/2.7" CMOS image sensor to capture 1920 x 1080 resolution video at up to 30 fps. It's equipped with a night vision range of up to 25'. Its fixed 3.21mm lens has a 130° field of view to ensure coverage over a wide area. Thanks to integrated motion and audio detection, the Kasa Cam records a clip every time it senses motion or detects sound. The built-in microphone and speaker provide two-way audio, enabling you to communicate with individuals on the other end via its free smartphone app. This device is compatible with Alexa. It supports both 2.4 and 5 GHz Wi-Fi connectivity. Note: After registering your Kasa Cam, a 30-day free trial of Kasa Care to access a month of your video history is included. A subscription plan is required to view and download more than 2 days of video history after the free trial. Visit the manufacturer's site for pricing on their subscription plans. - Recordings are protected with AES 128-bit data encryption and SSL/TLS
- Built-in microphone and speaker for two-way audio
- Custom activity zones and notifications
- Free Kasa app for iOS and Android
- Kasa Care stores up to 1GB of recordings to your account for free, enabling you to review and download 2 days worth of videos

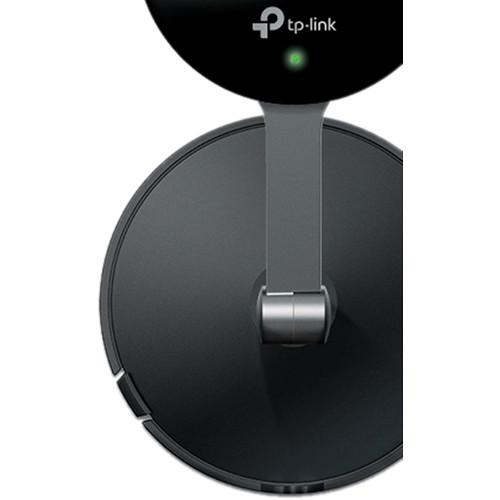

- Includes camera stand with magnetic base, mounting plate, 3 mounting screws, power adapter, and 10' USB cable
UPC: 845973082970 In the Box TP-Link KC120 Kasa Cam 1080p Network Camera Camera Stand with Magnetic Base Mounting Plate 3 x Mounting Screws Power Adapter 10' USB Cable Limited 2-Year Warranty More info from TP-Link Table of Contents
|
Upload User Manual
Have you got an user manual for the TP-Link KC120 Kasa Cam 1080p Network Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTP-Link KC120 Specs | | | Image Sensor | 1/2.7" CMOS | | Resolution | 1920 x 1080 | | Lens Aperture | f/2.0 | | Focal Length | 3.21mm (fixed) | | Field of View | 130° | | Night Vision | Up to 25' (7.6 m) | | | | Video Compression | H.264 | | Frame Rate / Resolution | 1920 x 1080 at up to 30 fps | | Video Streaming | 1080p | | Image Settings | Rotation | | | | Audio Communication | 2-way | | Audio Input | Built-in microphone | | Audio Output | Built-in speaker | | Audio Compression | AAC | | | | Trigger Input | Motion Detection, Audio Detection | | Notification | Message Push | | | | Wireless Data Rate | 11 Mbps (802.11b)
54 Mbps (802.11g)
150 Mbps (802.11n)
433 Mbps (802.11ac)
| | Frequency | 2.4 , 5 GHz (band 1, band 4) | | Wireless Transmit Output Power | High | | Wireless Encryption | 11 Mbps (802.11b)
54 Mbps (802.11g)
150 Mbps (802.11n)
433 Mbps (802.11ac)
| | | | Power Connector | 1 x micro bf | | Button | Push button/reset | | | | Users | 2 relay remote simultaneous users | | Bundled Software | Viewing and recording up to 36 cameras | | | | AC Adapter Input | 100-240 VAC, 60/50 Hz, 0.2 A | | AC Adapter Output | 5 VDC, 1.0 A | | Camera Input | 5 VDC, 1.0 A | | | | Certification | RoHS, FCC, IC | | Operating Temperature & Humidity | 32 to 104°F (0 to 40°C)
10 to 95% RH, non-condensing
| | Storage Temperature & Humidity | -4 to 158°F (-20 to 70°C)
5 to 90% RH, non-condensing
| | Dimensions (H x W x D) | 3.11 x 3.11 x 5.4" (79 x 79 x 136.73 mm) | | | | Package Weight | 1.24 lb | | Box Dimensions (LxWxH) | 7.4 x 5.75 x 4.0" |
