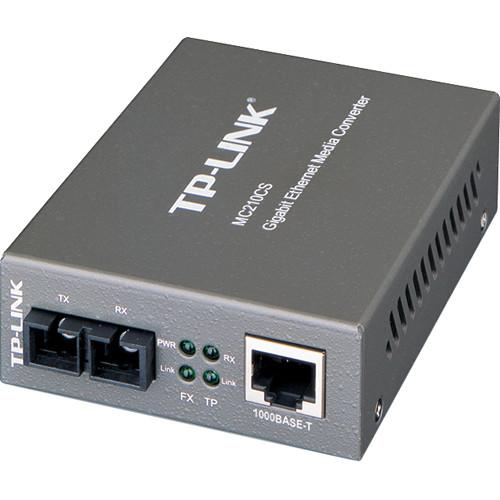

User Manual for TP-Link MC210CS Gigabit Single-Mode Media Converter Click to enlarge the picture
Contents of the user manual for the TP-Link MC210CS Gigabit Single-Mode Media Converter
- Product category: Network Transceivers TP-Link
- Brand: TP-Link
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TP-Link Network Transceivers
|
User manual for the TP-Link MC210CS Gigabit Single-Mode Media Converter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TP-Link product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TP-Link user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TP-Link product will considerably shorten its lifespan!
|
Product description The MC210CS Gigabit Single-Mode Media Converter from TP-Link lets you utilize copper and fiber Gigabit cables in your network. It is designed to convert 1000BASE-LX/LH fiber to 1000Base-T copper media or vice versa. It works at 1310nm wavelength with single-mode fiber cable utilizing the SC-type connector. You can use this convertor as a stand-alone unit or with an optional TP-link chassis. Moreover, it supports longwave (LX) laser specification and extends a single-mode fiber up to 9.3 miles. - Works at 1000 Mbps in Full-Duplex mode for the TX port and FX port
- Supports Auto MDI/MDIX for TX port
- Provides switch configuration of Force /Auto transfer mode for FX port
- Extends fiber distance up to 9.3 miles
- LED indicators let you easily monitor network activity
- External power supply included
UPC: 845973030445 In the Box TP-Link MC210CS Gigabit Single-Mode Media Converter AC/DC Power Adapter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the TP-Link MC210CS Gigabit Single-Mode Media Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTP-Link MC210CS Specs | Ethernet Standards | IEEE 802.3x, IEEE 802.3z, IEEE 802.3ab | | Ports | 2 x SC
1 x RJ45 | | Wavelength | 1310 nm | | Maximum Networking Distance | 49,213' / 15,000 m | | Maximum Data Rate | 1 Gbps | | Mode | Single-Mode | | Power Consumption | 5.5 W | | DC Input Power | 9 VDC at 0.6 A | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 10 to 90% | | Storage Temperature | -40 to 158°F / -40 to 70°C | | Dimensions (L x W x H) | 3.7 x 2.9 x 1.1" / 94.0 x 73.7 x 27.9 mm | | | | Package Weight | 1.05 lb | | Box Dimensions (LxWxH) | 8.031 x 6.535 x 2.598" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 72 owners. Add your rating and experience with the product.
