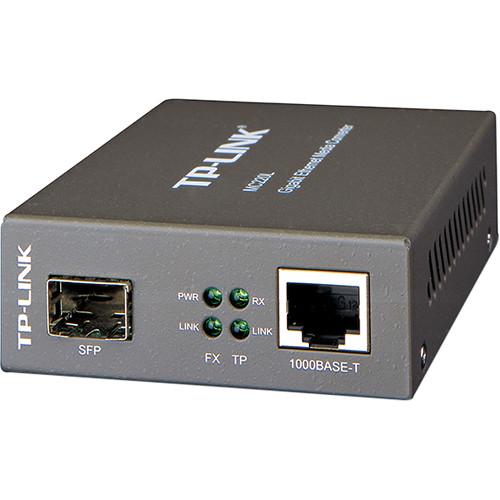

User Manual for TP-Link MC220L Gigabit SFP Media Converter Click to enlarge the picture
Contents of the user manual for the TP-Link MC220L Gigabit SFP Media Converter
- Product category: Network Transceivers TP-Link
- Brand: TP-Link
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TP-Link Network Transceivers
|
User manual for the TP-Link MC220L Gigabit SFP Media Converter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TP-Link product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TP-Link user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TP-Link product will considerably shorten its lifespan!
|
Product description Convert 1000BASE-SX/LX/LH fiber to 1000Base-T copper media or vice versa with the MC220L Gigabit SFP Media Converter from TP-Link. This media converter supports the 802.3ab, 802.3z, and 802.3x network standards and extends fiber distance up to 0.3 miles using 50/125um fiber. In addition to extending the transmission distances up to 0.3 miles, the MC220L Media Converter also supports data transfer rates of up to 1000 Mbps in Full-Duplex mode for both TX and FX ports. Installation is simple as this device comes equipped with a single Gigabit SFP port, a single Gigabit Ethernet port, and an external power adapter. -
- Works at 1000 Mbps in Full-Duplex mode for both TX and FX ports
- Supports auto MDI/MDIX for TX port
- Provides switch configuration of force/auto transfer mode for FX port
- FX port supports hot-swappable
- Extends fiber distance up to 0.34 mi for multi-mode fiber and 6.21 mi for single-mode fiber
- Easy-to-view LED indicators provide status to monitor network activity easily
- External power supply
UPC: 845973030476 In the Box TP-Link MC220L Gigabit SFP Media Converter External Power Adapter Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the TP-Link MC220L Gigabit SFP Media Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTP-Link MC220L Specs | Standards and Protocols | IEEE 802.3ab
IEEE 802.3z
IEEE 802.3x | | Basic Functions | Full Duplex Flow Control (IEEE 802.3x)
Extends fiber distance up to 0.5km using 50/125um fiber | | Ports | 1 x Gigabit SFP port
1 x 1000 M RJ45 port (Auto MDI/MDIX) | | Wavelength | Depends on the used SFP module | | Network Media | 1000BASE-FX
Multi-mode/Single-mode SFP module
1000BASE-X
Multi-mode/Single-mode SFP module
1000BASE-T
UTP category 5, 5e, 6 cable (maxium 328' / 100 m)
| | LED Indicators | PWR, LINK, RX | | Power Supply | External power adapter | | Max Power Consumption | 3.95 W | | Certifications | FCC, CE | | Temperature & Humidity | Operating Temperature: 0 to 40°F / 32 to 104°C Storage Temperature: -40 to 70°F / -40 to 158°C Operating Humidity: 10 to 90% non-condensing Storage Humidity: 5 to 90% non-condensing | | Dimensions | 3.7 x 2.9 x 1.1" / 94.5 x 73.0 x 27.0 mm | | Weight | Not specified by manufacturer | | | | Package Weight | 0.95 lb | | Box Dimensions (LxWxH) | 8.031 x 6.535 x 2.284" |
