User Manual for TP-Link N-Type Male to RP-SMA Female Antenna Cable Click to enlarge the picture
Contents of the user manual for the TP-Link N-Type Male to RP-SMA Female
- Product category: Networking Accessories TP-Link
- Brand: TP-Link
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TP-Link Networking Accessories
|
User manual for the TP-Link N-Type Male to RP-SMA Female contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TP-Link product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TP-Link user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TP-Link product will considerably shorten its lifespan!
|

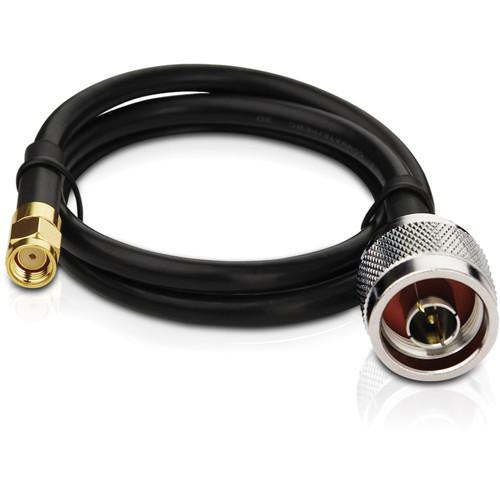

Product description The N-Type Male to RP-SMA Female Antenna Cable from TP-Link allows your wireless router with an RP-SMA port to connect with an N-type outdoor antenna. The cable comes built with an RP-SMA female port on one end, and an N-type connector on the other. TP-Link has designed this 1.6' cable to support 5 GHz and 2.4 GHz applications. Furthermore, it can endure the outdoor elements with a weatherproof jacket. - Compliant with 2.4 GHz 802.11b/g/n and 5 GHz 802.11n/a
- Weatherproof cable designed for outdoor exposure
UPC: 845973052249 In the Box TP-Link N-Type Male to RP-SMA Female Antenna Cable (1.6') Limited 1-Year Warranty More info from TP-Link aqarrqyzxwwcytdxdwesxruryzztf Table of Contents
|
Upload User Manual
Have you got an user manual for the TP-Link N-Type Male to RP-SMA Female Antenna Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTP-Link TL-ANT200PT Specs | Cable Type | LMR-200 | | Connector Type | N-Type Male to RP-SMA Female | | Frequency | DC ~ 6 GHz | | Impedance | 50Ω nominal | | Insertion Loss | 2 GHz 0.7 dB
2.5 GHz 0.8 dB
3 GHz 1.0 dB
5 GHz 1.2 dB
5.5 GHz 1.3 dB
6.0 GHz 1.4 dB | | Maximum VSWR | 0~3 GHz: 1.5:1
3~6 GHz: 1.6:1 | | Operating Temperature | 14 to 140° F (-10 to 60 ° C) | | Storage Temperature | -40 to 176° F (-40 to 80° C) | | Cable Length | 1.6' (0.5 m) | | | | Package Weight | 0.25 lb | | Box Dimensions (LxWxH) | 7.0 x 3.8 x 0.4" |
