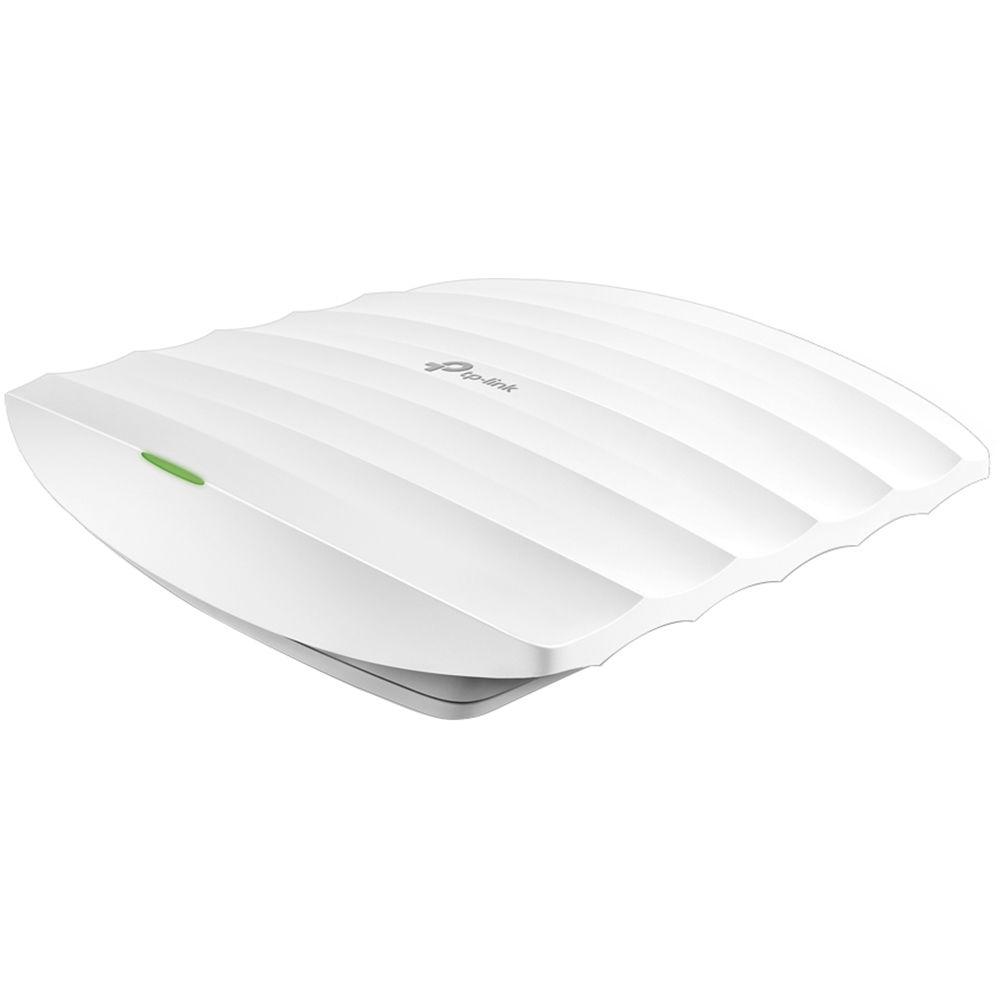

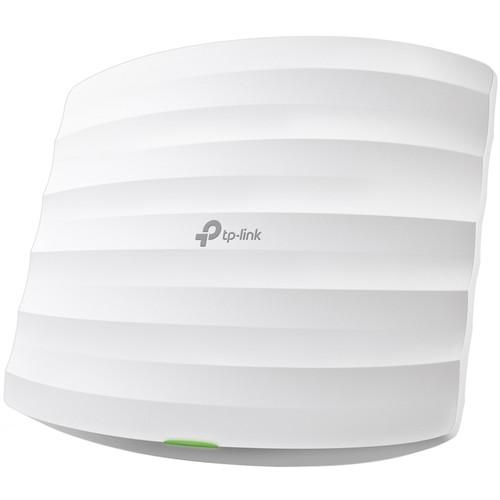

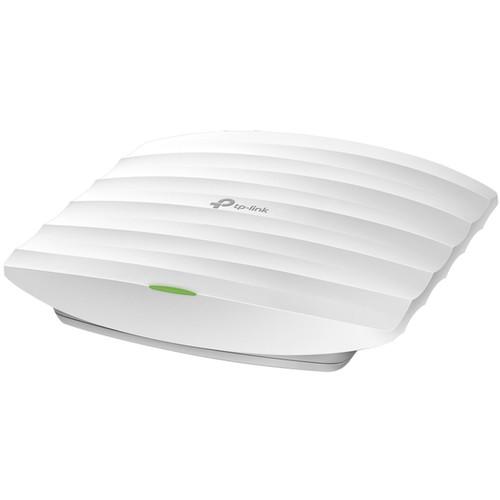

User Manual for TP-Link Omada 300 Mb s Ceiling Mount Wi-Fi Access Point Click to enlarge the picture
Contents of the user manual for the TP-Link Omada 300 Mb s Ceiling
- Product category: Wireless Access Points TP-Link
- Brand: TP-Link
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TP-Link Wireless Access Points
 |
User manual for the TP-Link Omada 300 Mb s Ceiling contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TP-Link product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TP-Link user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TP-Link product will considerably shorten its lifespan!
|

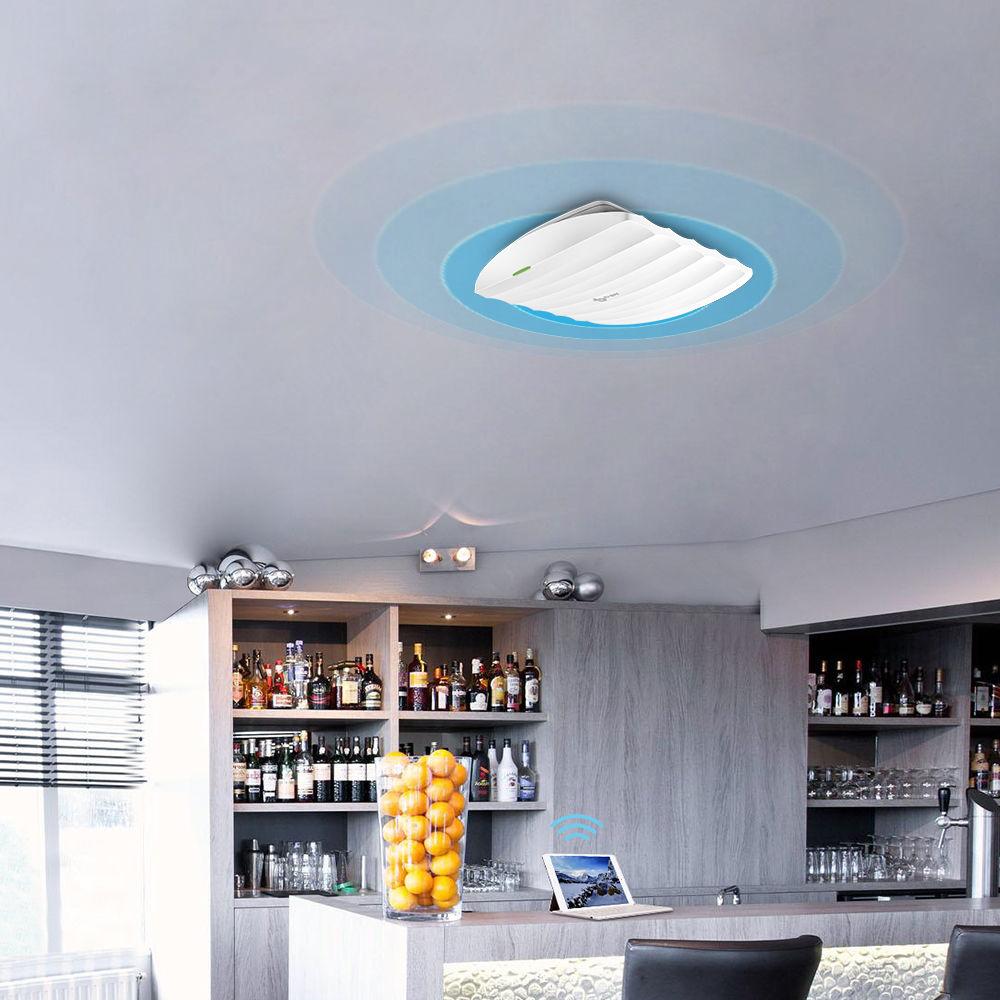

Product description Offer Wi-Fi access to your customers, clients, or colleagues with the 300 Mb/s Ceiling Mount Wi-Fi Access Point from TP-Link. Supporting the Wi-Fi 4 (802.11n) standard and boasting data transmission rates up to 300 Mb/s, the Omada Wi-Fi Access Point is equipped with a 10/100 Mb/s PoE (Power over Ethernet) port, handy for connecting and powering the device with a single Ethernet cable. The Omada access point supports up to eight SSIDs, while a captive portal lets you authenticate Wi-Fi guests. Load balancing and rate limiting help to ensure smooth performance while restricting the bandwidth of each client. Support for WPA/WPA2-Enterprise and 802.11x help to enhance the security of the wireless network. You can manage and configure multiple Omada access points at once with the included controller software. The Omada access point is mountable to ceilings or walls and comes with its own mounting kit. - Ideal for use in hotels, caf
|
Upload User Manual
Have you got an user manual for the TP-Link Omada 300 Mb s Ceiling Mount Wi-Fi Access Point in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTP-Link EAP115 V4 Specs | | | Wireless Frequency Bands | 2.4 GHz | | Number of Antennas | 2 | | WLAN Mode | Wi-Fi 4 (802.11n) | | Sensitivity | -71 to -96 dBm | | Antenna Gain | 4 dBi | | Transmit Power | 19 to 21 dBm | | Supported Protocols | MAC Filtering | | Antenna Placement | Internal | | | | Ports | 1 x 10/100 Mb/s Ethernet (RJ45) PoE | | | | Wireless Security | WEP 64, WEP 128, WPA, WPA-PSK, WPA2, WPA2-PSK | | | | Operation Modes | Access Point | | Max SSIDs Supported | 8 | | Throughput | 2.4 GHz: 300 Mb/s | | | | DC Input Power | 9 VDC at 0.6 A | | Power Consumption | 2.8 W | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | -40 to 70°F / -40 to 21°C | | Operating Humidity | 10 to 90% | | Storage Humidity | 5 to 90% | | | | Certifications | CE, FCC, RoHS, as per Manufacturer | | Dimensions | 7.5 x 6.8 x 1.2" / 19.05 x 17.27 x 3.05 cm | | | | Package Weight | 1.345 lb | | Box Dimensions (LxWxH) | 10.6 x 9.7 x 2.8" |
