User Manual for TP-Link Power Over Ethernet Adapter Kit Click to enlarge the picture
Contents of the user manual for the TP-Link Power Over Ethernet Adapter Kit
- Product category: Power over Ethernet (PoE) TP-Link
- Brand: TP-Link
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TP-Link Power over Ethernet (PoE)
 |
User manual for the TP-Link Power Over Ethernet Adapter Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TP-Link product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TP-Link user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TP-Link product will considerably shorten its lifespan!
|

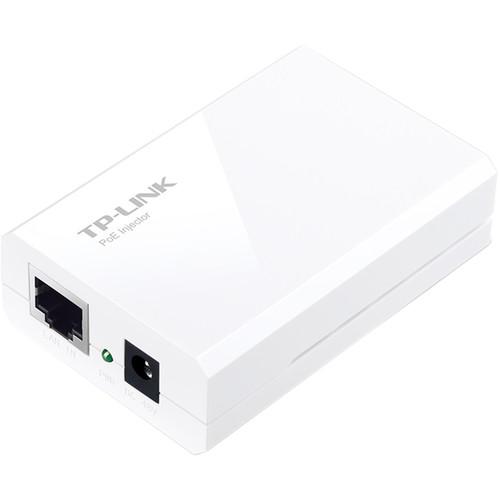

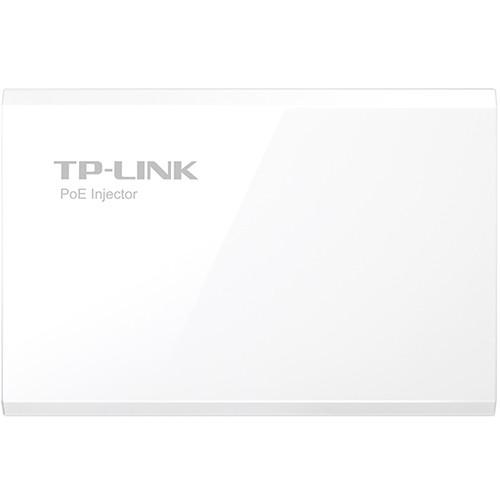

Product description Extend power and data over a single Ethernet cable with the Power Over Ethernet Adapter Kit from TP-Link. This kit contains a PoE injector to inject power and data into a single Ethernet cable, and a PoE splitter, which splits the power and data into two separate cables at the end of the cable run. This two-piece kit allows IP cameras and other networked devices to be placed in a convenient spot, regardless of the distance to the nearest outlet. The injector accepts 48VDC power, while the splitter outputs 5, 9, or 12VDC power via a switch. The four RJ45 ports (two on each unit) accept Cat5 UTP cable and provide up to 10/100 Mbps speeds. - PoE injector provides power and data over a single Ethernet cable
- PoE splitter splits the data and power at the end of the cable run
- Provides speeds up to 10/100 Mbps via Cat5 UTP cable
- Plug-and-play functionality for easy setup
UPC: 845973030551 In the Box TP-Link Power Over Ethernet Adapter Kit 48VDC Power Adapter Female to Female Power Cord RJ45 Cat5 UTP Ethernet Cable Limited 2-Year Warranty Brochure PDF 835.7kbazburcybscxxyzvdatqrasxxtcy More info from TP-Link Table of Contents
|
Upload User Manual
Have you got an user manual for the TP-Link Power Over Ethernet Adapter Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTP-Link TL-POE200 Specs | Cable Compatibility | RJ45 Cat5 UTP cable | | Standards | IEEE 802.3, IEEE 802.3u, CSMA/CD, TCP/IP | | Power | PoE Injector:
Input Power: 100-240 VAC
48 V @ 0.5 A switching PSU
PoE Splitter:
Ouput Voltage: 5, 9, 12 VDC
Output Power: 5 V @ 2 A, 9 V @ 1 A, 12 V @ 1 A | | Ports | PoE Injector:
1 x 10/100 Mbps auto-negotiation RJ45 LAN port
1 x 10/100 Mbps auto-negotiation RJ45 PoE port
1 x 48 VDC power input port
PoE Splitter:
1 x 10/100 Mbps auto-negotiation RJ45 LAN port
1 x 10/100 Mbps auto-negotiation RJ45 PoE port
1 x 5, 9, 12 VDC power output port | | LED Indicators | Power (one on each unit) | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | -40 to 158°F (-40 to 70°C) | | Humidity (Non-Condensing) | Operating: 10 to 90%
Storage: 5 to 90% | | System Requirements | Microsoft Windows 98 SE, NT, 2000, XP, Vista, 7
Mac OS
NetWare
UNIX
Linux | | Dimensions | 3.2 x 2.1 x 0.9" (80.8 x 54 x 24 mm) | | | | Package Weight | 0.95 lb | | Box Dimensions (LxWxH) | 7.8 x 6.5 x 2.5" |
