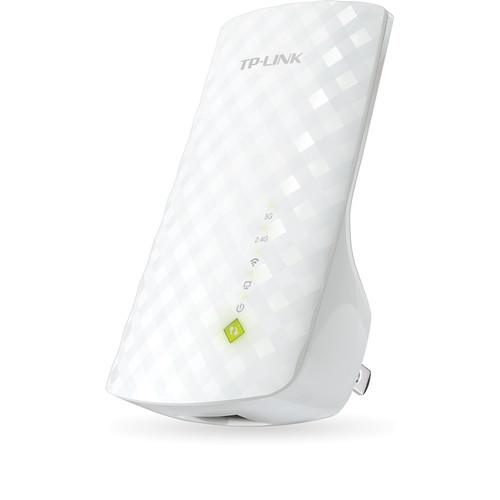

User Manual for TP-Link RE200 Wireless-AC750 Range Extender Click to enlarge the picture
Contents of the user manual for the TP-Link RE200 Wireless-AC750 Range Extender
- Product category: Wireless Range Extenders TP-Link
- Brand: TP-Link
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TP-Link Wireless Range Extenders
|
User manual for the TP-Link RE200 Wireless-AC750 Range Extender contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TP-Link product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TP-Link user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TP-Link product will considerably shorten its lifespan!
|
Product description The RE200 Wireless-AC750 Range Extender from TP-link extends the Wi-Fi signals from an 802.11b/g/n or an 802.11ac router so you can connect your Wi-Fi enabled devices to the network in previously unreachable places. This extender operates in the 2.4- and 5-GHz bands at 300 Mbps and 433 Mbps, respectively. It also features a high speed mode that limits device-to-extender connections and extender-to-router connections to different bands to help offer maximum performance.
You can quickly and easily set up the AC750 Wi-Fi Range extender by plugging it into a wall socket and pressing the Range Extender button. For wireless security, this extender can support your router's encryption standards of 64/128-bit WEP or WPA-PSK/WPA2-PSK so your network stays safe. Furthermore, it is equipped with an RJ-45 10/100 Ethernet port to let you use this extender as a wireless adapter to turn a wired device into a wireless one. -
- Extend existing wireless coverage to eliminate dead zones
- Compatible with 802.11b/g/n and 802.11ac Wi-Fi devices
- 300 Mbps 2.4 GHz wireless speed + 433 Mbps 5 GHz wireless speed
- High speed mode limits device-to-extender connection and extender-to-router connection to different bands (2.4 GHz or 5 GHz) for maximum performance
- Miniature size and wall-mounted design make it easy to deploy and move flexibly
- Easily expand wireless coverage at a push of Range Extender button
- Smart Signal Indicator Light helps to find the right location to place
- Profile function remembers previously connected wireless networks
- Supports domain name-based login for advanced management
UPC: 845973071875 In the Box TP-Link RE200 Wireless-AC750 Range Extender RJ-45 Ethernet Cable Resource CD Limited 2-Year Warranty Manual PDF 1.1mbwvdtseftwffbxtqutcatyfvxy More info from TP-Link Table of Contents
|
Upload User Manual
Have you got an user manual for the TP-Link RE200 Wireless-AC750 Range Extender in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTP-Link AC750 Specs | Wireless Standards | IEEE 802.11ac
IEEE 802.11n
IEEE 802.11g
IEEE 802.11b | | Interface | 1 x RJ-45 10/100 Mbps Ethernet port | | Button | Range Extender
Reset | | Antenna | Internal | | Power Consumption | Approximately 6.5 W | | Frequency | 2.4 GHz
5 GHz | | Signal Rate | 5 GHz: Up to 433 Mbps
2.4 GHz: Up to 300 Mbps | | EIRP | < 20 dBm | | Receive Sensitivity | 2.4G
270 M: -70 dBm @10% PER
130 M: -70 dBm @10% PER
108 M: -73 dBm @10% PER
54 M: -75 dBm @10% PER
11 M: -86 dBm @8% PER
6 M: -92 dBm @10% PER
1 M: -94 dBm @8% PER
5G
390 M: -60 dBm @10% PER
29.3 M: -83 dBm @10% PER
180 M: -64 dBm @10% PER
13.5 M: -87 dBm @10% PER
78 M: -68 dBm @10% PER
6.5 M: -90 dBm @10% PER
54 M: -75 dBm @10% PER
6 M：-90 dBm @10% PER | | Wireless Modes | Range Extender | | Wireless Functions | WMM (Wi-Fi Multimedia)
Wireless Statistic
Domain Login Function | | Wireless Security | 64/128-bit WEP
WPA-PSK / WPA2-PSK | | Power | 100-240 V | | Certification | CE
FCC
RoHS | | System Requirements | Microsoft Windows 8, 7, Vista, XP, 2000, NT, and 98 SE
Mac OS
NetWare
UNIX or Linux. | | Environmental | Operating Temperature: 32 to 104°F / 0 to 40°C
Storage Temperature: -40 to 158°F / -40 to 70°C
Operating Humidity: 10 to 90% non-condensing
Storage Humidity: 5 to 90% non-condensing | | Dimensions (WxDxH) | 4.3 x 2.6 x 3.0" / 109.2 x 66.0 x 76.2 mm | | | | Package Weight | 0.6 lb | | Box Dimensions (LxWxH) | 6.2 x 4.0 x 3.2" |
