User Manual for TP-Link RE270K AC750 Wi-Fi Range Extender with Smart Plug Click to enlarge the picture
Contents of the user manual for the TP-Link RE270K AC750 Wi-Fi Range Extender
- Product category: Wireless Range Extenders TP-Link
- Brand: TP-Link
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TP-Link Wireless Range Extenders
 |
User manual for the TP-Link RE270K AC750 Wi-Fi Range Extender contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TP-Link product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TP-Link user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TP-Link product will considerably shorten its lifespan!
|

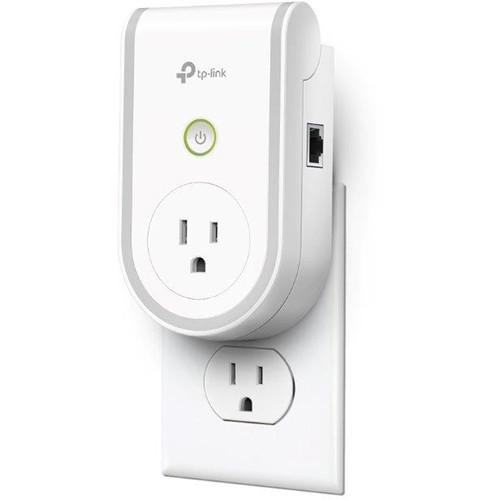

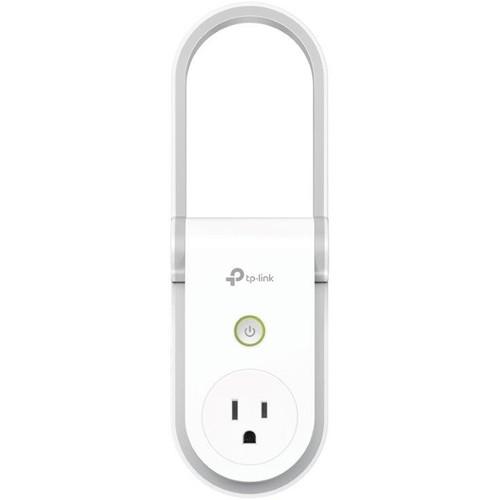

Product description Get Wi-Fi where you need it most and control a device remotely with the RE270K AC750 Wi-Fi Range Extender with Smart Plug from TP-Link. This range extender supports 802.11b/g/n/ac networks with dual-band connectivity so you'll be able to connect to both the 2.4 and 5 GHz bands. With a combined bandwidth of 750 Mbps (300 Mbps on the 2.4 GHz band and 433 Mbps on the 5 GHz band), you can optimize your connections for a better experience. The built-in Gigabit Ethernet port lets you connect a wired device to your network.
The built-in smart plug allows you to control a device in your home from anywhere in the world. Connect to and control the device from the free Kasa app for iOS and Android devices. Once connected, you can set a schedule for your devices to follow, or use the away mode, which will automatically turn your devices on and off, giving your home a lived-in look. The smart plug works with Amazon Alexa and Google Assistant for easy-to-use voice control of plugged-in devices. - Eliminates Wi-Fi dead-zones and supports a combined speed of 750 Mbps
- Dual-band connectivity for both 2.4 and 5 GHz bands
- Gigabit Ethernet port for connecting wired devices such as smart TVs and game consoles
- LED indicators that show network, power, and smart plug status
- Control your connected device remotely using the free Kasa app for iOS and Android devices
- Wi-Fi connectivity allows a direct connection and removes the need for additional hardware
- Set schedules to automatically turn on and off connected device
- External, flip-up antenna
- Works with any Wi-Fi router or wireless access point
- Alexa and Google Assistant Compatibility
- Alexa and Google Assistant are digital ecosystems that enable you to interact and control compatible devices with your voice. Additionally, app control lets you use your smartphone to access functions on the go.
UPC: 845973097646 In the Box TP-Link RE270K AC750 Wi-Fi Range Extender with Smart Plug RJ45 Cable Limited 2-Year Warranty More info from TP-Link vybrbzwqtbvbbexrew Table of Contents
|
Upload User Manual
Have you got an user manual for the TP-Link RE270K AC750 Wi-Fi Range Extender with Smart Plug in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTP-Link RE270K Specs | Output Voltage | 16 A, maximum load | | Input Voltage | 100-240 VAC, 50/60 Hz | | Plug Type | US | | Network Standards | IEEE 802.11b/g/n/ac | | Ethernet | RJ45 10/100/1000M Gigabit Ethernet port | | Button | Socket on/off, LED on/off, reset | | Maximum Power Consumption | Approximately 6.5 W | | Antenna | 2 x external | | LED Indicators | Status, power, 2.4 GHz, 5 GHz, Smart Plug LED | | Wi-Fi Speed | 5 GHz: Up to 433 Mbps
2.4 GHz: Up to 300 Mpbs | | Transmit Power | 2.4 GHz: <23 dbm
5 GHz: <20 dBm | | Output Power | For PoE Splitter: 15 A maximum load | | Wireless Mode | Range extender | | Wireless Functions | WMM (Wi-Fi Multimedia)
Concurrent mode boost both 2.4/5 GHz Wi-Fi band
Access control
LED control
Domain login Function | | Wireless Security | 64/128-bit WEP, WPA-PSK, WPA2-PSK | | Mobile App Support | Kasa app | | OS Compatibility | iOS 9 and later
Android 4.1 and later | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Operating Humidity | 10 to 90% non-condensing | | Storage Temperature | -40 to 158°F (-40 to 70°C) | | Storage Humidity | 5 to 90% non-condensing | | Certifications | CE, UL, FCC, IC, RoHS | | Dimensions | 2.8 x 2.5 x 4.9" (70 x 64 x 125 mm) | | Weight | 0.5 lb (0.24 kg) | | | | Package Weight | 1.05 lb | | Box Dimensions (LxWxH) | 6.9 x 4.2 x 3.9" |
