User Manual for TP-Link RE350K AC1200 Wi-Fi Range Extender Click to enlarge the picture
Contents of the user manual for the TP-Link RE350K AC1200 Wi-Fi Range Extender
- Product category: Wireless Range Extenders TP-Link
- Brand: TP-Link
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TP-Link Wireless Range Extenders
 |
User manual for the TP-Link RE350K AC1200 Wi-Fi Range Extender contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TP-Link product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TP-Link user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TP-Link product will considerably shorten its lifespan!
|
Product description - How to Set Up a Wireless AC Wall-Plug Wi-Fi Range Extender

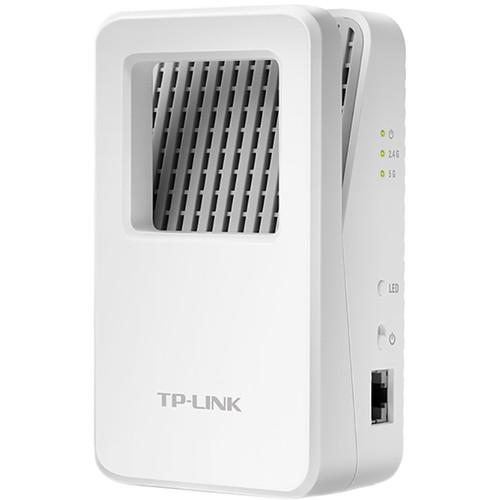

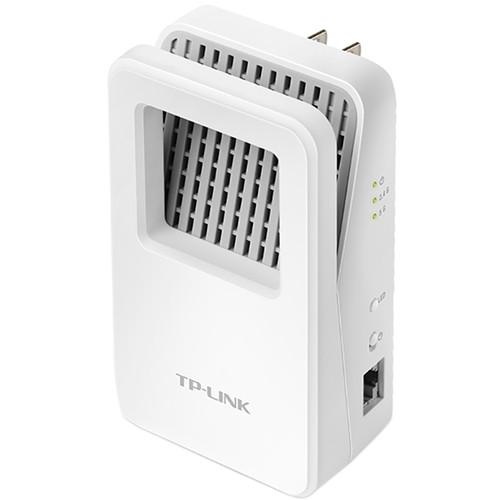

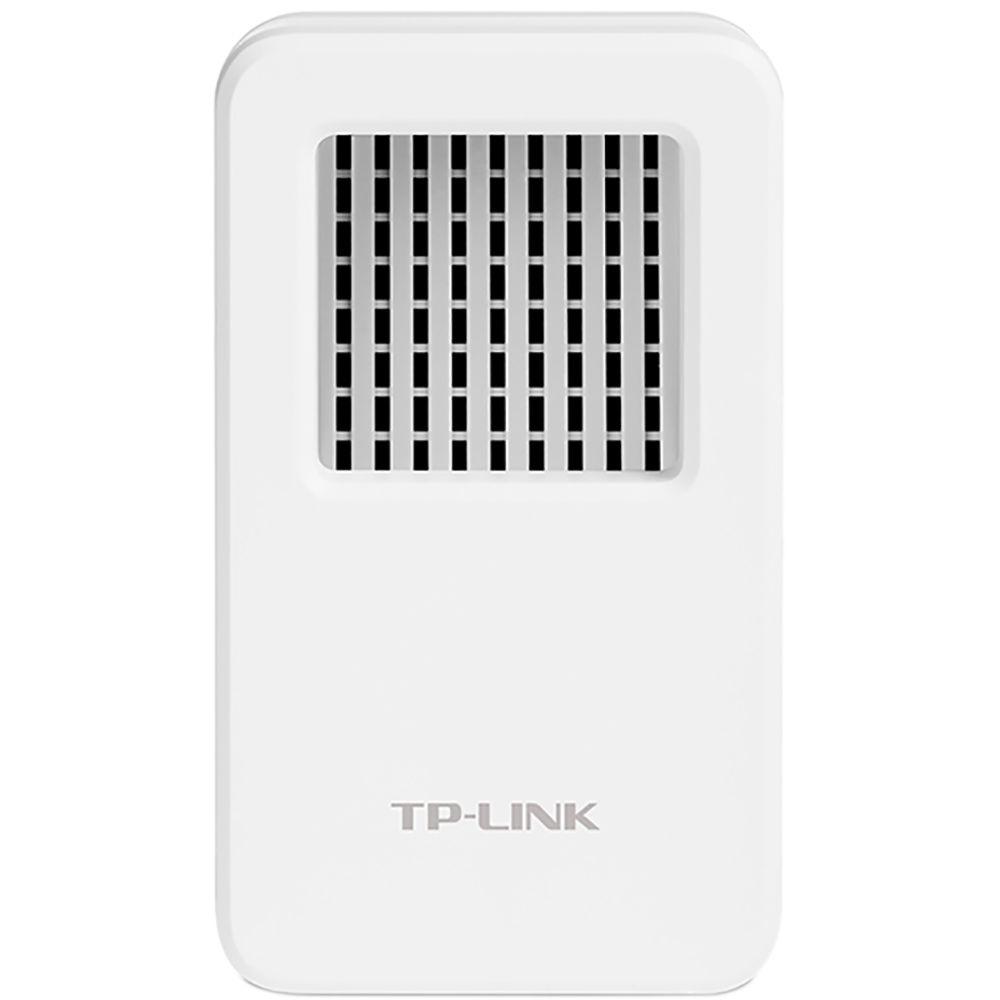

Operating on both the 2.4 GHz and 5 GHz frequencies, the RE350K AC1200 Wi-Fi Range Extender from TP-Link is capable of supporting data transfer rates of up to 1167 Mbps. In addition to dual-band connectivity, this range extender supports the 802.11a/b/g/n/ac Wi-Fi network standards allowing nearly any Wi-Fi enabled device to connect to the network. Once plugged in, the RE350K extends an existing wireless network at a distance of up to 10,000 square feet. For Ethernet enabled devices TP-Link has built a Gigabit Ethernet port right into the side of this range extender providing a wired network connection to devices like game consoles, smart TVs, computers, and more. The setup and configuration process has also been greatly simplified thanks to the Kasa app making it easy to monitor and make changes to your network right from your smartphone. - Control Your Home with Kasa
- The Kasa app allows you to add, configure, monitor, and control your range extender with a convenient tap on your smartphone's touchscreen. The Kasa app guides you through a simple, step-by-step process. You can setup and configure your network using your phone.
- Find the Ideal Location
- The Kasa app provides visual indicators that help you find the perfect location for your range extender.
- Network Overview
- Easily monitor your network's status and understand how it's being used.
- Expand any Wi-Fi Network by up to 10,000 sq. ft.
- Eliminate spotty coverage and dead zones. The AC1200 Wi-Fi Range Extender forms a wireless connection to your router and brings a Wi-Fi signal into areas that your router cannot reach. It also reduces signal interference to ensure reliable coverage throughout your home or office.
- Experience Next Generation AC Wi-Fi Speed
- Powered by wireless AC technology, the RE350K delivers ultra-fast Wi-Fi speeds up to 867 Mbps on the 5 GHz band and 300 Mbps on the 2.4 GHz band. Simple tasks like sending emails or web browsing can be handled by the 2.4 GHz band while bandwidth-intensive tasks like online gaming and HD streaming can take place on the 5 GHz band.
- Compact Design

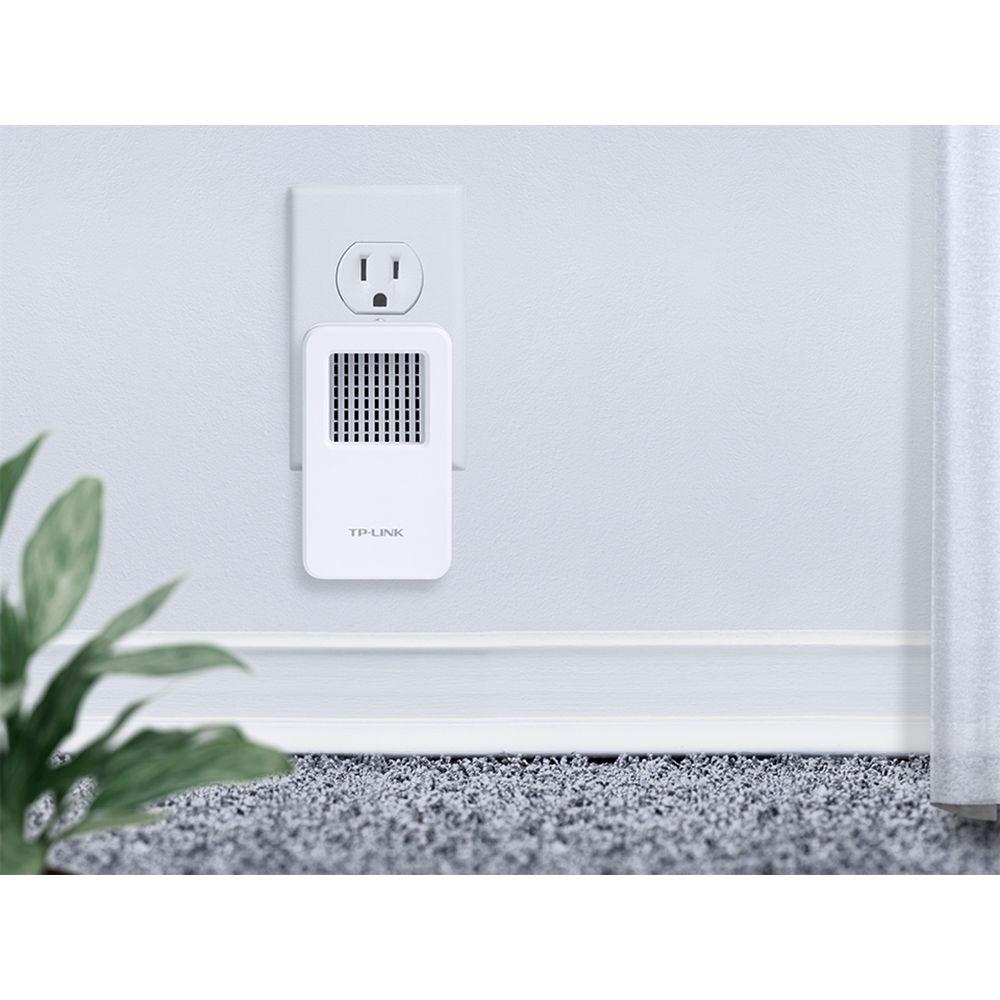

- The RE350K has a compact design that allows it to plug into any power outlet. There are no unsightly power cords and the range extender connects directly to a wall outlet or power strip.
- Innovative Antenna Design
- Powerful, precision-calibrated antennas are designed to rest neatly inside the range extender's frame while providing reliable, expansive Wi-Fi coverage.
- Take Control of Flashing Lights
- You can set the range extender to keep a lower profile by switching off the range extender's lights.
- Wired Connections at Gigabit Speeds
- The Gigabit Ethernet port lets you connect wired devices, such as a Blu-ray players, game consoles, DVRs, or smart TVs to your Wi-Fi.
UPC: 845973095604 In the Box TP-Link RE350K AC1200 Wi-Fi Range Extender RJ45 Ethernet Cable Limited 1-Year Warranty Guides & Manuals More info from TP-Link Table of Contents
|
Upload User Manual
Have you got an user manual for the TP-Link RE350K AC1200 Wi-Fi Range Extender in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the TP-Link RE350K AC1200 Wi-Fi Range Extender can be downloaded in PDF format at the link stated below.
Technical parametersTP-Link RE350K Specs | | | Plug Type | US | | Standards and Protocols | IEEE 802.11ac
IEEE 802.11n
IEEE 802.11g
IEEE 802.11a
IEEE 802.11b | | Interface | 1 x 10/100/1000 Ethernet port (RJ45) | | Button | AppConfig Button, Reset Button, LED button, Power Switch | | Power Consumption | 10.8 W (max power consumption) | | Antennas | 2 x internal | | | | Frequency | 2.4 GHz & 5 GHz (11ac) | | Signal Rate | 5 GHz: Up to 867 Mbps 2.4 GHz: Up to 300 Mbps | | Reception Sensitivity | 5 GHz
11a 6 Mbps: -92dBm@10% PER
11a 54 Mbps: -74dBm@10% PER
11ac HT20 mcs8: -67dBm@10% PER
11ac HT40 mcs9: -62dBm@10% PER
11ac HT80 mcs9: -59dBm@10% PER
2.4 GHz
11g 54M: -77dBm@10% PER
11n HT20 mcs7: -74dBm@10% PER
11n HT40 mcs7: -71dBm@10% PER | | Wireless Modes | Range extender | | Wireless Functions | Wireless Statistic
Concurrent Mode boost both 2.4 G/5 G Wi-Fi band
High Speed Mode for great speed for HD Gaming and video
Access Control
LED Control
Domain Login Function | | Wireless Security | 64/128-bit WEP / WPA-PSK / WPA2-PSK | | Transmission Power | <20 dBm (2.4 GHz) <23 dBm (5 GHz) | | | | Certifications | FCC, UL, RoHS | | System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7/8, Mac OS, NetWare, UNIX or Linux | | Temperature & Humidity | Operating Temperature: 32 to 104°F / 0 to 30°C
Storage Temperature: -40 to 158°F / -40 to 70°C
Operating Humidity: 10 to 90% non-condensing
Storage Humidity: 5 to 90% non-condensing | | | | Dimensions | 7.9 x 4.9 x 3.4" / 202 x 125 x 86 mm | | Weight | Not specified by manufacturer | | | | Package Weight | 1.15 lb | | Box Dimensions (LxWxH) | 8.0 x 5.0 x 3.5" |
